2 PCS Liitokala Original 3.7 V battery INR18650 30Q 3000 mAh 18650 powered by rechargeable lithium + Lii-202 | Электроника

---

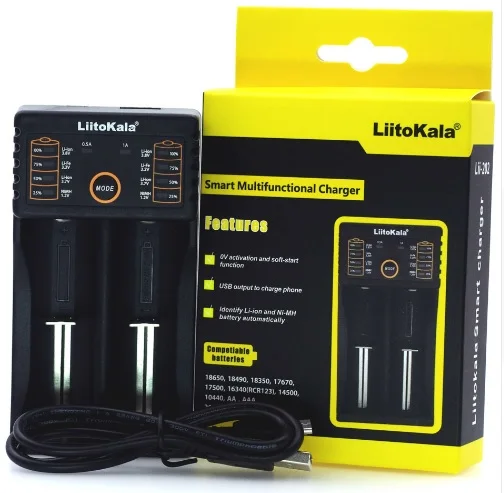

Send a list: 2PCS Liitokala 3000mah Battery and Lii-202 charger +usb line + box

Battery Name: Liitokala Battery type: 30Q Battery Specifications: 18 * 65 (MM) Battery Material: Lithium-ion (Li-ion Lithium ion battery) Battery Voltage: 3.6 V Internal battery Resistance: 26mΩ or less Nominal Capacity: 3000 mAh Current Battery: 15a continuous discharge, instantaneous current can place 25-30a (ANN) Battery characteristics: Discharge current, high capacity. Battery Weight: 45g Types of application: Electric tools, aircraft model, car balance, car shilly, electric bikes, communications, medical battery and other military. Loading and unloading criteria: more than 500-1000 times, cut-off load voltage 4.2 V, 2.5 v voltage cut-off discharge. Liitokala Lii-202: This rate is only for cylindrical loading of lithium ions (3.7 V, 3.8 v), Ni-MH/ni-Cd, LiFePO4 (Li-Ion). Please read these instructions before using; Pay attention to the recommended charging current, never choose inadequate charging current When charging with 5 V USB AC adapter, 2a-current DC adapter is recommended The Charger Ma stay warm during work for a long period of time, handle carefully! Please cut the electricity and remove the battery from the charger when the load is complete. Inner condition only!! The display of data from the loader is for reference only; Please consult the professional test instruments if you need accurate data 2. Feature and Specification:
Micro USB DC 5 V input, two independent slots and loading channels with built-in micro management system to ensure high efficiency Two current loading options (0.5 A/1.0 a) Four LED indicators shows the charging status (25%, 50%, 75%, 100%) and also shows the battery type when inserting the battery (1.2 v Ni-MH, 3.2 v Li-Fe, 3.7 v Li-ion, 3.85 v lithium ion) Automatically identify Li-ion and Ni-MH; But, you need to adjust the load mode for LiFePO4 and 3.85 V Li-Ion battery It can activate 0 v but the battery charger does not rechargeable load 1.65 V ~ 1.85 v battery types. Buit with over-charging protection, discharge protection and polar reverse protection. Plus, he can identify broken battery. Charing mode: instantaneous voltage and current. DC input charging: working power supply at 5v-2a (Micro plug) Standard Automatic 5 V/1000 mAh USB output port 3. Select button, LED and function.
Mode button: Press the button to select the battery type when inserting into a battery. It starts charging the battery after fixing the battery type (please note that it automatically identify Li-ion and Ni-MH, do not need to manually select) Press the button and hold for 2 seconds whenever after the power connection, it can change the load current between 0.5 a and 1.0 a;
LED indicator Connect the charger to power, all LED indicators will be turned on, when no insertion of the battery after 5 seconds, LED indicators will be turned off except the Indicor 0.5 a current When the battery is inserted into the charger, 4 LED indicators will be turned on and 3.7 V flicker LED indicators, then please click the mode button to correct the correct type of battery. It will start charging the battery for 5 seconds later, and the LED indicators will show the charging status. Press the MODE button to show the battery type (5 seconds) during charging and return to show the status of the load It can shows the remaining power when putting the battery in the battery charger (no connection with the charging power) USB Indicator output: When the USB output is detected, the battery volume indicators will be for 10 seconds and then off, click the button to show the battery volume rate.
4. Specification:
Input: Micro USB DC 5 V/2a Output: 1.4 V, 4.2 v ±. 05 V, 3.65 ±. 05 V, 4.35 ±. 05 V Output current: 500/1000 mAh Constant voltage load, current cutoff: < 100 mAh Current standby: < 15 mAh
5. USB output function
USB output voltage No-load: 4.90 v-5.30 v Output current: 1000 mAh (1a) Non-current load: < 1 mAh The output voltage is 4.75 V-5.25 v when the current is 1000 mAh The protection of output voltage: 3.0 ±. 1 V 6. Compatibility Li-Ion/IMR: 18650, 18490, 18350, 17670, 17500, 16340 (RCR123), 14500, 10440 7. Size 112mm × 60mm × 30mm/86 grams + 15 gram USB Cable
