SOWZE Vehicle CCTV Recorder Truck Bus and Taxi SD Card DVR System with 4G GPS G-sensor | Mobile

---

Description

SOWZE Vehicle CCTV Recorder Truck Bus and Taxi SD Card DVR System with 4G, GPS and G-sensor

Product Description





SOWZE SD Card Series Mobile DVR is the most competitive vehicle video surveillance solution in the world. It has small & compact metal housing, and support same optional 3G/4G and WIFI and GPS modules.
H.264 Compresssion and 4CH D1 Video Resolution bring higher quality image and better online video streaming effect. The storage support 1x SDXCard Slot .
  One key installed CMS V6 offer wireless MDVR users many poweful functions, like online video surveillance and tracking, remote configure MDVR, Android or iPhone or iPad Apps view, rich alarm extension and alert, auto upload videos to server according to schedule, remote Playback videos or images, and user-definite reports to manage their fleets freely.

Order Guide
SW-MAVR9504 : Mobile DVR without any module & antenna
SW-MAVR9504G: Mobile DVR with only GPS module & antenna
SW-MAVR9504GW: Mobile DVR with WIFI + GPS modules & antennas
SW-MAVR9504G-3G: Mobile DVR with 3G+ GPS moudles & antennas
SW-MAVR9504G-4G: Mobile DVR with 4G+GPS moudles & antennas



Specifications:
Item	Parameters	Performance
System	Model NO.	SW-MAVR9504G-4G
	Main processor	Hi3520DV200
	Operating system	Embedded Linux
	Language	Chinese/English
	Interface	Graphical menu, support mouse
	Password security	Two-level management: user password; administrator password
V/A	Video format	PAL/NTSC
	Compression format	H.264(Main Profile)
	Pixel	720P /960H/D1/CIF
	Playback	CIF/D1/720P
	Combinations	4ch 720P/4ch 960H/2ch 720P+2ch 960H
	Decoding capability	1ch real time 720P
	Video quality	1-6 levels for choice
	Screen display	1/4 screen display
	Audio compression	G.726
	Audio recording	Audio and video recording synchronization
Recording & playback	Recording type	Manual, alarm
	Video bit rate	Full frame 4096Mbps, 6 levels of video quality for choice
	Audio bit rate	8KB/s
	Storage	SD card
	Video search	Search by channel, video type
	Local playback	According to file
Software Upgrading	Upgrade Model	Manual/auto/remote
	Upgrade method	USB interface, wireless internet
Interface	Audio/video input	4ch aviation connector interface
	Audio/video output	1ch VGA video output, 1ch aviation connector audio/video output.
	Alarm input	4 digital inputs (2ch positive and 2ch negative trigger)
	SD card	1*SD card (256G at max) Not included SD Card in DVR
	USB interface	1 * USB 2.0(supports U driver, keyboard and mouse)
	Ignition input	1ch ACC signal
	RS232 interface	1ch RS232 interface
	LED lights	PWR/RUN/DISK/WIFI/GPS
	SD card lock	1
	Debug serial port	1*serial system debugging
Extended functions	GPS	Yes
	4G	Yes
	G-SENSOR	Yes
Others	Power input	DC: 9V~36V (ISO7637 P5A 200V)
	Power output	5V300mA
	Power consumption	Standby: 3mA, at working: 12W, Work full: 18W
	Operating temperature	-20 to +70 degrees
	Storage capacity	720P 20G/day/channel
		960H 12-20G/day/channel

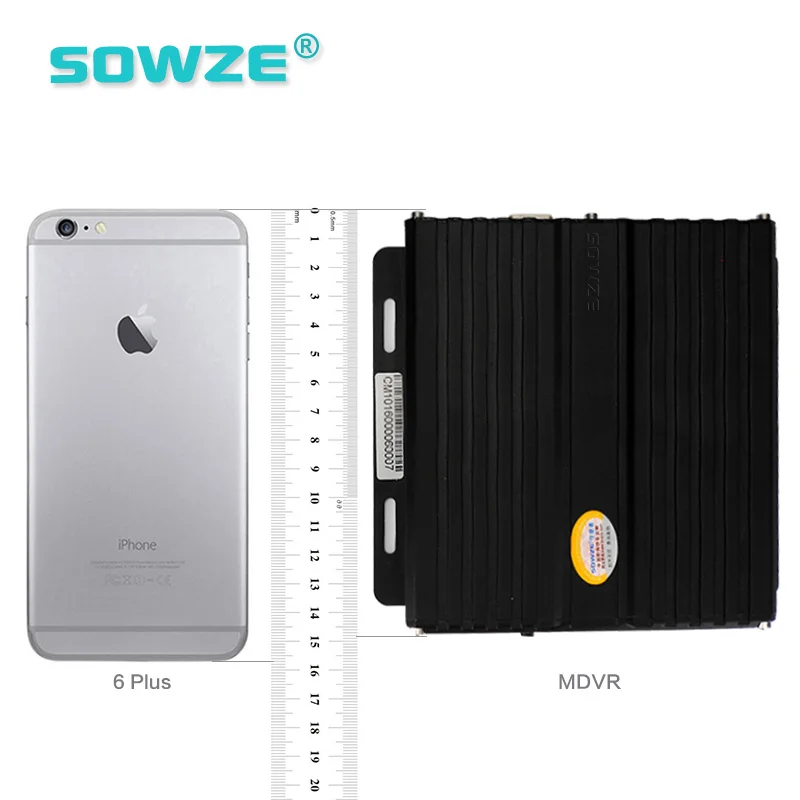

	Size	142*152*32(mm)





Free Software:



 AHD 720P H.264 4CH Mobile DVR Recorder System with 3G  WiFi G-SENSOR GPS Tracker
