1000M Long Range AC220V 1CH 10A RF Wireless Remote Control Switch System Transmitter+Receiver Garage Doors shutters/window/lamp |

1000M Long Range AC220V 1CH 10A RF Wireless Remote Control Switch System Transmitter+Receiver Garage Doors shutters/window/lamp |

1.Receiver

Working Voltage: AC220V (Input AC220V Output AC220V)

Max Current: 10A (have better lower than 7A )

Channel: 1CH

Working Frequency : 315MHZ/433.92MZH

Receiver sensitivity: : -105Db

Working temperature : -10\'C - +60\'C

Output way : Momentary. Toggle .Latched Adjustable

Code type: Learning code Add Controller by the Learning Button on the receiver

2.Function: (original setting is Toggle,if you want to change the function,weld by yourself.)

Momentary:Press the Transmitter button , the receiver relay is ON, release button; the receiver relay is OFF,

Toggle:Press transmitter button for 1 time , the receiver relay is ON, press button again, the receiver relay is OFF,

Latched:Press transmitter button A, the receiver relay is ON, Press the transmitter button B, the relay is OFF.

3.Learning Method:

Learn: input the 220V for the receiver,press the learning button until the LED indicator ON.Then press the transmitter ,the indicator flash fast,it means learning successfully.

Remove:keep pressing the learning button on the receiver aboout 10 seconds until the indicator ON and flash fast,it means the codes is cleared successfully.

​Transmitting Distance: 200-1000m(please notice that is the ideal distance without any block and signal interfere , it would rise and fall about 10%-90% with the block and signal interference ).

​ Note:  433mhz and 315 mhz are available ,315mhz will be sent out if there is no demand on frequency

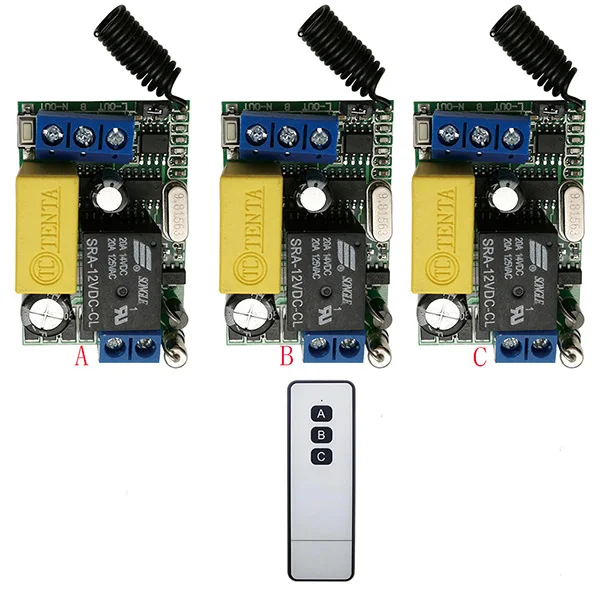

pacote inclued:

A:

3 x Receiver(with cover)
