Applent Handheld Digital LCR Meter AT825 | Инструменты



Сохраните в закладки:

Цена:18 024,45RUB
*Стоимость могла изменится

Количество:


Новое поступление

Характеристики

Applent Handheld Digital LCR Meter AT825 | Инструменты

История изменения цены

*Текущая стоимость 18 024,45 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"

Месяц Минимальная цена Макс. стоимость Цена
Sep-15-2025 21449.76 руб. 22521.30 руб. 21985 руб.
Aug-15-2025 21268.7 руб. 22331.44 руб. 21799.5 руб.
Jul-15-2025 17844.62 руб. 18736.97 руб. 18290 руб.
Jun-15-2025 20908.5 руб. 21953.40 руб. 21430.5 руб.
May-15-2025 18204.29 руб. 19114.35 руб. 18659 руб.
Apr-15-2025 20547.4 руб. 21574.7 руб. 21060.5 руб.
Mar-15-2025 20367.33 руб. 21385.51 руб. 20876 руб.
Feb-15-2025 20187.94 руб. 21196.0 руб. 20691.5 руб.
Jan-15-2025 20007.14 руб. 21007.29 руб. 20507 руб.

Описание товара

Applent Handheld Digital LCR Meter AT825 | ИнструментыApplent Handheld Digital LCR Meter AT825 | ИнструментыApplent Handheld Digital LCR Meter AT825 | ИнструментыApplent Handheld Digital LCR Meter AT825 | ИнструментыApplent Handheld Digital LCR Meter AT825 | ИнструментыApplent Handheld Digital LCR Meter AT825 | Инструменты

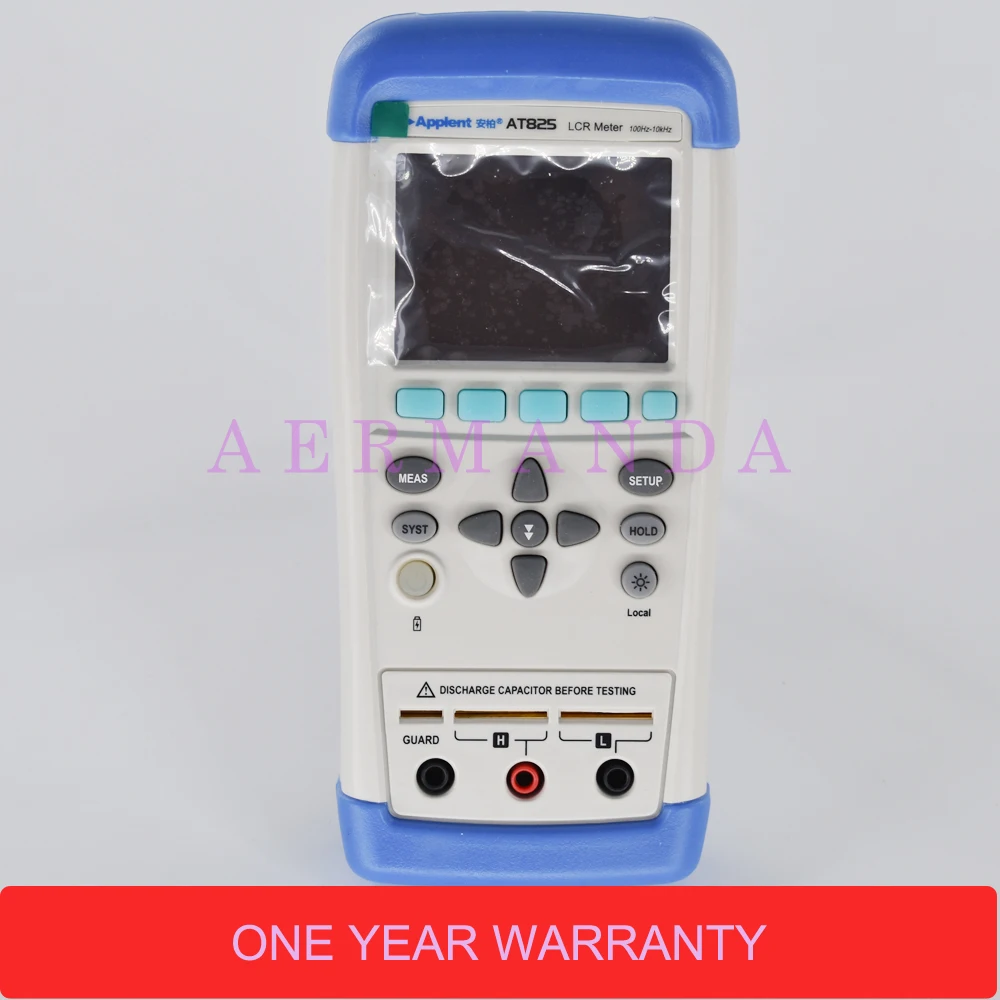

Applent Handheld Digital LCR Meter AT825



AT825 Digital Portable Hi-Accuracy LCR Meter ESR Tester TFT LCD Touch Screen USB AC100-240V

AT825 handheld LCR Digital electric bridge adopts high performance 32-bit ARM microprocessor. True-color TFT liquid crystal display, keypad and touch screen double control. Using Li- battery supply power. USB communication. Switch in both English and Chinese. AT826, AT825 handheld LCR digital meter have the highest configuration.

With the highest frequency of 100Khz, constant 100 source internal resistance, 1Vrms measurement voltage level, and 0.2% accuracy, make AT826, AT825 have the excellent performance of both desktop instrument and portability of handheld.

Feature:
- TFT-LCD Display
- Correction: OPEN and SHORT
- View: ABS, % or Sorting Result on 3rd Line
- Comparator Function: 10 files,6 bins: P1~P9,NG,AUX, HI, IN, LO
- Interface: RS232C and Handler
- Optional Interface: USB
- Test signal monitor: Vm and Im
- Avarage rate: 1~99times
- Measurement Terminal: 5 terminals
- Key lock function

Specification:

Parameters

L,C,R,Z,D,Q,(deg),(rad)ESR

Accuracy

0.2%

Frequency

100Hz,120Hz,1kHz,10kHz

Display Range

L: 0.01H-9999H D,Q: 0.0001 -9999 C: 0.01pF - 9999F (deg):-179.99-179.99 R,Z:0.0001 - 99.99M (rad):-3.1416 -3.1416

Source Resistance

100

Range

Automatic or Manual

Display Max

Principle Parameter: 49999 Sub Parameter49999

Signal Level

0.6Vrms

Speed

4 times/second, 1.5 times/second

Comparator

1 sets, compare main parameters

Adjustment

Open/short scan frequency reset for each range

Interface

Build-in Mini-USB interface(virtual interface) Charging interface

161214181086
