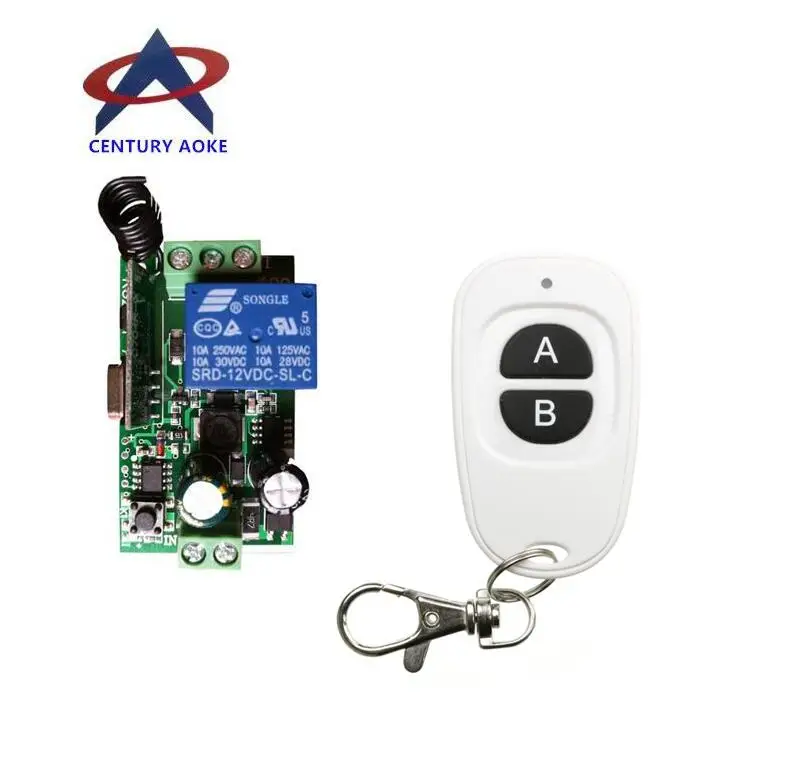

AC85v 110v 120v 220v 240v 1 ch RF wireless remote control switch 1* receiver+1* transmitter POWER ON/OFF | Электроника

AC85v 110v 120v 220v 240v 1 ch RF wireless remote control switch 1* receiver+1* transmitter POWER ON/OFF | Электроника

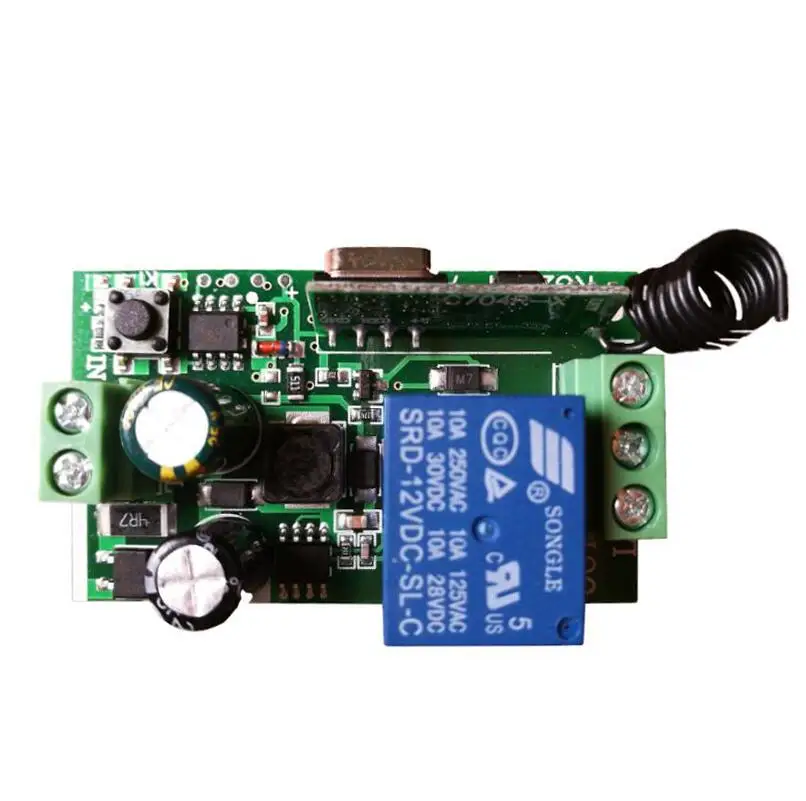

Features:  *Support Multiple Working Mode: Momentary, Toggle and Latching Mode.  *Support the type of remote control(Support Code): Learning Code(1527), Fixed Code(2262). *Support storing the quantity of remote control: 25 Pcs(NOTE: The system can store for 25 pcs of remotes, if the remote get more than 25 pcs, the initial remote control will be lost).  *RF Working Mode: Superheterodyne Reception (Modulation Mode:ASK). *Perfect suitable for remote control of electric lamp, electrically operated gate, electrically operated window, roller shutter door, garage door and other telecommand equipments.   Specifications(Technical Index):  Model: KR2201-4 Product Type: Single Channel Remote Control Switch Encoding Type: Intelligent Learning Code  RF Working Mode: Superheterodyne Reception Modulation Mode:ASK RF Frequency: 433MHz Working Mode:Momentary, Toggle and Latching  Input Voltage: AC 85V~250V  Quiescent Current: 5mA  Receiving Sensitivity: >97dbm  Remote Control Range: >50m (Free Space) Wired Connection Way: Fixed Wiring Pillar Output Terminal: NO,COM,NC NO: Normal Open(Output). COM:Common(Output).  NC: Normal Close(Output).  Color: Green(PCB Board), Black (Outside Shell)   Circuit Board Size: 6.5 * 3.2 * 1.6cm/ 2.5 * 1.25 * 0.62in Circuit Board Weight:20g / 0.7oz   Package Size:8.1 * 3.6 * 2.0cm / 3.1 * 1.2 * 0.78in  Package Weight: 36g /1.26oz        Operation Introduction:  About Working Mode:  Momentary: Press the remote button, the relay connects, release the remote button, the relay disconnects.  Toggle: Press once the remote button, the relay connects, press the remote button twice, the relay disconnects.  Latching: Press the remote button A, the relay connects, press the remote button B, the relay disconnect. Clearing the Code: Press the Learning Button on the receivers for 8 times, the codes will be cleaned.  After cleaning the code, all the remote control cannot work any more.  Learning the Code:(Momentary)  Press the learning key on the receiver once time, it comes into momentary setting mode.  Wait for a moment, the LED will be off , it comes into learning state.  Push the remote button, LED indicator on the receiver board will flash then come off.  After 3 seconds, the LED indicator will be on again, learning successfully.  Learning the Code: (Toggle)  Press the learning key on the receiver twice time, it comes into toggle setting mode.  Wait for a moment, the LED will be off , it comes into learning state.  Press the remote button, LED indicator on the receiver board will flash then come off.  After 3 seconds, the LED indicator will be on again, learning successfully. Learning the Code:( Latching)  Note: When you choose for latching mode, in order to learn more remote control, you need to learn two different button, the first time learning is for ON, the second time learning for OFF.  For example: Button A = ON, Button B = OFF  Press the learning key on the receiver triple time, it comes into latching mode .  Wait for a moment, the LED indicator on the receiver board will flash then come off.  Press the remote button A. LED flash for 5 times.  Press the remote button B. LED flash for 5 times  After 3 seconds, the LED indicator will be on again, learning successfully.  A = ON, B = OFF.

Package  include

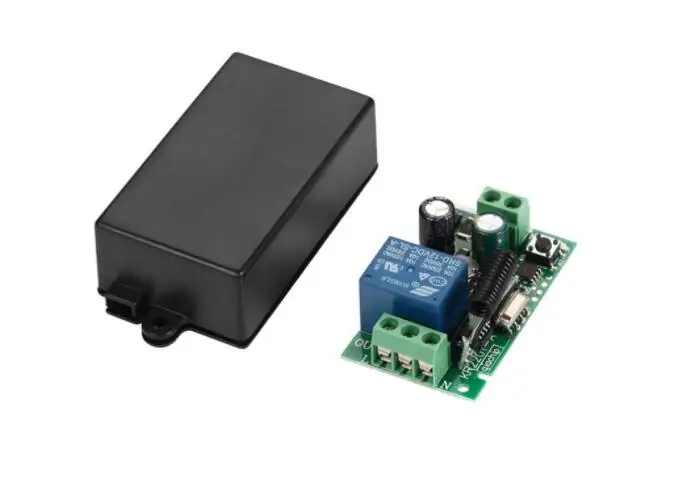

1* Receiver

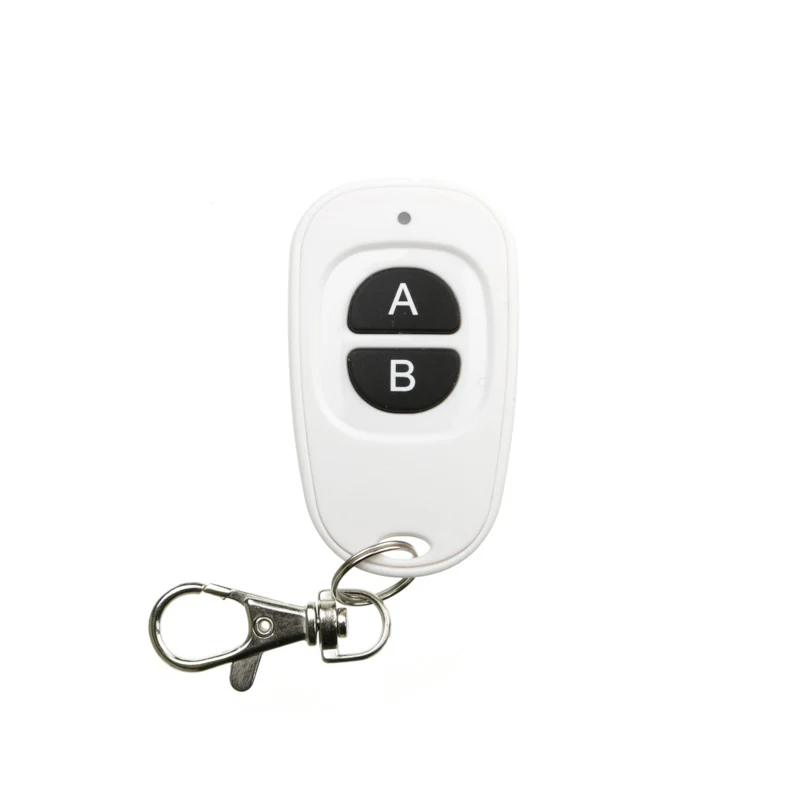

1*Transmitter
