DTS Lossless APE/WAV/MP3 Decoding Bluetooth 4.2 Receiver Board MP5 MP3 player Decoder HD Video | Электроника

DTS Lossless APE/WAV/MP3 Decoding Bluetooth 4.2 Receiver Board MP5 MP3 player Decoder HD Video | Электроника

1.5V DC power supply, support U disk / SD card / USB hard disk interface;   2.Support a variety of encoding formats MPEG-1, MPEG-2, MPEG-4, H264 XVID video decoding up to 1280 * 720.   3.Support Bluetooth receiving function: Bluetooth version 4.2   4.Master built-in package 16 * 16 DDR memory   5.Super compatible with standard formats such as RM, RMVB, DVD, SVCD, VCD, DVCD, DVIX, FLV, MKV, AVI,   6.Support e-book features easy to browse TXT text   7.Support Chinese and English menu   8.Video Output Support: CVBS (TV-OUT via video mode menu option, video output)   9.Audio output support: Stereo (R / L)   10.Can be built-in FAT32 format high-capacity hard drive, multi-partition hard disk can play movies / music / pictures   11.Support remote control operation, convenient and quick   12.Support HD video resolution (1280 * 720)   13.Support RM / RMVB format resolution (1280 * 720)   14.Support image formats: JPEG, BMP, Kodak PICTURE, CDG   15.Play video formats: RM, RMVB, DVD, SVCD, VCD, DVCD, DVIX, MPEG4, AVI, VOB, etc   16.Play audio formats: MP3, WMA, HDCD; OGG, FLAC, ACC, APE   17.Support FM radio 87.0 --- 108.0MHZ   18.Support external audio AUX input     Application: 1.Can do to support HDCD, CDG, MPEG4 AVI VOB DIVX5.1 format digital photo frame, PMP, advertising machine;   2.Made of TV BOX products, and supporting the existing television sets, you can watch movies on the television, listen to music, browse digital photos;   3.For the speakers, HDTV, LCD monitors, set-top boxes, HDMI, projector manufacturers embedded   4.applications such as matching board services;

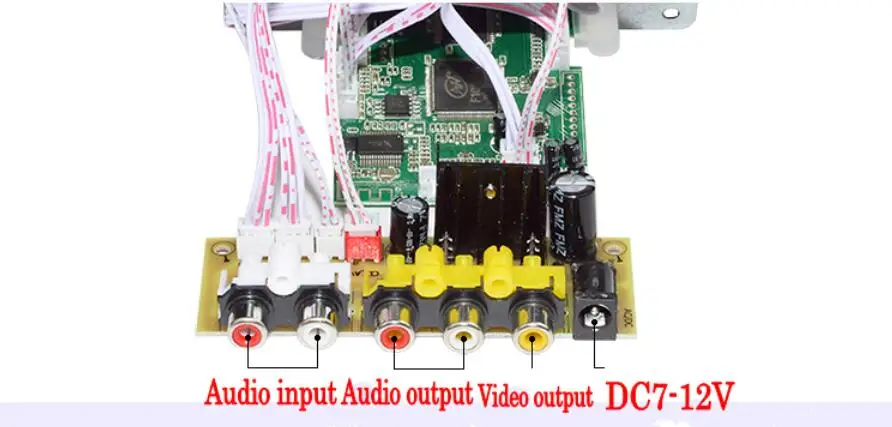

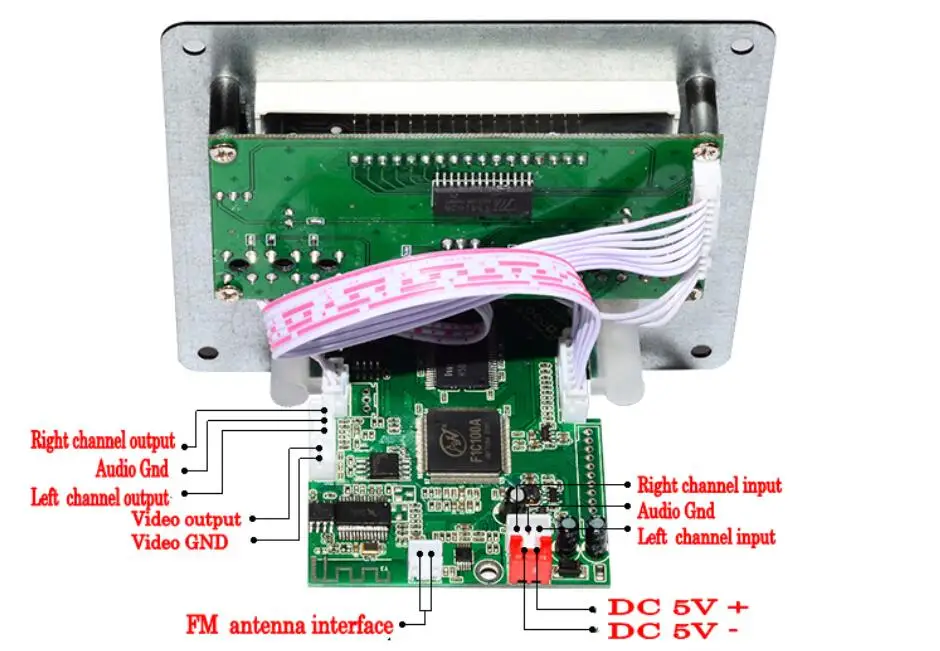

Output interface

Power supply interface: 5V 1A

Video output interface: CVBS (composite video output)

Audio output interface: left and right channel analog signal output

Audio input interface: AUX (left and right channel analog signal input)

Support USB hard disk insert play directly, USB hard disk supply current enough

Figure 1: product home page

Through the remote control or button on the song / next song select icon, play pause key into the relevant function

When the SD card or USB has music, you can enter the music playing mode

by moving icons

Music player interface, support post insert priority - insert play

Digital tube display status: music mode

Support digital selection songs - the songs are arranged automatically according to the order of copy, automatic production of song repertoire number

MOVIE (video) mode

Play back the video in the selectable list

Video playback interface - by setting up the menu

1. channel selection: left, right, stereo;

2. time choice: setting time;

3. play modes: sequential play, random play, single play, all cycles;

4. screen selection: full screen, original, stretch, pull width, automatic

5. video output: 4.3 inch LCD screen (TV-OUT video mode only select video output through menu)

Press the up and down it for fast, fast release to stop

Digital tube display: video mode

PHOTO (picture) mode

Automatically read the memory card or U disk pictures, according to the play button can play turns

Press menu button to bring up the setup menu

Select the picture file by moving cursor up and down, click the play key to confirm the playback

Bluetooth mode

Enter Bluetooth mode, open the phone Bluetooth search Bluetooth, click and phone pairing, you can receive mobile phone audio
