Shenzhen Ling Jiang Computer Technology Co., Ltd.
Магазина Shenzhen Ling Jiang Computer Technology Co., Ltd. работает с 12.08.2012. его рейтинг составлет 90 баллов из 100. В избранное добавили 326 покупателя. Средний рейтинг торваров продавца 4.5 в продаже представленно 3333 наименований товаров, успешно доставлено 136 заказов. 10 покупателей оставили отзывы о продавце.
Характеристики
Fanless Mainboard 4GB ram With GPIO Intel celeron J1900 Quad Core Embedded X86 Industrial Mini Itx Motherboard | Компьютеры и офис
История изменения цены
*Текущая стоимость 15 012,40 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Sep-16-2025 | 17864.24 руб. | 18757.31 руб. | 18310.5 руб. |
| Aug-16-2025 | 17714.47 руб. | 18600.55 руб. | 18157 руб. |
| Jul-16-2025 | 14862.97 руб. | 15605.34 руб. | 15233.5 руб. |
| Jun-16-2025 | 17414.22 руб. | 18285.55 руб. | 17849.5 руб. |
| May-16-2025 | 15162.13 руб. | 15920.13 руб. | 15541 руб. |
| Apr-16-2025 | 17114.37 руб. | 17970.84 руб. | 17542 руб. |
| Mar-16-2025 | 16964.69 руб. | 17812.87 руб. | 17388 руб. |
| Feb-16-2025 | 16813.0 руб. | 17654.31 руб. | 17233.5 руб. |
| Jan-16-2025 | 16663.14 руб. | 17496.0 руб. | 17079.5 руб. |
Описание товара

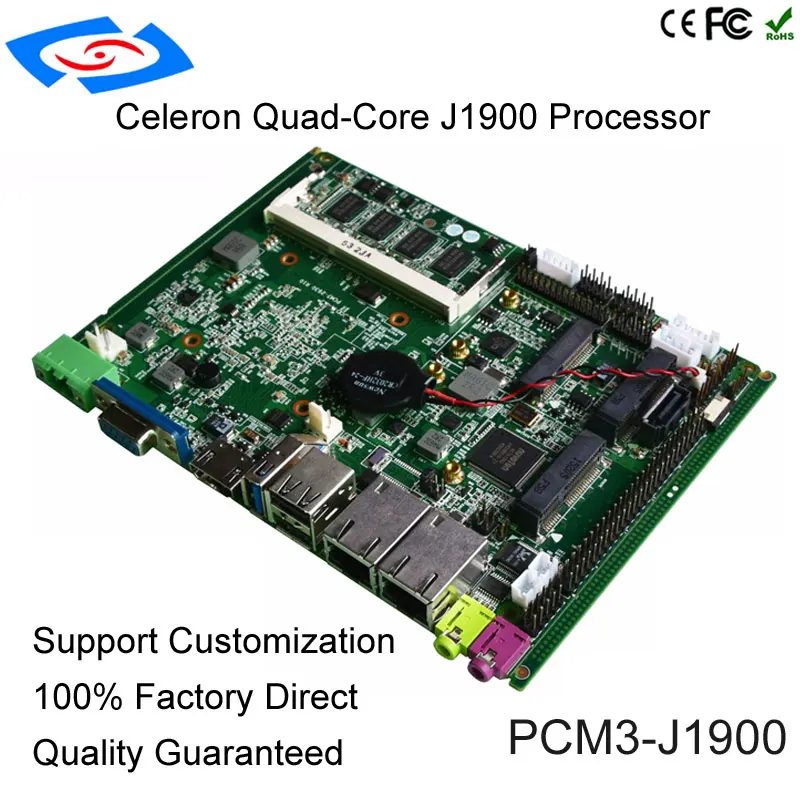

With GPIO and RJ45 Port Intel J1900 Quad Core Embedded X86 Industrial Mini Itx Motherboard
J1900 motherboard product: The motherboard features Intel® Bay Trail chipset, integrated quad-core Intel® Celeron® J1900 processor, Intel® Seventh Generation graphics engine and media codec engine to provide enhanced image processing performance and 3D video performance. And with a wealth of I / O functions, widely used in ATM / KIOSK, POS, game and automation field of Tablet PC and digital signage.

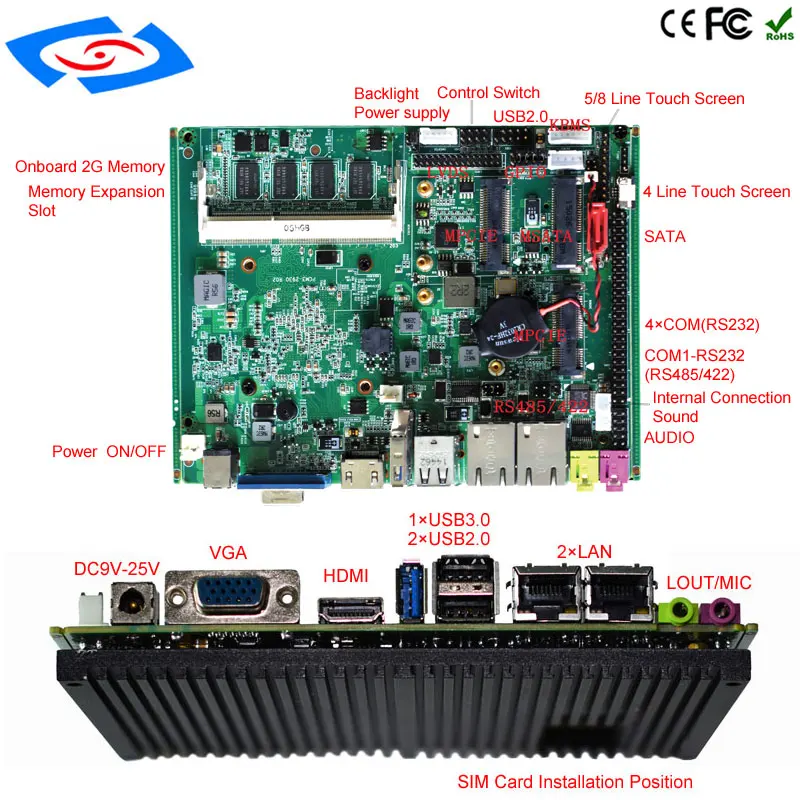

Product Specifications: Processor: Integrated Intel® J1900 Quad Core 22nm Processor 2GHz, Power Consumption 10W Chipset: Uses the Intel® Bay trail SOC chipset Memory: onboard 4GB high-speed memory +3 DDR3 notebook expansion memory slot [maximum support 16G] Display: Integrated Intel® HD Graphics Core Graphics [One VGA, HDMI, Dual 24bit LVDS Interface] Expansion: 2 * Mini PCI-e slot with SIM card slot [support WIFI / 3G module] Network: 2 * Gigabit Ethernet card [support network wake-up, PXE function] Storage: 1 * SATA II hard disk interface, 1 * MSATA slot, transmission speed up to 6Gbps Audio: Onboard ALC662 6-channel Hi-Fi audio controller, supports MIC, Line-out I / O interface: 1 * DC input 7 ~ 30V wide voltage 1 * HDMI + VGA 2 * RJ-45 network interface 5 * USB (4 2.0, 1 3.0) 1 * Audio 1 * PS2 mouse and keyboard interface (KB / MS2) 1 * LVDS interface 2 * 15pin, support dual channel 24bit LCD (dual 8) 4 * serial port [COM1 support RS232, RS422,485 mode] 1 * FPW1 front panel function button and indicator interface 2 * 4pin 1 * AUDIO front panel audio interface 1 * PWROUT1 hard disk power supply interface Touch: 1 * 4-wire touch controller 1 * 4/5/8 line touch pin GPIO: Supports 4 inputs and outputs GPIO BIOS: AMI 32MB Flash ROM Watchdog: 256, 0 ~ 255 seconds Power supply type: DC single power input 7 ~ 25V wide voltage Operating temperature: -40 ℃ ~ +80 ℃ Storage temperature: -40 ℃ ~ +80 ℃ Working humidity: 5% -95% relative humidity, no condensation Size: 156mm x 119mm
|
Processor |
Intel N2930/J1900 1.83G/2G HZ processor |
|
BIOS |
AMI 32MB Flash ROM |
|
Graphics |
Intel HD Graphics |
|
Chipset |
Intel bay trail SOC |
|
System Memory |
4GB onboard + 1 x DIMM, Max 16GB DDR3 1333/1066 |
|
Graphic Interface |
Integrated Intel(R) GMA 3650 24-bit LVDS, VGA, HDMI |
|
Ethernet Controller |
2x RJ-45, Gigabit Ethernet_RTL8111E |
|
Serial |
4xCOM(1xRs232/422/485) |
|
USB |
5x USB ports(1* USB3.0 4*USB 2.0) |
|
Watchdog Timer |
1~256 levels |
|
Key Features |
GPIO |
|
I/O Connectors |
|
|
I/O |

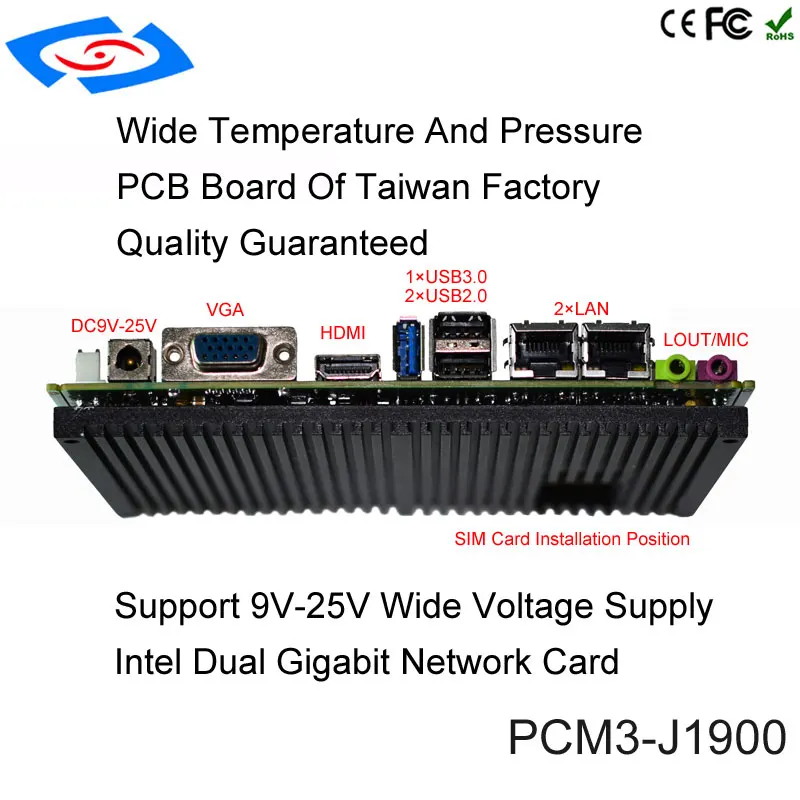

5 x USB 1 xVGA 1 x PS/2 1 x Power on Button 1xHDMI 2 x RJ-45(10/100/1000 Mbps) 1xCOM RS485 4 x COM 1*GPIO 1*AUDIO 1*LVDS 24bits |
|
Mechanical and Environment |
|
|

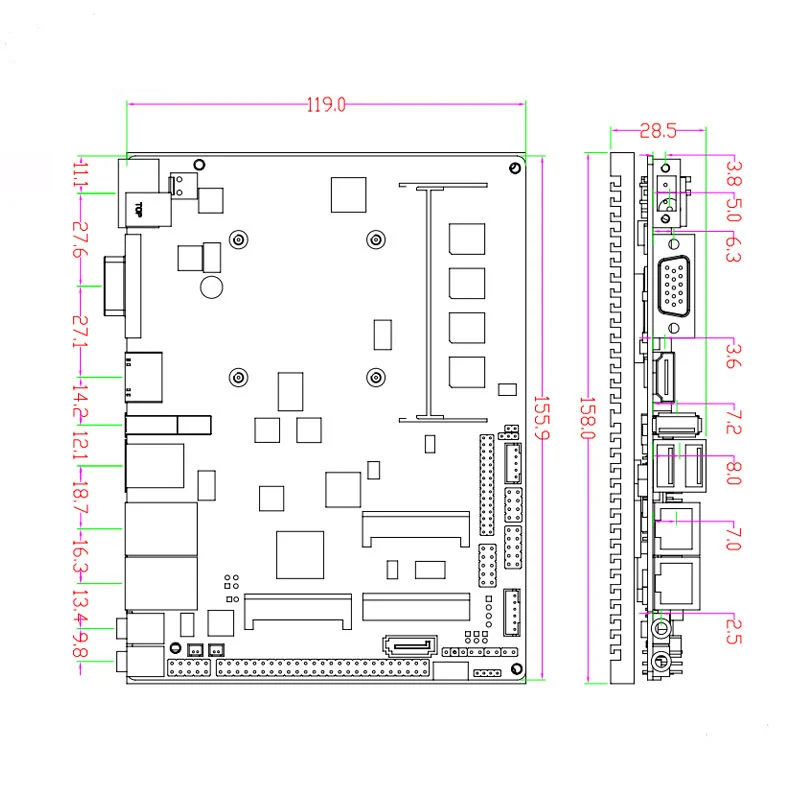

Dimensions (L x W) |
156*119 mm |
|
Warranty |
1.5 years |
|
Power Input |
9-25V DC IN (Lockable, Power Jack) |
|
Net Weight (kg) |
0.5KG |
Company profile:
ShenZhen Ling Jiang Computer Technology CO.,LTD was established in 2002.
We are specialized in Researching,Designing,Manufacturing,Assembing and exporting industrial computers.Our main lines of products are:Industrial Embedded PC;Industrial Panel PC;Industrial Motherboard of PC;Industrial Full Size Card;Firewall Machine and so on.
We are well recognized and accepted by a growing number of clients.We are always ready for new friends and new business opportunities.Looking forward to a higher level of involvement and the support of business partners to work together for a better tomorrow!
Warranty&FeedbacK:
1. 12 months warranty,don't worry.
2. If the product is defective ,please notice us within 3 days.After received.please don’t open dispute without communication.
3. If you are not satisfied our products,please return it within 7 days for a replacement or request refund, please contact with us before return.BTW, when the product return to us, Please charge the shipping fees by yourself.
4. All the products are tested 100% original new and tested well before shipment.
5. Your satisfaction and positive feedback is very important to us.Please leave a positive feedback or 5 stars if you are satisfied with our products and our service.
6. If you have any questions with our products and service,please feel free contact with us before you leave a negative feedback.We will do our best to solve any problems and provide our best service.
7. If the product is defective ,you can ship it back to us,we will ship a replacement to you when the returned one arrival to us.
All the email and message will be answered with 1 working day.
Application Range:
Mechanical automation, medical equipment, play games, POS machine, automatic service and intelligent retail,Mobile vehicle-mounted computer solution.
Contact information:
Tel: +86 13641453873 (whatsApp)
Skype: lingjiang8819
Company Website: http://www.ling-jiang.com/ (Chinese)
http://www.ling-jiang.com.cn (Alibaba)
http://www.ling-jiang.com/index_en.asp (English)
Shipping & handling policy:
1. most products can be sent within 1-3 days after you payment.
2. We will make shipment according to the address you put on AliExpress,if you want us to ship to others address please contact us before we shipment.
3. We ship to worldwide,in order to guarantee the shipping efficiency,please try to choose the registered post or express to ship the goods,the tracking number help you to hold the shipping situation.
4. If you can’t receive the package for more than 4 weeks,please contact us.
5. Products can be combined into one invoice but the total shipment cost will be the sum of each product shipping and handling charge.
6. Intemational buyer note:
A. Import duties,taxes and charges are not included in the product pirce and shipment cost.
B. Please check with your country’s customs office to determine what these additional costs will be prior to bidding/buying.
7.Please kindly leave 5 ★ DSR (detailed seller rating) good comment and positive feed back to us if you are happy with the transaction, both of them are ultimately important to us. If a defective product was received or you are unsatisfied with our products or service,please do communicate with us via email or trademager message and let’s have the opportunity to make you satisfied before you leave any non-five STARS DSR, poor feedback.
