Описание товара

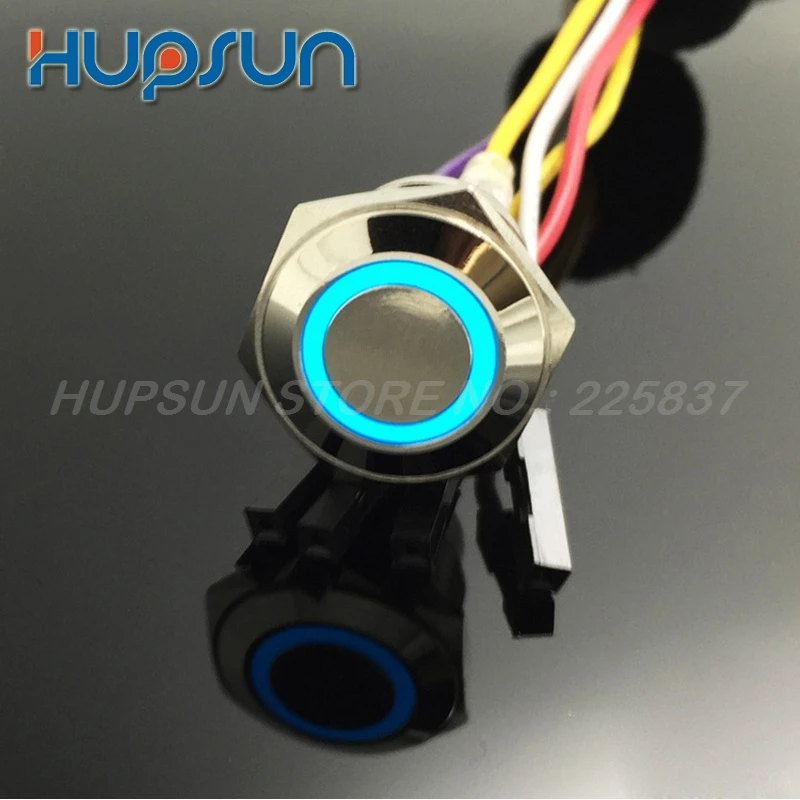

20pc waterproof blue LED 5v 16mm metal momentary computer push button switch starter motherboard w/ 60cm wire
Momentary switch means: press it power on, loose it power off.
This item is in BLUE 5V with 60cm wire. If you need other color voltage and length, pls contact us or leave message.
Note: about wire:
Red and yellow wire is for LED connection, no difference between ‘+’, ‘-’.
Black and white wire is for switch on and off.
Other LED color available, if need pls tell: red & green.
Specification:
| Model | JQ16QB | |
| Terminal type | PIN terminal | |
| Switch type | X(two terminal breakpoints slow moving contact | |
| Switch specification | 3A/250vac | |
| Contact resistance | Less than 50m ohm | |
| Insulation resistance | More than 1000M ohm | |
| Dielectric strength | 2000vac | |
| Operating temperature | -20 ~ +55 degree | |
| Mechanical life | More than 500000 times | |
| Electrical life | More than 50000 times | |
| Panel thickness | 1~10mm | |
| torque | 5~14Nm | |
| Operating pressure | About 3~5N | |
| Operating stroke | About 2.5mm | |
| Protection degree | IP67, IK08 | |
| material | contact | Silver alloy |
| button | Nickel-plated brass/ stainless steel | |
| case | Nickel-plated brass/ stainless steel | |
| base | PA66 | |
| LED parameters | LED type | Ring-illuminated LED |
| Rated voltage | 5v | |
| Other voltage available (if need, pls tell) | 2v/6v/12v/24v/36v | |
| LED color | blue | |
| Other voltage available (if need, pls tell) | Red, green, yellow, white | |
| LED life | 40000 hours | |
Dimension:
Attention:
Any improper welding operation possibly cause product’s plasticity deformation, poor contact of switch etc.
Product damage happens when improperly soldering the pin-terminal switches and indicators, so pls pay attention to following points when wiring:
1) using suitable electric soldering iron and quickening welding speed. We suggest you to use 25w electric soldering iron and finish soldering within 30 seconds.
2) Using appropriate amount of scaling powder and holding the pin terminals downwards when soldering.
3) It is better to use terminal connectors, rather than soldering connection.
