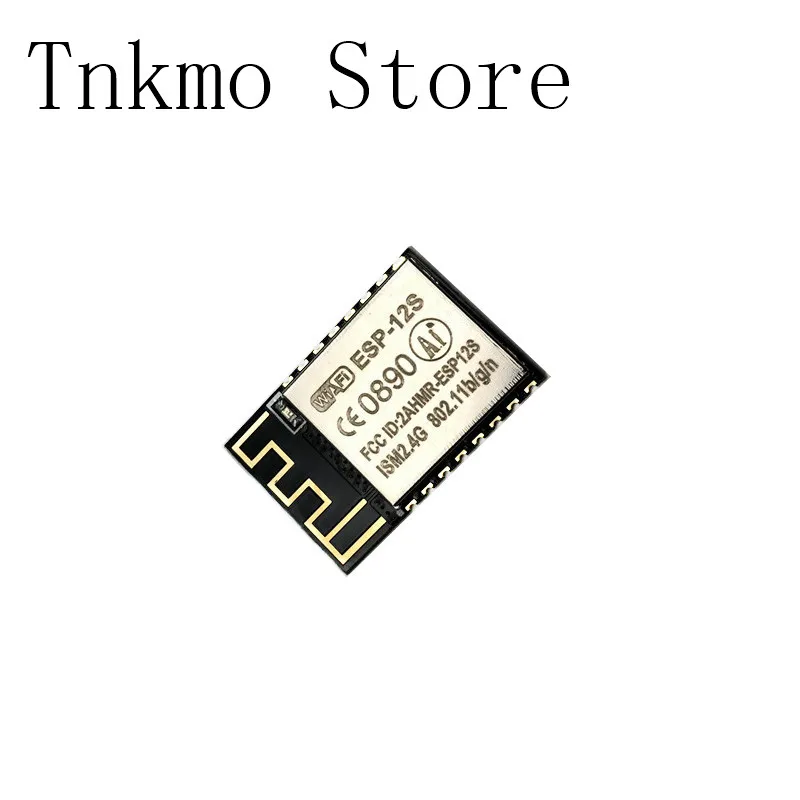

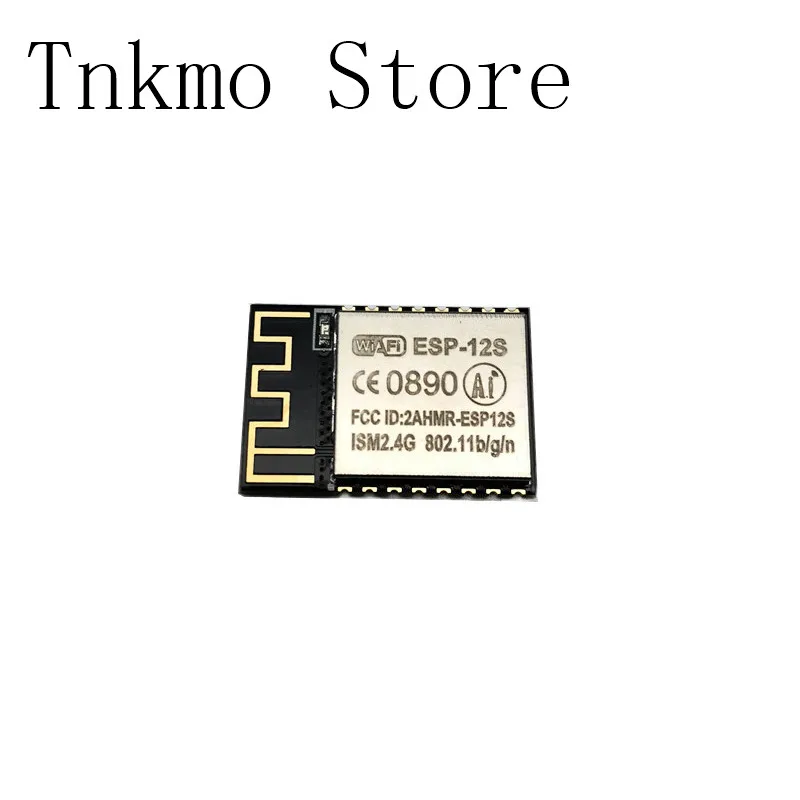

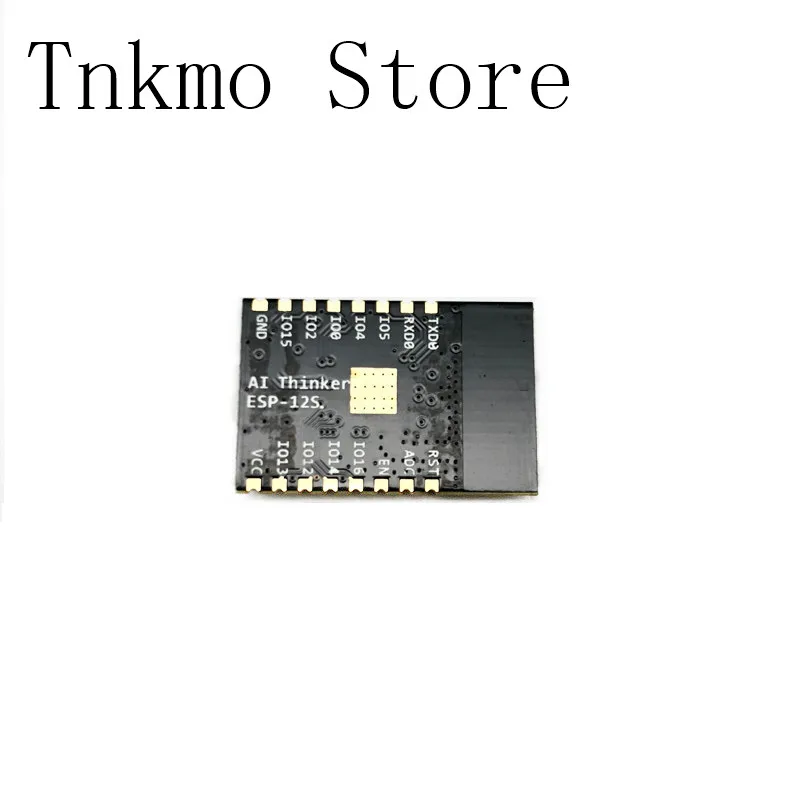

1pcs ESP8266 Serial To WIFI Module ESP-12S Industrial Grade Wireless ESP-12 ESP 8266 IOT | Электроника

• Convenient development environment, free virtual machine and familiar with the Linux system, directly in the Windows environment to develop, save development time, ahead of the market to seize;
• Add AT + CLDSTART, start the cloud connection, the default parameters for the security can Ai-Cloud cloud platform, the implementation of this directive, the system will automatically maintain the cloud connection and heartbeat package, and disconnected. The system handles all protocol layers.
• AT + CLDSTOP Stop the cloud connection. Release all cloud-related system resources.
• AT + CLDSEND = Send data to the cloud.
• Parameter is the data length, the implementation of this command, the system will return ">", then you can send a certain length of data.
• Data reception
• When the cloud data comes, you will receive + CLD, :
• Len is the data length, data is the specific data.
• Smart connection
• AT + CWMODE = 1
• AT + SMARTSTART = 1
• This is done using ESP_TOUCH technology.
• (1.2.0 version can be directly after the command "AT + CWSTARTSMART", do not need to set the parameters, SmartConfig type can be automatically obtained, no need to set.
• Added to join the cloud family group command AT + LANSTART, can be easily joined the cloud family group, with the APP side to control;
• Added exit cloud family group instruction AT + CLDUNBIND, module cloud control transfer? A command to exit the cloud family group, no longer bound by binding;
• Add WPS function, AT + CWWPSSTART direct open WPS, more convenient configuration WiFi connection;
• Add AT command AT + CIOWRITE can set the IO state, an instruction can control the different high and low IO level;
• Added AT command AT + CIOREAD can read IO status, a command can read the status of different IO;
• Add AT command AT + CSYSHEAP at any time to view the remaining RAM size, the remaining space readily grasp;
• Added AT command AT + CIOADC can read ADC, input voltage range of 0 ~ 1V.

   Advantages of this module:

   1) low prices, the basic only earn very small profits, hope this can bring the rapid development of Internet of Things

   2) the smallest size to do 11 * 10 mm, nail cover size. Easy to embed into any product

   3) Powerful internal run LWIP protocol

   4) supports three modes: AP, STA, AP + STA coexistence mode

   1PCS ESP-12S module
