Overview

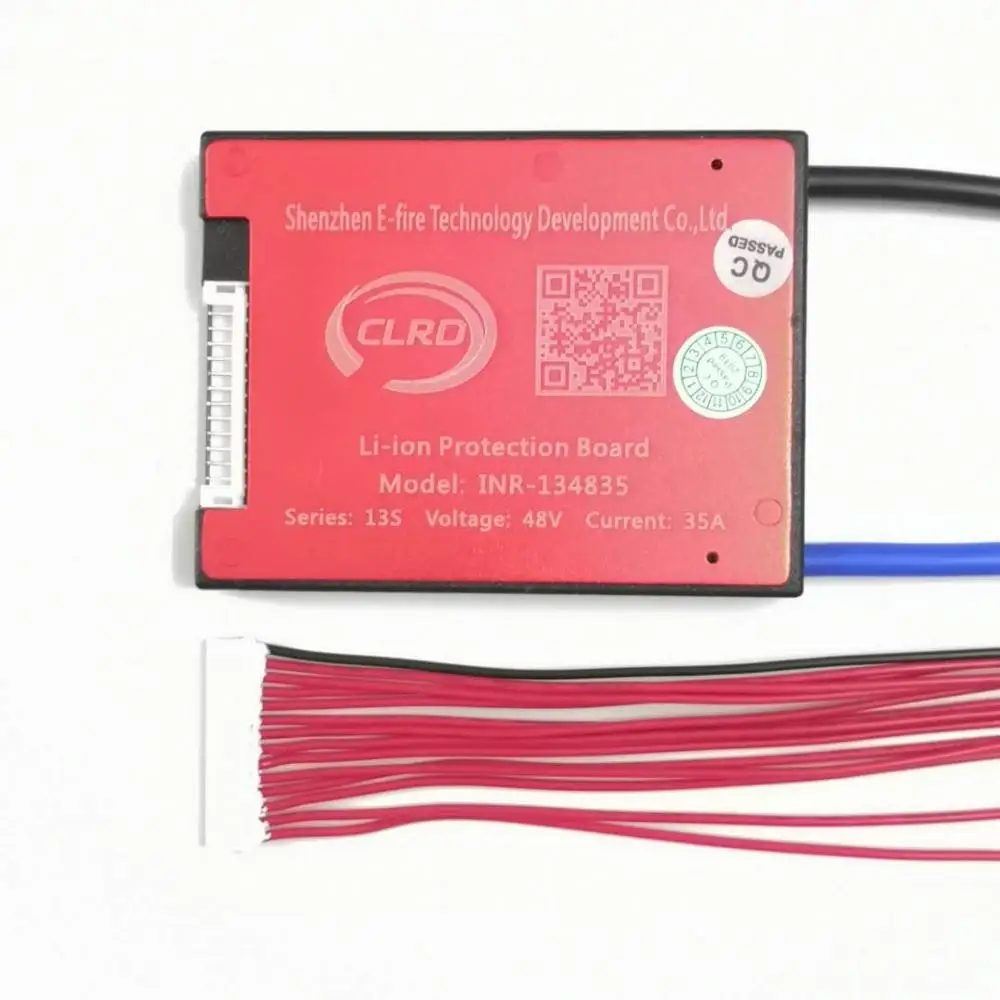

13S48V 18/25/35A/45A/60A bms is used for 13 series 48V Li ion battery pack.

We can design it for various lithium batteries like LiFepo4, LiMn2O4, and Li-polymer etc.

The main functions are: over charge protection, over discharge protection,

over current protection, short-circuit protection, temperature protection etc.

​

According to the customer request we can develop PCM in different sizes and structures.BMS manufactured by high quality Mos and IC imported . Keep your battery long cycle service life
time.

 Waterproof 13s 48V 18A 25A 35A 45A60A  lithium lipo battery bms pcb pcm battery management system for Electric vehicle

With balance, same port

Use top quality (A-level) protective integrated circuit IC, from Japan.

 Strong load ability, constant discharge current 25A/35A/45A/60A, use high voltage resistance, low
inner resistance power Mosfet. The heat sink will greatly help cooling.

 IC itself has power balancing function. The circuit is simple and reliable.


Typical voltage detection for each cell. So each battery will be prevented over charged or over discharged. Over current and short circuit protection function is very reliable.Long time short circuit of the load won’t affect the PCB and the battery.Temperature protection during charging and discharging.

Extreme low power consumption. The consumption of the whole device is less than 50uA.


PCB use high anti-corrosion, high water resistance, high impedance ESD conformal Coating

Pictures

FAQ

1.What is the common port and separate port? what is the difference?
We take 13S48V16A BMS as an example, common port 16A means your
charge cathode and discharge cathode are connected in the same point end
(our P-), charge cathode and discharge cathode are used in the common
connection port, so the charge current and discharge current are the same
16A. while the separate port is separately connected by charge cathode
(C-) and discharge cathode (P-),  so the charge current and discharge
current are different, discharge current 16A, charge current 8A.

2.What is the balance function?
The working principle and function are as followings, when your one cell
voltage is up to alarm voltage(Li-ion up to 4.18V, Life Po4 up to (3.6V),
then the cell Balance starts to work, balance resistance starts discharge
with 35ma(when balance discharge starts to work, BMS will starts a little
heat up, which is the normal reflection), the cell is in both charging
and discharging status, and others which are not reached to alarm
voltage(Li-ion 4.18V, Life Po43.6V)are only in charging status, no
discharging, when the fast cell voltage is reached to alarm voltage(Li-ion
4.25V, Life Po43.75V)BMS starts off power protection, all the other
cells are all in stop of charging, this process will enable your battery
charging in balance current, and your battery voltage are in balance
status, but when your cell voltage difference are in a big range, then
balance can not be functioning well .

3.The relationship between Battery capacity and BMS current?
There is no direct relationship between  Battery capacity and BMS
current, big capacity doesn’t mean a big battery, but rely on continue
current, that is to say if your engine is powerful, your should choose
high current of BMS, it is not relied on battery capacity.

4. What type of charger should  I choose?
Lithium battery must choose specific charger, do not use Charger for Lead
acid battery, for lead acid charger may have MOS with high pressure
breakdown protection, which will not protect of BMS over charge.Life Po4
battery charger voltage=battery string No.X3.6V, while Li-ion
battery charger voltage=Battery string No.X4.2V.

5. What current BMS should I choose ?
Take 10S36V as an example: what current BMS you choose is relied on
your E-bicycle Motor power and current limitation of controller. eg.,
choose 16A for below 350W, 25A for below500W, 35A for below 800W, 60A for
Below 1000W, higher than 1200W are contact with our service specialist
for suggestions, one in all, continue current shall be higher than
current limitation in Controller.

6. Whether my BMS damaged?
if you want to judge if the BMS is damaged, please take the following
steps, to test if each cell voltage is the same with voltmeter? if the
cell voltage difference is over 1.0V, the fault is displayed that it
cannot run far, no power supply at the
start range, short charge time, all these issues are almost caused by
battery cells, if BMS damaged is displayed as no charge, no discharge, no
discharge while the battery has voltage.

Package :

1PCS 13s 48v Li ion bms with flat cable
