High Speed NPN to PNP Polarity Conversion DC Pulse Signal Optocoupler Photoelectric Isolation Module | Безопасность и защита

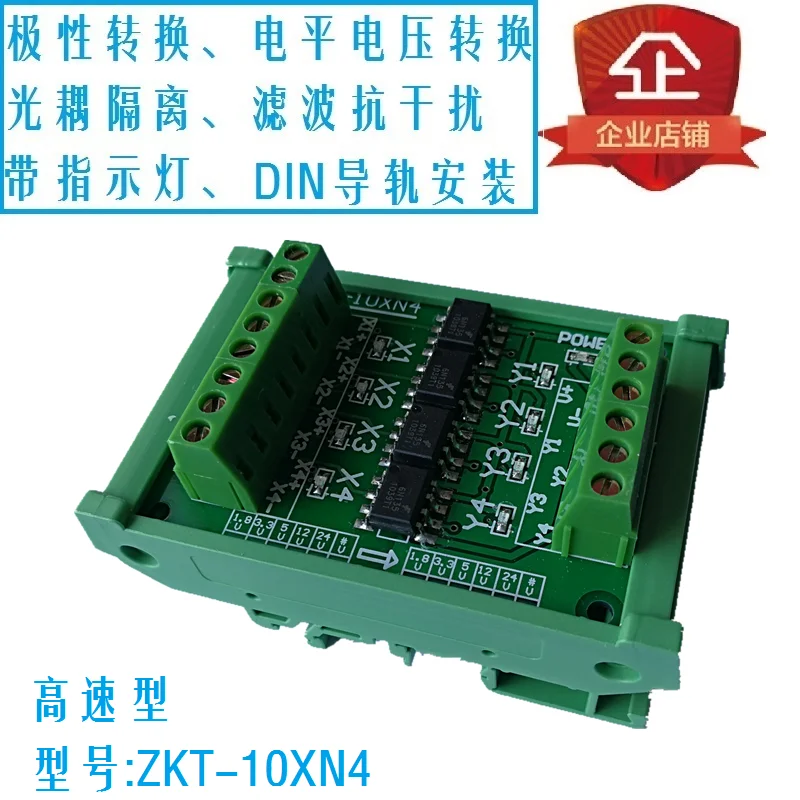

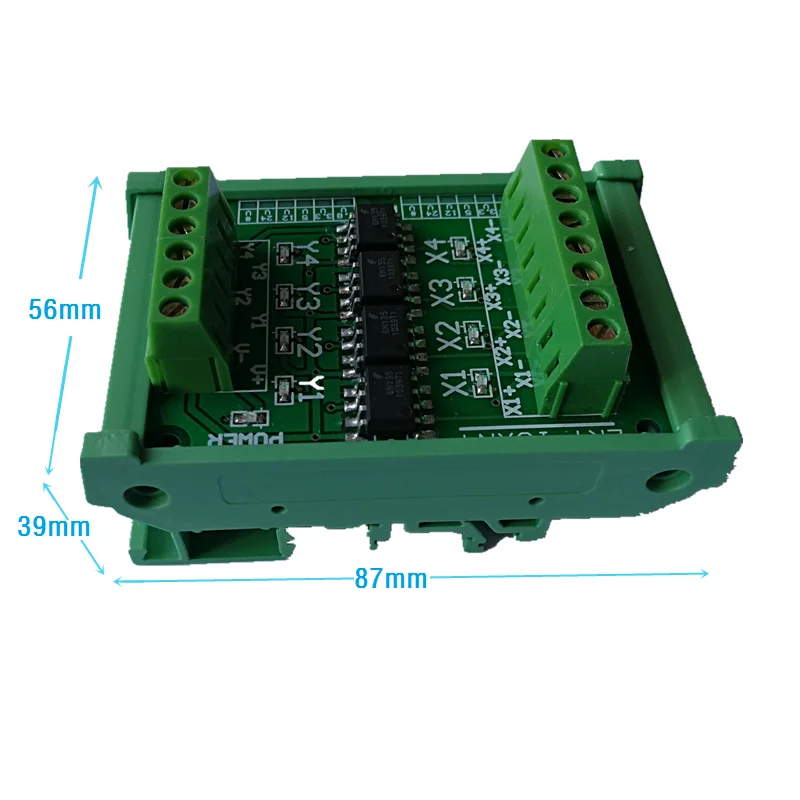

Type 1. ZKT-10XN4 (3.3V-~10V input)

Type 2. ZKT-10XN4 (10V~15V input)

Type 3. ZKT-10XN4 (15V~24V input)

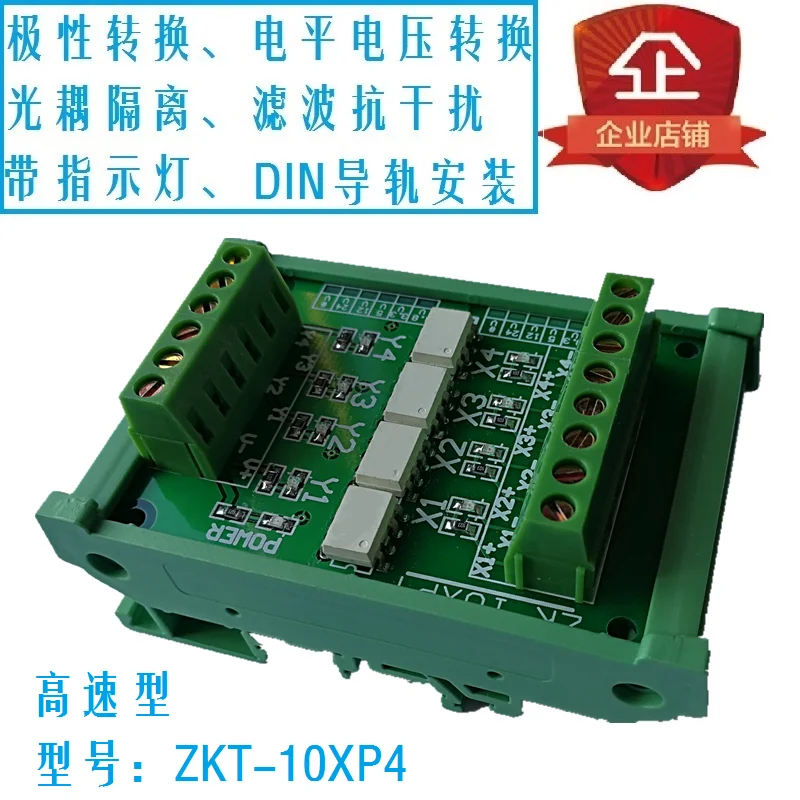

Type 4. ZKT-10XP4 (3.3V~10V input)

Type 5. ZKT-10XP4 (10V~15V input)

Type 6. ZKT-10XP4 (15V~24V input)

Product Function

1. The pulse signal is isolated and converted to protect the circuit board from damage when the circuit is abnormal.

2. Filtering anti-interference, can effectively remove high-frequency electromagnetic interference.

3. Polarity conversion, low-level effective to high-level effective, high-level effective to low-level effective, NPN to PNP, PNP to NPN, polarity conversion.

4. Level voltage conversion, 3.3V/5V/12V/24V level voltage adaptation conversion.

Note

1. Model ZKT-10XN4: Input NPN and PNP compatible, output NPN, 4 channels,

The signal frequency range is 0~300KHZ.

2. Model ZKT-10XP4: Input NPN and PNP compatible, output PNP, 4 channels,

The signal frequency range is 0~1000KHZ (1MHZ).

3. The output voltage specifications of all models are 12~30V self-adaptive (no user selection is required), and the input signal voltage needs to be selected by the user according to the signal voltage input by himself.

4. Output terminal V+V-how much V is supplied (the default is between 12~30V), then the output terminal Y signal voltage specification is how much V.

Note: If you need an output below 12V, please contact customer service first and note the input and output voltage specifications in the order.

5. The input and output channels are equipped with LED indicator lights and power supply indicator lights, and the signal working status is clear at a glance.

6. The output load capacity of ZKT-10 series modules is 0~10ma, which can only be used to transmit IO logic signals or pulse signals. They are generally used for high-speed pulse isolation conversion. They cannot be used to directly drive relays, solenoid valves, and alarms. For lamps and other equipment, if large current output is required, please select ZKT-01 series.
