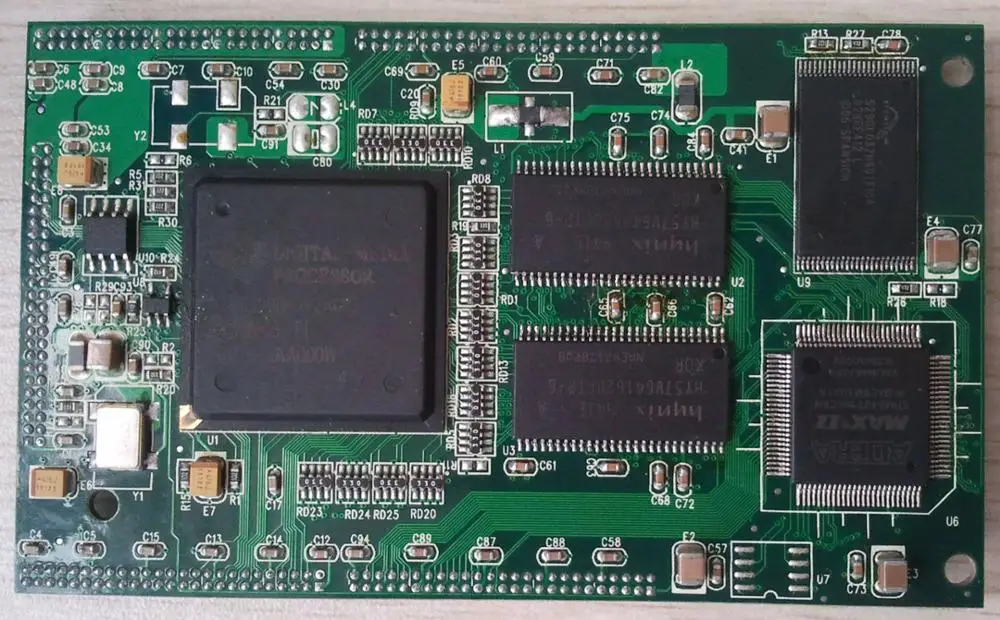

Suitable for various types of VMD642-X development board

The main features of the core board:

DSP processor: TMS320DM642600M main frequency,4.8Hundreds of millions of instructions per second

DSPExternal bus clock: 100M

SDRAM: 4 4Mx16bits, 64 bit bus width

FLASH: 1 pieces of NOR FLASH4M x 8bits

CPLD: 1 chip MAXII programmable logic controller

Interface

1. video port VP0, VP1, VP2

2. Ethernet MAC interface;

3. PCI, HPI interface;

4. MCBSP interface;

5. digital audio interface;

6. leads to 49 GPIO interfaces;

7. lead to JTAG interface

8. lead to IIC interface

9. elicited reset RESET interface

10. address space selection, 8 bit data line and 5 bit address line space expansion.

Note: because the core board production process requirements are high, the maintenance cost is very high, so please users special care to use, do not force the core board, try to avoid hand touch DSP chip.

If the customer's own soleplate does not meet the requirements, or the customer frequently pluggedThe core board problem does not belong to the scope of free warranty. In addition, we must ask customers to complete the test confirmation within two weeks after receiving the core board. We will handle the problem overdue.
