Описание товара

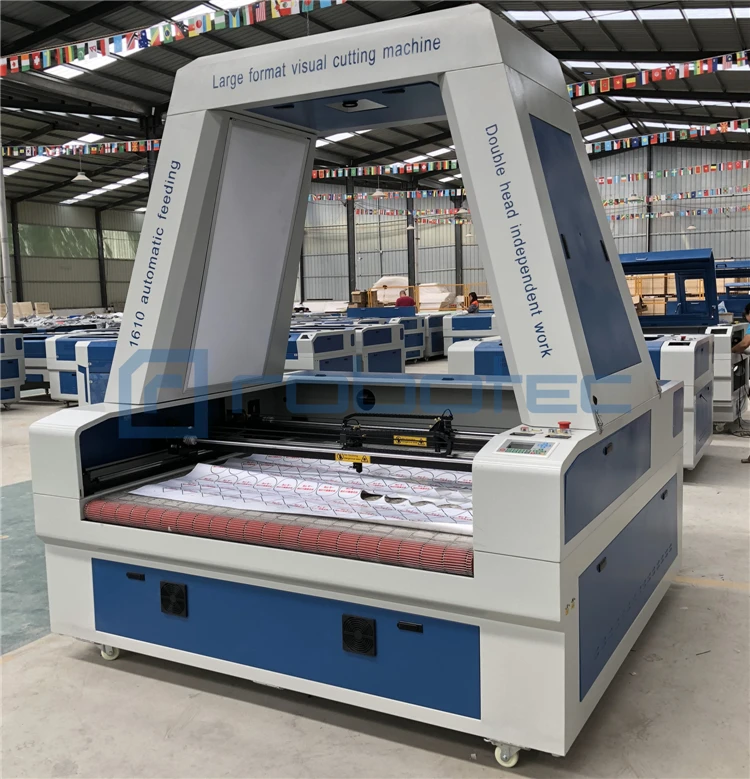

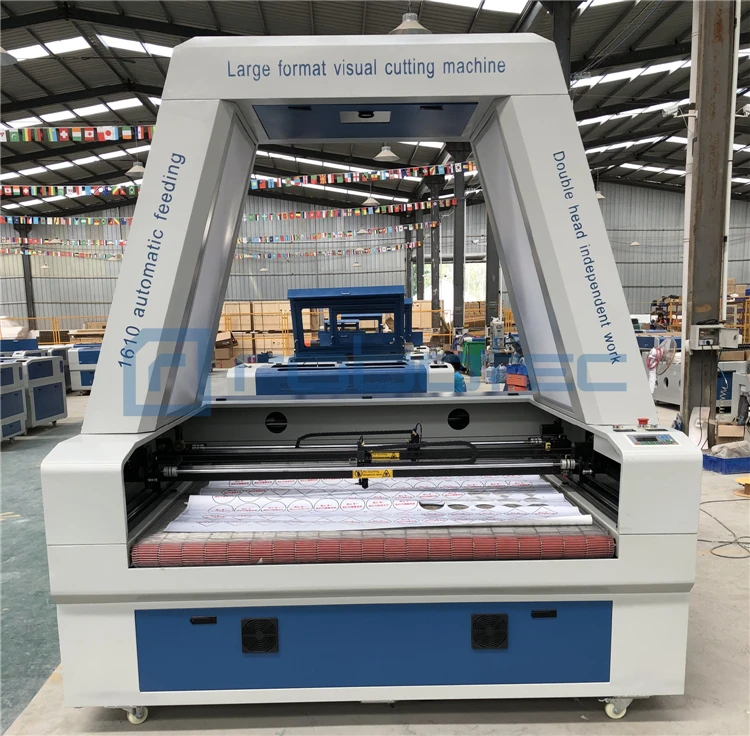

Top quality fabric laser cut engrave camera+ccd camera textile /auto feeding laser cutter ![2018-05-08+100750]()
1610 CCD laser cutting machine parameters:
#Working size 1600*1000mm
#Dual heads independent work #Full vision CCD camera system #Auto feeding system #2 sets 80W laser tube #Linear transmission, Imported Taiwan Hiwin linear square rails #RD full vision control system with USB interface, Leadshine stepper motor and drivers #Air pump, Exhaust fan, Water chiller CW5200 #Imported FULONG Belt #Red pointer function #Standard tool box #Contact me please if you wanna more information and working video|
Item / Model |
RDJ-1610D2 CCD |
|
Cutting area |
1600*1000mm |
|
Laser power |
80W |
|
Laser type |
CO2 sealed laser tube,water-cooled,10.6um |
|
Engraving speed |
0-60000mm/min |
|
Cutting speed |
0-40000mm/min |
|
Laser Output |
1-100%software setting |
|
Resetting positioning accuracy |
≤±0.01mm |
|
Power supply |
220V/50HZ (Optional 110V/60HZ) |
|
Operating temperature |
0 - 45°C |
|
Operating humidity |
5 - 95% |
|
Min. shaping character |
English 1.0 x 1.0mm |
|
Graphic format supported |
BMP, PLT, DST, DXF, AI |
|
Software supported |
TAJIMA, CorelDraw, Photoshop, AutoCAD |
|
Driving system |
stepper motor |
|
Cooling mode |
Water chiller CW3000 CW5000 CW5200 |
|
Equipment Dimensions |
2090x1400x2050mm |
|
Net Weight: |
780kg |
|
Shipping Dimensions |
2190 x 1500 x 2150mm |
|
Optional Spare Parts |
Bigger power laser tube |
|
Recommended Spare Parts |
Laser Tube and Lens |
1610 CCD laser cutting machine parts:
>> 1610 CCD Laser cutting engraving machine features:
1. 3mm Cold-rolled steel welded machine bed, strong and running stable.
2. Aluminium blade table: to process hard materials like acrylic, wood and so on.
3. Fireproof window,more security.
4.CO2 Glass sealed laser tube China famous brand (EFR, Reci), good beam mode stability, service time over 8500~10000 working hours.
5. Laser Power 40W~180W, good quality and stable output to prolong the laser tube service time.
6. Singapore imported lens and mirrors. High transmittance, good focusing, reflecting effect.
7. Ruida or Leetro Controller USB interface, support online/offline working, English language system, adjustable cutting speed and power.
8. High accuracy stepper motors and drivers. Belt transmission.
9. Tiwan Hiwin Linear square guide rails, higher precision.
10. Laser engraving and cutting or Lasercut 8.0 software, user’s manual.
11. Tool box: A set of wrenches, lens cleaning paper, a pack of screws, a spare limit switch, a lens removal tool, manual, CD, U disk, a focal length of stick.
12. Open style, the front and back of the machine is open which is possible for longer material, breakthrough the limit of the workpiece length.
>>1610 CCD Applicable Material:
Non-metal materials such as fabrics, label, rubber, marble, granite, tiles, paper boards, leather,
embroidery, acrylic, glass, plastic, MDF, wooden plates and paper ware etc.
>>1610 CCD Applicable Industry:
Advertising, Embroidery, garments, shoemaking, label processing, arts and crafts, etc.
1) Machine has been adjusted before delivery.
2) English software, user manual and detailed installation & training Videos DVD
3) Warranty period: one year on parts from date of shipping date, 3 additional years on free repair. Life-time technical support.
4) Machine spare parts and repair service is offered in lifetime.
5) Free training is offered in the plant and free samples are available.
6) 24 hours technical support by e-mail, calling or door-to-door service.
7) Professional cnc router machine supplier with 10 years experiences.
8) International quality certificate: CE, ISO9001
For offer the most suitable machine with favorable price, would you like to confirm below questions:
1) What is your reuqested max working area, X:___mm, Y:___mm?
2) What mainly job you do ? Only engrave, cut or both ?
3) What kind are your materials, metal or non-metal, what are they?
After your return comments, we will send you more information about the machine along price . Thanks
