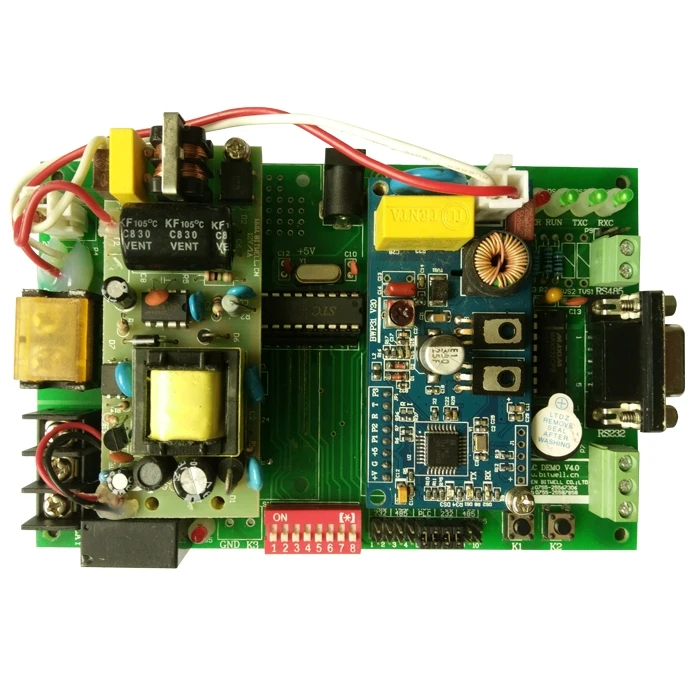

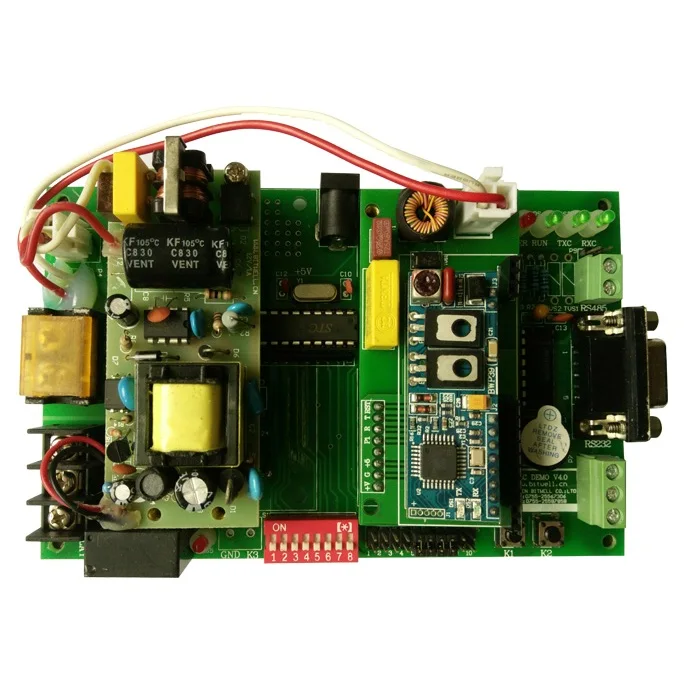

First, a brief introduction to the Evaluation Kit In order to facilitate the user to better develop the performance of the BWP15 power carrier module, the target application test system is set up quickly in the field, and the BWP15 Application Evaluation Kit is designed and developed. The BWP15 assessment kit contains all peripheral devices for power carrier applications, including switch power module, power carrier module, RS232 interface, RS485 interface, one relay output, two switch input, one buzzer output and other resources. Users can quickly build various applications based on power carrier, including remote switching control system, remote switch quantity signal acquisition system, power carrier application test system, street lamp control test system, power cable anti-theft test application system, large building light remote control system, graduation design. Wait. The kit contains CPU circuits, and users can easily use KEIL C to write their own target application code, so as to realize personalized function requirements. Performance features of the evaluation Suite: L input interface: 220VAC, 50Hz communication L CPU:STC12C2052 single chip microcomputer, 51 instruction compatible, KEIL C can be used for C language programming. L RS232 communication interface: carrier communication interface, MCU serial port and RS232 signal conversion (serial port rate 9600bps) L RS485 communication interface: realization of power carrier communication interface, MCU serial port and RS485 signal conversion L relay output: one relay output, the contact capacity 5A, a normally open one normally closed. L switch signal input: two way optical isolator switch signal input (and button shared channel, both can not be used simultaneously). L address setting: eight bit pull code switch, directly connected to the microcontroller pins, and can set the system address freely. L alarm output: one buzzer output, arbitrary control of buzzing time by MCU. L power supply: switching power module, 12VDC, 500mA output current L carrier module: BWP09, BWP11, BWP15, BWP16, BWP31, BWP39 optional. The main features of the evaluation Suite: The L kit contains carrier module, switch power module, RS232, RS485 interface, and CPU control core circuit. The user can realize carrier communication without any additional peripheral devices. L provides all the design data of the suite, including the schematic diagram, the list of source programs, the protocol specification of the communication protocol, and the user can easily modify the software to realize the personalized function. L can easily simulate many application systems, including street lamp control system, cable breaking control system, lighting control system, signal acquisition system, remote control system and so on.
