Характеристики
AC 220V 8CH Channel RF Беспроводной пульт дистанционного управления для светодиодной лампы ленты мотора и электромагнитного клапана на приемнике
История изменения цены
*Текущая стоимость 3798.8 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц |
Минимальная цена |
Макс. стоимость |
Цена |
| Sep-18-2025 |
4520.75 руб. |
4746.67 руб. |
4633 руб. |
| Aug-18-2025 |
4482.44 руб. |
4706.98 руб. |
4594 руб. |
| Jul-18-2025 |
3760.19 руб. |
3948.90 руб. |
3854 руб. |
| Jun-18-2025 |
4406.91 руб. |
4626.96 руб. |
4516 руб. |
| May-18-2025 |
3836.1 руб. |
4028.61 руб. |
3932 руб. |
| Apr-18-2025 |
4330.32 руб. |
4547.12 руб. |
4438.5 руб. |
| Mar-18-2025 |
4292.45 руб. |
4507.80 руб. |
4399.5 руб. |
| Feb-18-2025 |
4254.56 руб. |
4467.72 руб. |
4360.5 руб. |
| Jan-18-2025 |
4216.64 руб. |
4427.18 руб. |
4321.5 руб. |
Описание товара
Description
Warm tips: all products in this shop are shipped without instructions, before delivery has been equipped with a good remote control without pairing, product details have provided a simple wiring reference diagram, tangled friends please do not shoot!
One: Product overviewThank you for purchasing the 8-way wireless intelligent receiving controller designed and manufactured by our company. It outputs switching signal for 8 relays and has working indicator light, which can make the equipment to be controlled reach the positive and reverse of the motor; Or switch on, off conversion and various special control program requirements. Mainly used in electric doors, Windows, lifting equipment, gate, elevator, industrial control and security industries.Two: product wiring reference diagram![]()
![]()
![]()
![]()
![]()
![]()

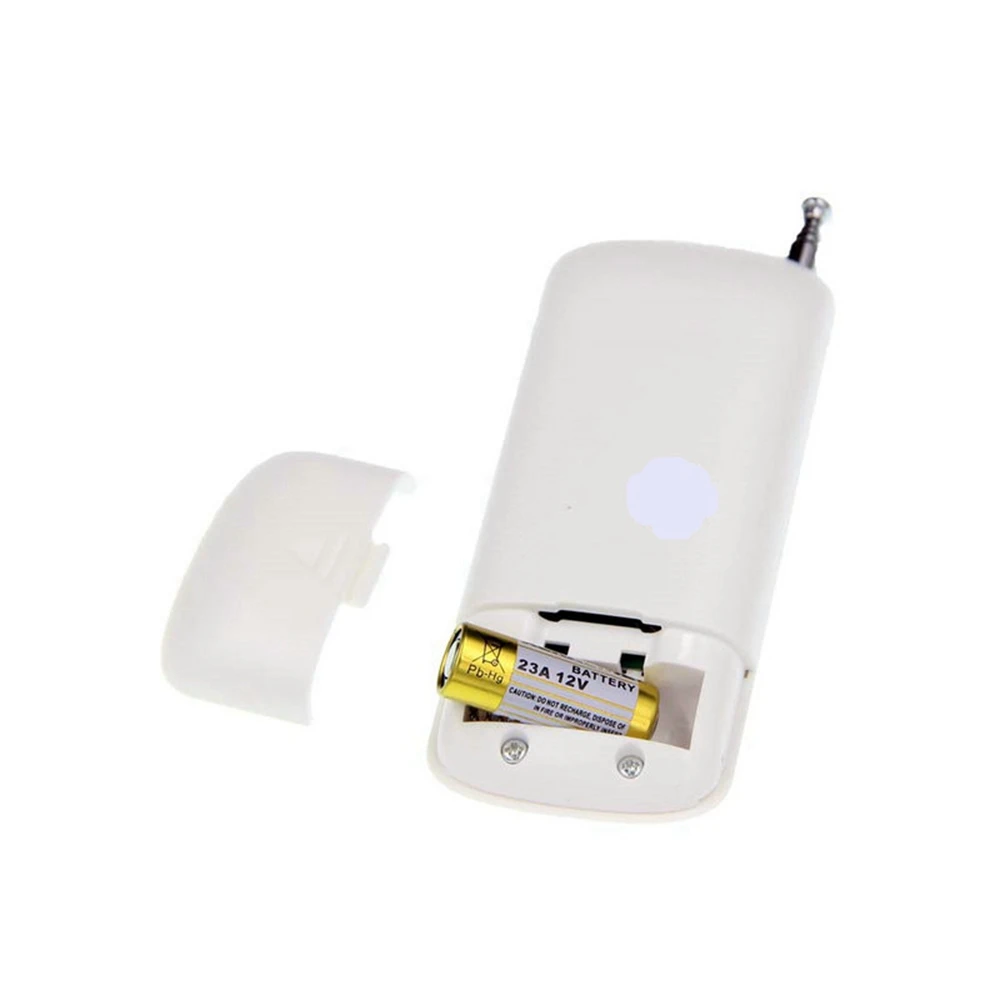

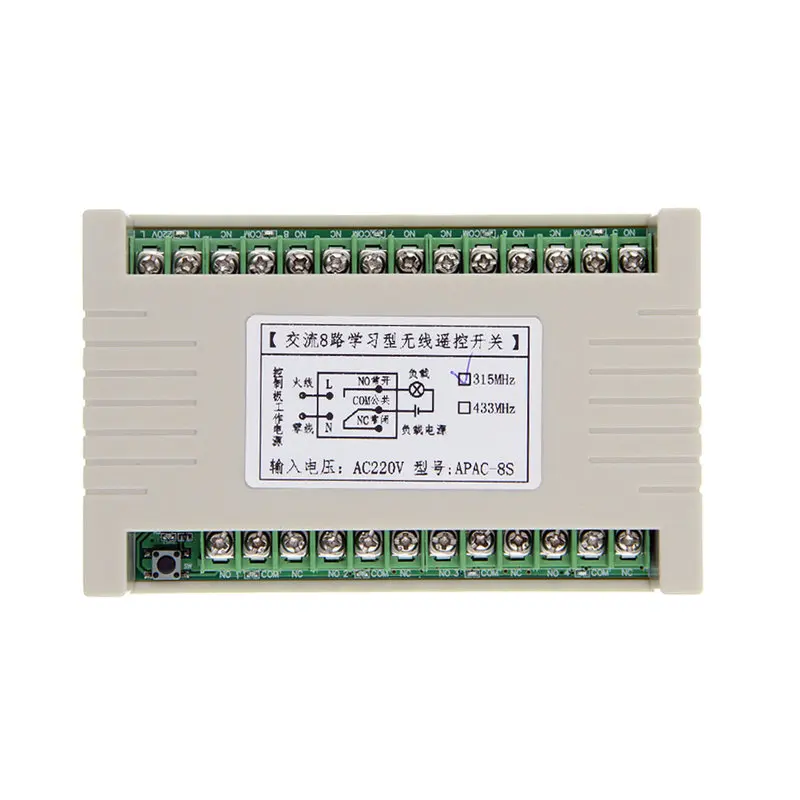

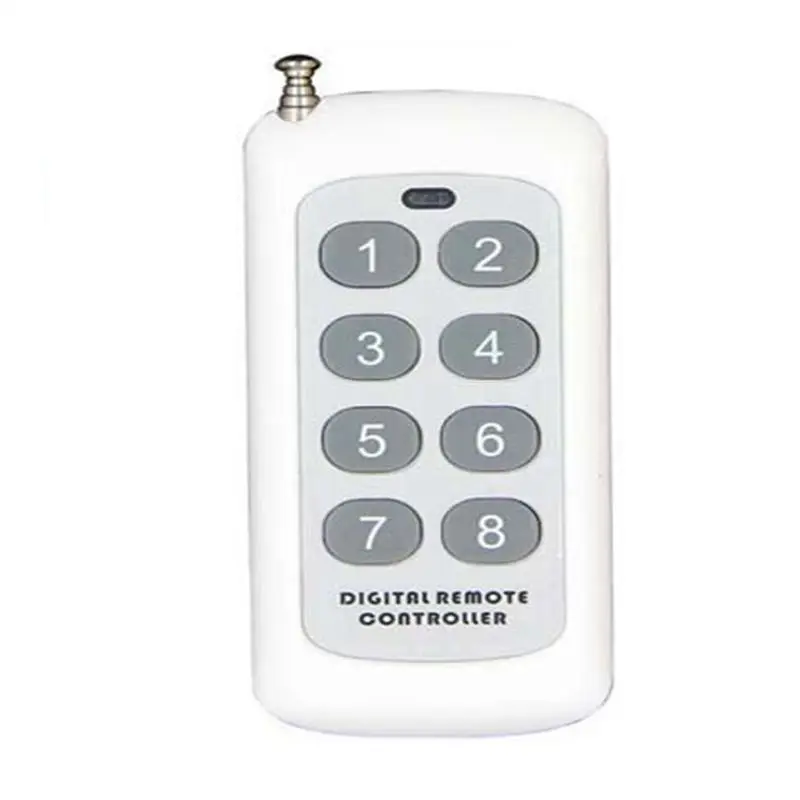

Three: product parameters(1) Receiver parameters1. Working voltage: AC110V--220V2. Static current: ≤7mA3. Working temperature: -20℃ -+ 70℃4. Receiving sensitivity: ≥-107dBm5. Operating frequency: 315MHz, 433MHz6. Control voltage: AC, DC optional7. Output current: ≤7A8. Size of circuit board: 120mm × 73mm × 19mm9. Shell size: 125.8mm × 78.8mm × 30mmNote: Do not operate with power on, please turn off the power for operation, and turn on the power after the test is confirmed to be correct.(2) Transmitter parameters1. Working voltage: 1 12V23A battery
2. Working current: 35-40mA;
3. Working frequency: 315MHz, 433MHz
4. Transmission power: 8-10mW
5. Launch distance: 10-200m(open space)
6. Frequency deviation: ±0.2MHz
7. Material: ABS
8. Static current: 0uA
9. Body volume: 92mm*40mm*15mmAbout transmitter distanceDue to the refraction and reflection in the process of radio signal transmission will form some dead and unstable areas, the transmission distance of wireless remote control switch will be different in different receiving and receiving environments. The main factors affecting the transmitting distance are: whether the transmitter end power is sufficient, the height of the transmitter to the ground, the direction of the antenna, whether there are obstacles in the middle, weather conditions, whether there is the same frequency interference, whether there are interference electrical appliances around, the sensitivity of the receiver, installation position and so on! So the actual distance is subject to practice! Please pay attention to this before you buy, so as not to cause unnecessary trouble!Four: work mode selectionThere are four working modes of the 8-way: signal self-locking, signal interlocking, signal non-locking, signal self-locking and non-locking1. Signal self-locking -- press the No. 1 key of transmitter to learn2. Signal is not locked -- press the No.2 key of transmitter to learn3. Signal interlock -- press transmitter No. 4 to learn4. Signal 1~6 channels self-locking and 7~12 channels non-locking coexist -- press No. 8 key of transmitter to learnDescription of self-locking/Non-locking/interlocking1. Signal self-lockingPress the No. 1 button of the transmitter, and the relay corresponding to the No. 1 button is absorbed and maintained, and then press the No. 1 button, the No. 1 relay is disconnected; Press No. 2 key of transmitter, No. 2 key corresponding to relay suction and merge hold, then press No. 2 key, No. 2 relay disconnected; 3~8 keys work according to this cycle.2. The signal is not lockedPress and hold the No. 1 key of the transmitter, and the relay corresponding to the No. 1 key will close, and the relay will disconnect after letting go. Press No. 2 key, and the relay corresponding to the No. 2 key will close, and disconnect after letting go. 3~8 keys work according to this cycle.3. Signal interlock: press No. 4 key of transmitterPress the No. 1 button of the transmitter, the corresponding No. 1 relay absorbs and merges to keep, press the No. 2 button, the No. 1 relay disconnects, and the corresponding No. 2 key absorbs and merges to keep; 3~8 keys work according to this cycle.Note: If you want to change the receiver to other functions after learning well, please first clear the receiver code and then select the required button to learn the code again.Five: Add or remove the emitter method1. Learning methodsWhen the receiver is powered on, press the learning button on the receiver, and then let go and enter the learning state; Press a key of the transmitter to learn according to the function you need. If the receiver receives the signal and the indicator blinks for about 1 time (the buzzer rings once), the learning is successful.2. Clearing methodWhen the receiver is powered on, long press the learning button on the receiver for about 8 seconds until the indicator is off (the buzzer will ring for about 3 seconds), indicating that the code has been cleared successfully.Six: Package including

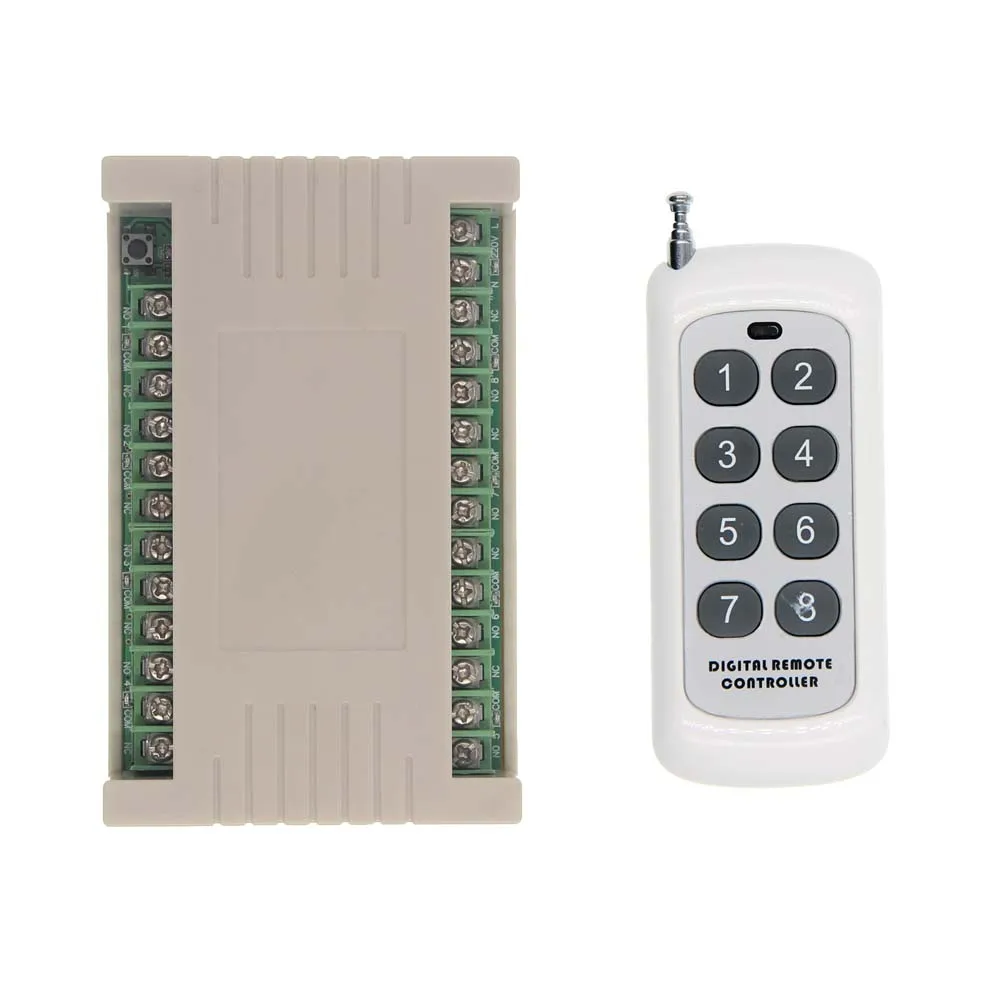

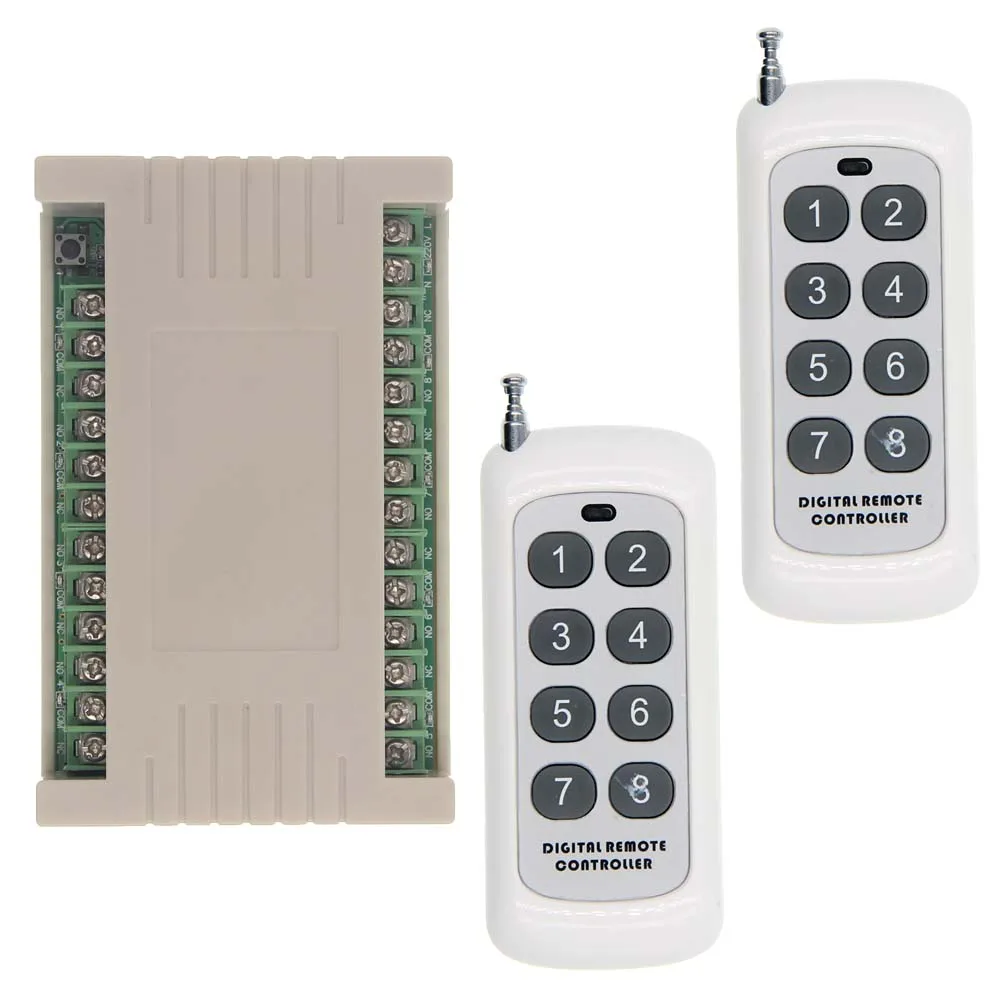

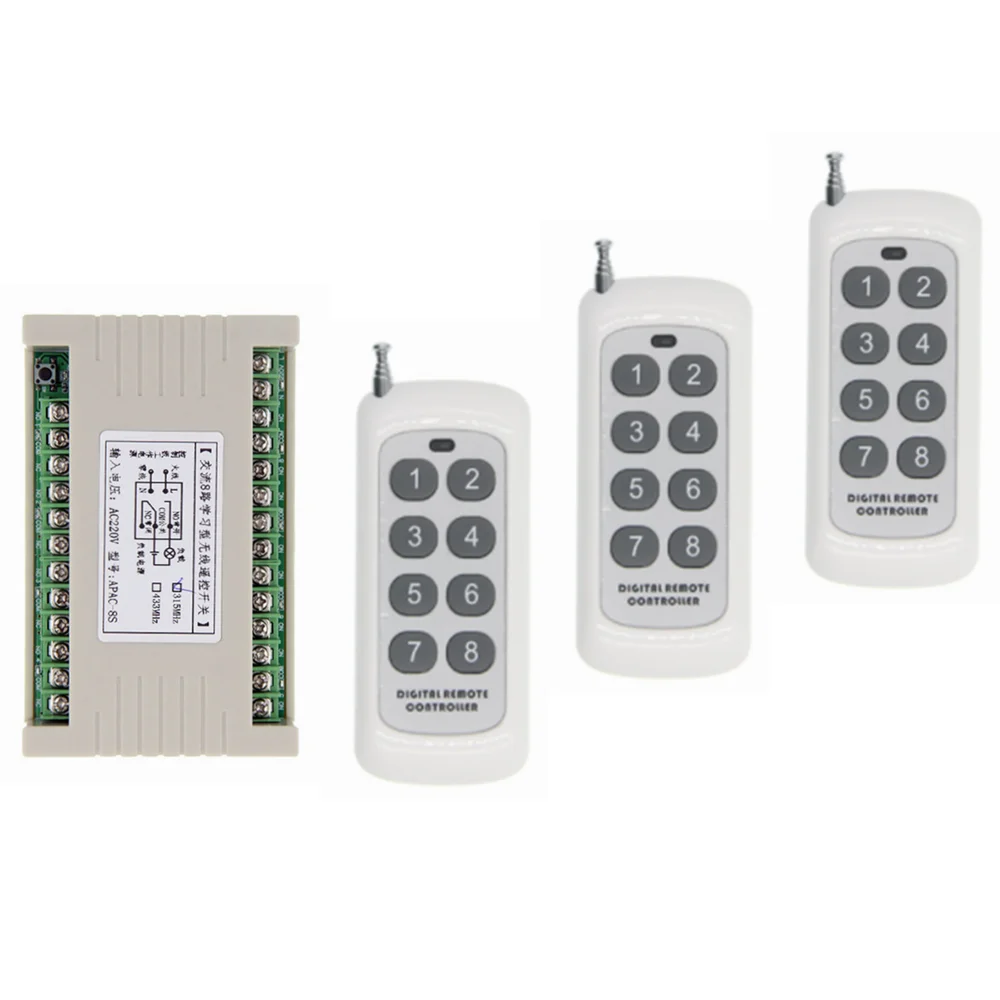

1 X Receiver (With cover)1/2/3/4 X Transmitter (No Battery inside)
