Working theory

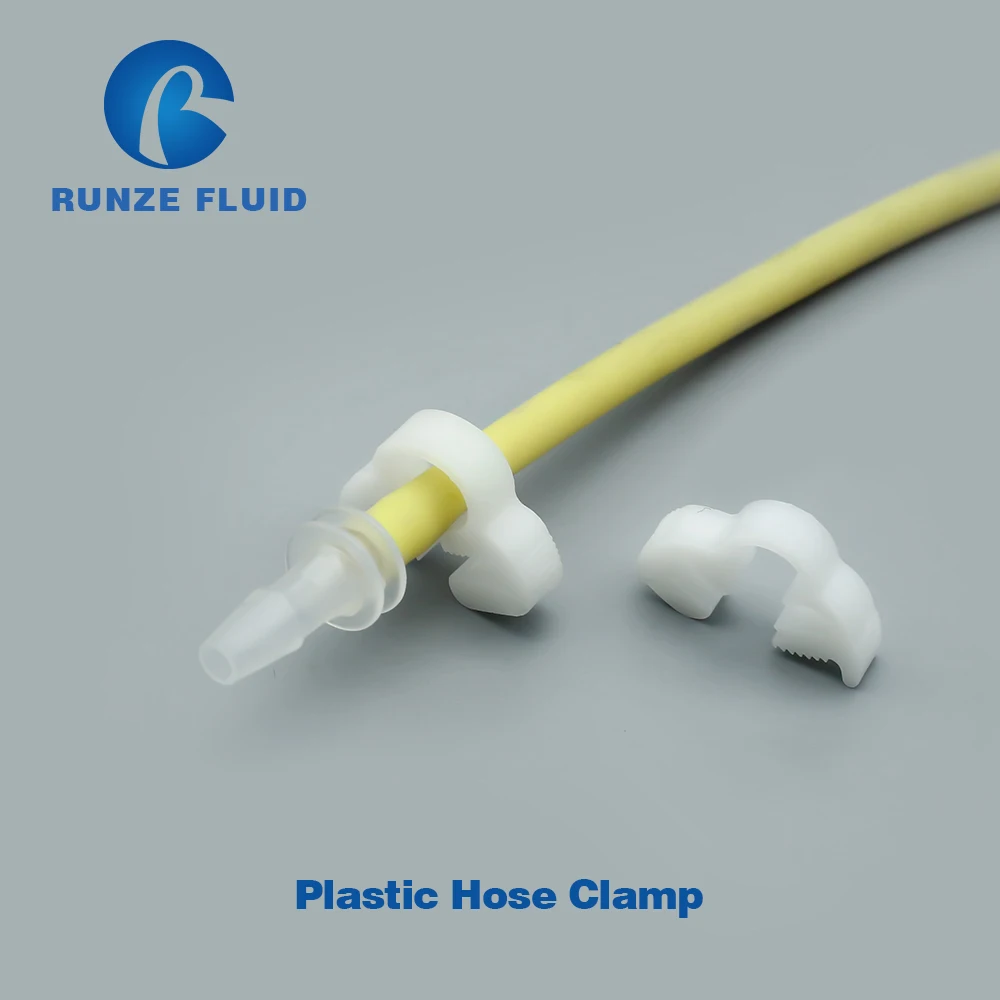

Hose clamp is new type structure fastener with strong mesh which is combined with various features of plastic and well-designed with precise tooth type structure to convert the acting force by adjustment of appearance structure. Hose clamp is common used new type accessory for connection ,fastening and sealing tubes,which can replace traditional fasteners such as screw and nut,metal hose clamp and rope,etc, and also with the advantages of easy fastening, strong force,good sealing ,convenient disassembly,recycle and high cost performance.

Specification (unit:mm)

Application Steps:

1. Connecting your tube fully into a connector

2. Use vernier calipers to measure the total diameter where you want to fix after tubing connected with connector (see above figure)

3. Choose suitable model according to above Adapted Diameter listings.

4. Slip the hose clamp until reaching the connector, then close the gear until it is tightly fastened.

Important Shopping Guidance:

1.      Unit price is for 100pcs

2.      Weight for 100pcs is set as 2 kg, because we hope to send by faster delivery TNT, UPS or FedEx with 4-7working days to most countries, even you choose China post or Ali-express premium shipping, but it should be based on the shipping cost you paid is enough for above mentioned delivery way.

3.      For customers from Russia, we usually ship by CDEK or PONY line.

4.      For customers from Ukraine and Kazakhstan, some shipping way is available while some is not, we will call you and leave you message to inform you to cancel the order when not available.

5.      For customers from some countries such as Iran, Israel, South Africa etc. where shipping is not easy, we will try best to ship by the way you chosen, we will call you and leave you message to inform you to cancel the order when not available.

6.      For customers from Brazil, Chile and Argentina, please leave us a remark or message with your tax number on your order which is a must and necessary requirement from shipping agent.

7.      Please leave on the order with your 100% correct contact name, address, zip code, phone number and country code, or we can’t get contact with you when your order have problems.

8.      Ali-express will charge us 8% - 10% commission charge, so please try not bargain because we only receive part of your order amount, if you need to place a bigger order, please contact us for better price.

9.      If you need to order several products together, please add them to your shopping cart and forward them together but NOT pay it, we will help you combine shipping cost.

10.    Any questions on your order, please leave us message, we will handle it for you as soon as possible, greatly appreciated if you give us feedbacks before open an issue.

11.    Greatly appreciated if you leave us 5 star positive feedbacks once received your order, which will surely encourage us to do better in future cooperation.

Disassembly way

Clamp the outermost tooth with a wire-cutter(pls don’t clamp left and right tooth together),move flatly and gently as the tooth slot,fleetly twist it with small angle(upper and nether tooth misplaced),then it will be loosened, Pls note keep small angle when twisting to ensure the tooth undeformed when misplaced it is reusable.

Solutions for common problems

1. Checking the fastening effect

Rotate the hose clamp manually to ensure it is tightly fastened with no blind side,good sealing and smooth fastening surface.

2. Leakage and shed after pressured

1) Leakage after pressed includes many caused such as hose clamp

with insufficient force,diameter of tube is far more than outer diameter of  connector,tube with insufficient flexibility etc.

2) Shed after pressured includes two causes: one is surpassing limit pressure of hose clamp with inner tooth prop up outer tooth, multi-tooth lose common mesh(only rely on main tooth); another is friction force between tube sheded off(head part is still fastened). The solution is choose right specification or simultaneously use two pieces hose clamps(head part should be placed at two places,or it will be hard to disassemble)

Service life

Usually plastic hose clamp can be used for 2-5 years

Factors which influence the service life are strong acid and alkali,fatigue performance(compact or pressured),product structure and specifications, texture etc.

Color difference

Color difference is caused by different production equipments, different parameters equipment during moulding injection,different batches, but property of hose clamp be ensured to be the same with same raw materials.
