Описание товара
![111]()

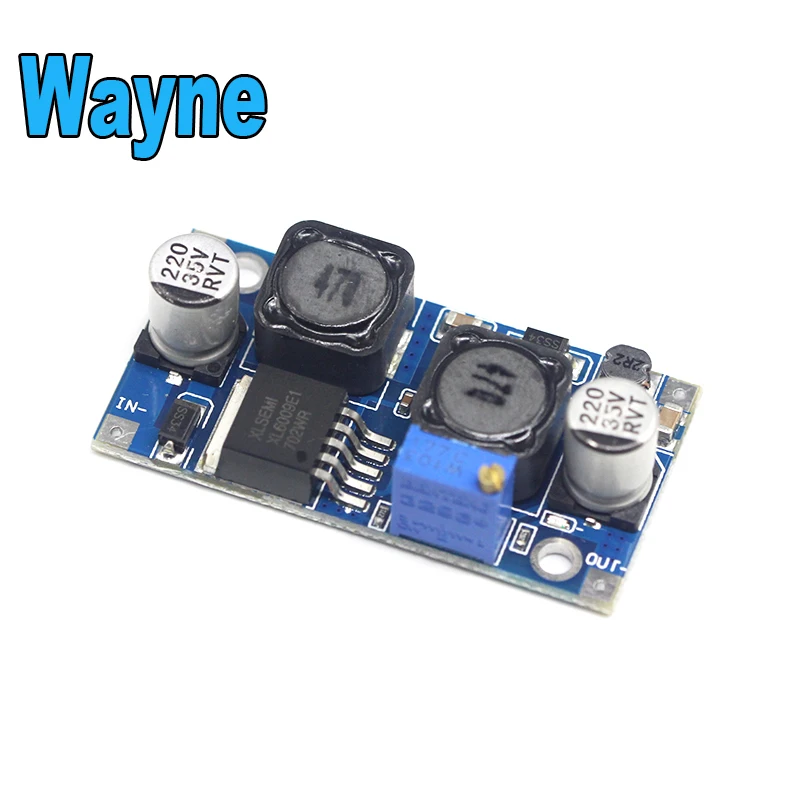

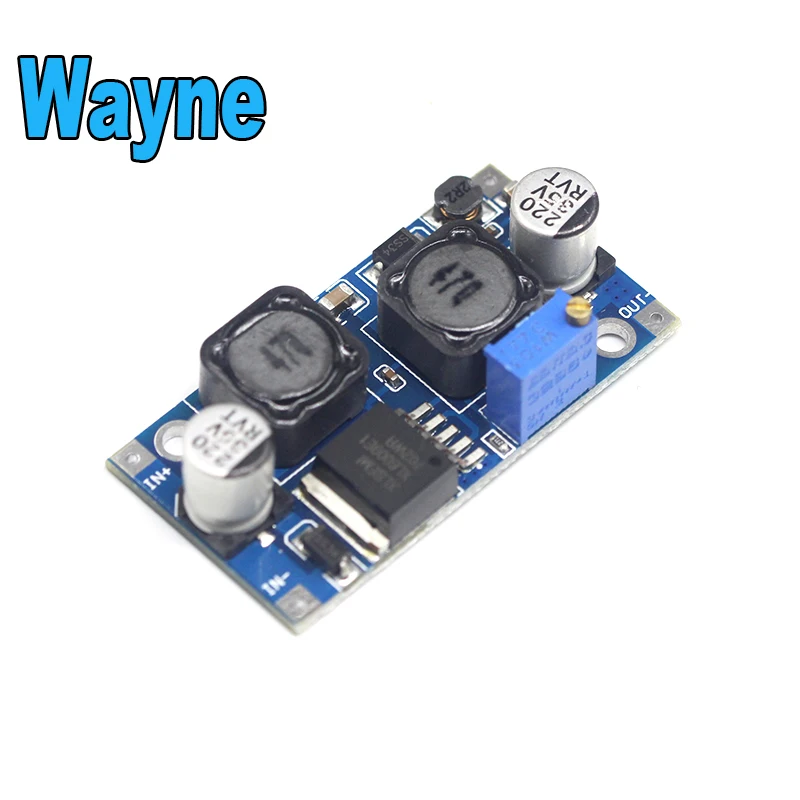

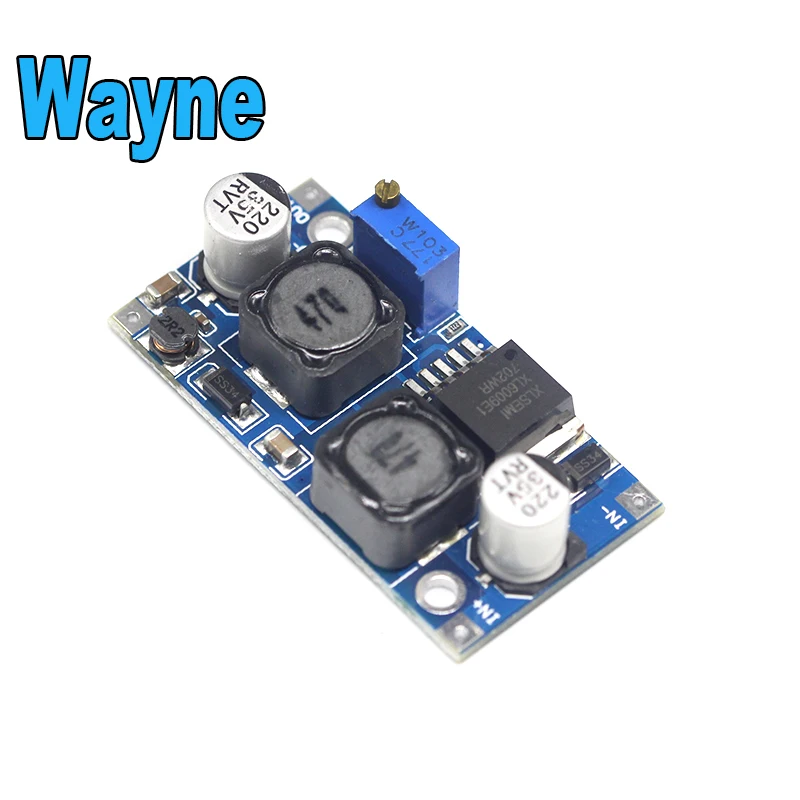

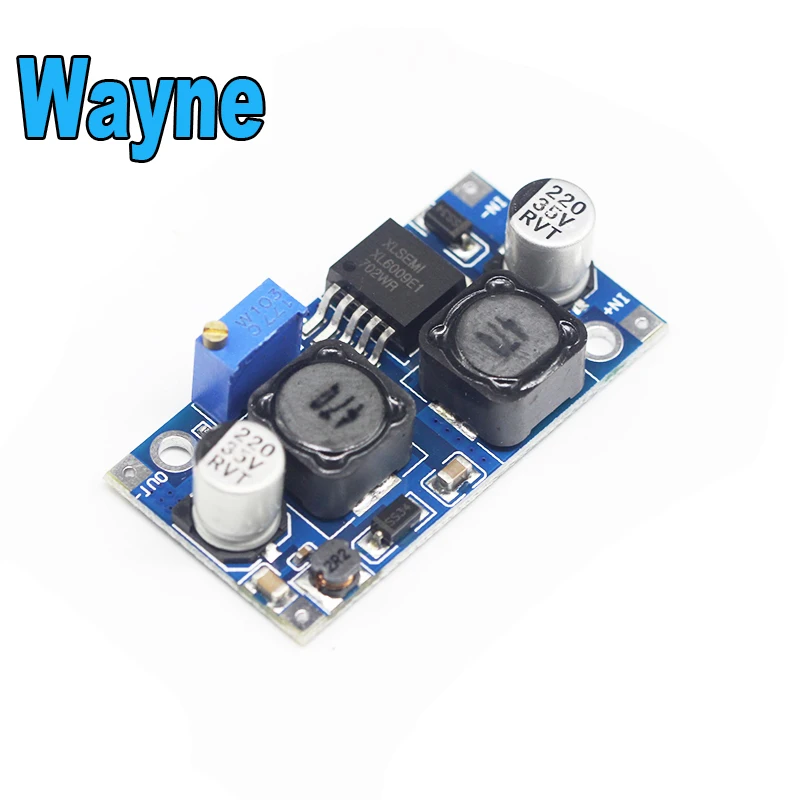

Module description: The voltage is pulled down to 7V or less when the car starts, and up to 15V or more when the engine is running at high speed. It is difficult for an electric appliance working at 12V to work normally. This automatic lifting pressure module solves this problem. No matter the input voltage is 5V, 12V or 32V, the output can be stable at 12V. 1. Ultra-wide input voltage range: 5V~32V; 2. Ultra-wide output voltage range: 1.25v ~35V (with automatic lifting voltage, any voltage input can be output at a stable voltage within the working range); 3. Built-in 4A high efficiency MOSFET switch tube, making the maximum efficiency up to 94%; (LM2577 current only 3A) 4. The ultra-high switching frequency is 400KHz, with smaller ripple and smaller volume. (LM2577 frequency is only 50KHz) 5. The module adopts SEPIC topological circuit, which is a mature lifting scheme. 6. The main chip adopts XL6009, with an ultra-high switching frequency of 400KHz, smaller ripple and smaller volume. (LM2577 frequency is only 50KHz) Instructions: 1. Access power (5-32v), power indicator light on, module working normally. 2. Adjust the knob of the blue potentiometer (generally rotate the boost clockwise and counterclockwise) The output voltage is monitored with a multimeter until the required voltage is reached. 3. Some customers reported that the output voltage of the module could not be adjusted and was always equal to the input voltage. When you encounter this problem, please turn the potentiometer more than 10 times counterclockwise before using the module to adjust the voltage normally. Notes: 1. It is recommended to use the current within 2.7a for long working hours. In order to ensure stable output, please keep the minimum pressure difference of 1.5v. 2. The connection is as shown in the connection diagram shown in the highlight. Please do not connect it backwards. The wrong connection may cause the power module to burn out. Application cases: 1. The on-board stable voltage power supply requires only connecting the input end of this module to the automobile cigarette holder for power supply, so that the potentiometer can be adjusted, and the output voltage can be adjusted at 1.25-30v at will. It is very simple and convenient to power your mobile phone, MP3, MP4, PSP charging and many other devices. 2. Power the electronic equipment. When the equipment needs 3-35v power supply and the corresponding voltage power supply in hand, this module can be used to conveniently adjust the voltage to the required voltage and solve the problem. 3. System working voltage test. When doing the project, you can use this module to debug the working voltage range of various voltage testing systems, which is very easy and convenient. 4. Applications of voltage instability such as automotive voltage stabilization, solar photovoltaic power generation and wind power generation. Shipping list: Automatic lifting and pressing module x1(exquisite and independent packaging of electrostatic bag)
