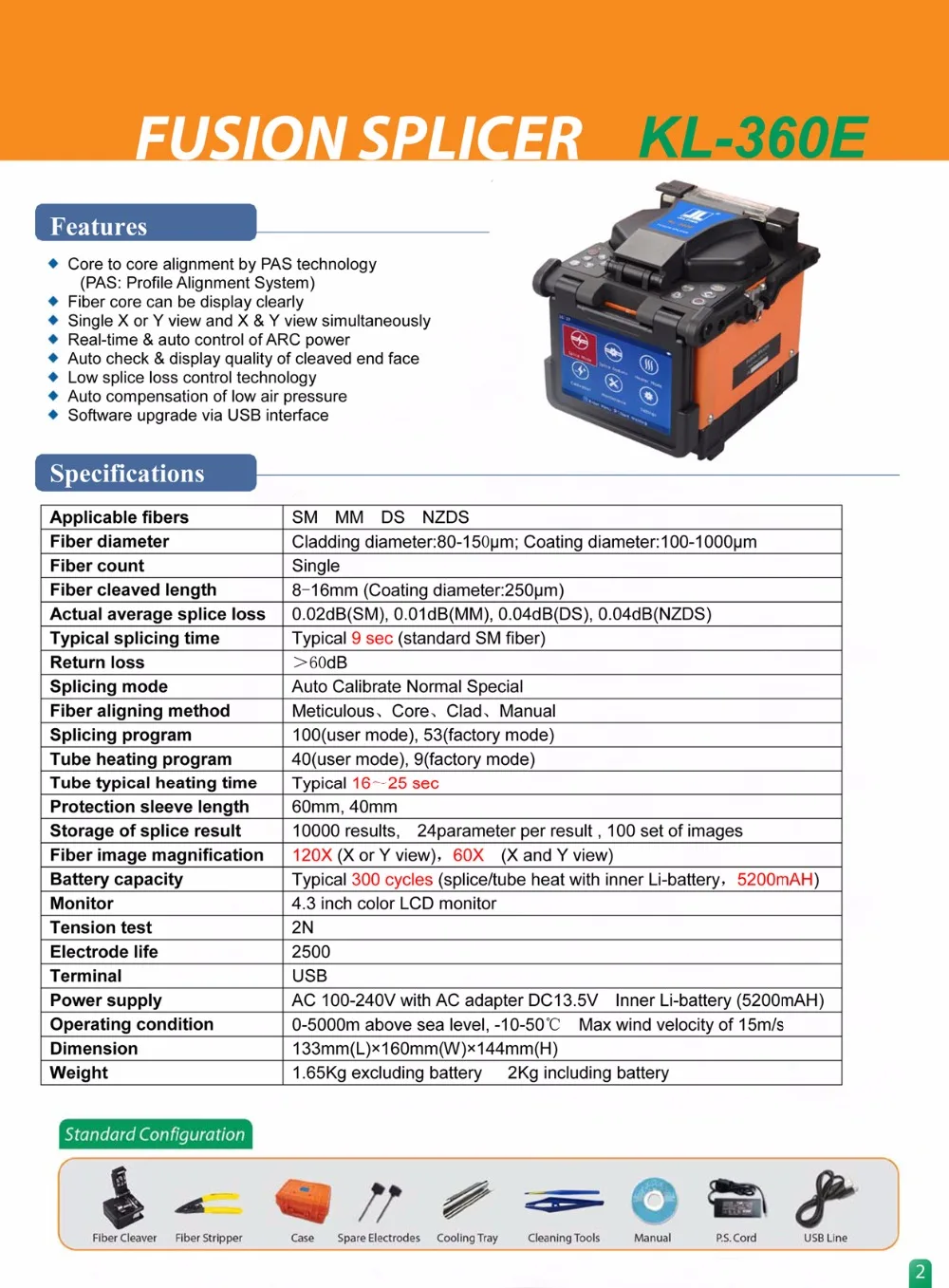

Applicable Fibers

SM  MM  DS  NZDS and other self-defined fiber types

Real-time ARC Control &  Calibration

Real-time ARC control & calibration , Auto environmental adaptation , Auto   oxidized electrodes adaptation

Return Loss

>60dB

Typical Splicing Time

Typical 9 seconds

Typical Heating Time

Typical 15 seconds ( Fast Heating Control , Editable heating time, Editable heating temperature

Alignment Method

Meticulous,Core,Clad,Manual

Fiber diameter

Cladding diameter:80-150μm , Coating diameter: 250-1000μm: 16mm

Protection sleeve length

60mm, 40mm and other lengths

Tension test

2N

Universal Clamp

Applicable with bare fiber, pigtail, jump cable, indoor cable. Optional SC clamp for SOC

Fiber image Magnification

320X (X or Y view)

Monitor

4.3 inch TFT color LCD monitor, image rotation

Terminal

Upgrade software & Download splice record Via USB 2.0

Splicing program

53 (templet), 100(user)

Tube heating program

11 (templet),40(user)

Storage of splice result

PS. It can save 100 splicing images in the built-in SD card

Battery capacity

>350 cycles (splicing & heating)

Power supply

AC 100-240V with AC adapter DC13.5V  Inner Li-battery (5200mAH), charging time <3.5 hours

Operating condition

0-5000m above sea level, -10-50℃  Max wind velocity of 15m/s  <95% RH(Non-condensing)

Dimension

161mm(L)×136mm(W)×141mm(H)
