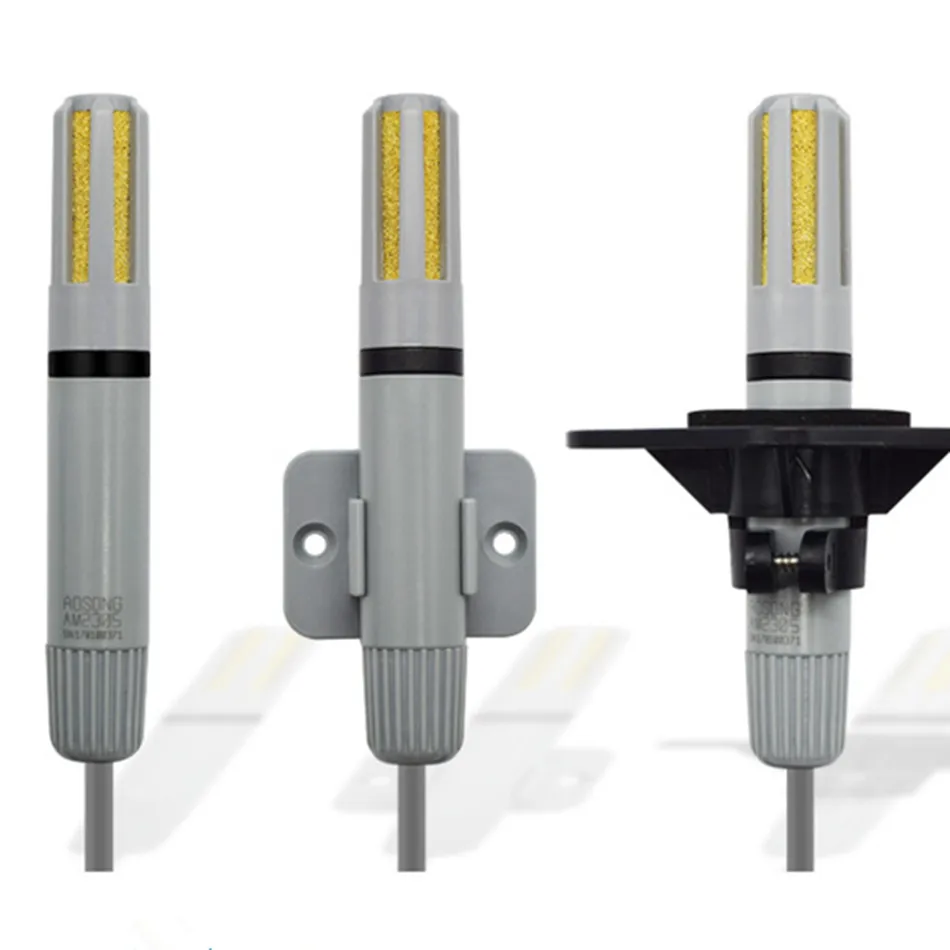

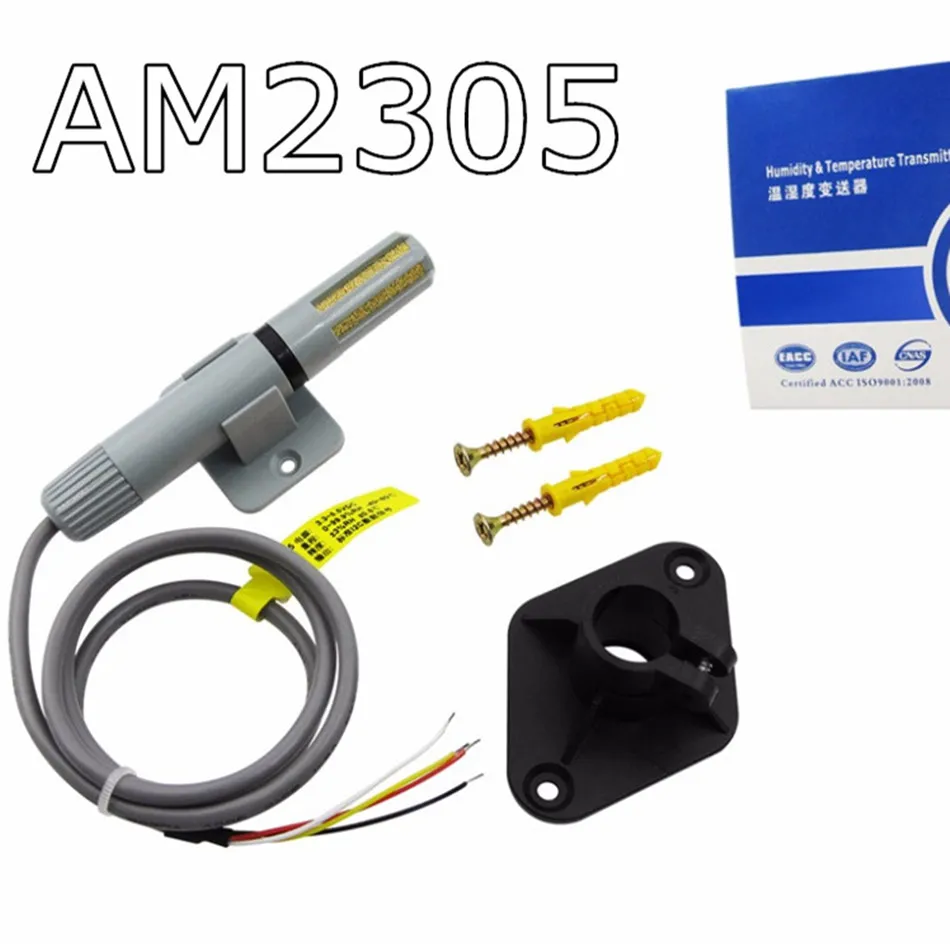

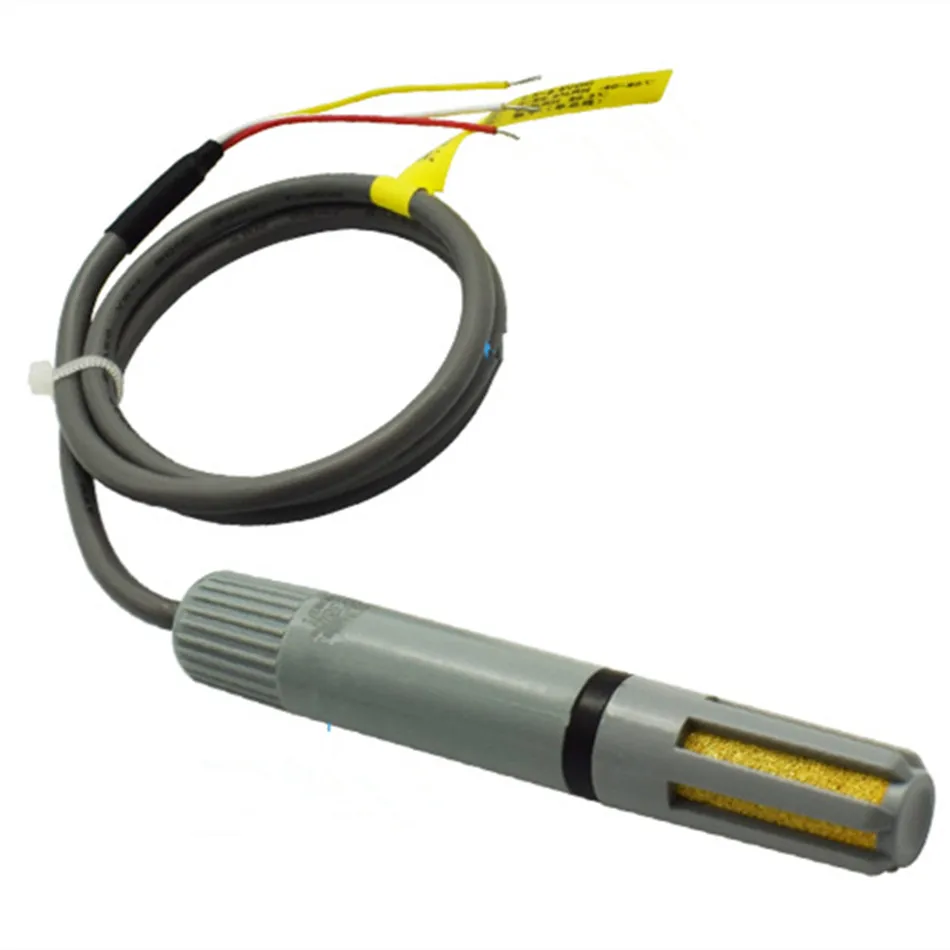

AM2305 Temperature And Humidity Sensor High Precision Sensitive Capacitor Module Dustproof Hig

Model AM2305

Material mixture

Minimum number of packages 1

Material physical properties semiconductor

Sensitivity 0.1

Material crystal structure polycrystalline

Linearity 2

Hysteresis 1

Resolution 0.1 degrees

Drift <0.1

Output signal digital

high temperature digital temperature sensor and humidity AM2305

1) Relative humidity and temperature, calibration of all digital output

2). excellent long-term stability

3.) No additional components

4). the transmission of the long-distance signal

5) ultra low power consumption

6). the pin 4 installation

7) Fully interchangeable

AM2305 Product Overview:

AM2305 digital temperature and humidity sensor is an output calibrated digital signal temperature and humidity sensor combined. it uses the technology to capture a dedicated digital modules and the temperature and humidity sensor technology to ensure that products with high reliability and excellent long-term stability. the Sensor includes a capacitive humidity sensor element and temperature measuring devices DS18B20, and with an 8-bit high-performance microcontroller connected. therefore, the product has excellent quality, fast response, anti-interference capability, high cost and other advantages. each AM2305 sensors are calibrated in an accurate humidity calibration chamber. the calibration coefficients stored in the form of an OTP memory program, signal in the process of detecting the internal sensor to call those calibration coefficients. Single-wire serial interface, system integration becomes simpler and faster. Ultra-small size, low power consumption, signal transmission distance up to 20 meters, make all kinds of applications and even the most demanding applications the best choice is. products for single row pin pin package. easy connection, special packages according to user needs and available.

parameters:

measuring range 0-100% RH

temperature range of -40 ~ 80

measurement accuracy ± 2% RH

a Measurement accuracy of ± 0.2

resolution 0.1

fully interchangeable interchangeability

long-term stability of ± 0.3% RH / Year
