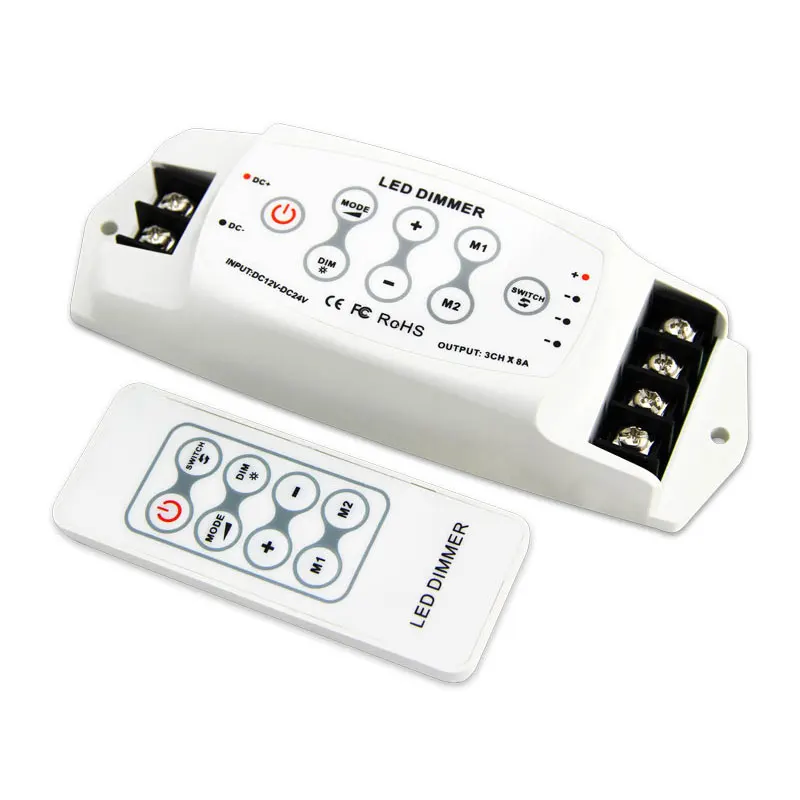

DC12-24V 8A/CH 3Channels Output  Brightness Dimmable LED Dimmer Controller w/ RF Remote Control for LED Single Color Strip Light

LED Dimming controller is dedicated to control single color changes (common anode), adopted the most advanced PWM (Pulse-Width Modulation) digital brightness-adjusting technology at present. Extensively used in all kinds of LED lighting decoration. It can be used together with our power repeater to achieve unlimited output power repeating. With RF remote, it can be controller in 30-60meters.

Features:

1、Automatically adapts to the LED lights which works DC12-24V.

2、Real 0~100% brightness adjust, 4096 grey scales. Lamplight soft and stable, no strobe flash, welcome to compare.

3、3-Channel output control, maximum output 8A per Channel, 24A in total.

4、8 modes, Brightness can be adjusted in static mode; speed can be adjusted in dynamic mode.

5、sustain to full-load working, can be equipped with power repeater to expand power.

6、Power loss memory function.

Product parameter:

Input Voltage: DC12V-DC24V

 Max current load: 8A/CH×3

 Max output power: 290W(12V)/580W(24V)

 Scale level: 4096 levels×3

 Dimension: L165×W56×H36(mm)

 Package Size: L170×W60×H40(mm)

 Weight (G.W): 190g

 Remote Distance: 30m with obstacles; 60m without obstacles

Conjuncton Diagram:

1. Take single color LED Strip as an example as follows:

2. If one controller is not enough, you can add a power amplifier to expand the load.

*The dimmer and the amplifier can share the same power supply

Operating instructions:

The remote control ID learning guide: Press ON/OFF button on the controller, and press any

of the button on the remote, when the light flashes, the ID is set.

Safety Warnings:

From the day you purchase our products within 3 years, if being used properly in

accordance with the instruction, and quality problems occur, we provide free repair or

replacement services except the following cases:

1.Any defects caused by wrong operations.

2.Any damages caused by inappropriate power supply or abnormal voltage.

3.Any damages caused by unauthorized removal, maintenance, modifying circuit,

incorrect connections and replacing chips.

4.Any damages due to transportation, breaking, flooded water after the purchase.

5.Any damages caused by earthquake, fire, flood, lightning strike etc force majeure of

natural disasters.

6.Any damages caused by negligence, inappropriate storing at high temperature and

humidity environment or near harmful chemicals.

7.Product has been updated.
