Specification:

• Brand new

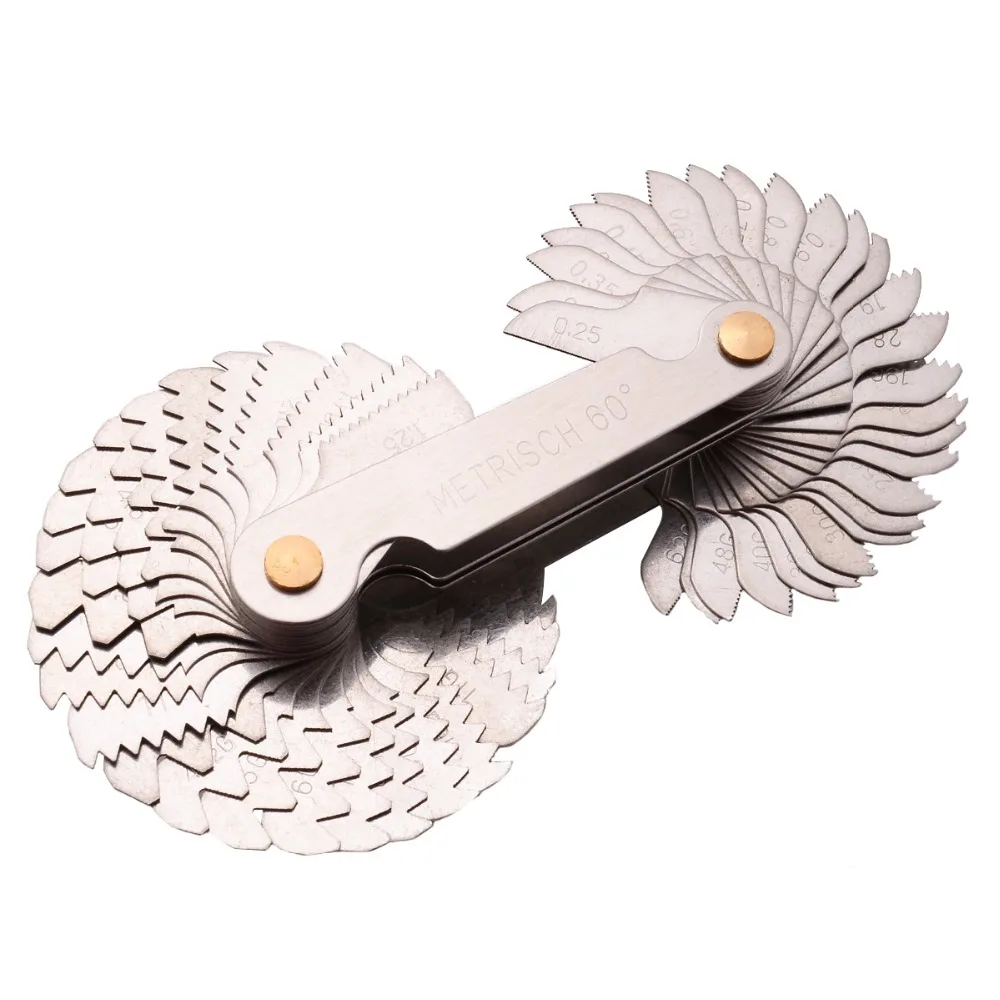

• Type: thread gauge

• Material: 45 cold-rolled steel

• Color: silver, as picture shows

• Size: approx. 11x5.5cm/4.33"x2.16"

• One combination thread gauge model.

• It is one kind of a pitch, the pitch multiple stacked up special measuring tools, thread pitch for inspection.

• Can be used for measuring the metric and inch screw thread. The blade can also be used to measure the AF thread per inch of thread.

Instructions:

• 1) measure the thread pitch

• The thread Pilot Group as a template cards toothed steel thread in the measured workpiece, if not close together, the other for one, until snug.

• Then mark on the thread size model is the measured workpiece thread pitch.

• 2) measuring the tooth-shaped corner

• The thread pitch and the measured workpiece thread model on the same thread on top of the test, then check Talia contact, if there is no gap translucent, tooth-shaped angle measured thread is correct; if there is uneven light transmission gap phenomenon, it shows the measured thread tooth shape is not accurate.

Measuring range:

• Metrisch 60°: 0.25,0.3, 0.35, 0.4, 0.45, 0.5, 0.6, 0.7, 0.8, 0.9, 1.0, 1.25, 1.5, 1.75, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0

• With worth 55°: 4, 4.5, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 18, 20, 22, 24, 25, 26, 28, 30, 32, 36, 40, 48, 60, 62

• US 60°: 8, 10,  11, 14, 19, 28

Package included:

• 1pc x thread gauge

Note:

• Please allow 1-5mm errors due to manual measurement

• Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same
