LINK-MI LM-108T HD Video Audio VGA Splitter Extender 1x8 Via UTP Cable

VGA 1x8 SPLITTER



Introduction

LINK-MI LM-108T 8 channel VGA Video & Audio transmitter allowing extension of high resolution VGA video and high-fidelity audio over UTP cable.8 channel VGA video and audio transmitter receiver need to match, can match with any of the 100m-200m-300m receiver. The transmitter not only work as a 8channel distribution amplifier, but also provides local video & audio output for local use.

Features

1. Sharpest and clearest VGA quality over CAT5 of any manufacturer.

2. Hi performance Audio quality over CAT5 of any manufacturer

3. Supports local and remote VGA monitors and Speaker.

4. Real Time Transmission Video & Audio signals by single CAT5 cable

5. No TCP/IP protocol and networking setting and maintenance

6. No Ant firewall needed, no IP and networking occupation

7. Plug and Play, compatible with all format VGA video signals.

8. Built-in ESD and surge protection.

9. Available with VGA contact and RGB brightness adjustment

10. Use in-house CAT5/5e/6 phone wiring to locate a monitor remotely.

11. Metal case

Specification

Power properties

Power Supply

12V DC(power adaptor)

Power Consumption

<20w

Power Switch

Support

Video
properties

Video Input Connector

1* blue 15pin HD15 male; Impedance: 75Ω

Local Video Output Connectors

1* blue 15pin HD15 female; Impedance: 75Ω

UTP Cable Connectors

8* RJ-45; Impedance: 50Ω

Signal Transmission Band

>350MHz(-3db)

Linear Distortion

<3%

R,G,B Signal Distortion

<2ns

Common-mode Interference Rejection

65db(typical)

Synchronous signal

0-5V,TTL PWL

Synchronous signal band

1K-200KHz

Synchronous Signal Delay

<8ns

DDC2

Virtual DDC

Audio properties

Connectors

2* 3.5mm Audio Jack

Input Impedance

10kΩ

Output Impedance

600Ω

Transmission Band

10-20KHz

Protections

Lightning Protection

1000V, 10/700us
IEC61000-4-5

ESD

Contact Discharge:2000V
Air Discharge:4000V
IEC61000-4-2

Physical
Properties

Dimensions (LWH)

575*275*90mm

Housing Material

Metal

Color

Blue



Environmental

N.W.

0.6 kg

Operating Temperature

0°C ~55°C

Relative Humidity(non-condensing)

0-95%

Storage Temperature

-20°C ~80°C

Casing

Gross Weight

0.8kg

Casing Volume(LxWxH)

575*275*90mm

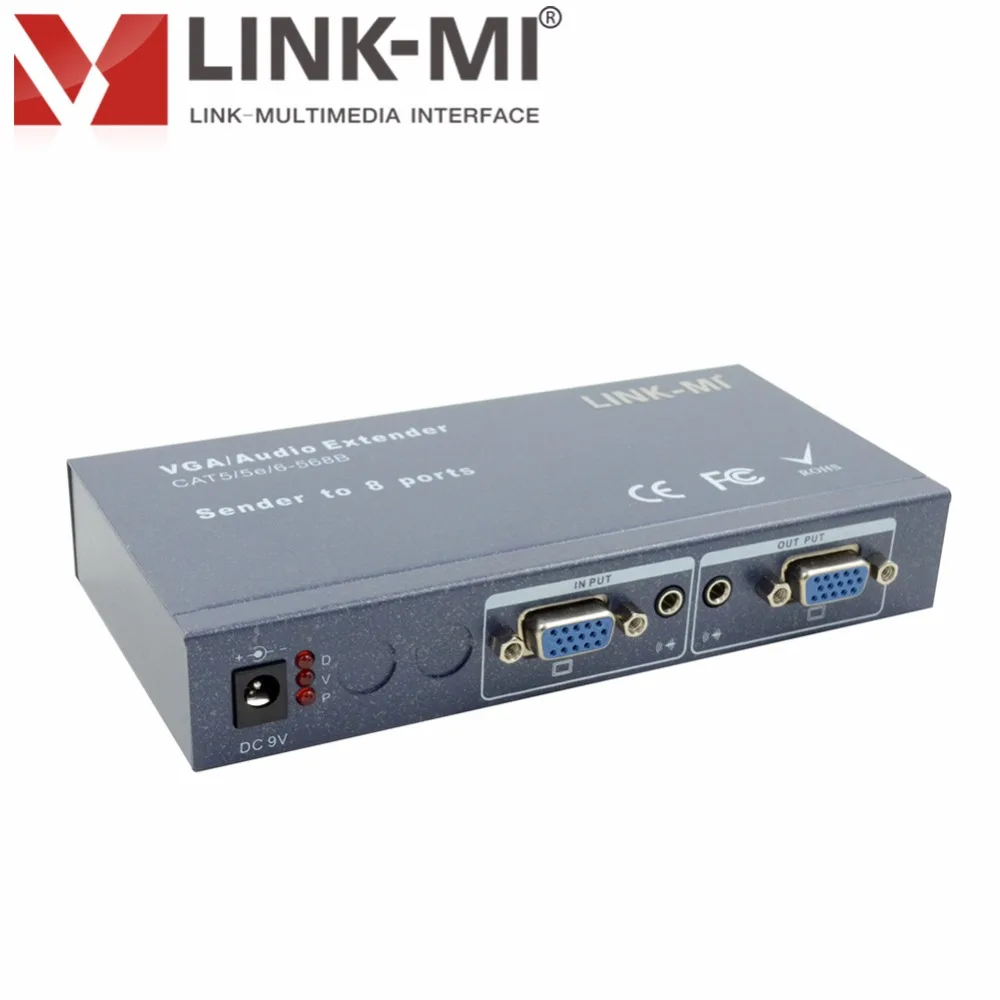

Panel Description

108T

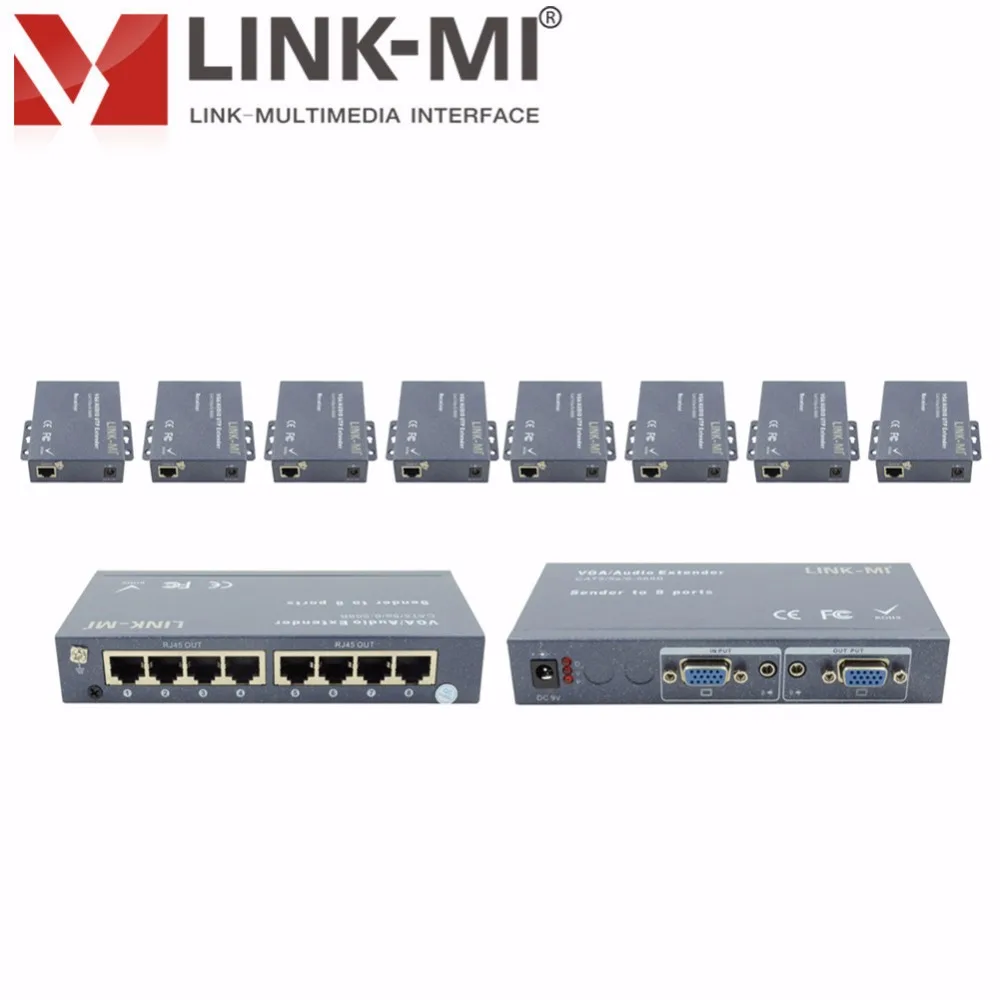

Application

LM-108T Application

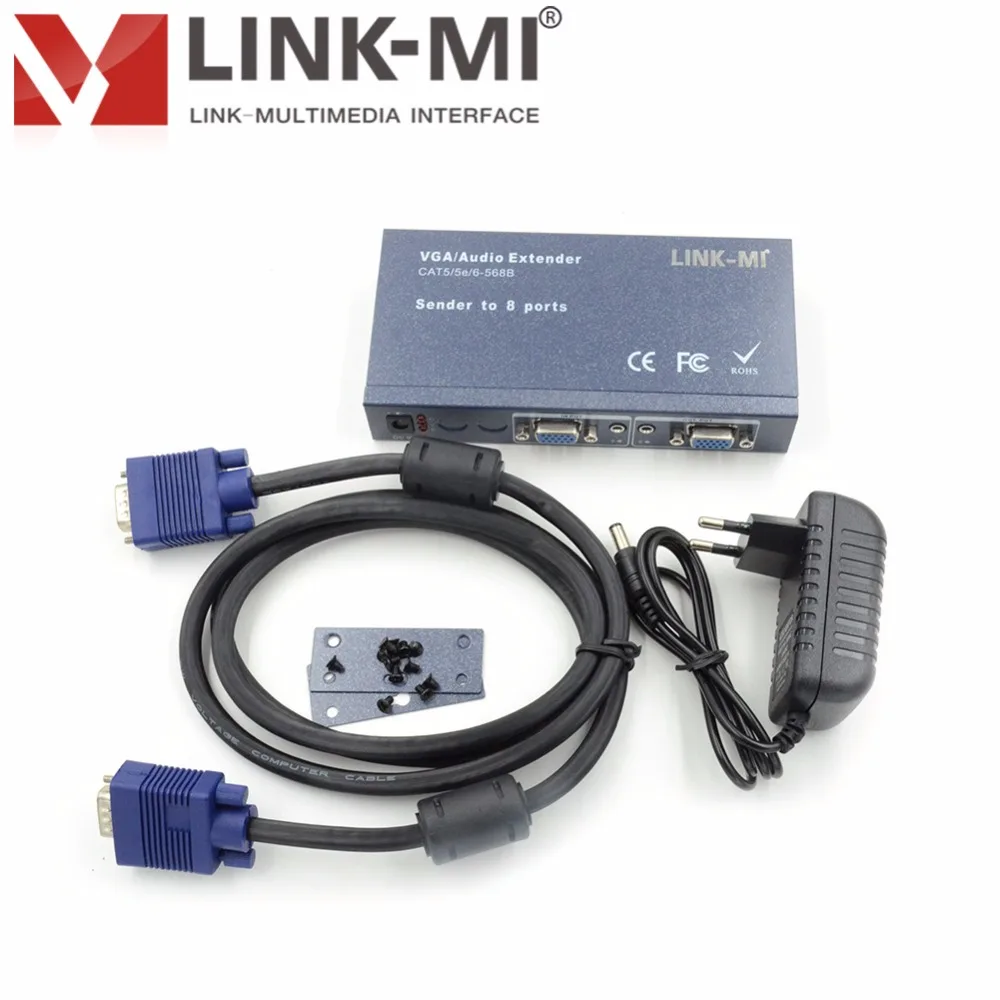

Main Unit. 1pcs VGA Extender Sender

1pcs Power Adapter 1pcs User Manual
