Welcome to SUNFLOWERVDP professional video intercom system unit /Access control system factory store. All video door phone intercom system and access control system come from our factory! We have strong technic and engineer supporting!

• ​We have the video showing about the products works and the installs, if you need it, kindly leave message to us! And the video in aliexpress only for your reference!
• ​Add our aliexpress store in your wish list before place the order to us, become our VIP buyer, some special or new products you will enjoy more discount automatic based on on line price

For Save More By Collecting Coupons Before Buying! Check Here......

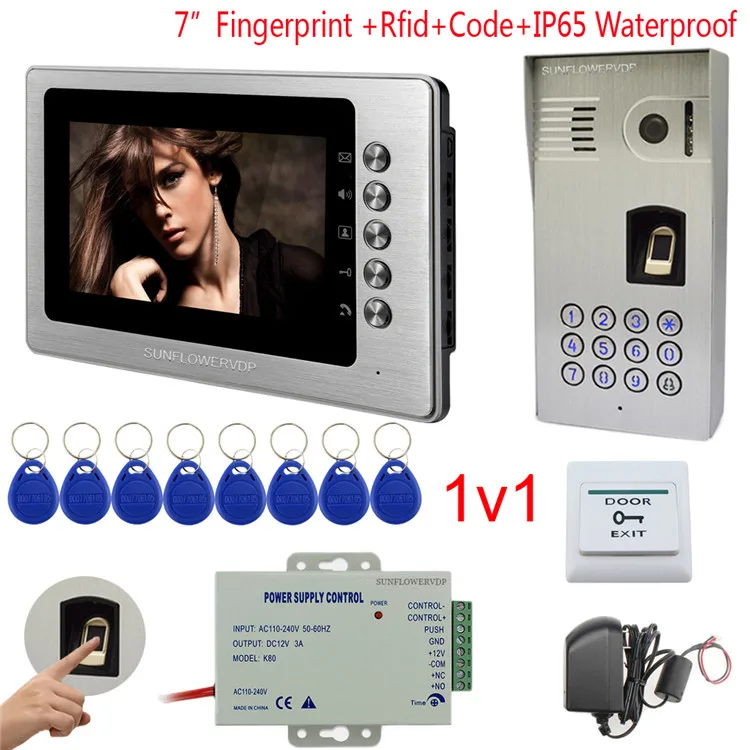

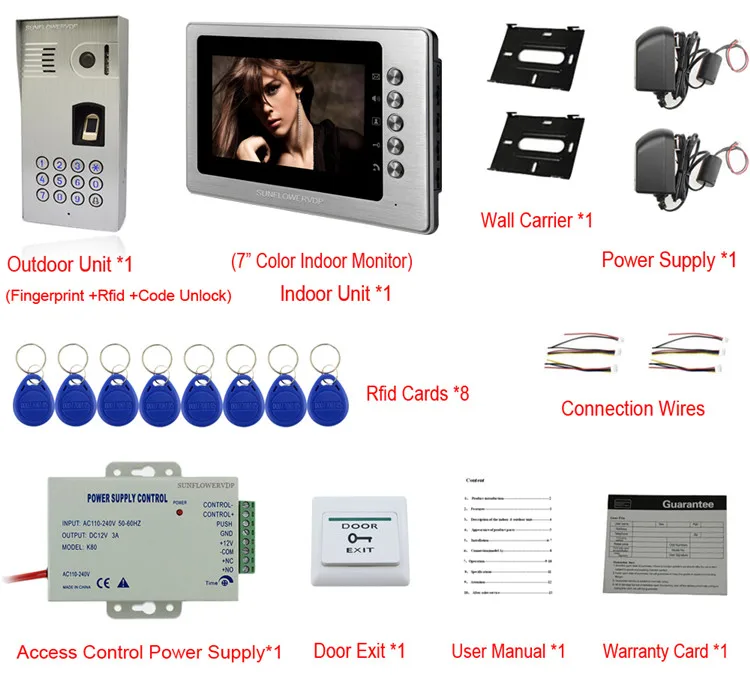

Package Content: (1v1) SFFGR-V7OB-1V1

• 1 x Indoor monitor TFT-lcd 7 inches (7" Aluminum Wire Drawing Color Monitor)
• 1 x Power adapter for indoor monitor (110V-240V US/AU/EURO/CA 2-pin plug,/UK 3-pin Plug)
• 1 x Indoor monitor wall carrier
• 1 x Infrared night vision/waterproof(IP65) outdoor camera with (Fingerprint recognition/Rfid card/Password unlock function)
• 1 x12V access control power supply
• 8 x Rfid cards
• 1 x Door exit
• 1 x English user manual/Warranty card
• Standards screws and expansion bolts for the installation
• Standards 2-core wires/4-core wires/5-core wires help install (If you need more longer test/install wires, kindly tell me!)

​

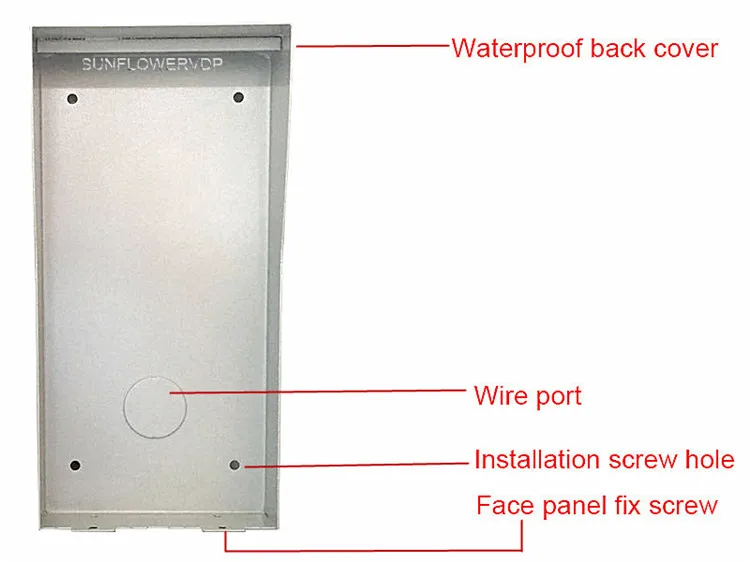

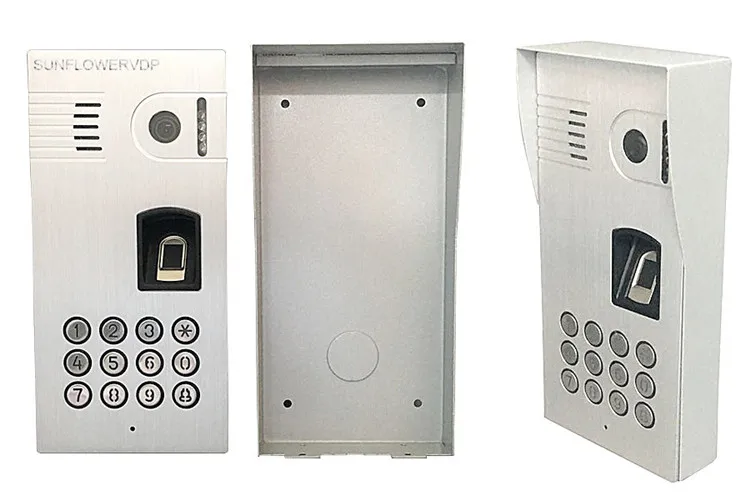

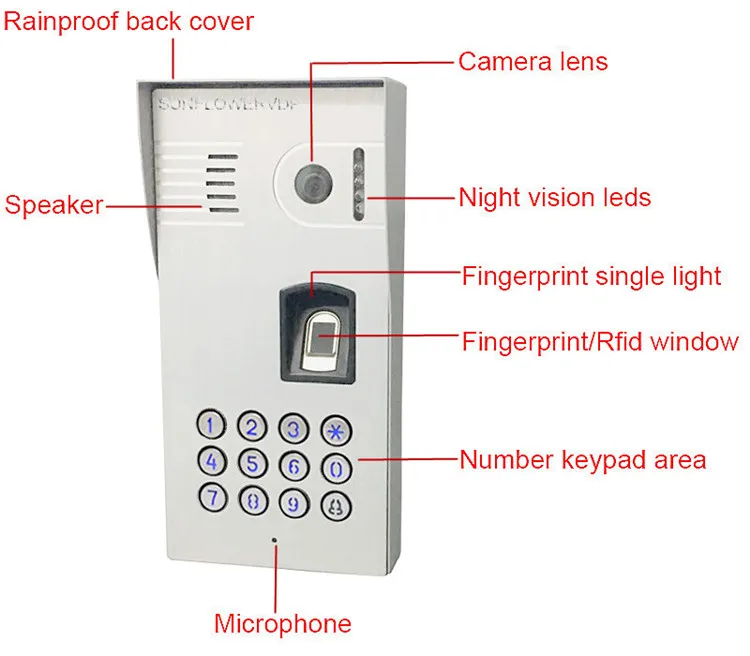

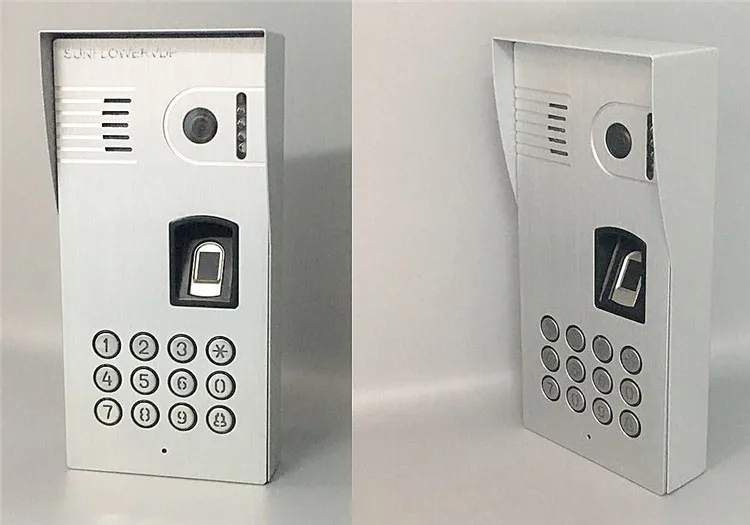

Feature of outdoor unit: (Fingerprint recognition/Rfid card/Password function)

• The fingerprint rfid outdoor unit is controlled by fingerprint sensor, rfid card reader and code keyboard, it is internal integrated with the visual intercom circuit to connect indoor monitor. and use it to intercom, and unlock the door.Connecting indoor phone to intercom , monitor and unlock function!
• Material: Aluminum alloy front panel, stainless keys;
• Unlock way: 5 ways to unlock ( Indoor monitor remote unlock, fingerprint unlock, rfid cards unlock, password unlock,keys etc );
• 2 signal output;1.Relay output; 2. Push(low-level output);
• Waterproof function: IP65 waterproof function
• 6 Infrared LED night vision for night monitor
• Blue LED backlight for digit keys;
• Waterproof (IP65)/Can put in the rain directly.
• Working temperature: -40degree to +60degree
• Support all kinds of locks: electronic locks, electromagnetic locks, electrical locks and so on
• Warranty: 5 years

• Camera resoltution: 1/3 CCD 800lines HD camera
• Min lighting: 0.02LUX
• Working voltage: DC12C+10% or DC12V-10%
• Working current: <260mA
• RH: 20%-80%

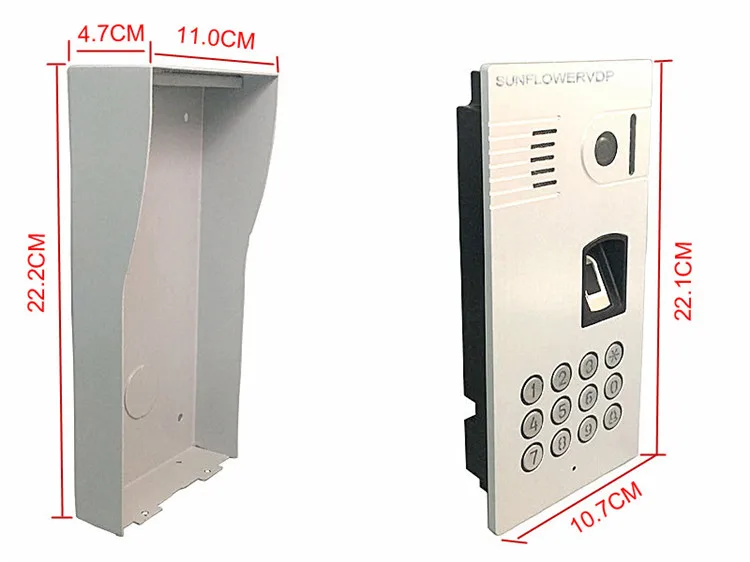

• Installation size: 222(L)mm*108(W)mm*27(H)mm
• Product size: 222(L)mm*108(W)mm*31(H)mm

• Capacity rfid cards: 400pcs
• Card type: En4100 or all ID compatible card
• Card read distance: 5-10 cm
• Working temperature: -40degree to +60degree
• Working current: 60mA to 80mA

• User capacity: 500 pcs
• Acquisition time <1 second
• FAR< 0.001%
• FRR< 1.0%
• Match time <1 second
• Working temperature: -30degree to +70degree
• Working current: <200mA
• Standby current <20uA
• Standard keyboard :12Keys

Operation: (very easy)

1. The visitor press call button of fingerprint outdoor unit,, the indoor monitor will ringing and show the visitor's video
2. The householder press "talk" button to dual intercom with the visitor, press "unlock" button to unlock the door
3. The householder press "monitor" button to monitor the status of outdoor unit, press "talk" button to talk
4. The user put finger on the sense area, the door will be opened after hearing di-di, support 500pcs fingerprint
5. The user enter 6-digit code (password), and press asterisk key, the door will be opened after di-di
6. The user read the Rfid cards in the card reader area,  the door will be opened after hearing di-di, support 400pcs rfid cards.

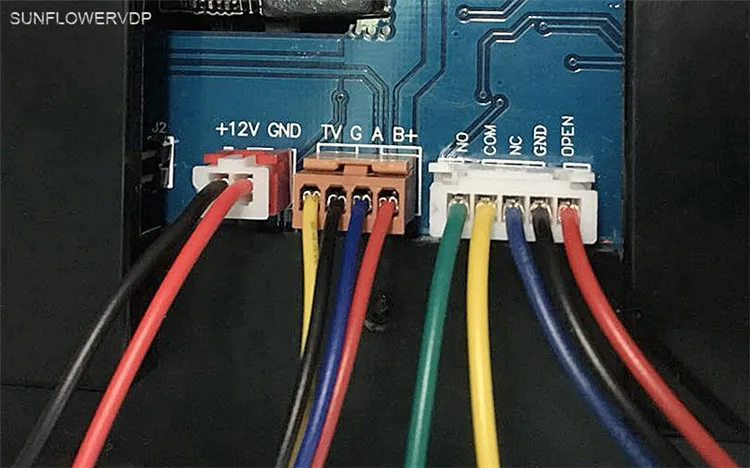

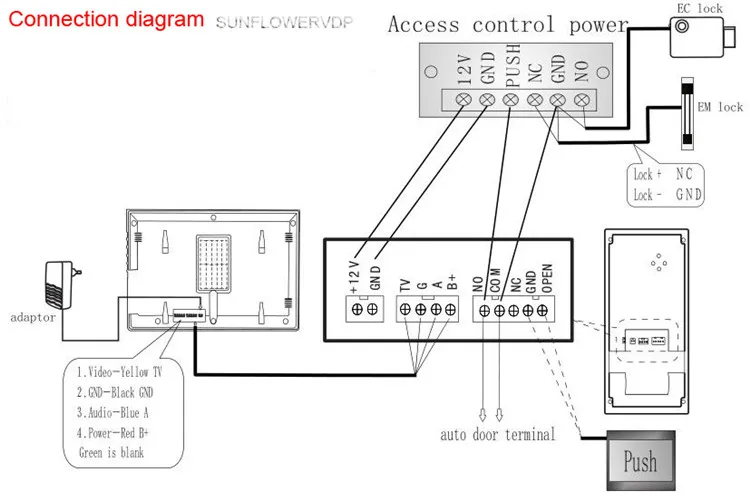

Wiring requirements:

• 30 m: RVV4 (4 polishing) x 0.5 mm
• 50 m: RVV4 (4 polishing) x 0.75 mm
• 100 m: RVV4 (4 polishing) x 1.0 mm

• Function: Video intercom/monitor outside/remote unlock the door lock etc
• Display: Color 7 inch TFT LCD (16:9 display)
• With micro-processing technology, auto-remote control, excellent performance and high reliability
• TFT color screen with low power consumption, no radiation and high definition
• Hands-free intercommunication
• Intercommunication is available between indoor and outdoor unit.
• Intercommunication is available between indoor unit and indoor unit.
• Resolution: 800 x 600
• Charger: Adapter input voltage: AC100-240V 50Hz-60Hz
• Adapter Output voltage current: DC15V 1500mA
• Case: metal material
• Color: Silver color
• Installation: Surface mounting
• Dimensions: 240 x 150 x 23mm (W x H x T )
• Net Weight: 0.60kg
• Operation temperature: -20 to +60
• Support 100 to 150 meters
• Max support: 3V6

• Input voltage: 110V to 240VAC
• Input frequency: 50 to 60Hz
• Output voltage: 3A
• Output voltage trim range: ± 10% to ± 15%
• Load: 1% typical
• Output stability: 0.5% typical
• Ripple and noise: 1%
• Peak to peak (100mVp-p typical)
• Insulation voltage: Junior/sub-polar inter-1500V AC, Primary/shell between 1500V AC, sub-polar/shell between 500V AC
• Hold time: full load typically 20ms
• Operating temperature: -20 to +65 degree
• Overload protection: All outputs in a short circuit, overlod are protected
• Power output of 0-15 second delay locks:
• Outer stell case size: 120mm*95mm*38mm
• Weight: 315g

How to set the Fingerprint/Rfid cards/Password? (We will send english manual to you with your order together, and we also provide video show about how to set the Fingerprint/Rfid cards/Code unlock)

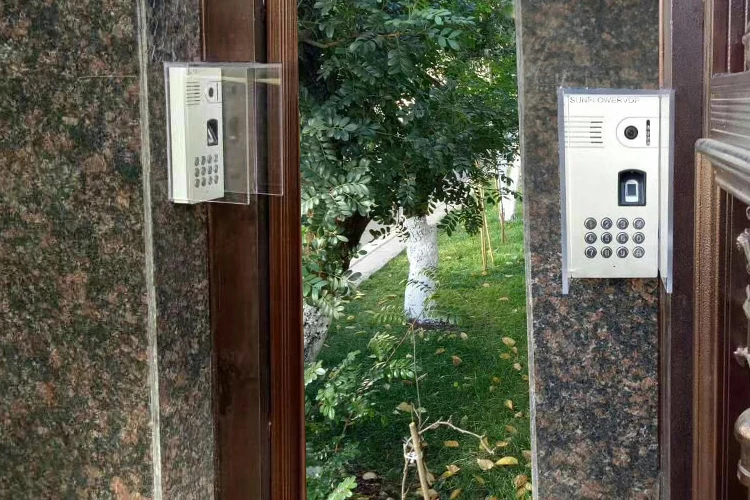

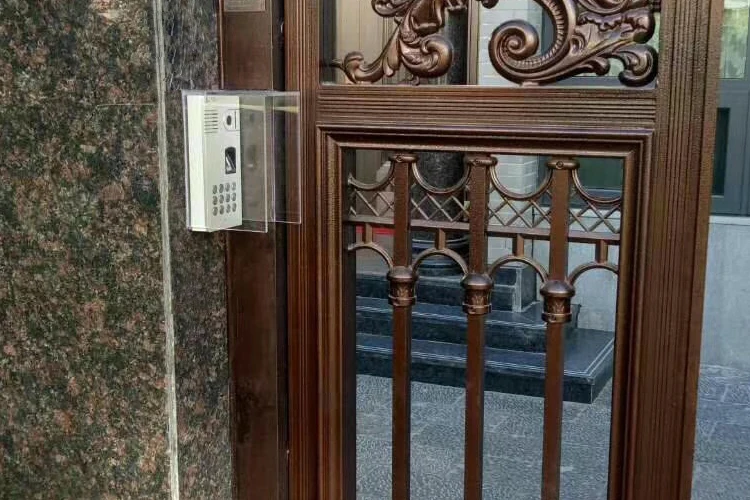

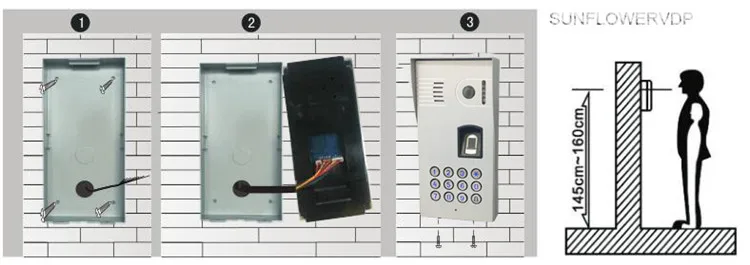

Installation show:

This kinds of outdoor unit (fingerprint unlock/ Rfid inductive cards unlock/password unlock) support all kinds of door locks, if you need other type door locks ship together, Pls kindly send message to me! (: we can send the on line link to you!
