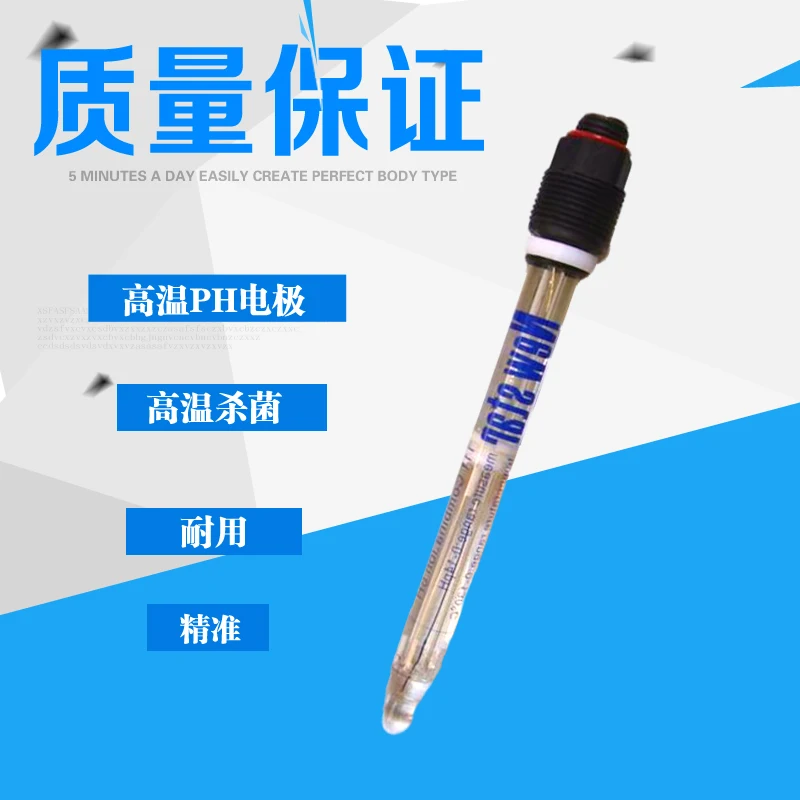

High temperature sterilizationPHelectrode

Characteristic

Using a new type of high temperature resistant glass sensitive membrane, using high temperature gel electrolyte and high

Temperature solid electrolyte, the dual liquid ceramic core and PTFE junction structure.

Electrode in the case of non reverse pressure, pressure 0.4MP and can be used directly for temperature 130

It can also be effectively measured in the range of 0-95 centigrade.

You do not need to add electrolyte, small amount of maintenance.

Using K9 or PG13.5 screw jack socket, can be used for foreign exchange so that the electrode

Use.

120, 150mm. The electrode length can be chosen according to need.

* and 316L with the use of stainless steel sheath or jacket used in conjunction with the PPT.

Scope of application:

Biotechnology: amino acids, blood products, genes, insulin, interferon

Pharmaceuticals: antibiotics, vitamins, citric acid

Beer: brewing, saccharification, boiling, fermentation, filling, cold wort, pre filtration / filtration, deoxygenation water, etc.

Food and beverages: monosodium glutamate, soy sauce, dairy products, fruit juice, yeast, sugar, drinking water

Chemical industry and other testing samples, the temperature is above 60 degrees Celsius, the normal temperature electrode can not be used
