Features:

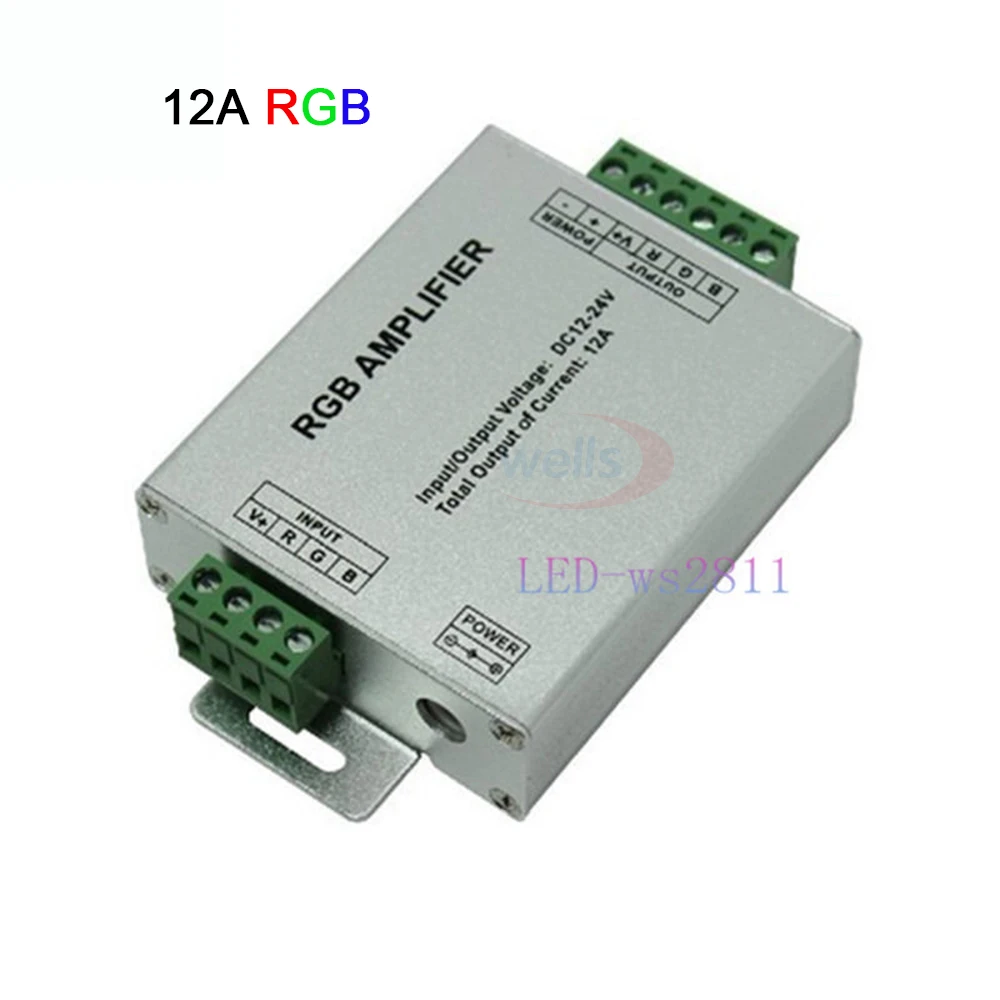

12A RGB Amplifier
    Supply Voltage: DC12V-24V
    Product Size: L 95 × W 65× T 24 mm
    Connecting Mode: Common anode
    Max. Output current: 4A each color
    Working Temperature: -20 ~ 60°C
    Long lifespan >50,000 hours

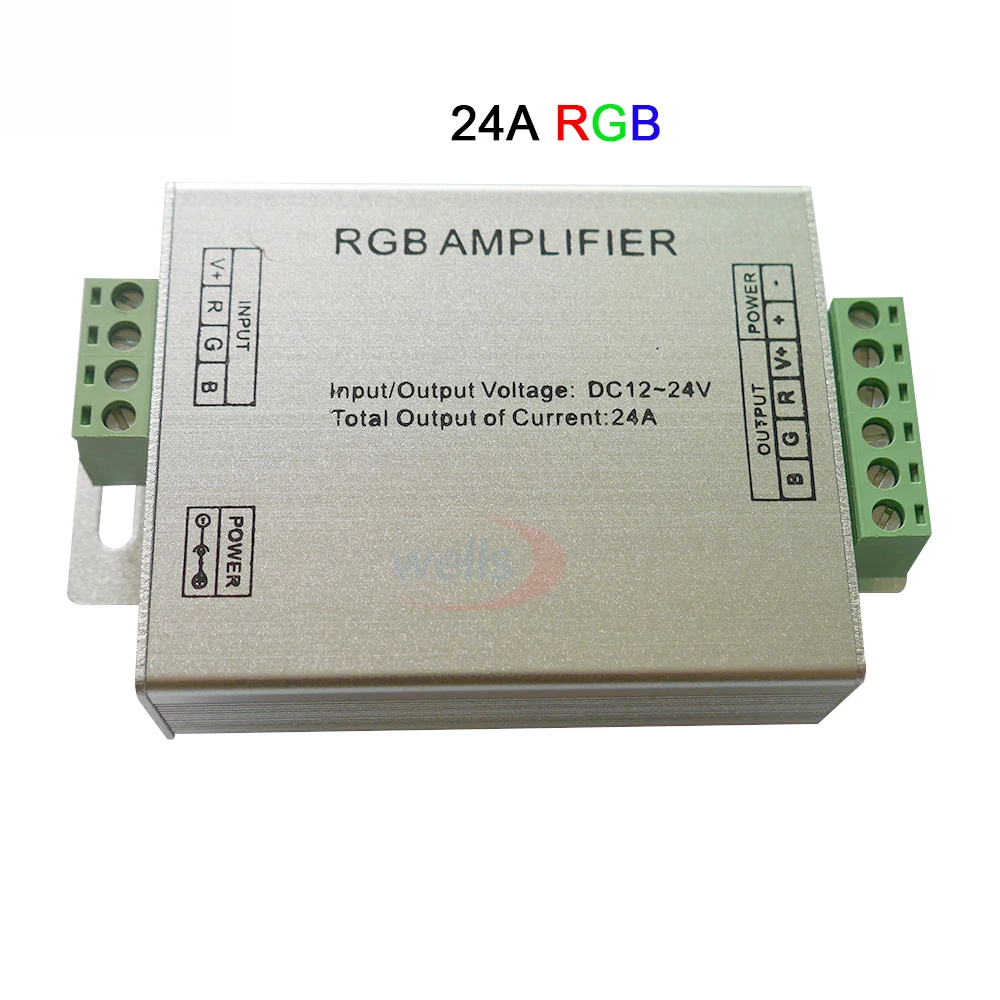

24A RGB Amplifier

Working Temperature:-20-60C
In/output Voltage: DC12-24V
Size: 105 x 65 x 25mm
Connecting Mode: Common anode
Max. Output current: 8A each color
Long lifespan >50,000 hours

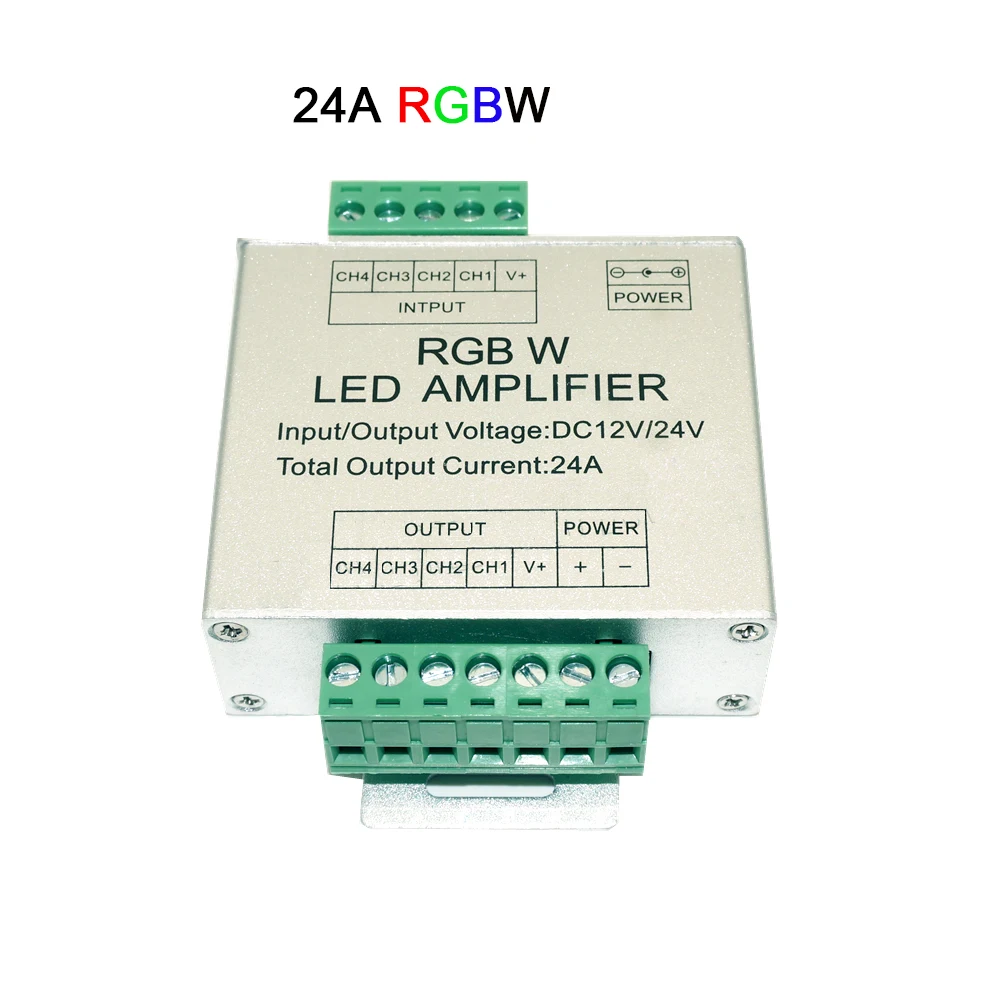

24A RGBW Amplifier

Input voltage: 12V~24V
Output: 4 circuit
Connection mode: Common anode
product's size: L81×W64×H24mm
package size: L115×W70×H35mm
Net weight: 90g
Gross weight: 110g
Static power consumption: <1W
Output current: <6A/ch
Output power: 24V:<576W

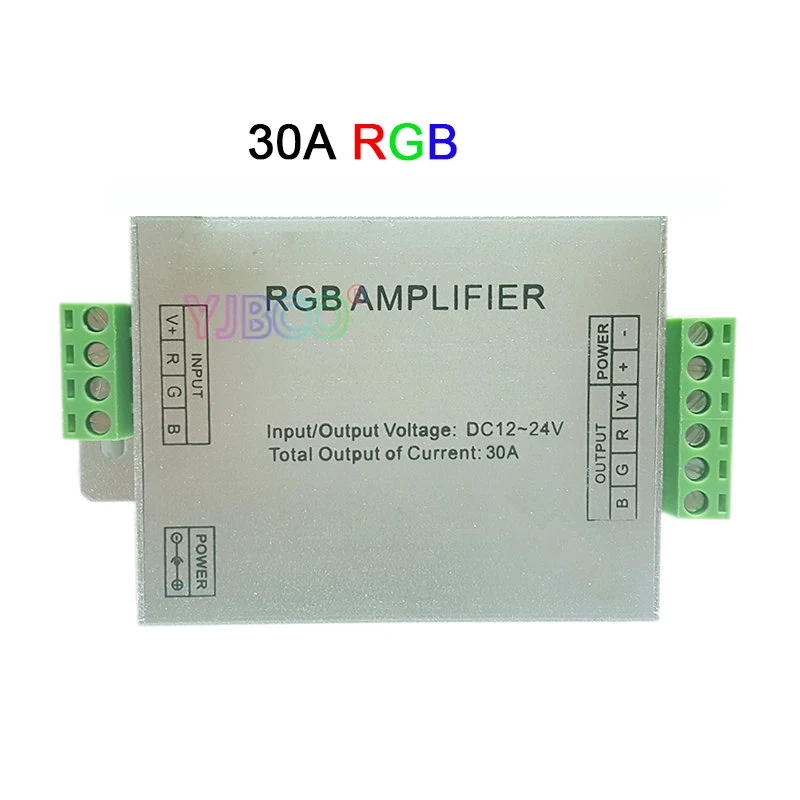

30A RGB Amplifier Controller DC12-24V For 3528 5050 RGB LED Strip Module Light

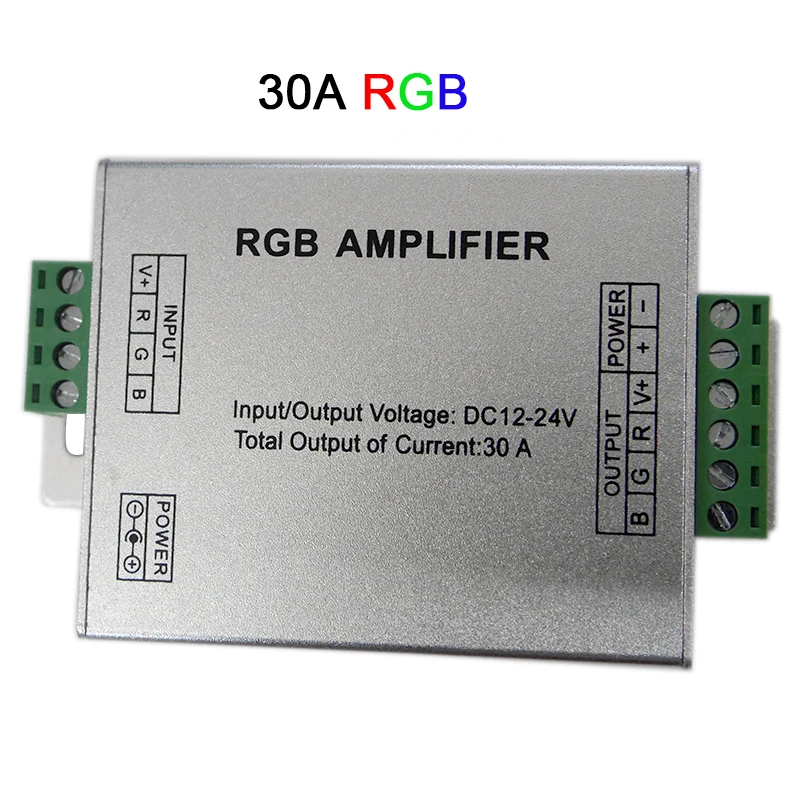

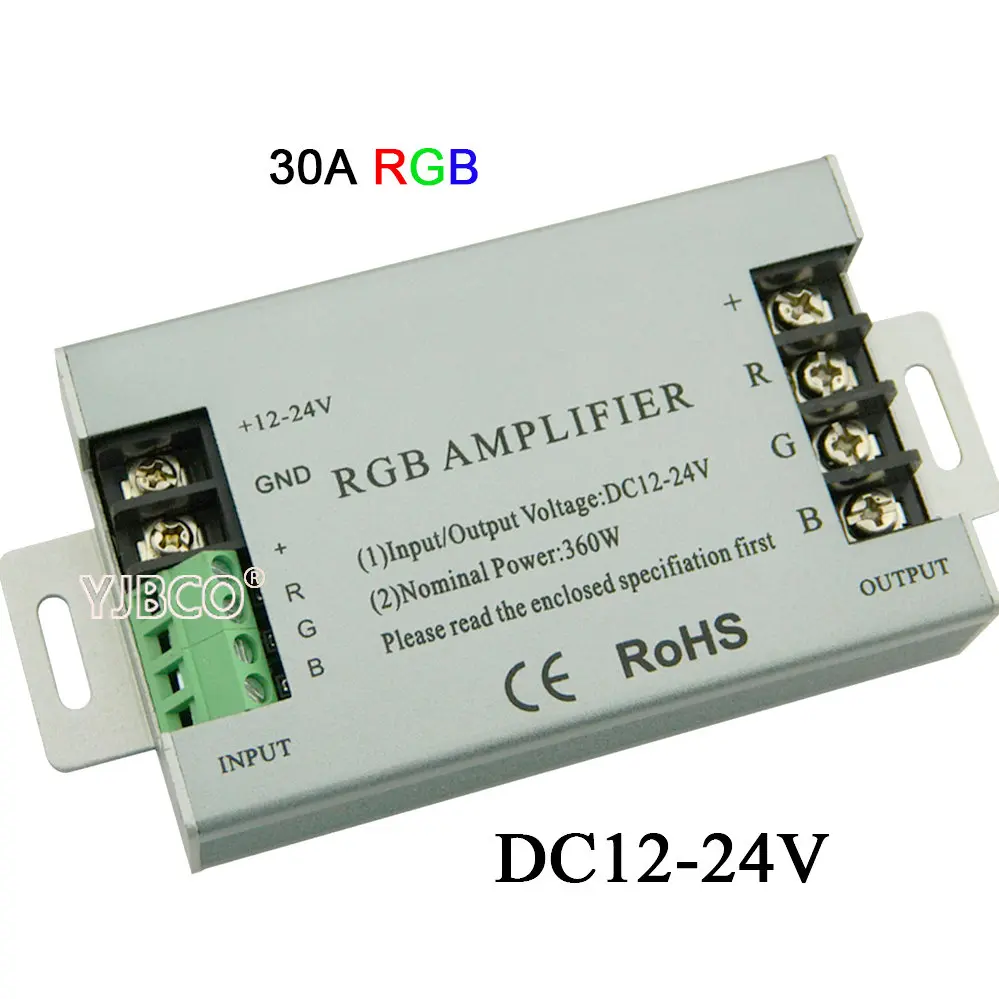

30A RGB  Amplifier

Supply Voltage: DC12V-24V
Product Size: L 100 × W 65× T 24 mm
Connecting Mode: Common anode
Channel:3*10A   Max30A
Working Temperature: -20 ~ 60°C
Long lifespan >50,000 hours

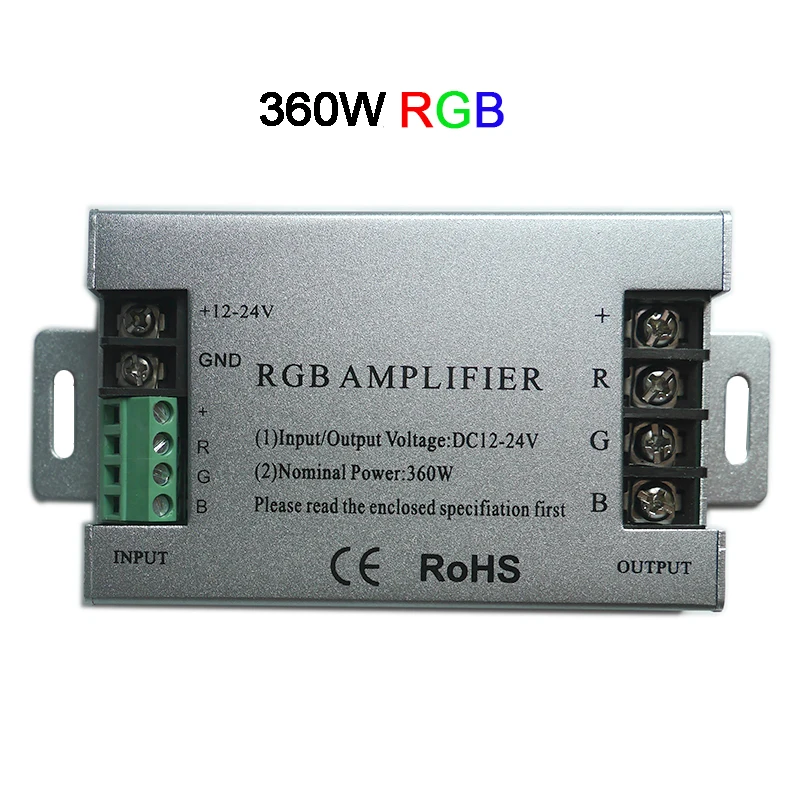

360W RGB led Amplifier controller DC12V-24V 30A Aluminum shell For RGB 5050 3528 SMD LED Strip lamp

Supply Voltage:12-24V
External dimension:130*65*25mm
Static power consumption :<1W
Output: 3 circuit (R/G/B/+)
Connection mode:common anode/cathode optional
Output Current:<10A(each circuit)
Output Power:5V:<150W, 12V:<360W,  24V:<720W
Package sizes:135*75*30mm
Net weight:124g
Gross weight:144g

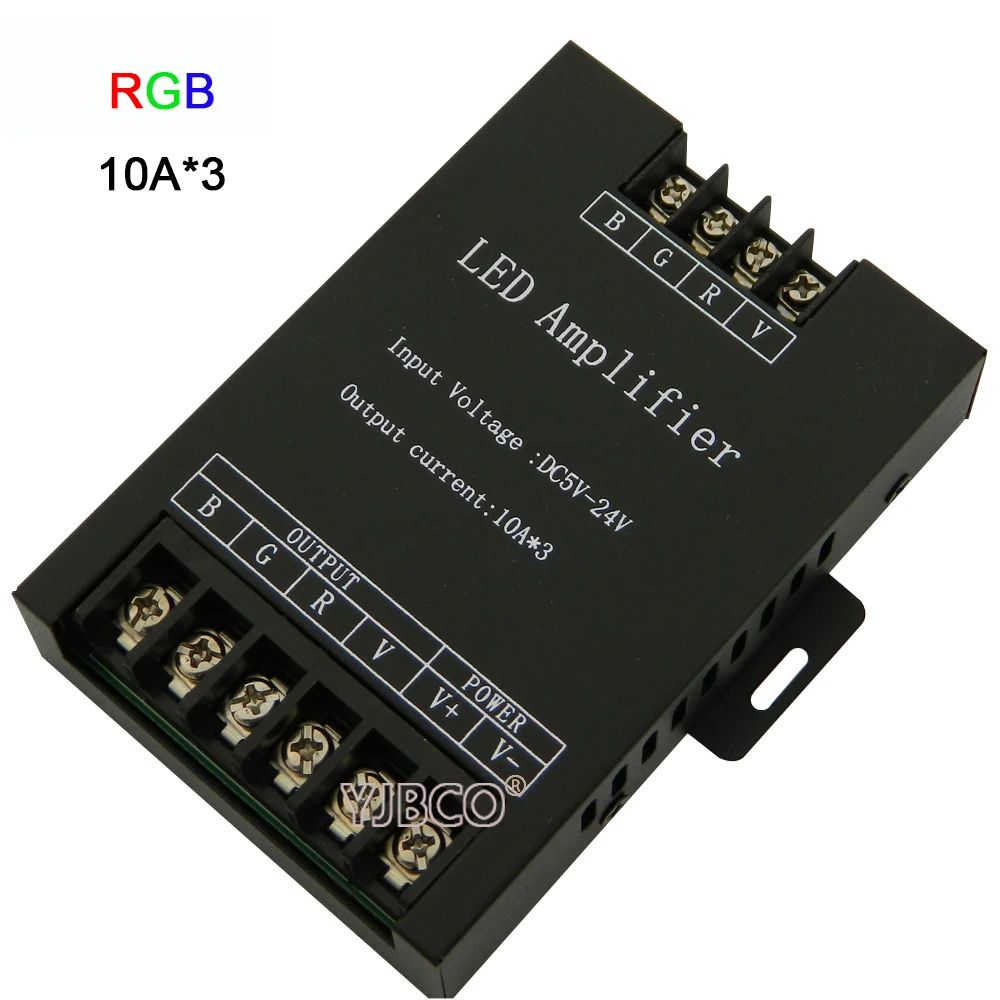

360W RGB Iron shell led Amplifier Controller Signal Repeater DC5-24V for 3528 /5050 RGB Led strip light

Supply Voltage:DC5~24V
Output: 3 circuit (R/G/B/+)
Static power consumption :<1W
Connection mode:common anode/cathode optional
Output Current:<10A(each circuit)
Output Power:5V:<150W, 12V:<360W,  24V:<720W
Package sizes:135*75*30mm
Net weight:150g
Gross weight:170g
External dimension:130*65*25mm

         High speed large current power amplifier, suit for PWM control led controller, it can amplify the power of LED controller, each time add one amplifier, the connecting number of led will be more than twice to three times, and can cascade, in theory, numerous amplifiers can be connected. It is convenience for different voltage, high power and small power LED lamps and lanterns unified control. Whether our company's products or any other company's products, as long as it is PWM control, voltage appropriate, all can use this series power amplifier. Using high speed light lotus root design, can achieve very low delay time, to ensure that when many sets of cascade, it can keep pace with host.

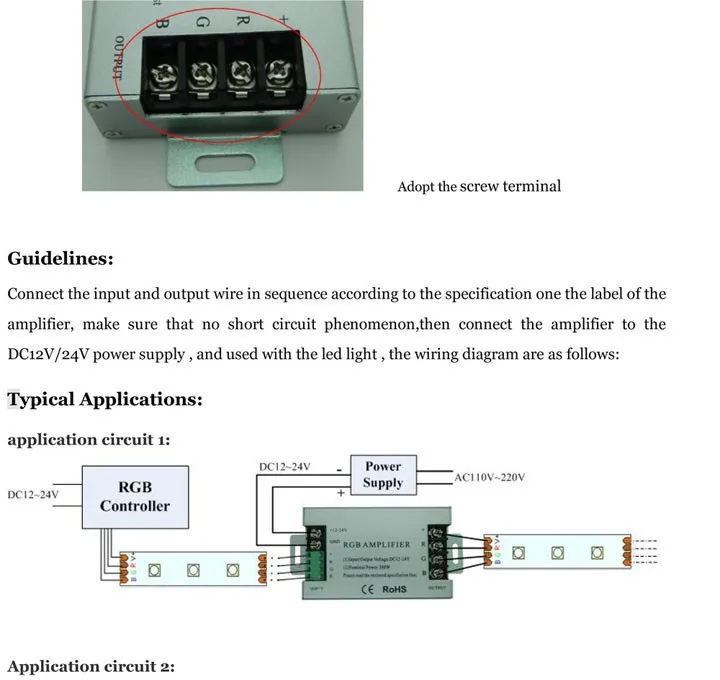

Interface instruction:

RGB signal control port:                            Power and load output port:

1: Common anode public pole                   5: B channel load output cathode

2: R channel input signal cathode             6: G channel load output cathode

3: G channel input signal cathode             7: R channel load output cathode

4: B channel input signal cathode             8: Load output common anode public pole

9: Power supply input voltage anode

10: Power supply input voltage cathode

Package included:
1pcs led Amplifier (As you choose)
