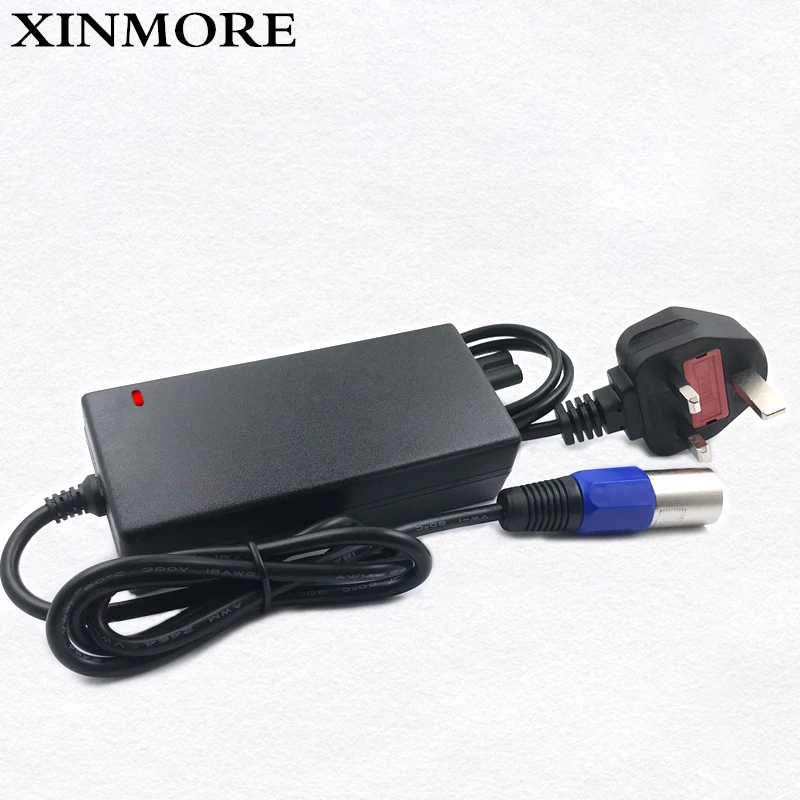

Free Shipping 29V 4A Charger For 24V Lead Acid Battery

Input Voltage :                110-240Vac

Frequency/current:   47-63Hz / 6.5A

Charge voltage:                29 V

Charge current:                 4A

Charge method:               CC/CV

Working Temperature:  0°C to 45°C

Storage Temperature:   -20°C to 50°C

Charging voltage  rated :  29± 0.3 V

Charging Current  rated :  4 ± 0.5 A

Input pulg/Output pulg : Refer to the following plug pictures

******Charge Voltage and Current can be customized by Customers requirement.

If you cannot find what you need,Please Leave Words of Input AC Plug And Output DC Plug,

Like: 'AC:Number 5,DC:G',Thank You!!!

Input plug

 Output plug

YZPOWE

FOR Nominal Voltage 72V (76.8V), Rated Capicaty:10Ah- 35Ah battery pack,72V (76.8V) electric bike

UPS powers (24 series lithium li-ion lipo battery pack), Rechargeable Battery, Lead acid/LifePO4/Li-ion Battery,Electric Tools,

Garden Power Tools,Cleaning machine,Ebike,Golf cart ,Electric Scooter,ntelligent Balance Car Folding Bicycle ,UPS Power Supply etc.

YZPOWER

● Stable MTBF:> 30000 H

● Small Size: 135 * 56 * 45mm

● Light Weight: 0.45kg

● Flame-retardant plastic case: PC plastic material case UL94V0

● After-sales service: 36months Warranty

● Protection function: Over voltage / Over temperature / Over current / Short circuit and Polarity

● The indicator of LED: Red is charging, green is charge finished or prepare charging

● Light, Small, Stable, High-Efficiency, Safe, etc.Precise limit of voltage & current, qualified fully charged

and avoid over charge

  FIG charging curve

	Main Parts 1) Input and output filter electrolytic capacitor use withstand temperatures -40 to +105℃,with Low Impedance ,High reliability,Long useful life,High rip-ple  capability,etc features. 2)  Input Bridge KBP406 rectifiers Can withstand average Forward Rectified Current 4A,peak forward surge current 130A,Bl-ocking Voltage 600VDC
3) The main power transformer adopts EC40 core, PC40 material,High efficiency, low iron loss,Enough power capacity,Have sufficient power margin. 4) Using aluminum heat sink,Good thermal des-ign,can better cool the power device, Consistent with the principle of hot air flow,extend the service life.
	PCB Parts  Using SMD components,automated mass production by machine,Reduce manual errors, improveproduct quality. Voltage conversion parts, With Cycle-by-Cycle Current Limiting, soft start function, with ESD Protection. Charge control circuit,Using precision voltage comparator,Precise control of the charging voltage and current,With overcharge protection,over current protection,as well as output short circuit protection.

Pre-Sales Service Tell us about your battery type, features, Professional sales manager for you Offer, transport, delivery period and other issues. Let our professional engineers recommend the right charger for you.	After-Sales Service   Products provide three-year warranty.   <8 hours response to customer complaints.   < 24 hours to propose a solution.   Professional engineers, unlimited number of   technical advice.
