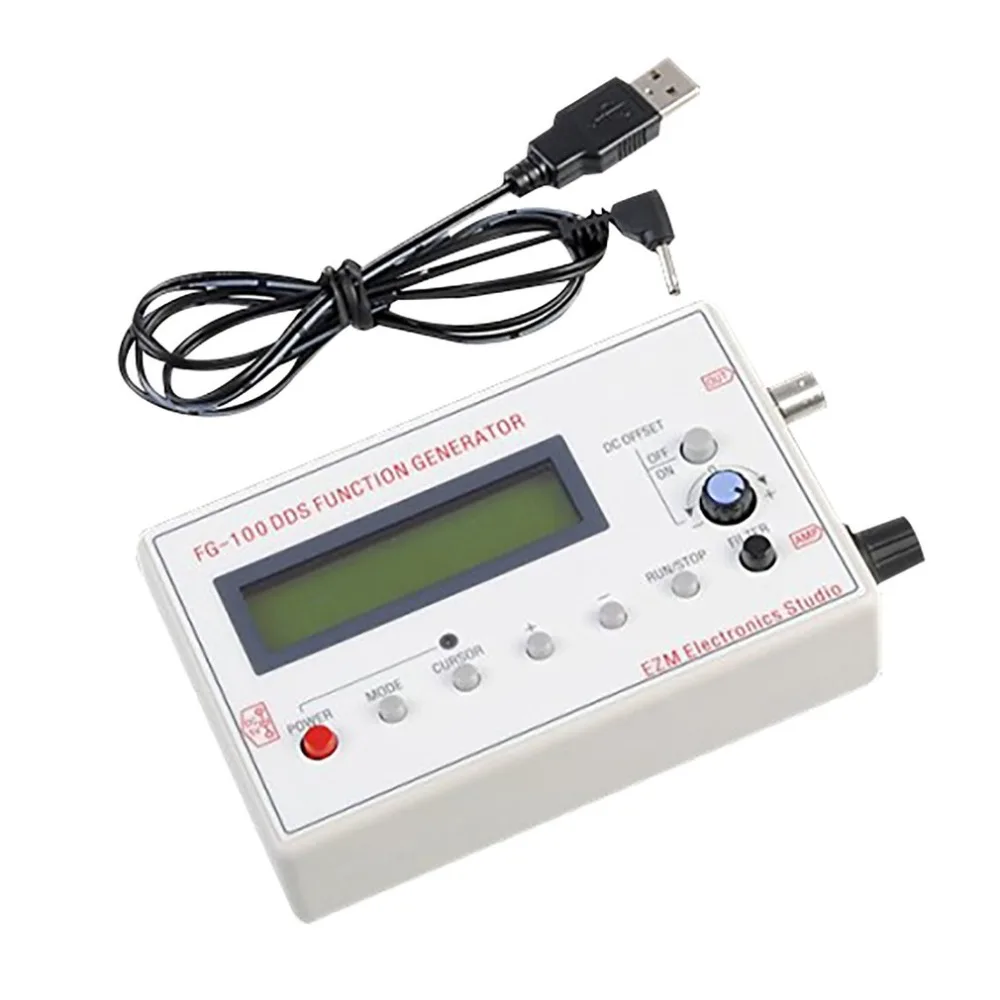

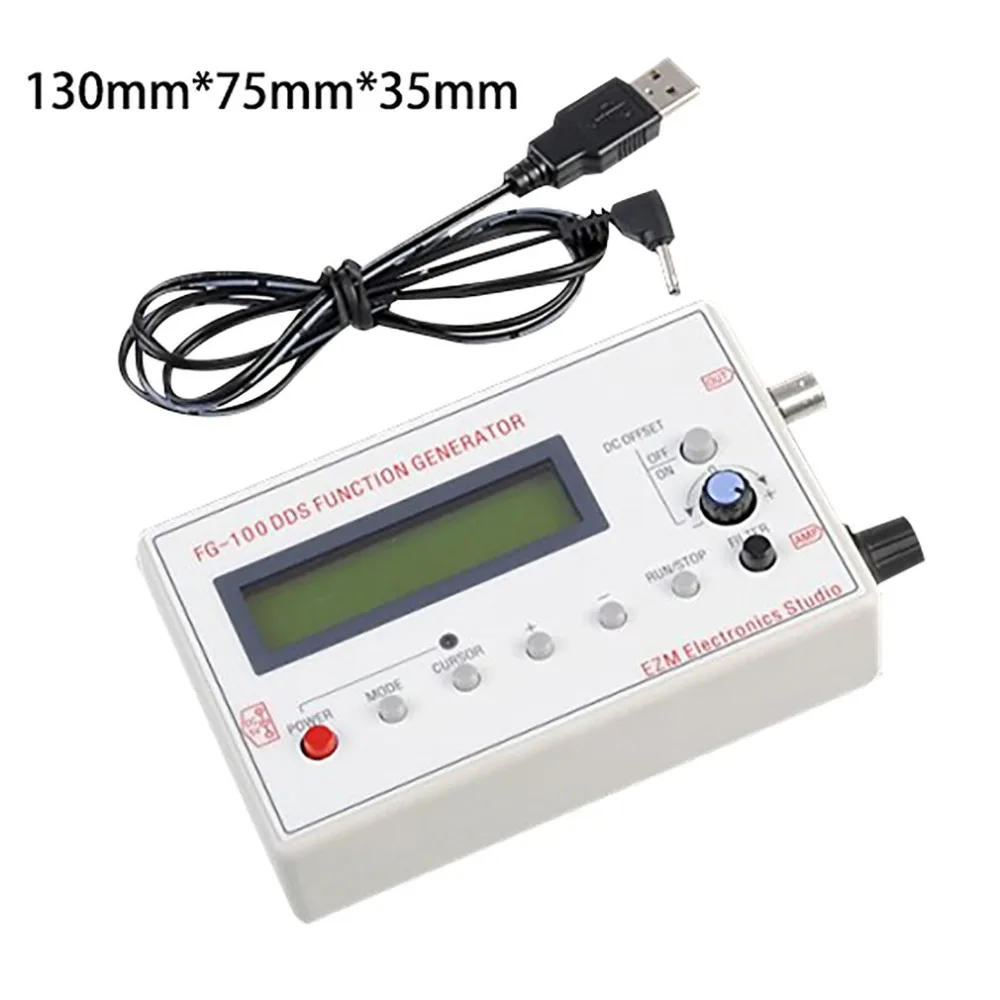

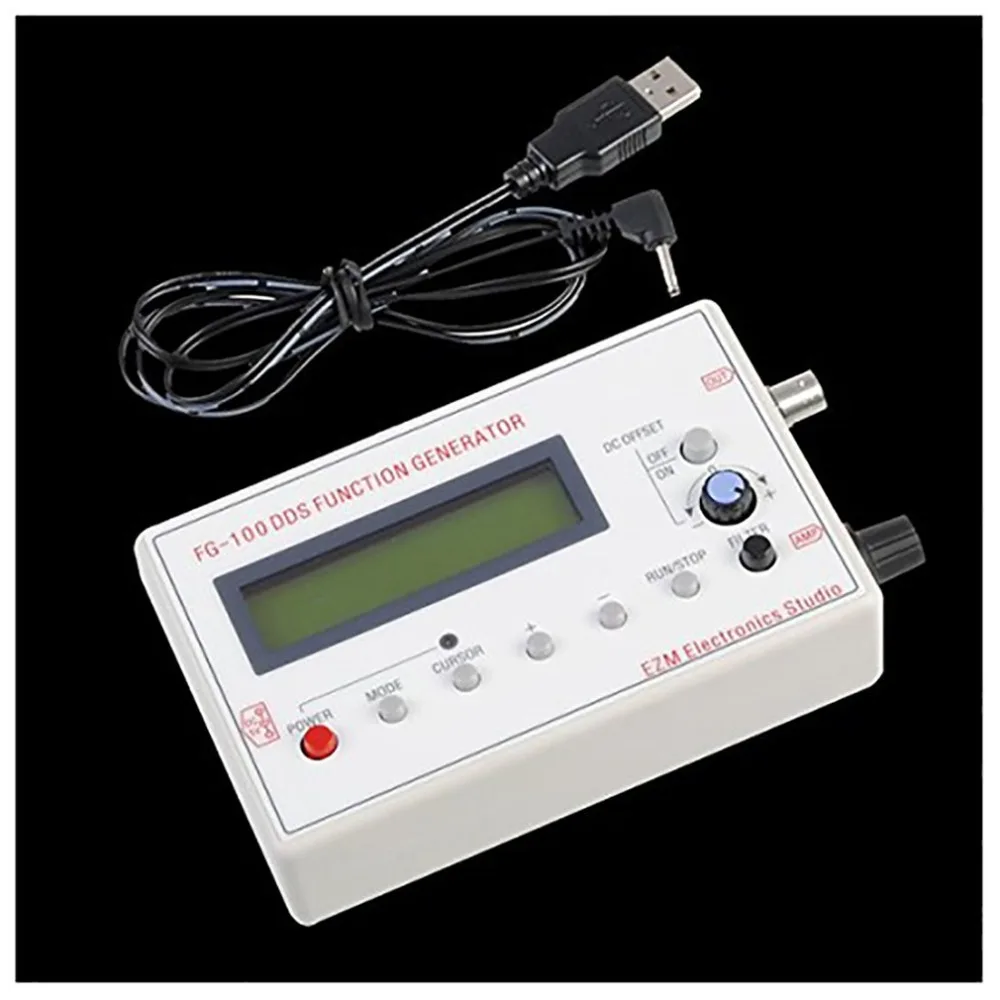

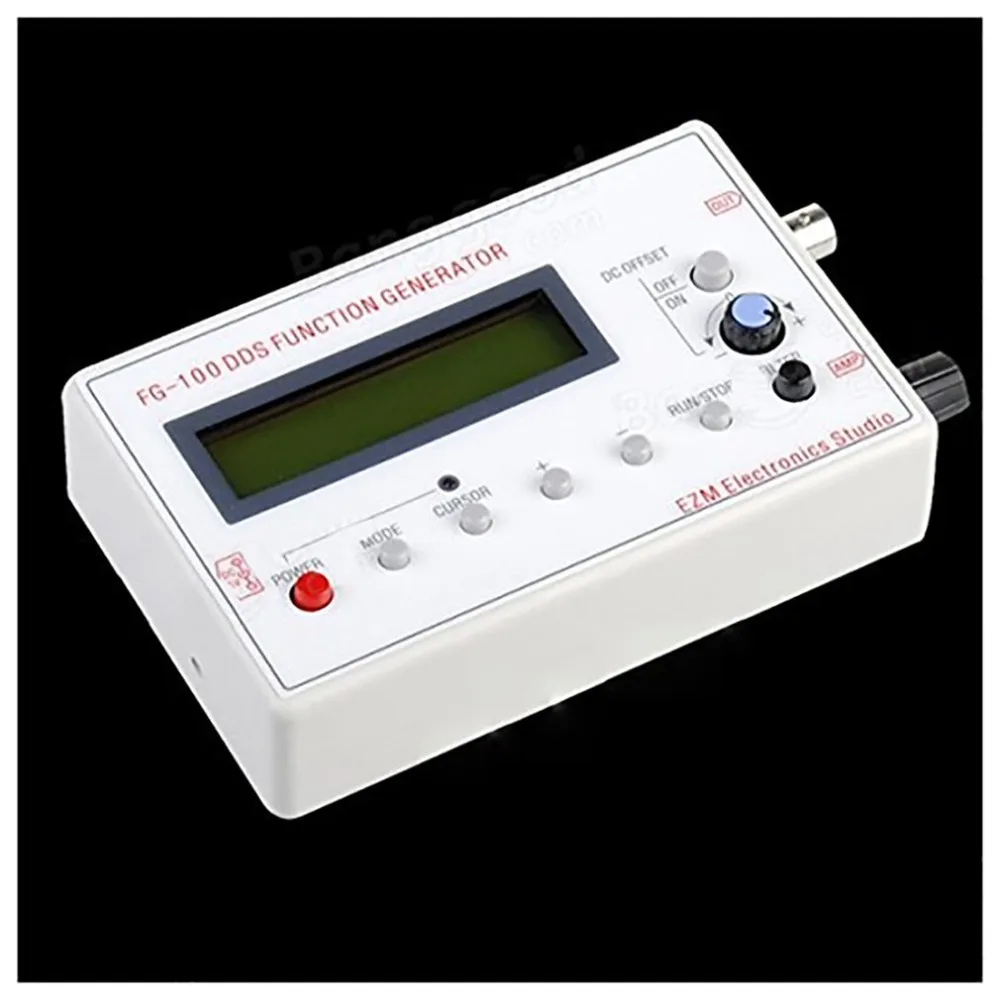

Area/Sawtooth/Triangular wave DDS Function Signal Generator Frequency Counter 1 Hz-500 kHz |

Area/Sawtooth/Triangular wave DDS Function Signal Generator Frequency Counter 1 Hz-500 kHz |

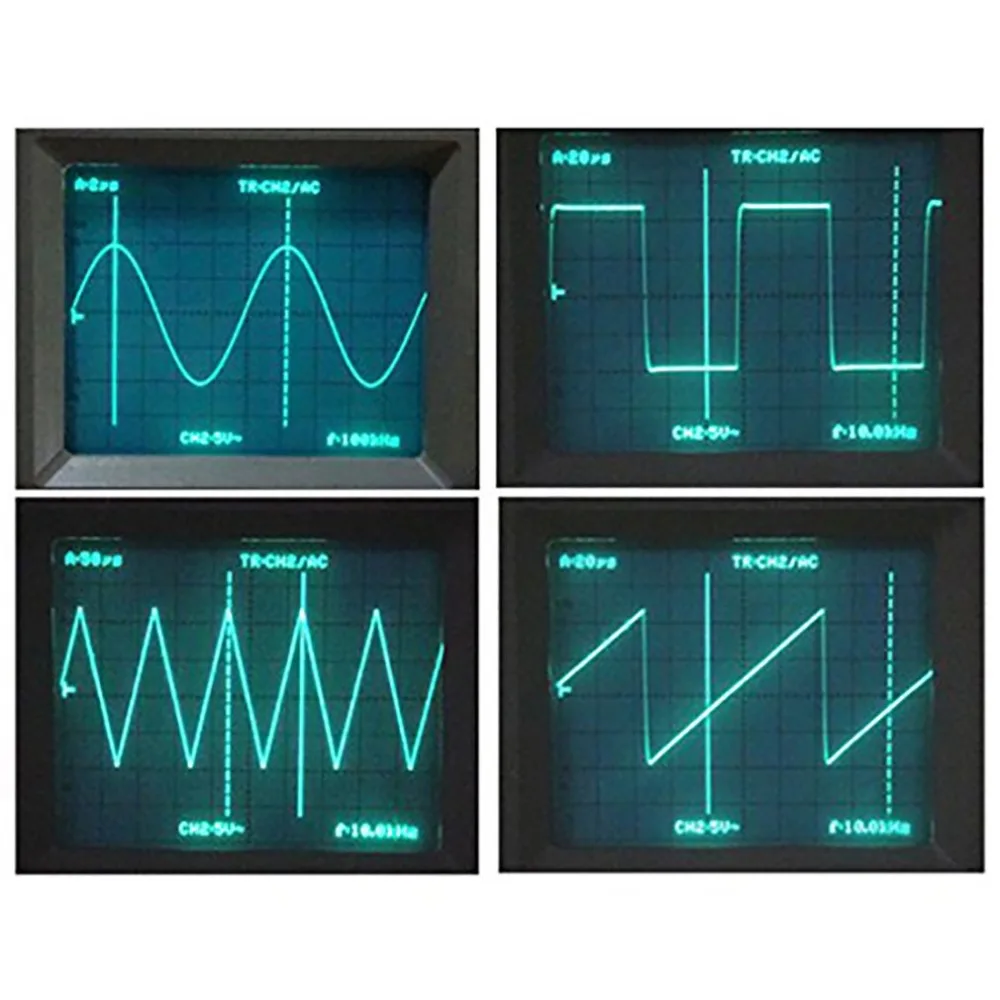

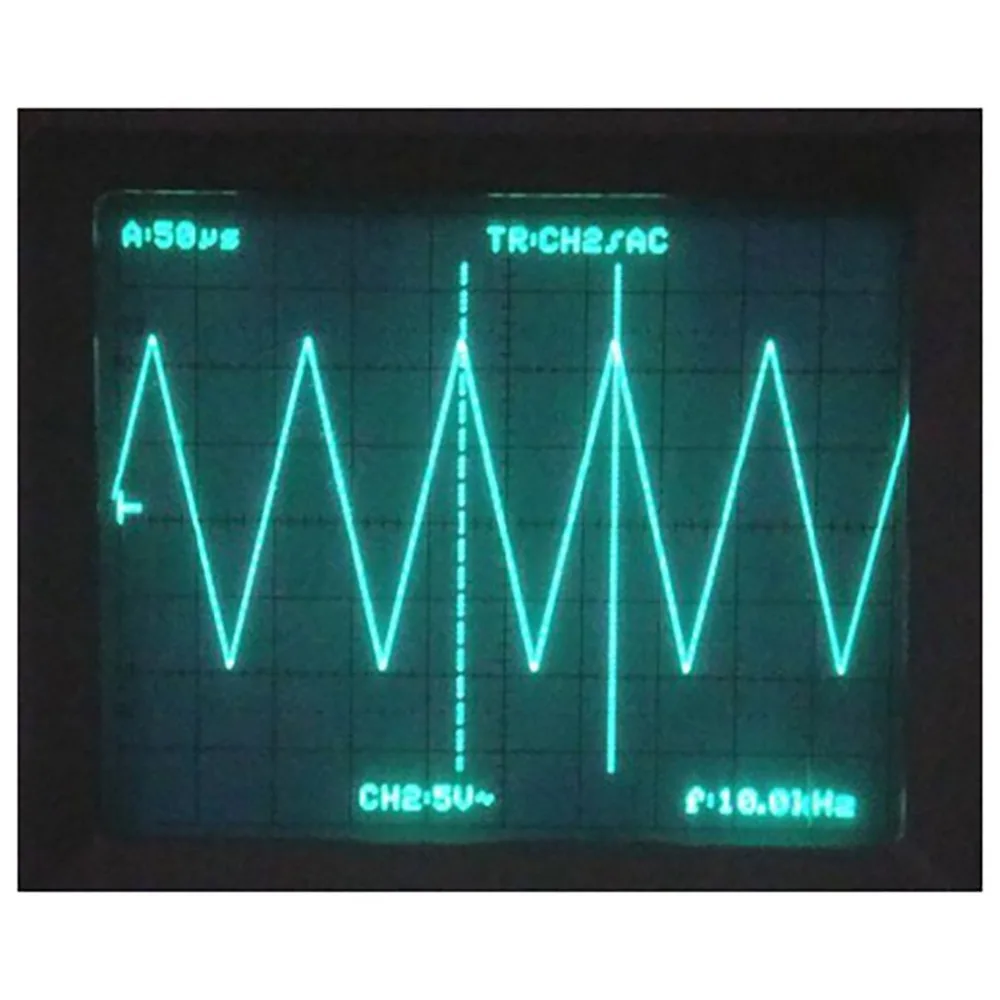

Features: Small size, multiple functions, simple operation, easy to carry. With an oscilloscope that can be used in an electronic experiment and debugging, the chastotnik Due to the good DDS accuracy and frequency stability, it is also very suitable for the oscilloscope swe With an oscilloscope that can be used in electronic experiment and debugging, the frequency characteristics of the audio amplifier and the impulse response of the test and measurement. Due to the good DDS accuracy and frequency stability, it is also very suitable for the oscilloscope calibration factor of the oscilloscope. A square wave output is also suitable for an oscilloscope and a probe for an oscilloscope, and so on.   Specifications: Main Output Form: Sinusoidal wave and square-wave, triangular wave, savine wave. Maximum Output Amplitude: +/- 10Vpp (no load) Output Impedance: 50th +/- 10% Dc-slanting: +/- 10 V (without load) Display: LCD1602 Material: metal Resolution: 1 Hz Power supply: DC 3. 5-10 V Output Frequency range: Sinusoid: 1 Hz-500 kHz Area-wave: 1 Hz-20 kHz (acceptable range) Triangular wave: 1 Hz-20 kHz (permissible range) Sawtooth wave: 1 Hz-20 kHz (allowable range   Package includes : 1 x FG-100 DDS signal generator function 1 x USB power adapter 1 x English manual Notes: it is necessary to lower the battery protection voltage, no matter using the battery, switching power supply, solar panel, or generator etc as the input source, otherwise it will damage the battery and power module. Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures. Please allow slight dimension difference due to different manual measurement.
