1pcs/lot 16S 60V 20A 25A 35A 45A 60A 18650 Lithium Battery Protection Circuit Board PCB PCM Balanced battery management system |

---

Overview

16S 60V 20A/25/35A/45A/60A bms is used for 16 series 60V Li ion  battery pack.

We can design it for various lithium batteries like LiFepo4, LiMn2O4, and Li-polymer etc.



The main functions are: over charge protection, over discharge protection,

over current protection, short-circuit protection, temperature protection etc.

According to the customer request we can develop PCM in different sizes and structures.BMS manufactured by high quality Mos and IC imported . Keep your battery long cycle service life
time.



​Specification

separate port 16s bms, so there are three wire come out of BMS, Black(P-), Blue(B-), Yellow(C-) ,charging current is just 8A



If same port there are only 2 wire on BMS, Black(P-) and Blue(B-) ,please choose what you need.

16S 67.2V	Detail	Spec
Discharge	Maximal Continuous Discharging Current			20A 25A	35A	45A	60A
	Peak Discharging Current			60A 75A	100A	180A	180A
	Over Current Protection Current			60A 75A	100A	180A	180A
Charge	Charging Voltage	67.2V
	Charging Current			20A/25A	35A	45A	60A
Over charge protection	Over Charge Detection Voltage	4.25±0.025V
	Over Charge Detection Delay Time	0.5S
	Over Charge Release Voltage	4.19±0.05V
Cell balancing	Cell balancing Detection Voltage	4.18V
	Cell balancing Release Voltage	4.18V
	Cell balancing Current	35±5mA
Over discharge protection	Over Discharge Detection Voltage	2.8±0.05V
	Over Discharge Detection Delay Time	0.5S
	Over Discharger Release Voltage	3.0±0.05V
Over current protection	Over Current Detection Voltage	150mV
	Over Current Detection Delay Time	9MS
	Over Current Protection Condition	Disconnect the load
Short Protection	Detection Condition	Exterior Short Curcuit
	Detection Delay Time	250uS
	Release Condition	Disconnect the load
Temperature Protection	65℃ or 75℃	No
Internal Resistance	MOSPET	≤10mΩ

Advantage



Use top quality (A-level) protective integrated circuit IC, from Japan.

 Strong load ability, constant discharge current , use high voltage resistance, low
inner resistance power Mosfet. The heat sink will greatly help cooling.

 IC itself has power balancing function. The circuit is simple and reliable.

Typical voltage detection for each cell. So each battery will be prevented over charged or over discharged. Over current and short circuit protection function is very reliable.Long time short circuit of the load won’t affect the PCB and the battery.Temperature protection during charging and discharging.

Extreme low power consumption. The consumption of the whole device is less than 50uA.

PCB use high anti-corrosion, high water resistance, high impedance ESD conformal Coating

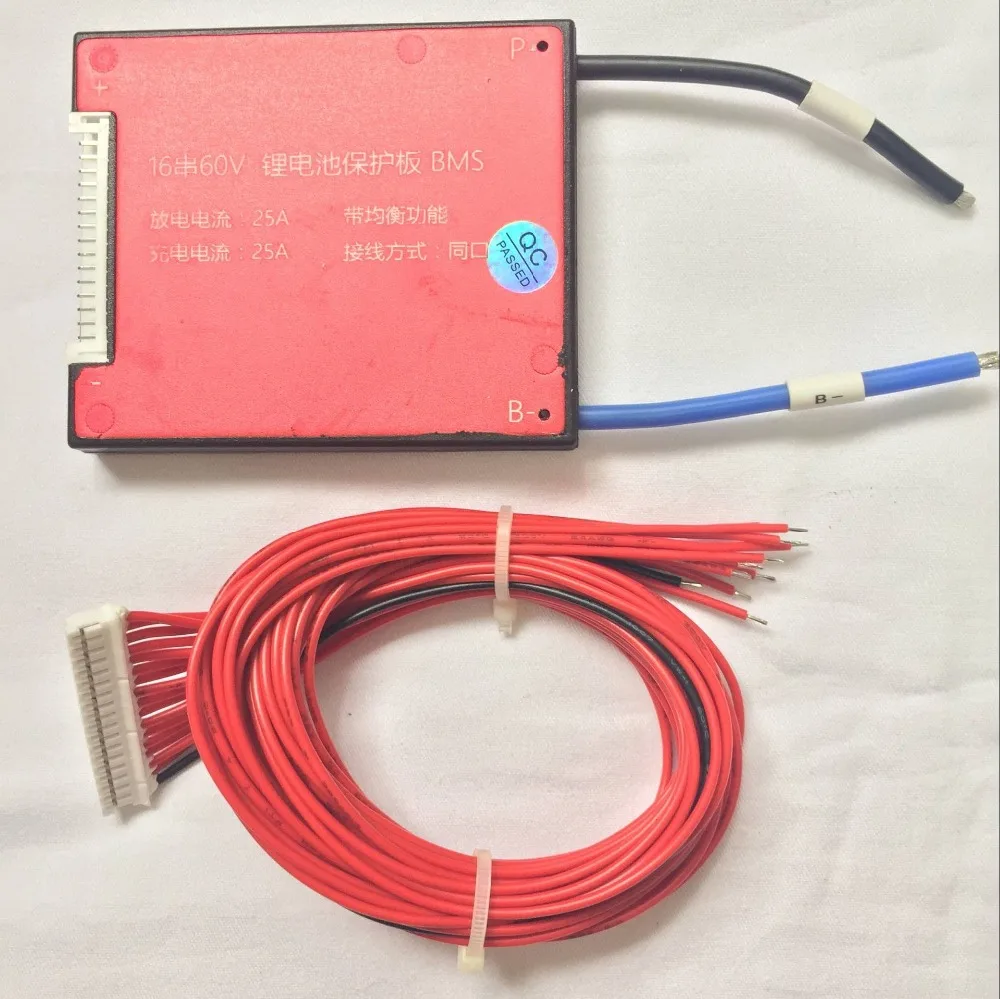

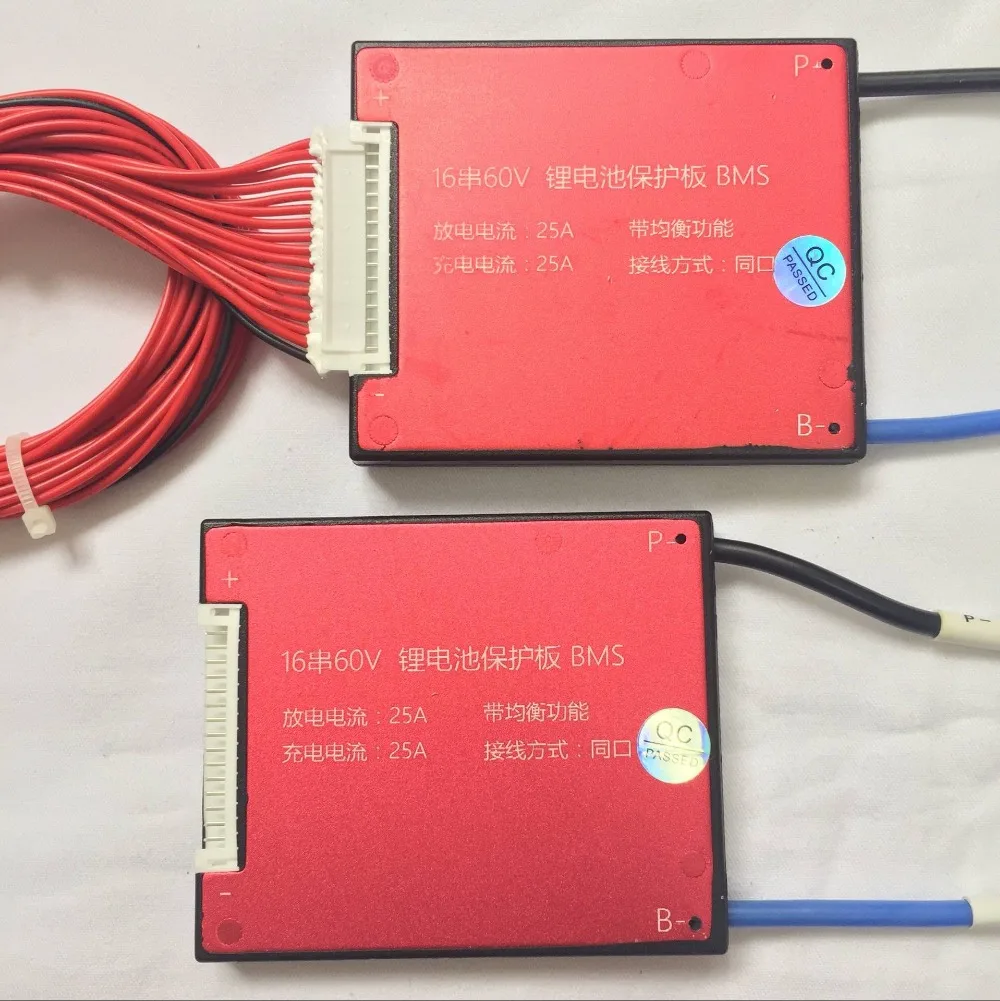

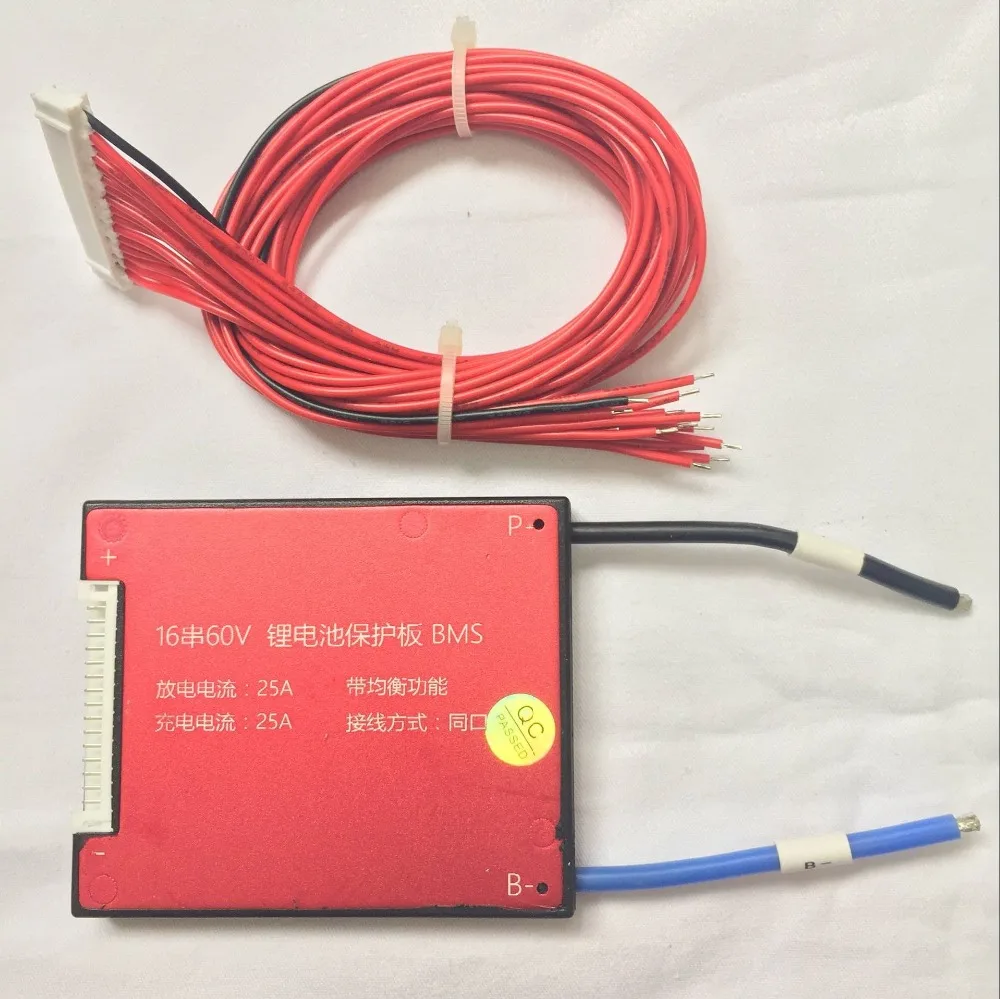

Pictures













Warning :



1,Should strictly follow the connection step as the diagram.

2,Double check the connection is correct,then connect it to the battery pack "+","-" Pin.

3,We are not responsible for the defectives caused by wrong connection.

FAQ

1.What is the common port and separate port? what is the difference? We take 13S48V16A BMS as an example, common port 16A means your charge cathode and discharge cathode are connected in the same point end (our P-), charge cathode and discharge cathode are used in the common connection port, so the charge current and discharge current are the same 16A. while the separate port is separately connected by charge cathode (C-) and discharge cathode (P-),  so the charge current and discharge current are different, discharge current 16A,  charge current 8A.   2.What is the balance function? The working principle and function are as followings, when your one cell voltage is up to alarm voltage(Li-ion up to 4.18V, Life Po4 up to (3.6V), then the cell Balance starts to work, balance resistance starts discharge with 35ma(when balance discharge starts to work, BMS will starts a little heat up, which is the normal reflection), the cell is in both charging and discharging status, and others which are not reached to alarm voltage(Li-ion 4.18V, Life Po43.6V)are only in charging status, no discharging, when the fast cell voltage is reached to alarm voltage(Li-ion 4.25V, Life Po43.75V)BMS starts off power protection, all the other cells are all in stop of charging, this process will enable your battery charging in balance current, and your battery voltage are in balance status, but when your cell voltage difference are in a big range, then balance can not be functioning well .   3.The relationship between Battery capacity and BMS current? There is no direct relationship between  Battery capacity and BMS current, big capacity doesn’t mean a big battery, but rely on continue current, that is to say if your engine is powerful, your should choose high current of BMS, it is not relied on battery capacity.   4. What type of charger should  I choose? Lithium battery must choose specific charger, do not use Charger for Lead acid battery, for lead acid charger may have MOS with high pressure breakdown protection, which will not protect of BMS over charge.Life Po4 battery charger voltage=battery string No.X3.6V, while Li-ion battery charger voltage=Battery string No.X4.2V.   5. What current BMS should I choose ? Take 10S36V as an example: what current BMS you choose is relied on your E-bicycle Motor power and current limitation of controller. eg., choose 16A for below 350W, 25A for below500W, 35A for below 800W, 60A for Below 1000W, higher than 1200W are contact with our service specialist for suggestions, one in all, continue current shall be higher than current limitation in Controller.   6. Whether my BMS damaged? if you want to judge if the BMS is damaged, please take the following steps, to test if each cell voltage is the same with voltmeter? if the cell voltage difference is over 1.0V, the fault is displayed that it cannot run far, no power supply at the start range, short charge time, all these issues are almost caused by battery cells, if BMS damaged is displayed as no charge, no discharge, no discharge while the battery has voltage.





Package :

1PCS 16s 60v Li ion bms with flat cable
