Microfluidics Peristaltic Pump Price Flow Rate Adjustable AC100-240V Plug and Play High Cost Performance Fast Delivery |
История изменения цены
*Текущая стоимость 16 805,17 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Aug-18-2025 | 21342.89 руб. | 21769.95 руб. | 21555.5 руб. |
| Jul-18-2025 | 17309.29 руб. | 17655.28 руб. | 17482 руб. |
| Jun-18-2025 | 21006.57 руб. | 21426.5 руб. | 21216 руб. |
| May-18-2025 | 20838.90 руб. | 21255.53 руб. | 21046.5 руб. |
| Apr-18-2025 | 16637.2 руб. | 16970.72 руб. | 16803.5 руб. |
| Mar-18-2025 | 20502.26 руб. | 20912.38 руб. | 20707 руб. |
| Feb-18-2025 | 20334.57 руб. | 20741.73 руб. | 20537.5 руб. |
| Jan-18-2025 | 20166.54 руб. | 20569.40 руб. | 20367.5 руб. |
Описание товара

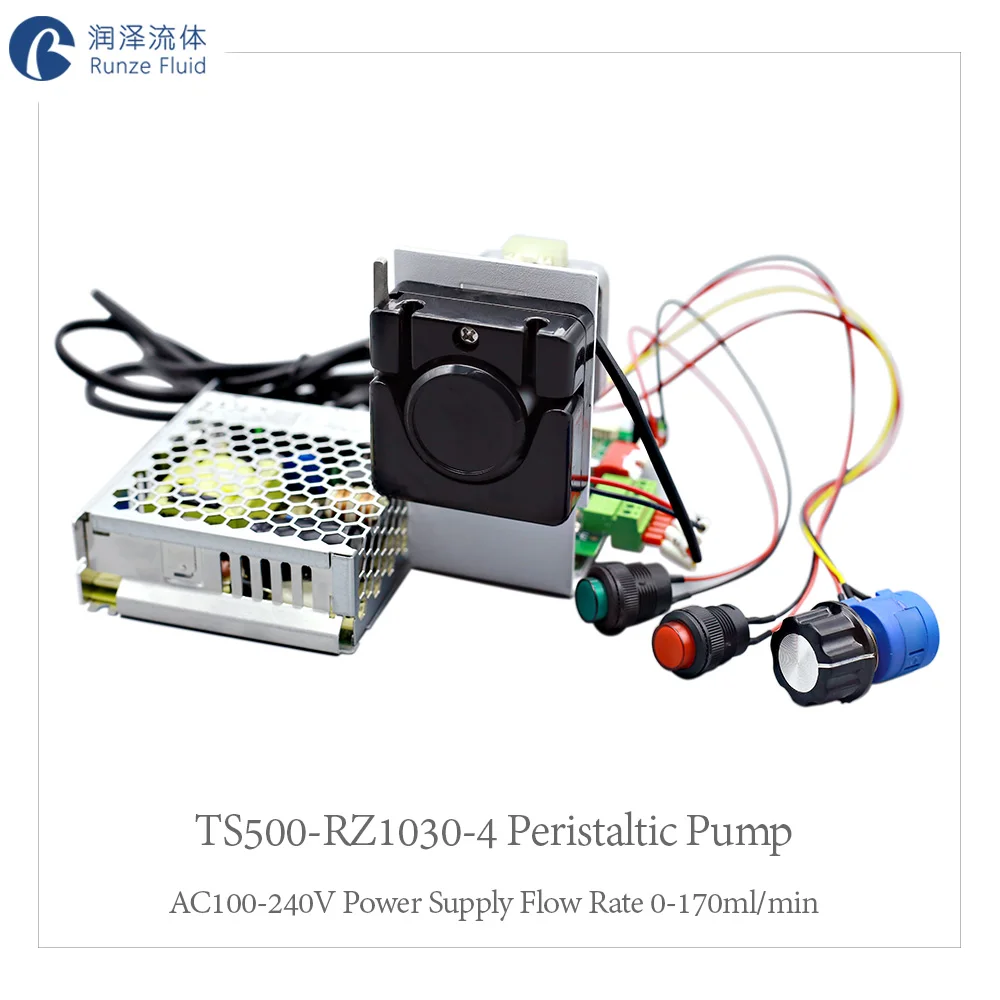

RZ1030 peristaltic pump was made of black ABS material and POM 4 rollers for low pulse and accurate liquid dosing, flip-type design make it very easy to replace tubing, NMB stepper motor make it high precision and stability and long service life. It is workable for space limited and micro liquid dosing systems. The brand label can be customized into required company label, so it is a very good product for distributors.
Dimension (unit: mm)
Technical Parameter
Model No. | TS500-RZ1030-4-D |
Roller | 4 rollers |
Roller material | POM |
Pump material | ABS |
Color | Black |
Motor type | NMB Japan 42 step motor |
Rated current | 1.1A |
Rated power | 9.2W |
Speed range | 1-400rpm adjustable |
Speed resolution | 1rpm |
Driver control | Control speed from 1rpm to 450rpm |
CW/CCW | Liquid direction reversible |
Buttons | ON/OFF, CW/CCW, SPEED |
Flow rate | 0-175ml/min |
Accuracy | +/-5% |
Tubing size | ID0.64-3.0mm WT0.8-1.0mm OD≤5mm |
Working temperature | 0-40℃ |
Working humidity | ＜80% relative humidity, non-condensing |
Working Max DB | 72db |
Dimension (L*W*H) | 104.5*57*101mm |
Net weight | 1548g |
Tubing Replacement Steps
Flow Rate Table
Tube type | Tube size (ID*WT: mm) | TS500-RZ1030-4-D (ml/min) | Speed (rpm) |
Rubber tubing | 0.64*0.8 | 0-13 | 0-500rpm adjustable |
0.76*0.8 | 0-17 | ||
0.89*0.8 | 0-22 | ||
1.02*0.8 | 0-28 | ||
1.14*0.8 | 0-33 | ||
1.30*0.8 | 0-43 | ||
1.42*0.8 | 0-52 | ||
1.52*0.8 | 0-59 | ||
1.65*0.8 | 0-72 | ||
1.85*0.8 | 0-89 | ||
2.06*0.8 | 0-102 | ||
2.29*0.8 | 0-113 | ||
2.54*0.8 | 0-128 | ||
2.79*0.8 | 0-147 | ||
Silicon tubing | 1*1 | 0-26 | |
2*1 | 0-106 | ||
3*1 | 0-175 |
Application Note
1. These data are generated under room temperature without extra pressure, test media is water. Your final test results may vary depending on variables such as solvent, material and size of tubing, temperature, pressure, humidity, voltage, current etc.
2. TS500-RZ1030-4 peristaltic pump works for low viscosity liquid
3. TS500-RZ10130-4 peristaltic pump works for corrosive and non-corrosive liquid when equipping different kinds of tubing, liquid only go through tubing, so tubing material is the main factor for corrosion problem.
4. 2 pieces connectors are necessary when equip tube into pump head, or pump tube will get slide when working, we will standardly equip 10cm tubing and 2 pieces straight connectors for each pump of your order, if you need more tubes and connectors for spare use, you may order from our store.
6. TS500-RZ1030-4 was designed with basic functions of ON/OFF, SPEED, CW/CCW control, so it is only used for liquid transfer, not workable for bottle filling which need to preset filling volume, filling time and interval time.
7. Please switch CW and CCW under low speed
Shopping Guidance
1. Unit price is for 1pcs TS500-RZ1030-4 peristaltic pump
2. Each pump will be well packed by thick foam and outer carton
3. TS500-RZ1030-4 was equipped step motor with magnetism, we only ship by TNT, UPS or FedEx with 4-7working days to most countries.
4. For customers from Russia and Kazakhstan, we will ship by CDEK or PONY or SPSR line.
5. For customers from Brazil, Chile and Argentina, please leave us your tax number when ordering which is required by shipping agent.
6. Please leave your correct receiver name, shipping address, zip code, phone number with country code for timely shipment.
7. For big orders, please contact customer service to get better price.
8. If you need group of items, please add them to your shopping cart, then forward the order but NOT pay it, we will combine shipping cost.
9. Any questions, please leave us messages, we will handle it ASAP, greatly appreciated if you can talk to us before open an issues.
10. Greatly appreciated if you could leave us 5 star positive feedbacks when satisfied with our products which will encourage us to do better in future cooperation.
