GTK 8S 24V 100A blanced Common Same port lifepo4 BMS LiFePo4 battery pack bms for electric motocycle e-bike | Электроника
История изменения цены
*Текущая стоимость 5 728,69 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Sep-16-2025 | 6816.50 руб. | 7157.32 руб. | 6986.5 руб. |
| Aug-16-2025 | 6759.33 руб. | 7097.78 руб. | 6928 руб. |
| Jul-16-2025 | 5671.34 руб. | 5955.88 руб. | 5813 руб. |
| Jun-16-2025 | 6644.48 руб. | 6976.51 руб. | 6810 руб. |
| May-16-2025 | 5785.44 руб. | 6074.65 руб. | 5929.5 руб. |
| Apr-16-2025 | 6530.27 руб. | 6857.46 руб. | 6693.5 руб. |
| Mar-16-2025 | 6473.56 руб. | 6797.27 руб. | 6635 руб. |
| Feb-16-2025 | 6415.38 руб. | 6736.10 руб. | 6575.5 руб. |
| Jan-16-2025 | 6358.16 руб. | 6676.96 руб. | 6517 руб. |
Описание товара

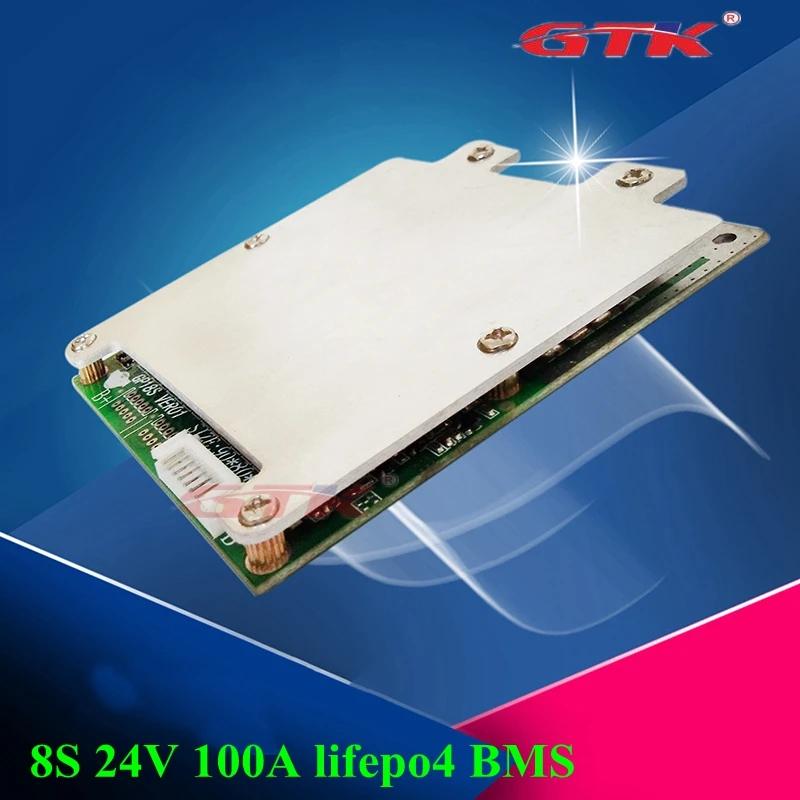

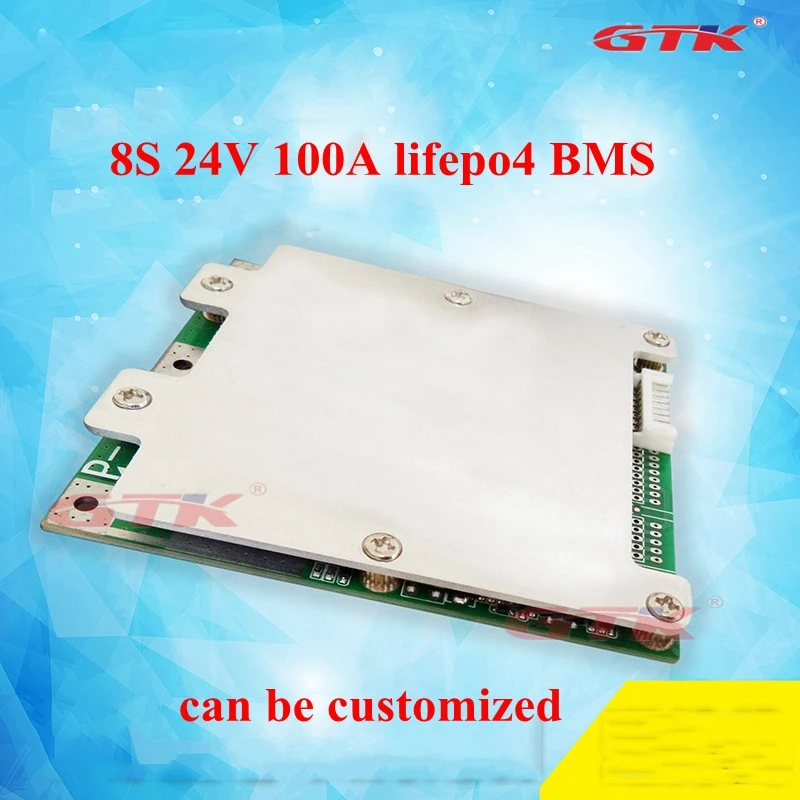

GTK 8S 24V 100A blanced Common Same port lifepo4 BMS 100A 24V LiFePo4 battery pack bms for electric motocycle e-bike
Battery Description:
Size:L136*W95*T10mm Working current:100A
- High-precision voltage detection with detection accuracy of ±25mV
- Chip built-in equalization management, equalizing current up to 100mA
- Low power design:<50uA
- Capable of flexibly responding to the requirements of the charging and discharging separate port or the same port
- Complete protection functions, including charge and discharge voltage, charge and discharge current, short circuit, high temperature protection
- Equipped with cable for easy installation!
Installation Guide (pay attention to the same port and separate port )
Taking the negative pole of the battery pack as the reference point and also as the first battery , from the bottom to the top shown in the figure, it is B1 ( the first cell ) and B2 (the second cell). . . Bn (the nth cell ) Connecting method: 1. First, connect the "negative" of the battery pack to "B-" on the BMS board with the black line. 2. Connect the first cable (B-) to the negative pole of the first cell, connect the second cable (B1) to the positive pole of the first cell , and the third (B2) to the second cell positive, and so on. . . Bn (the last wire) also be connected to the positive pole of the last cell, which is the positive pole (B +) of the battery. 3. Use the Voltage device to detect whether the voltage of each adjacent two terminals of the cable terminal corresponds to the voltage of the battery. 4. If the above steps are correct, insert the cable, and check whether the Output is equal to the total voltage of the battery pack. The meaning of the Output is: 1. ) The voltage between the charger negative and B + 2. ) The voltage between the load negative terminal and B +; Note: 1. When installing the protection board, please fixed it firmly, be careful not to shake and other reasons caused by loose off! 2. Firstly to be welded each cable to the appropriate cell pole, then put the cable terminal into the board plugs, (Please do not insert the cable terminal and then welding cells, to prevent welding damage to the protection board! )
