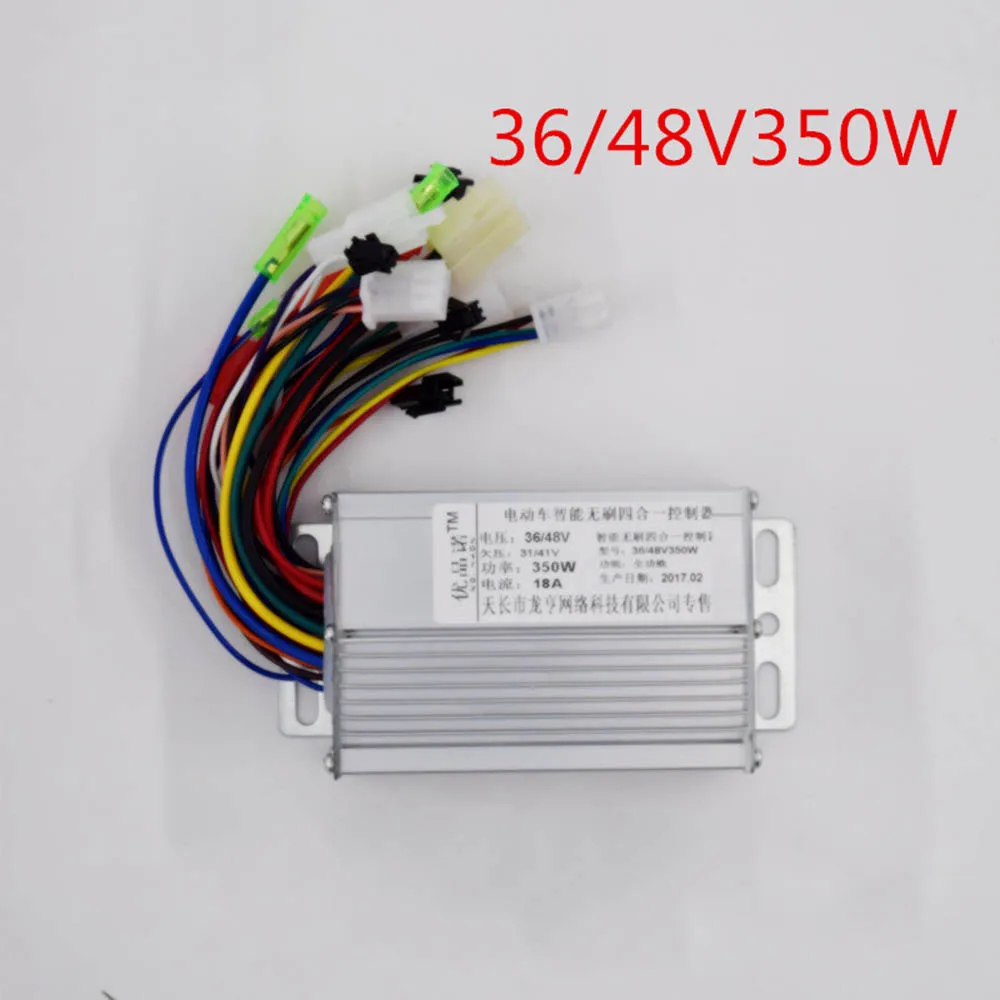

  350W 36V/48V 18A ebike controller Electric Bike Tricycle Ebike Dual mode brushless Controller scooter controller 350w Rated Voltage: 36V/48V   Low Voltage : 31V/42Vplusmn0.5V   Rated Power: 350W (this controller is suitable for both 250W and 350W bldc motors)   Limit Current: 18A   Functions:

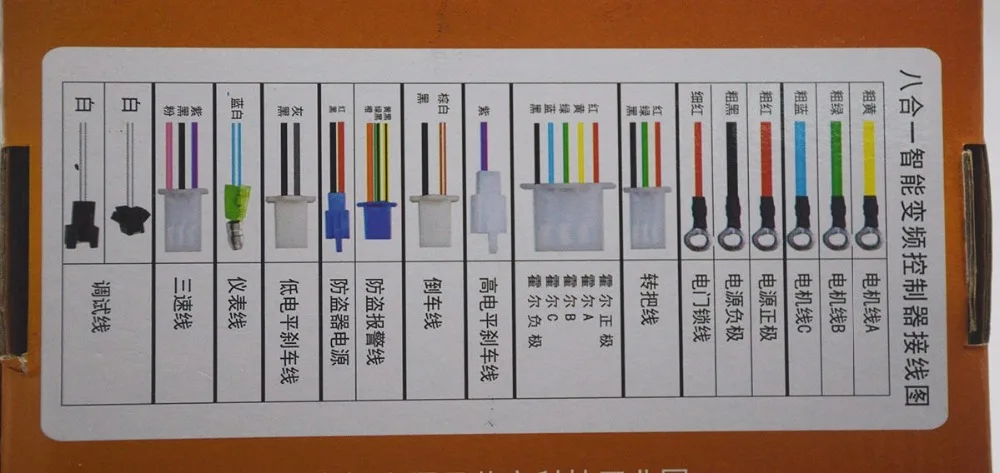

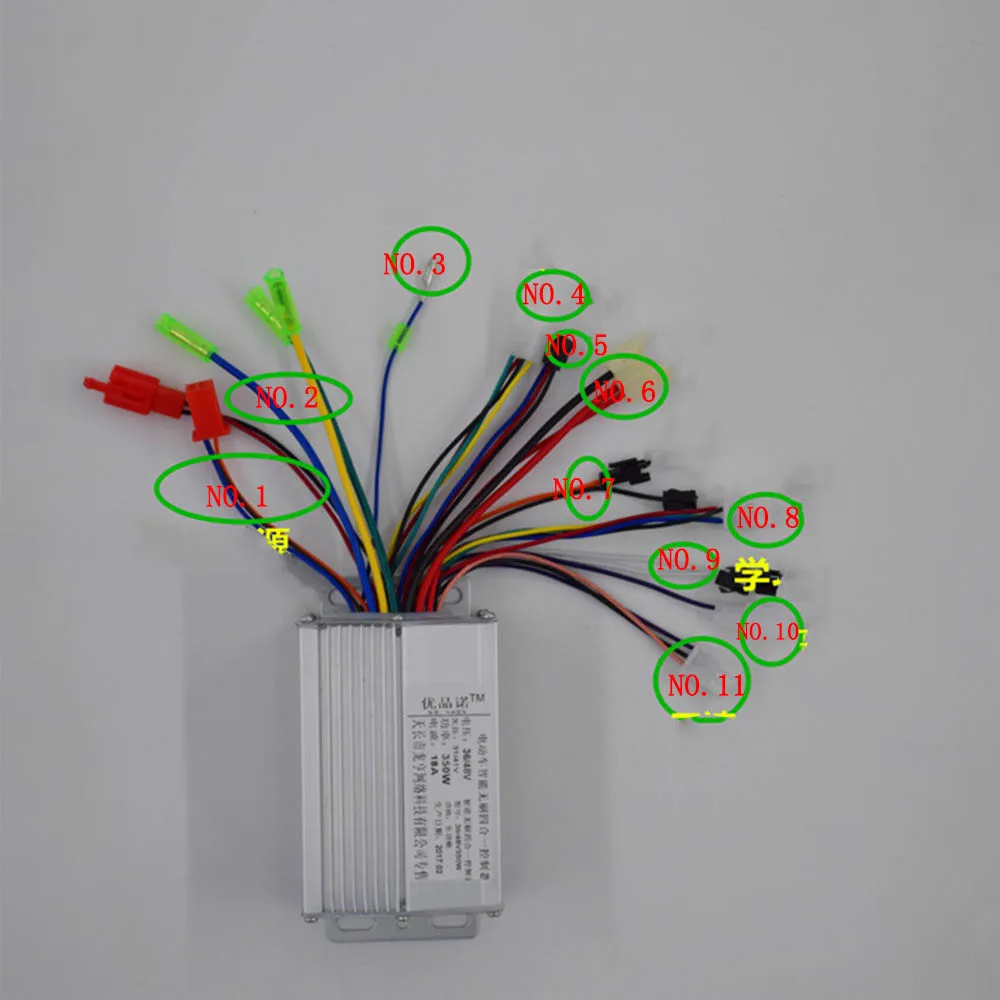

1.motor line

2.instrumentation line

3.throttle line

4.Anti-theft alarm line

5.3-speed line(standard: 60%-80%-100%)

6.hall line

7.low brake line

8.Anti-theft power line

9.high brake line

10.self-learning line

11.Cruise speed line

12.battery line(red：battery+, black：battery-)

13.electric lock line

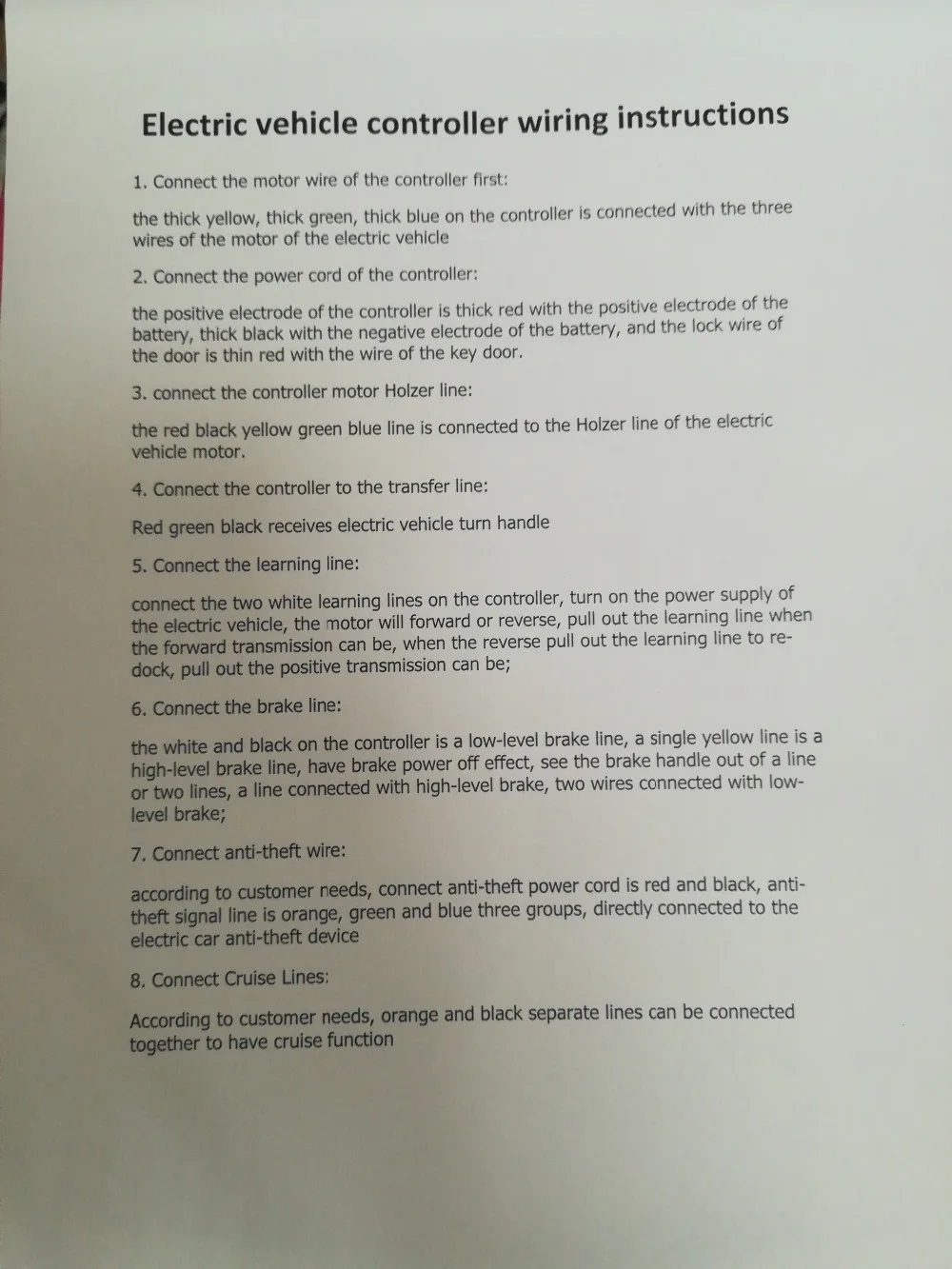

(1.Contact the motor line

2.Contact the battery line(red:+ , black:-)

3.Contact the throttle line

4.Contact controller electric lock line to throttle electric lock line（if throttle without electric lock line, contact to battery + ）

5.Contact the hall line

6.Docking the two self-learning lines, twist throttle, the wheel will forward or reverse.

(1.if wheel forward ,Separate the self-learning line.

2.if wheel reverse, Separate the self-learning line. then Docking the self-learning line again. if wheel forward ,Separate the self-learning line.)

7.other functions can be connected as needed.

Dear customers, please check the wiring photo before placing the order, if you do not know how to connect the wires or this controller not fit for your ebike, please do not place the order, thanks!
