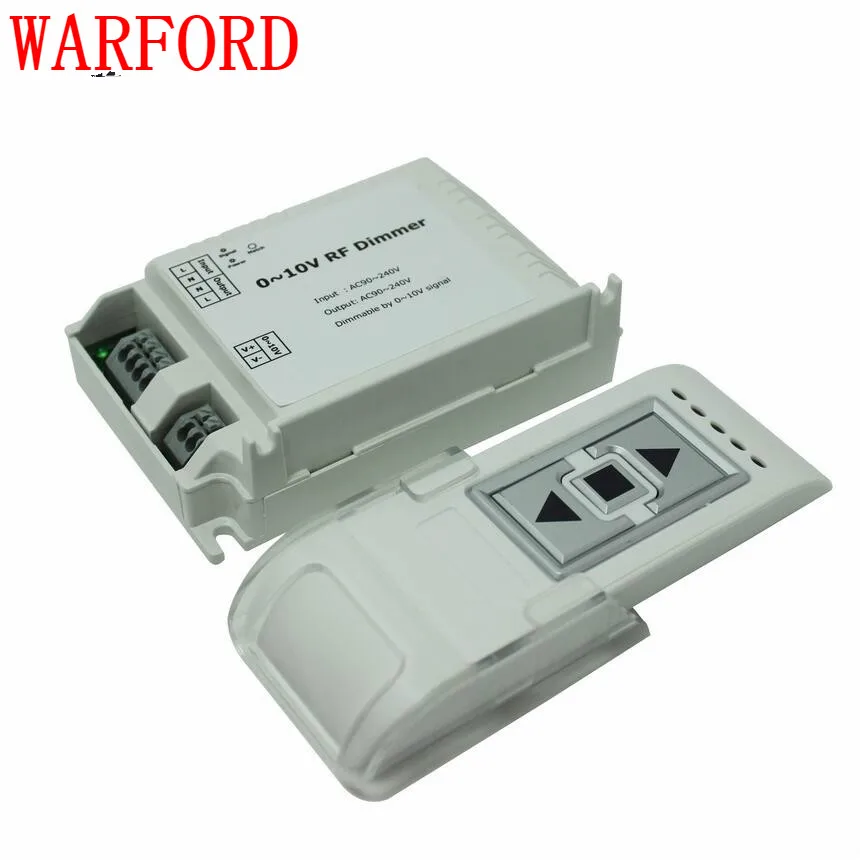

110V 220V AC LED RF Dimmer DM015 High Voltage 0-10V 1 Channel 1CH Trailing Edge Dimming 3 Key with Remote Control | Освещение

110V 220V AC LED RF Dimmer DM015 High Voltage 0-10V 1 Channel 1CH Trailing Edge Dimming 3 Key with Remote LED RF Dimmer Control

Note:

This is 0-10V dimmer, so it will work with 0-10V dimmer driver

Summarization

DM015 dimmer is a 0-10V dimmer with wireless remote control which independent developed by our company, DM015 inherited the advantages of low voltage controller, adopt wireless remote control, easy to control, use good quality white plastic shell,the color unify with remote control,pay attention to appearance design aesthetic feeling;Through hardware and software optimized the light adjusting effect, to provide you more comfortable than traditional lighting controller, safe and convenient intelligent lighting control, thus to the user in a fresh, comfortable lighting environment.

Technical parameters

  Working temperature: -20-60℃                                   Remote control distance: <20m

  Power supply voltage: 90～240VAC,50～60Hz      Output voltage: 90～240VAC,50～60Hz

  Output: 1 channel                                                         Output signal: 0-10V

  Net weight: 145g                                                          Gross weight: 199g

  External dimension: L104×W68×H30mm                   Packing size: L120×W35×H130mm

  Static power consumption: <3W                                  Relay output power: < 200W

  0-10V output current: <15mA

 External Dimension

Interface instruction

Operating instruction

Remote controller has 3 buttons, and the functions as follows:

Match code operate instruction: This controller can match 2 remote control to common control. Long press the

on/off key on remote and match code key on controller more than 3s, then finish match code, after match code

successful, the load light will flicker. When match the first remote control, the load light will flicker 3 times, when

match the second remote control, the load light will flicker 6 times, Since then every time match code will

replace the earlier match code remote control.

Typical Applications

Package Include:

1pcs Led DM015 Controller( Remote battery is not included)
