New Mini60 Sark100 HF ANT SWR Antenna Analyzer Meter Bluetooth Android APP

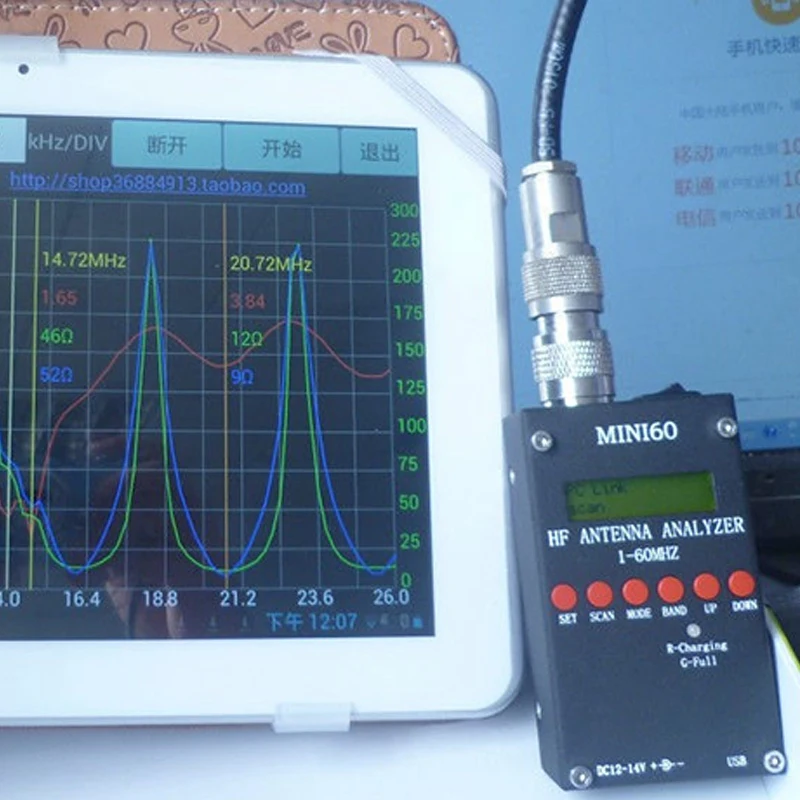

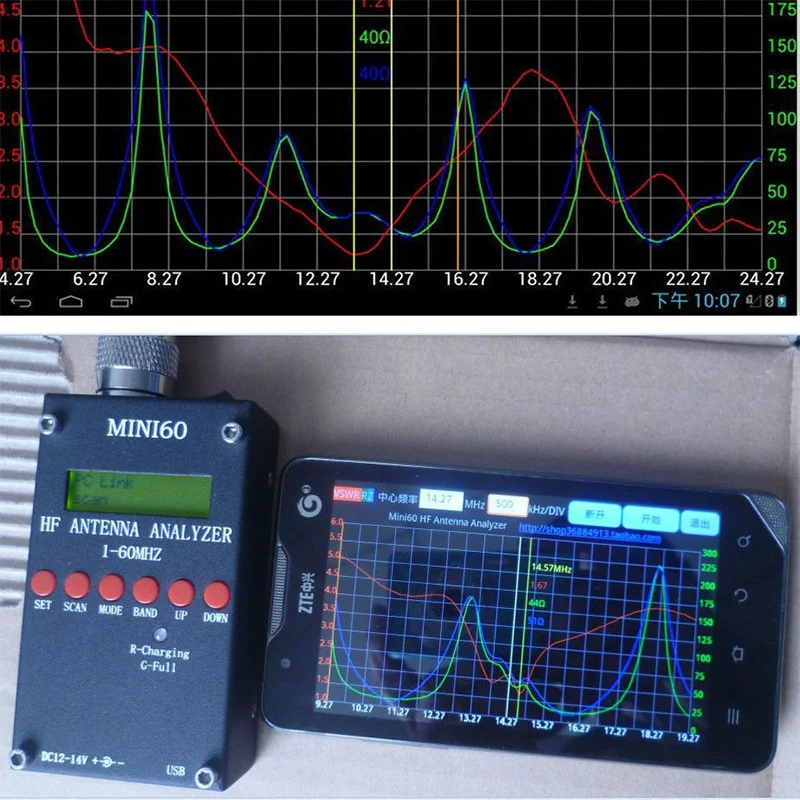

Support for Android 2.2 -4.0 or new version, supports 3--10 inch mobile phone and tablet,

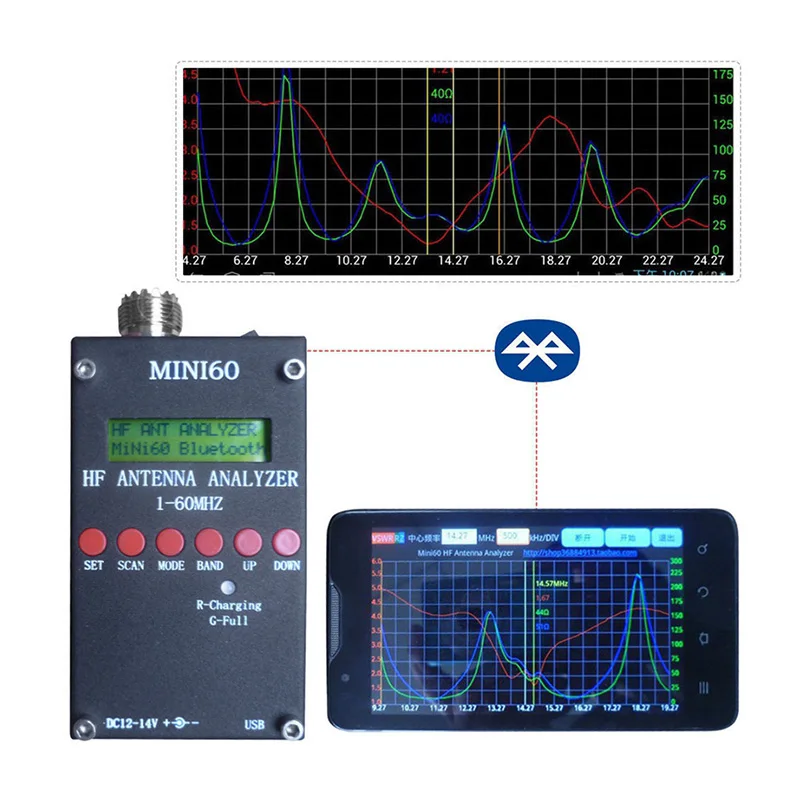

Action method: 1) the installation software Andrews; 2) press the SET button to open the talent PC link; 3) Press the DOWN button to confirm dc plug in the Bluetooth antenna head; 4) Open the Bluetooth phone paired with the day assigned for 1234; 5) Open Android software click the link prompts the connection point of the scan is completed successfully
Instrument Capabilities: Measure antenna electrical parameters: SWR, impedance (resistance + reactance), capacitance, inductance; Measure feedpoint impedance
Measure ground loss; Adjust antenna tuners and determine loss; Measure inductors and capacitors; Measure coax transmission line (SWR, length, velocity factor, approximate Q and loss, resonant frequency, and impedance); Measure and determine optimum settings for tuning stubs: SWR, approximate Q, resonant frequency, bandwidth, impedance
Determine characteristic impedance of transmission line; Determine length of 1/4 and 1/2 wave phasing lines; Coaxial Cable Loss; Determine antenna tuner loss; Measure balun loss; Measure inductor Q; Estimate quartz crystal parameters; Measure magnetic loop resonance and SWR
Automated antenna SWR analyzer
Hardware:
Precise and self-calibrating reflectometer design measures forward and reflected signals and impedance data
Display 2x16 with optional backlight
Precision DDS signal generator (AD9851) used as signal source
USB port only for battery charging
Buzzer
Operation:

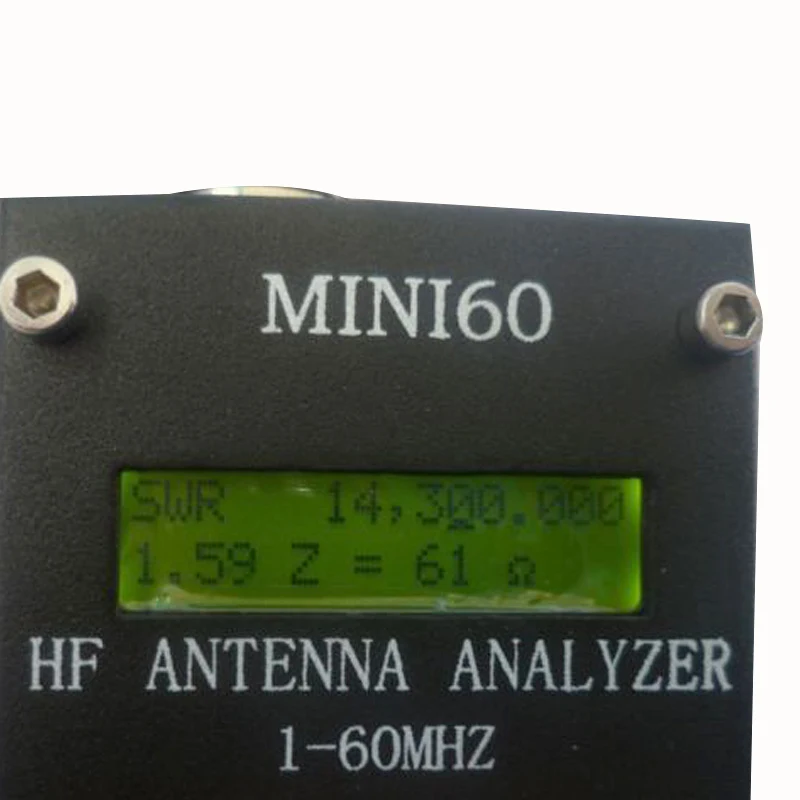

Manual control option displays SWR and complex impedance at selected frequencies

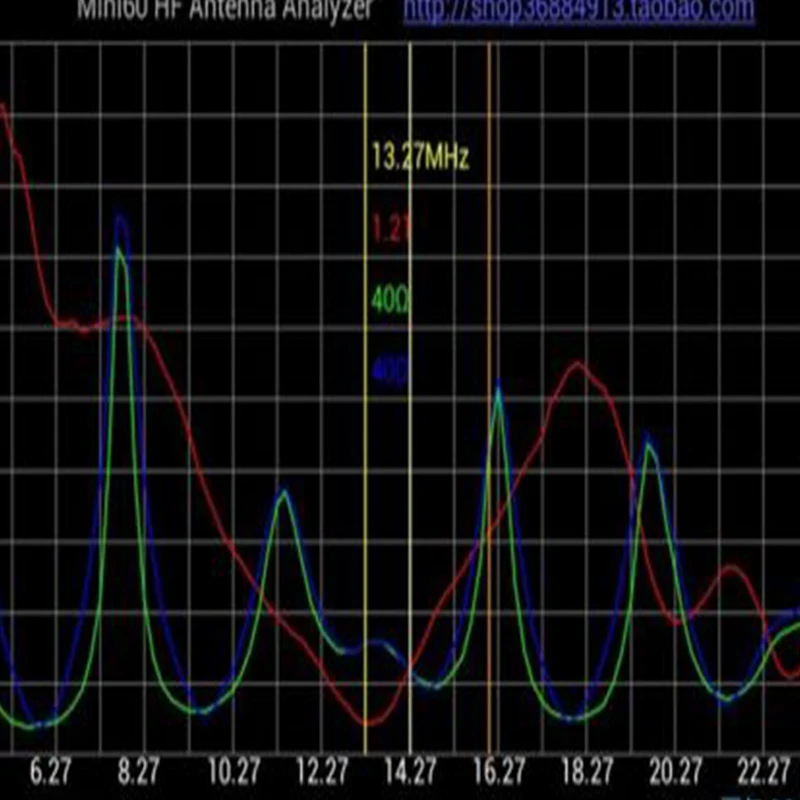

Automatic scanning results displayed as frequencies of lowest SWR and complex impedance
Battery operated for field use or use external 13.8V wall adaptor
Power saving modes
Multi-point calibration for better accuracy
SPECIFICATIONS
Frequency Generation & Control: 1 - 60 Mhz
Source impedance: 50 Ohms
Stability: +/- 100 ppm
Spectral Purity: Harmonics down -- TBD dB beyond 60 MHz
Step Size: User configurable increments of 100 Hz, 1 kHz, 10 kHz, and 100 kHz
Usable Measurement Range:
SWR: 1.0 to 9.99
Impedance: approx. 5 to 2000 ohms
Adjustable: 2.0 Volts pp (typ)
3.7v li-on battery
External: 12 to 14 Volts DC, 500mA

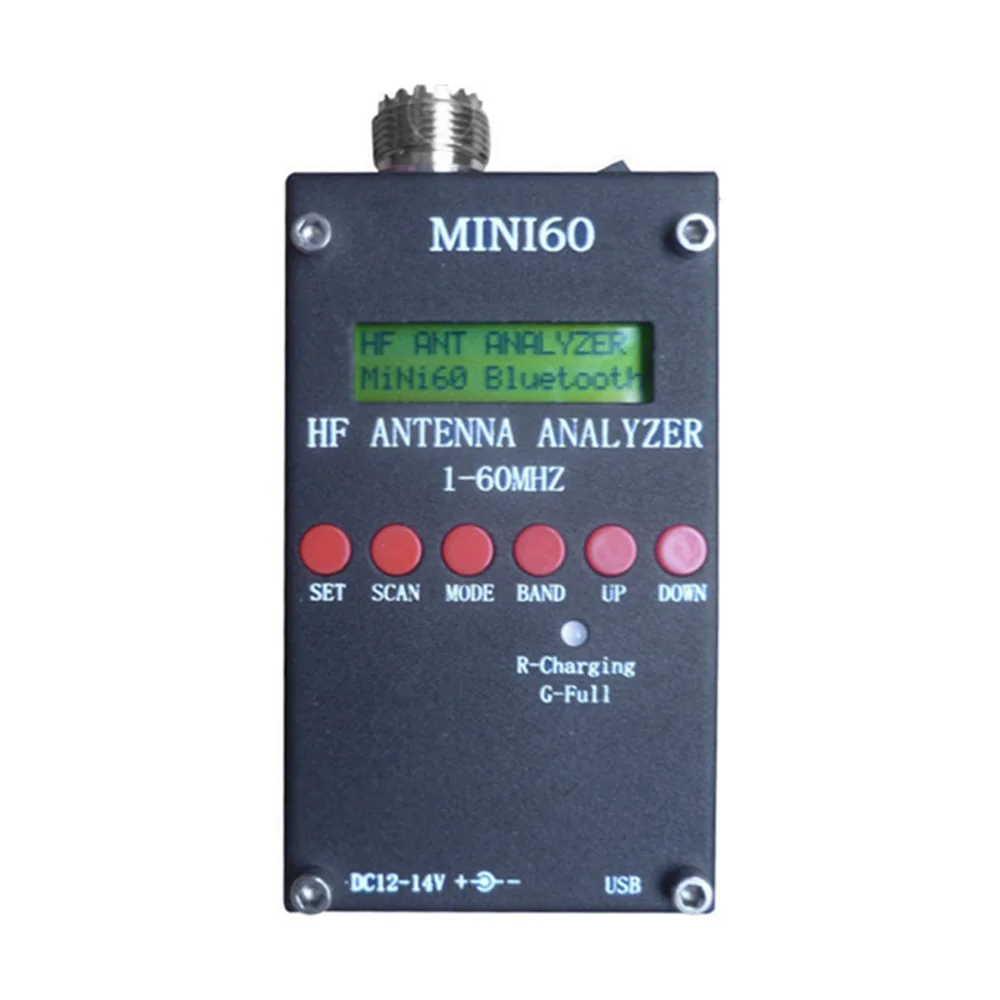

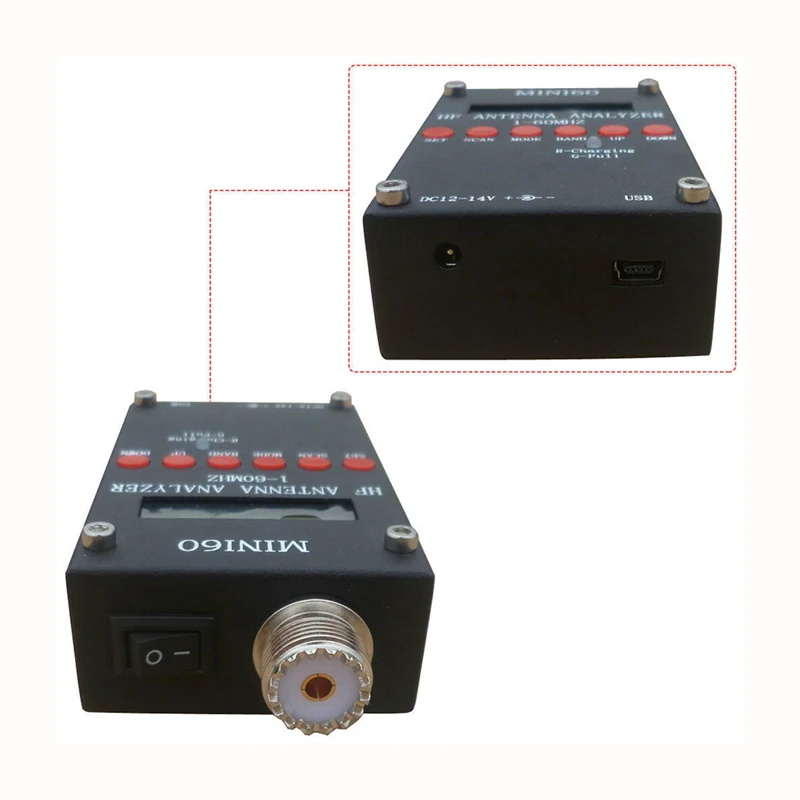

Pushbuttons (5): "Mode", "Band", "Config", "Scan", "Up", "Down"
Switch: "Power On"

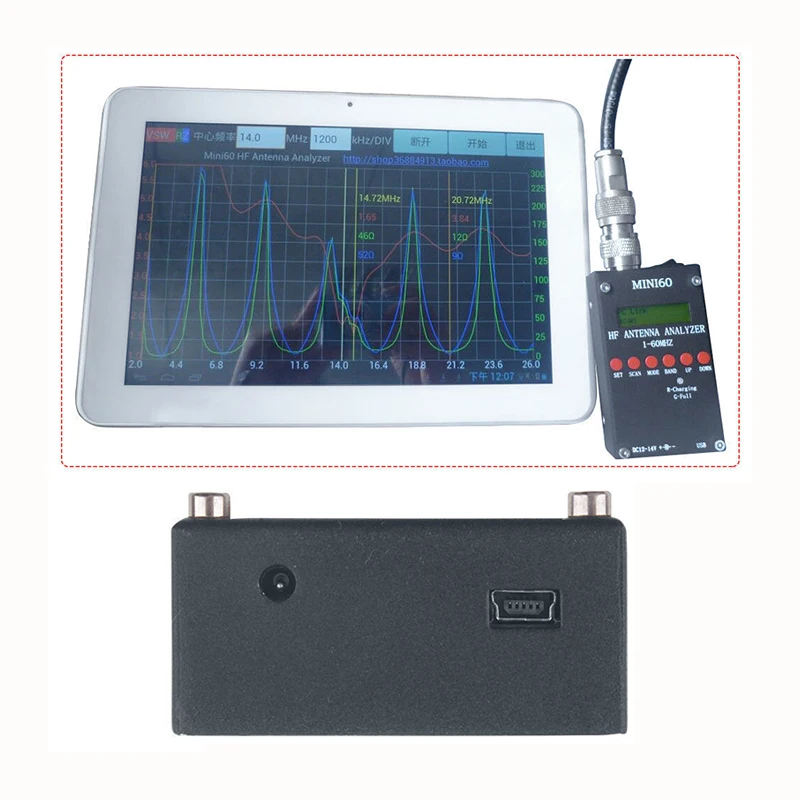

USB: Mini-B receptacle

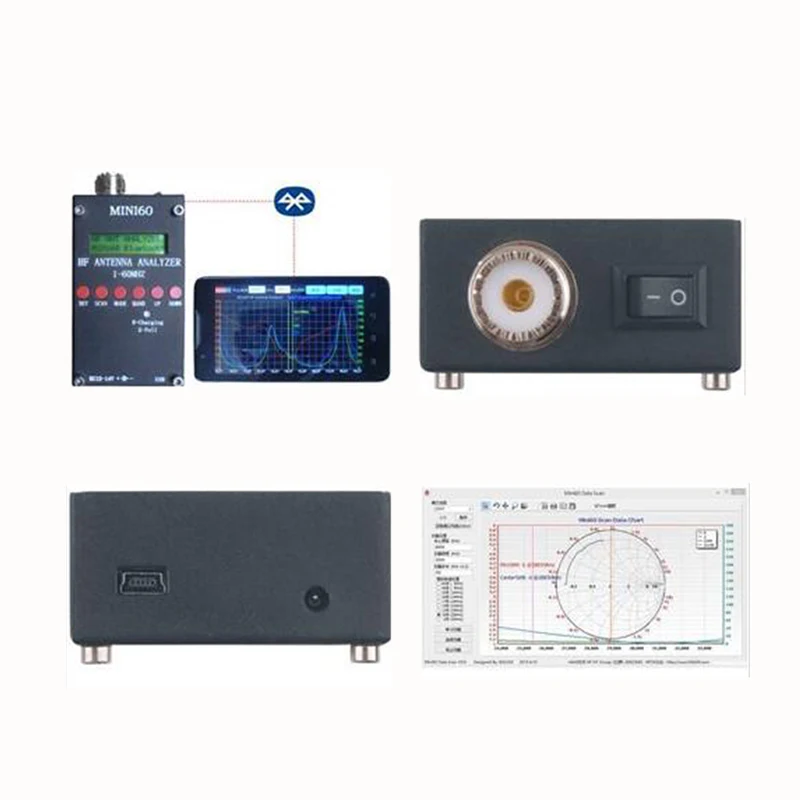

External power: 2.1mm Power Jack (center pin positive)
colour: black
Material: metal
size: mini size: 9.1*5.3*2.5cm
Weight: 220g
Package Contents:
1 x Antenna Analyzer
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
