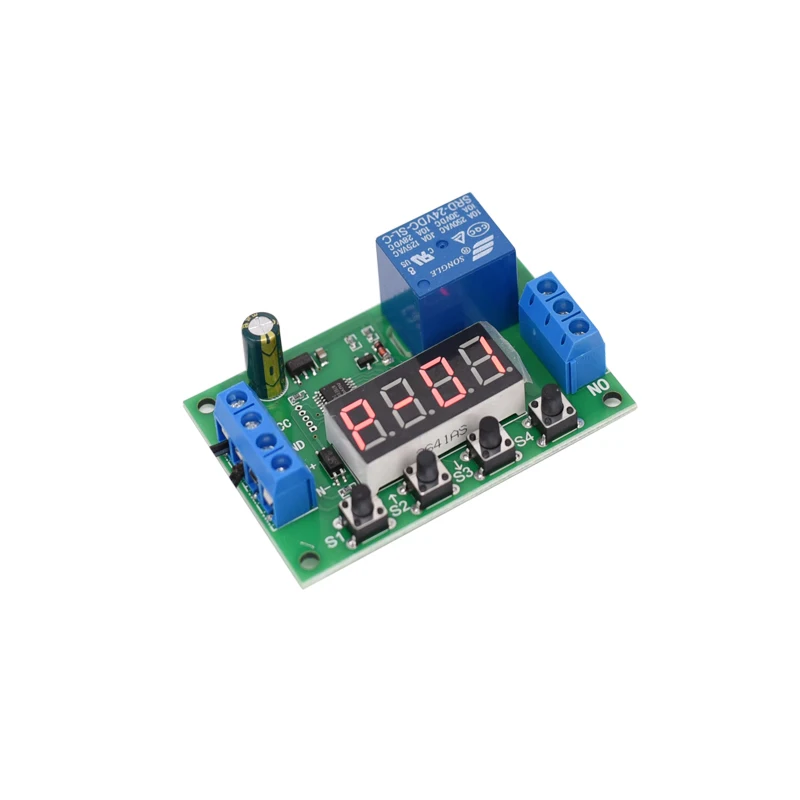

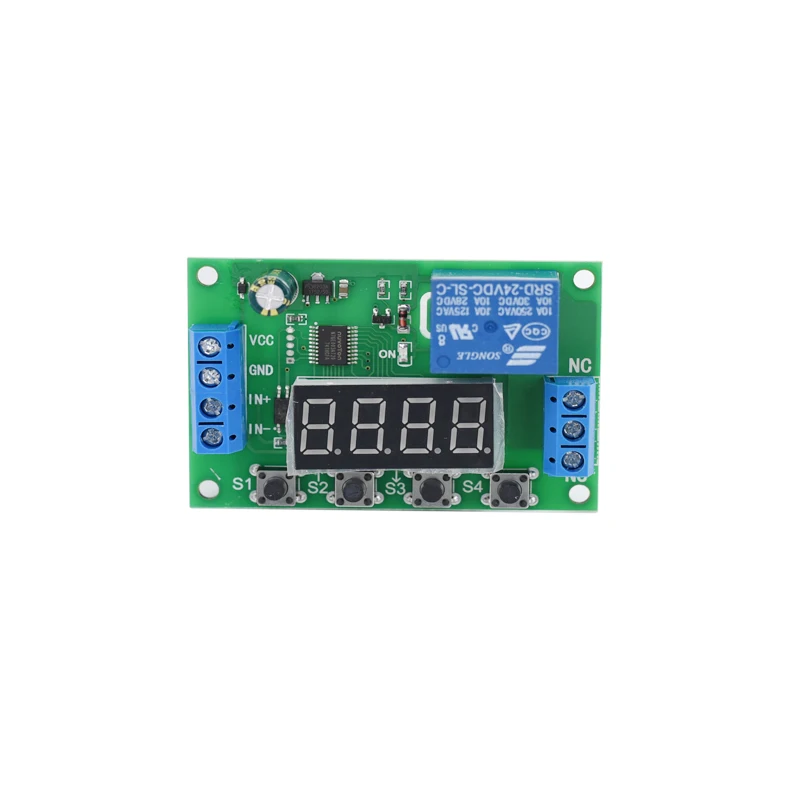

Module Introduction:

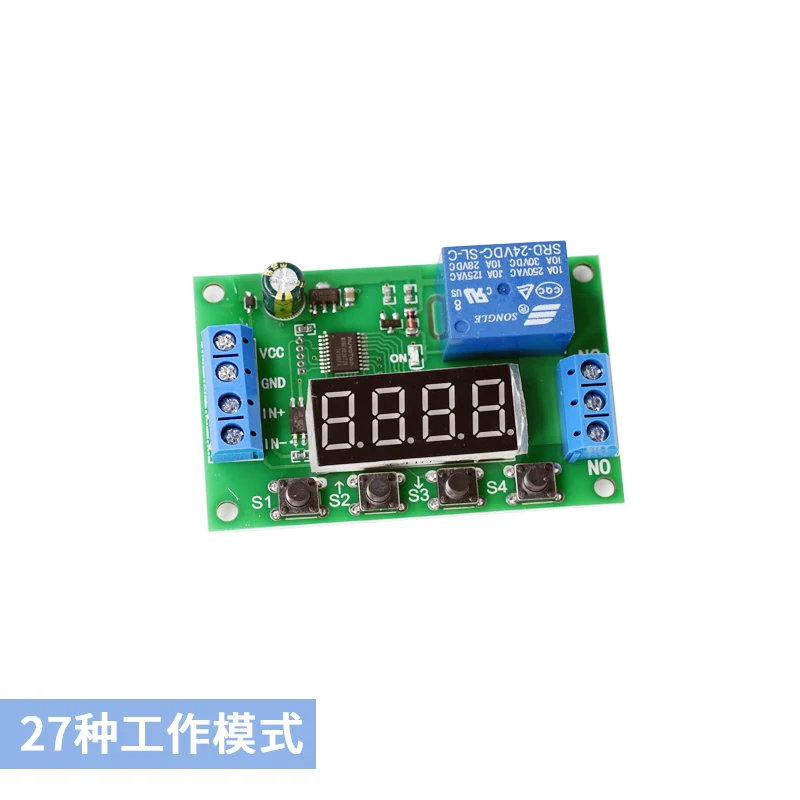

Multifunctional time relay module, a variety of working voltage options, DC5V 12V 24V, output and circuit is isolated from the relay, can control low-voltage electrical appliances, can also control 220 V lines, up to 10 A control capability. Up to 27 working modes are available for various testing and automatic control applications. The delay time can be adjusted from 0.01 seconds to 999 minutes. The trigger port can be triggered either by a voltage signal or by a button.

Module parameters:

Supply voltage: DC 5V 12V 24V optional

Trigger Voltage: DC 3~30V

Maximum control current of relay: 10A

Module size: 63*42*20mm (length, width and height)

Instructions:

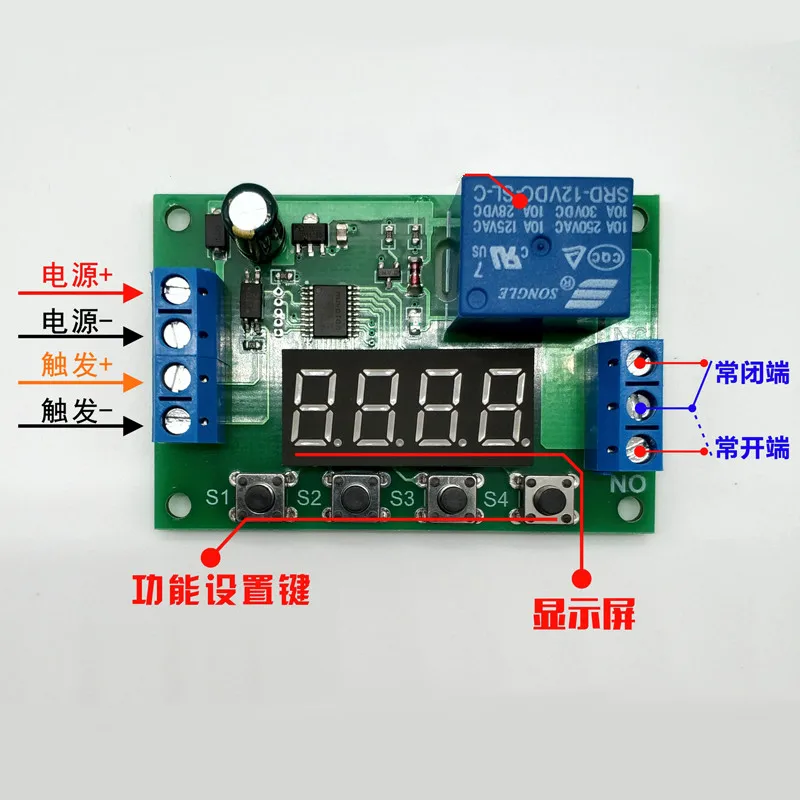

Setting of working parameters:Hold down the S1 button and don't let go. After 0.5 seconds, the display screen displays P-xx. Press S2 and S3 to change the working mode. After choosing the working mode, press the S1 key to enter the A time setting, and display Axxxx in the screen. At this time, press the S2 and S3 keys to modify the A time parameters. Press the S2 and S3 keys to add or subtract 1, press the long button to add or subtract 10, press the S4 key to set the decimal point position. After setting A time, press the S1 key to set B time. The screen displays bxxx. At this time, press the S2 and S3 keys to modify the B time parameters. The S2 and S3 keys short press add or subtract 1, long press fast add or subtract 10, press the S4 key to set the decimal point position. After setting the B time, press the S1 key at last, exit the setting state and save all parameters.

Meaning of decimal point position:

Ax.xx & nbsp; decimal point in 100 bits, time range 0.01-9.99 seconds

Axx.x & nbsp; decimal point in 10 bits, time range 0.1-99.9 seconds

Axxxx. & nbsp; decimal point in bit, time range 1-999 seconds

Axxxxx & nbsp; no decimal point, time range 1-999 minutes & nbsp;

Close the display screen: In the non-set state, press the S4 key to close the display screen, then press and open again.

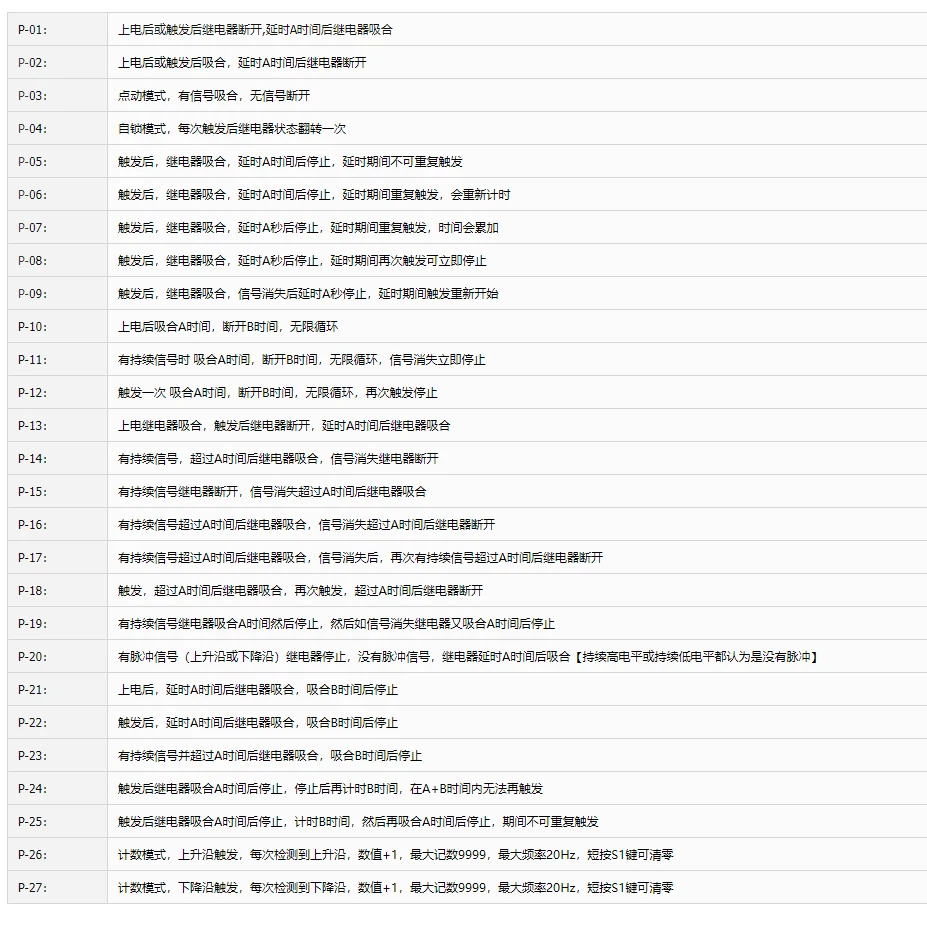

Working mode
