Характеристики
DVI VGA Audio LCD controller board support G104SN02 V3 10.4 inch screen 800*600 | Электроника
История изменения цены
*Текущая стоимость US $26.99 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Sep-16-2025 | 31.88 руб. | 33.28 руб. | 32 руб. |
| Aug-16-2025 | 31.5 руб. | 33.40 руб. | 32 руб. |
| Jul-16-2025 | 26.9 руб. | 27.40 руб. | 26.5 руб. |
| Jun-16-2025 | 30.45 руб. | 32.81 руб. | 31 руб. |
| May-16-2025 | 26.4 руб. | 27.98 руб. | 26.5 руб. |
| Apr-16-2025 | 30.71 руб. | 32.15 руб. | 31 руб. |
| Mar-16-2025 | 29.11 руб. | 30.6 руб. | 29.5 руб. |
| Feb-16-2025 | 29.66 руб. | 30.33 руб. | 29.5 руб. |
| Jan-16-2025 | 29.57 руб. | 30.44 руб. | 29.5 руб. |
Описание товара
When you don't make sure the controller board kit whether support your LCD panel that please chat with us in any time!:)
Product Description
Supported LCD Model List ：
| G104S1-L01 | G104AGE-L02 | G104STN01.0 | G104SN03-V5 |
| G104SN02 V2 | G104SN02 V3 |
|
|
| G121SN01 V4 | G121SN01 V402 | G121SN01 V403 | G121STN01.0 |
Note:
1.If your LCD panel included in above list , You can use current link to create your order directly. But it is better to leave a message to let us know the exact model number of your LCD panel too .
2.If your LCD panel not included in above list , please don’t use current link to create order directly. You can leave a message or contact us directly, and let us know the model number of your LCD panel , our technician will help you to select a best link to create your order.
Product Description
1. GENERAL DESCRIPTION
M.NT68676.2 is a multi-purpose LCD controller board which support HDMI+DVI+VGA various of video signal input and dual channel 8bit LVDS output interface. LVDS output signal can up to 1920X1200@60Hz.
M.NT68676.2 with Audio function, Support direct Audio signal from HDMI input or external Audio signal input from Audio Jack . The output speaker is 2X1W (8Ω).
NT68676.2 Also support Infrared remote control , Backlight Brightness Control(Optional , Need custom firmware), Earphone output .
2 .Function Layout of LCD controller board
| CHIPSET | NT68676(UFG) | ||
| MARKET AREA | Asia-Pacific | ||
| OSD LANGUAGE | Simplified Chinese, Traditional Chinese, English, French, German, Italian, | ||
| Spanish, Portuguese, Japanese, Korean (optional) | |||
|
PANEL
| Panel Type | LED/LCD | |
| Interface | Single/Dual LVDS (8bit) | ||
| Max Resolution | 2048×1152 | ||
| VIDEO INPUT | PC-RGB | Format | Up to 2048×1152 60Hz |
| HDMI | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p | ||
| AUDIO INPUT | PC Audio | Earphone Input | 0.2 ~ 2.0 VRMS |
|
AUDIO OUTPUT
| Frequency Response | 100Hz~15KHz ±3dB (1KHz, 0dB reference signal) | |
| Max Output power | 2×1W(8 ) THD+N<10 1KHz (Power Supply: 12V, Audio Input: 0.5VRMS) | ||
|
POWER
| Requirement | 12V DC/12V(built)/12V,5V(built in)/12V,5V,5VSB(built in) | |
| 3.3V/5V/12V | ||
| Management | Standby Power Consumption < 0.5W(Board Only) | ||
| KEY FUNCTION | POWER,MENU,VOL+,VOL-,ADJUST/EXIT | ||
| CHIPSET | NT68676(UFG) | ||
| MARKET AREA | Asia-Pacific | ||
| OSD LANGUAGE | Simplified Chinese, Traditional Chinese, English, French, German, Italian, | ||
| Spanish, Portuguese, Japanese, Korean (optional) | |||
|
PANEL
| Panel Type | LED/LCD | |
| Interface | Single/Dual LVDS (8bit) | ||
| Max Resolution | 2048×1152 | ||
| VIDEO INPUT | PC-RGB | Format | Up to 2048×1152 60Hz |
| HDMI | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p | ||
| AUDIO INPUT | PC Audio | Earphone Input | 0.2 ~ 2.0 VRMS |
|
AUDIO OUTPUT
| Frequency Response | 100Hz~15KHz ±3dB (1KHz, 0dB reference signal) | |
| Max Output power | 2×1W(8 ) THD+N<10 1KHz (Power Supply: 12V, Audio Input: 0.5VRMS) | ||
|
POWER
| Requirement | 12V DC/12V(built)/12V,5V(built in)/12V,5V,5VSB(built in) | |
| 3.3V/5V/12V | ||
| Management | Standby Power Consumption < 0.5W(Board Only) | ||
| KEY FUNCTION | POWER,MENU,VOL+,VOL-,ADJUST/EXIT | ||
3.FUNCTION LAYOUT
The picture is for a reference only, the actual item is the standard.
Side View:
3.FUNCTION LAYOUT
The picture is for a reference only, the actual item is the standard.

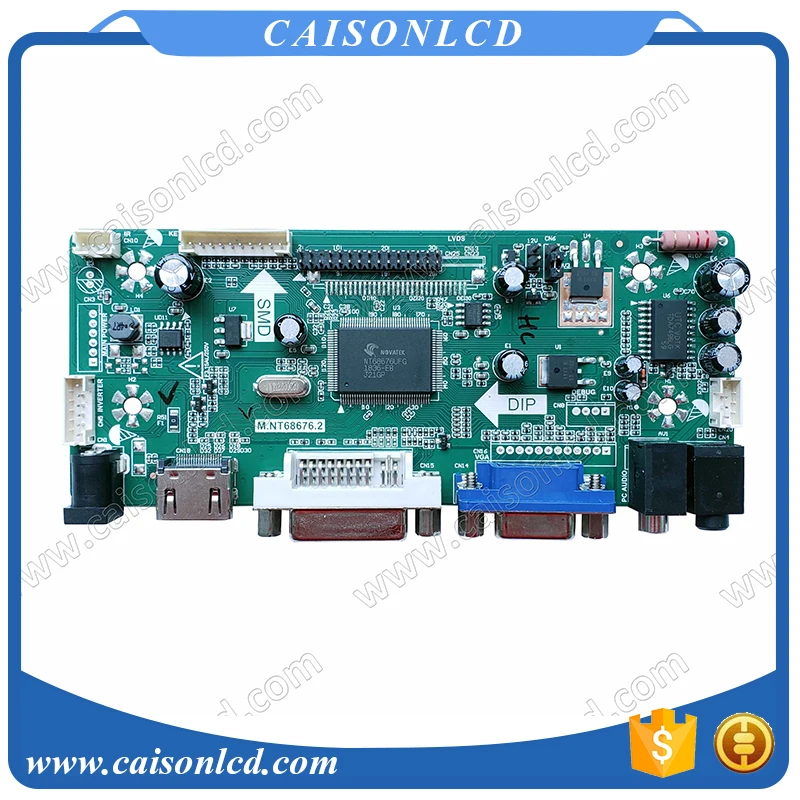

Top View:
4. PCB DIMENSIONS of LCD controller board
5. Detail Diagram Display

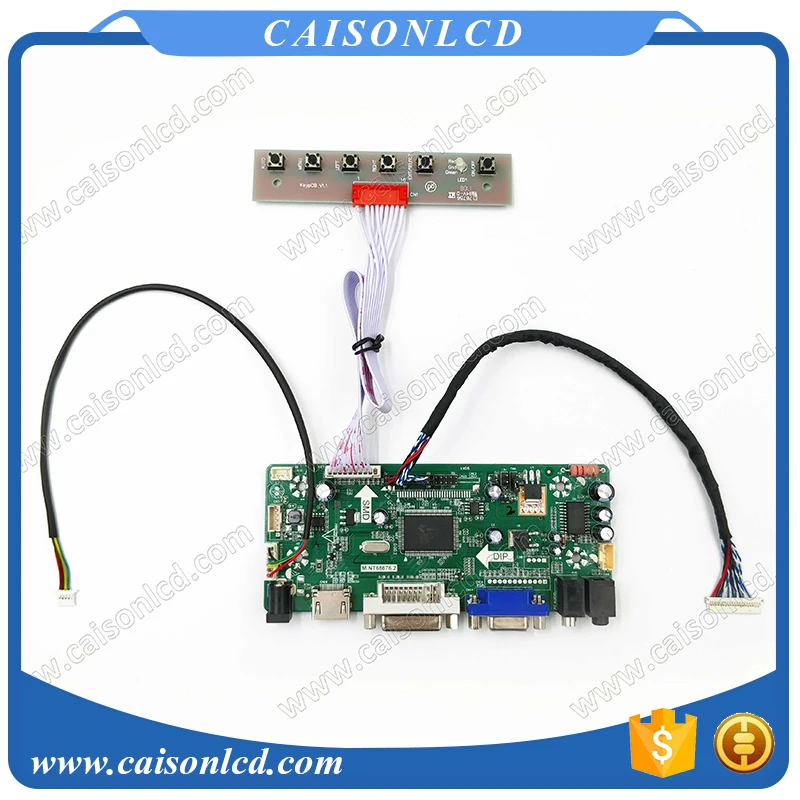

7.Package included:

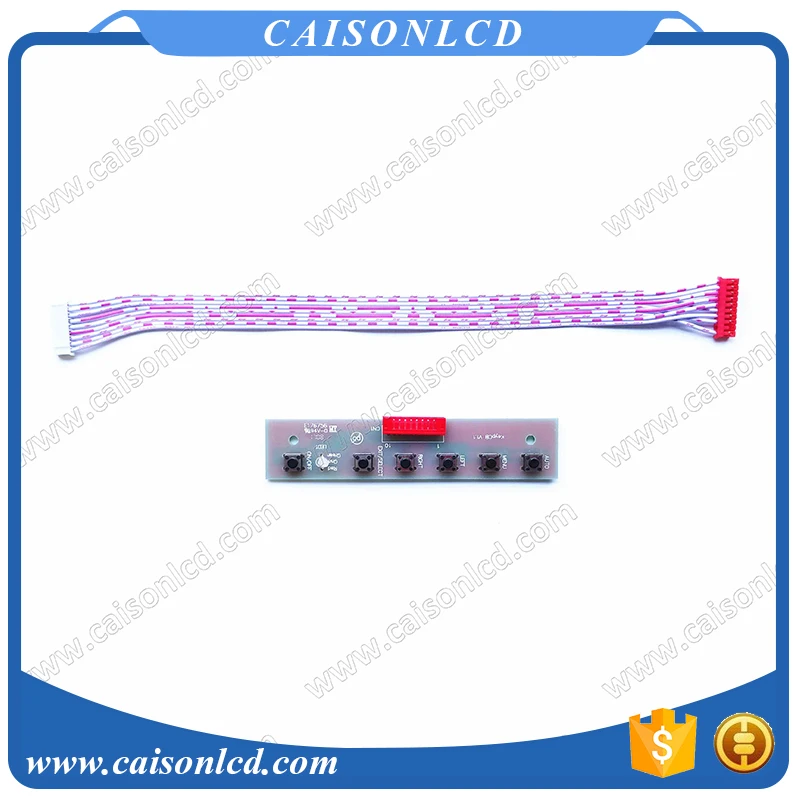

1. OSD keypad X 1Pcs;
2. LCD Controller Board X 1Pcs;
3. Keypad cable X 1Pcs;

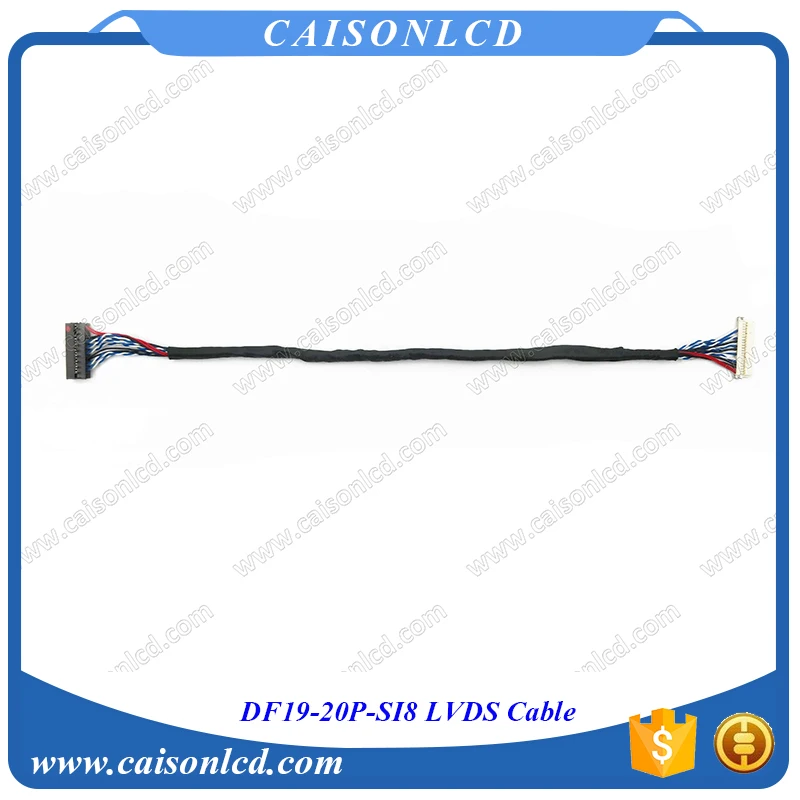

4. LVDS Cable X 1Pcs;

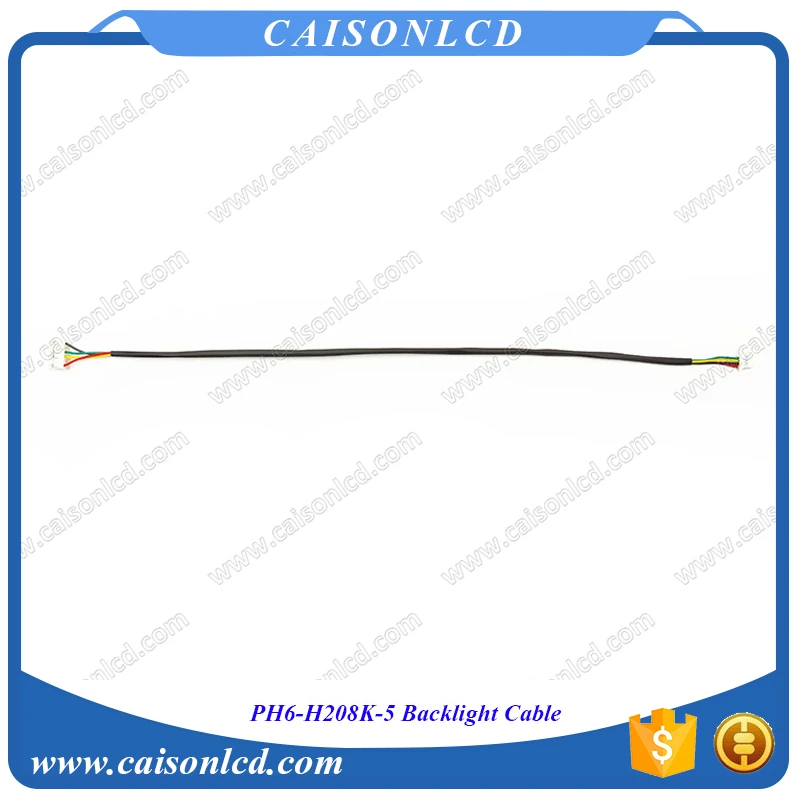

5.Backlight Cable X 1Pcs；
PCB DIMENSIONS
Dimension(mm):139(L)*58(W)*17(H)
