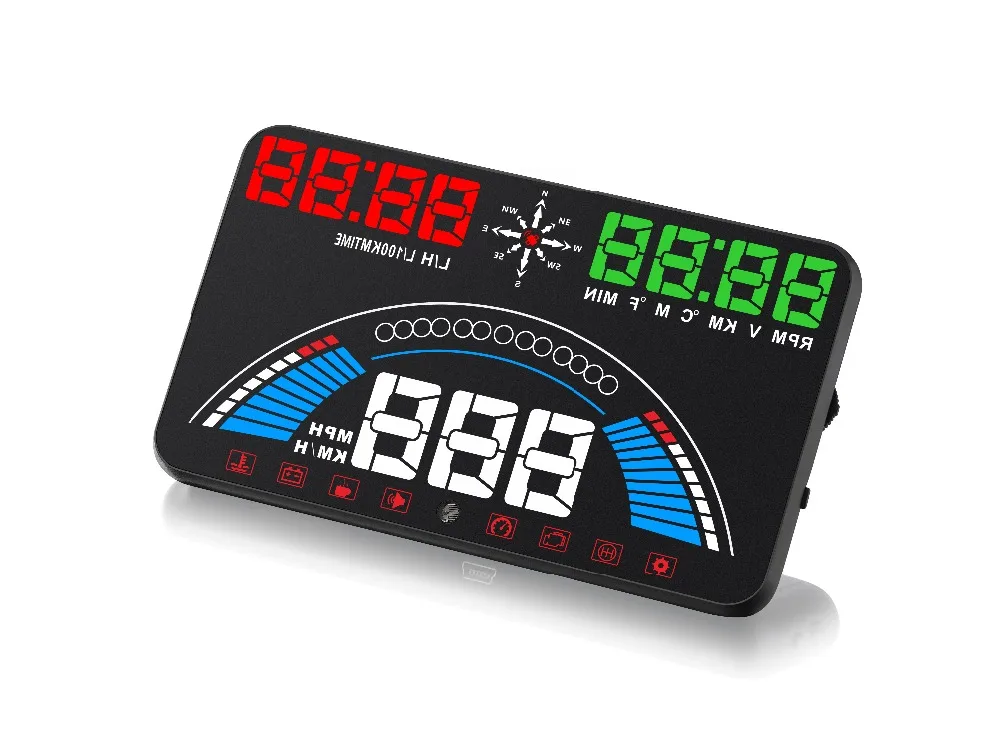

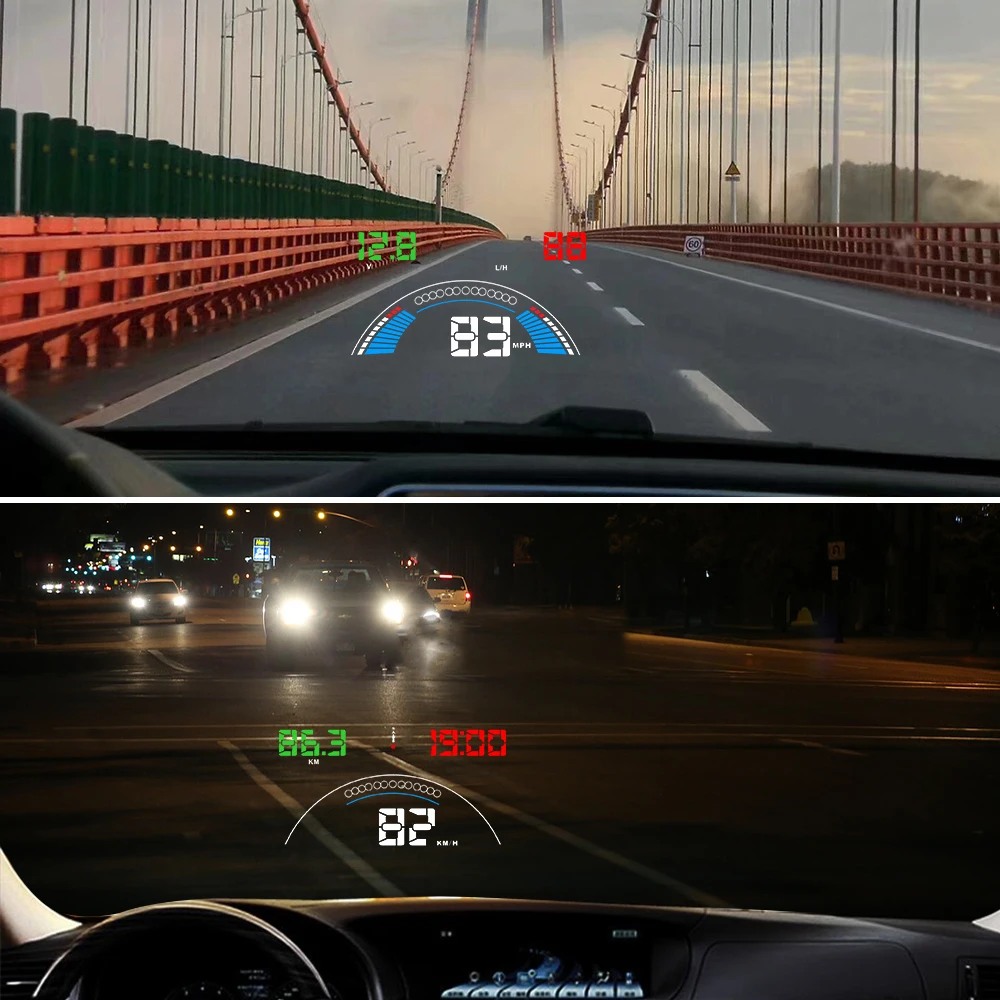

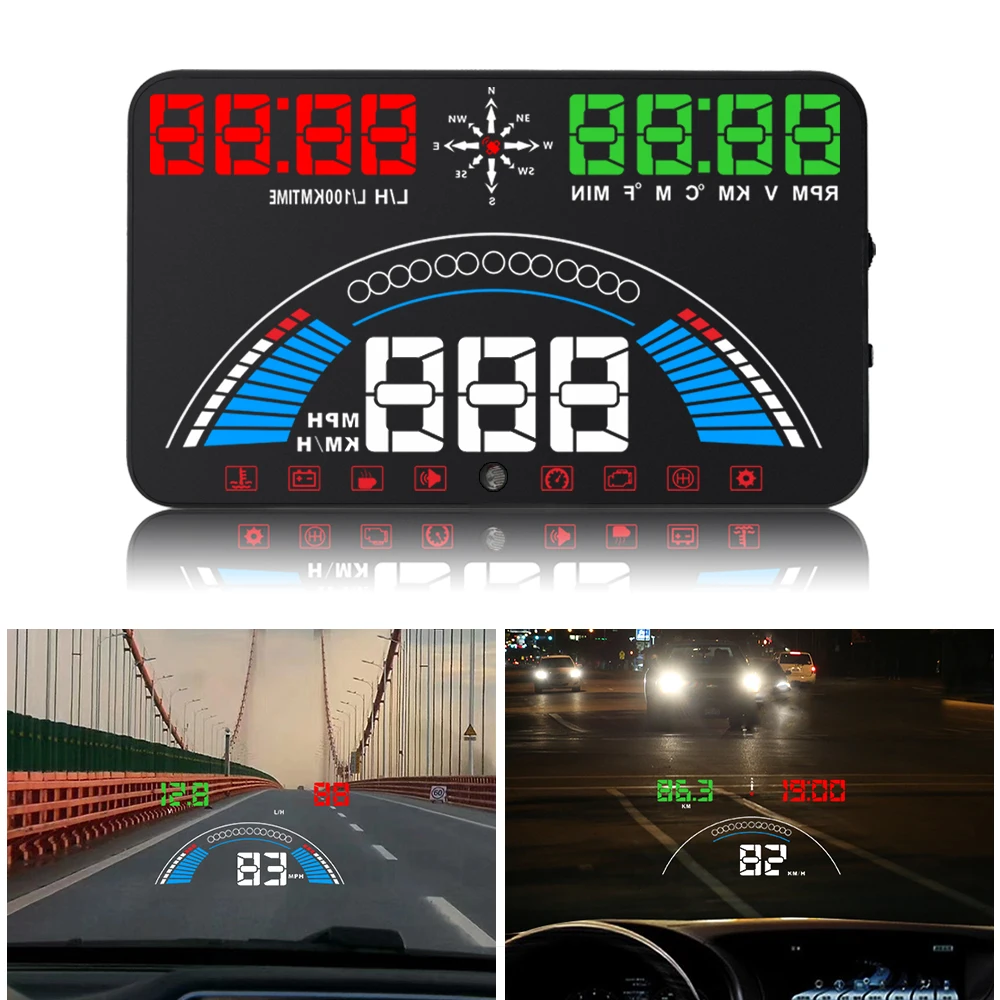

HUD short for Head Up Display.It displays driving datas on the front windshield such as speed,rpm, fuel consumption,water temperature,voltage;avoiding drivers unsafety because of watching the instrument while driving.Drivers can read the driving information, and can always keep the best state on the way with HUD.

HUD Main Functions&Features:

1. Combine OBD &GPS HUD system into one,free switch
2. 20 kinds of functional data

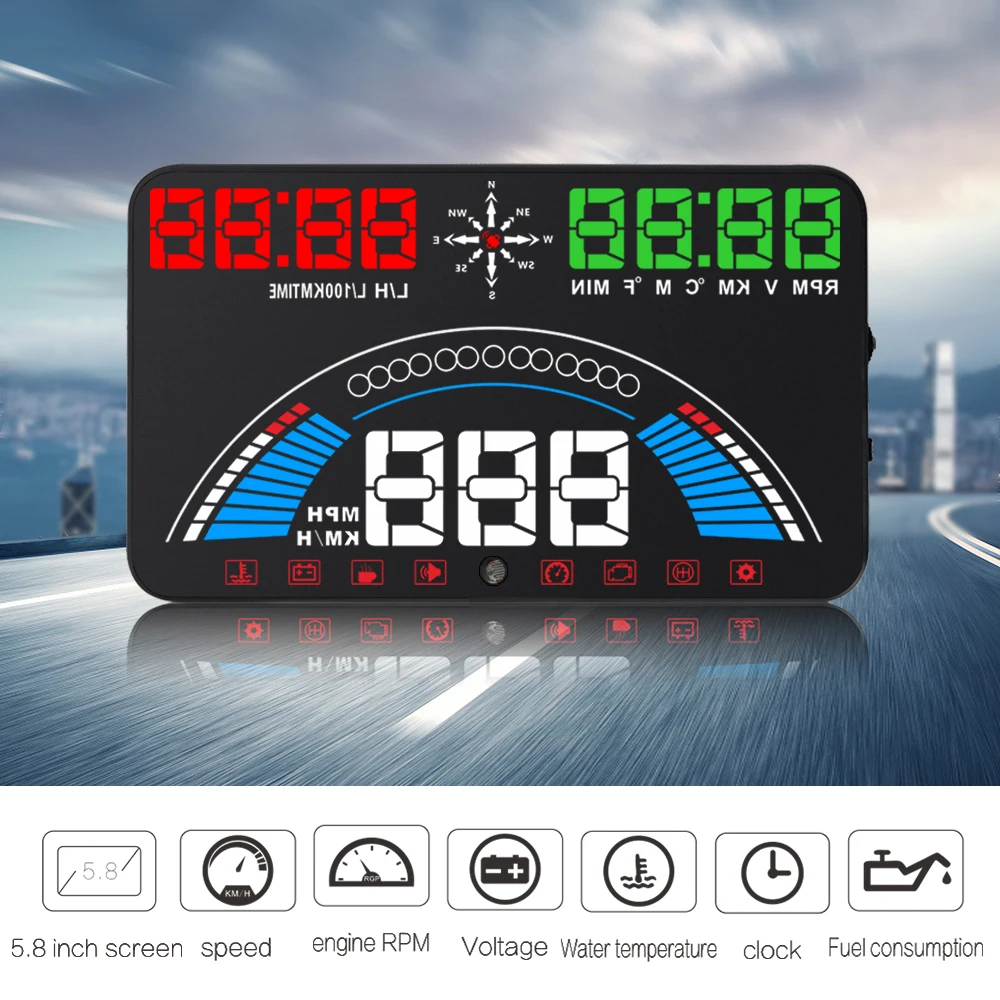

3. Screen size 5.8 Inch HD display
4. Auto power on/off
5. Automatic and manual brightness adjustment mode

OBDII Main Functions:

1.RPM,voltage,driving distance,water temperature,driving time

2.Fuel consumption,water temperature,voltage

3.RPM unit,voltage unit(V),driving distance unit(KM/Mile),water temperature unit(℃/℉）

4.Fuel consumption unit(L/H, L/100km)

5.All small circle lights turn off when driving speed exceed 50km/H

6.Decorative light(will be turn on all the time when driving)

7.All light circle turns off when the RPM exceed 4000r

8.Vehicle speed

9.Speed unit(KM/H,MPH)

10.Display icon (from left to right): menu setting,shift reminder,engine fault code,over speed icon,light sensor,buzzer mark,fatigue driving,low voltage alarm,high water temperature alarm

GPS Main Functions:

1. Driving distance&time,voltage

2. Driving directions

3. Clock,driving time

4 Driving distance unit(KM,M)driving time unit(MIN),voltage unit

5. Satellite states

6. Decorative light(will be turn on all the time when driving)

7. Speed icon (all light turns off when driving speed exceeds 100km / H)

8. Vehicle speed

9.Speed unit(KM/H & MPH)

10.Display icon (from left to right) :over speed icon,light sensor,buzzer mark,fatigue driving,low voltage alarm.

OBD mode :Solutions for common problems

1. (OBD mode) HUD screen without any display,and no power

Checking the car charger cable if it is tight, pull down the OBD cable repeatedly inserted several times, check the HUD switch if it powers on. If there still no display please try another car to test and analyze whether the car cigarette lighter interface is bad, if it is a bad cigarette lighter, please try to connect the cable line to the car battery.

2. (OBD mode) HUD screen only shows voltage, and automatic power off after 30 seconds.

HUD in OBD mode only available for cars with OBDII and EOBD agreement (US region:after 2003,other regions: after 2007),if HUD can only display voltage, it prove your car cannot compatibility with the OBD mode, in this time, pls change to GPS mode, than HUD can work.

3. (OBD mode) See not clearly when HUD under the sunlight,and with double reflection.

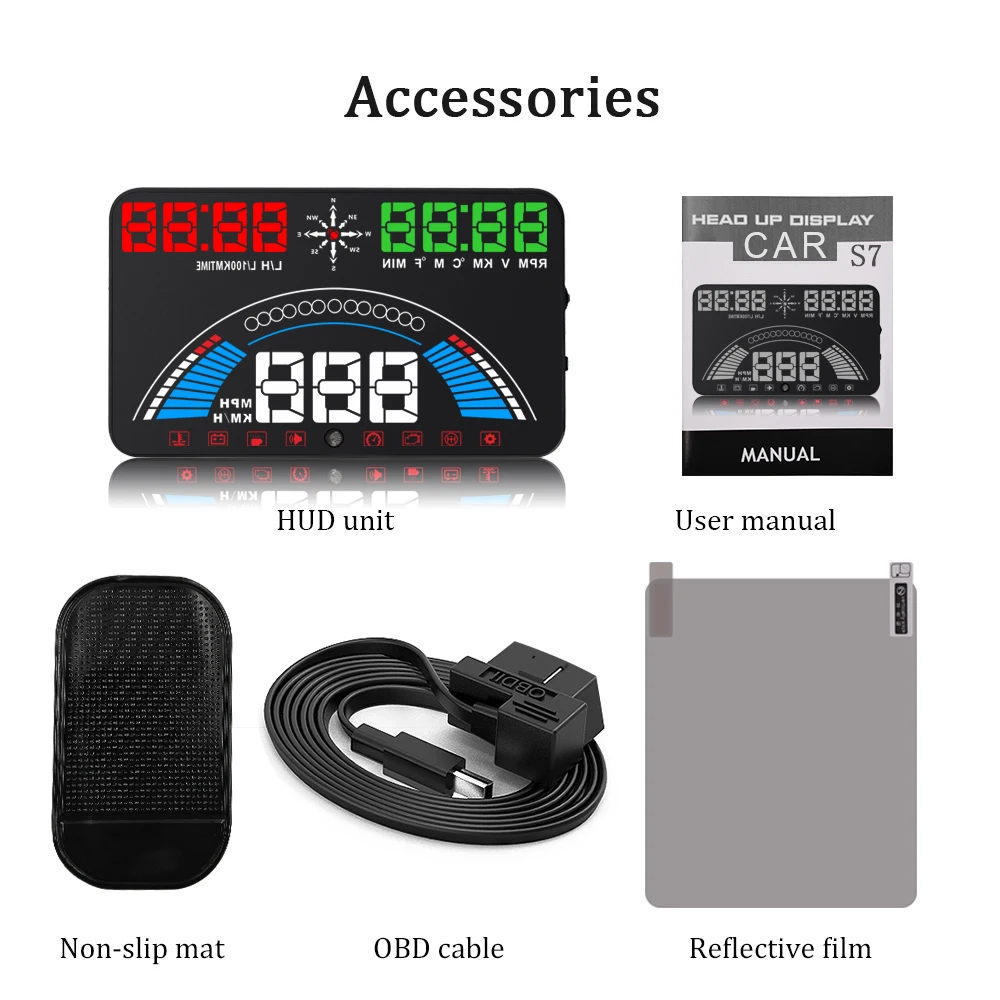

Check whether the HUD host protective film is torn,and please attached the reflection film in the gift box corresponding on the windscreen.

Under the condition with power, vertical press wave button 5 seconds to enter into menu option,short press 8 times to menu 8, pull down the wave button to parameter 2,and vertical press 5 seconds to save.

4.(OBD mode) wrong operation lead to crashes or inaccurate datas

Do a reset setting.Under the condition of power,vertical press in wave button for 5 seconds to enter into the menu option,short press several times to the menu 16,pull down the wave button to parameter 1,vertical press in 5 seconds to save.

5. (OBD mode) Inaccurate Speed

When HUD is power on,vertical press the wave button 5 seconds to enter into the menu options, here menu option shows 0,parameter shows 107,up or down the wave button to increase or decrease the value according to the difference until it shows correct one.After adjustment, vertical press in 5 seconds to save it.

6. (OBD mode) Inaccurate fuel consumption

Under the condition with power,vertical press the wave button 5 seconds to enter into menu option, show press in 14 times to find menu 14,the default value is 20(means the emission is 2.0L),up or down the wave button to increase or decrease the value according to the difference with your car emission until it shows correct.Vertical press in 5 seconds to save and exit.

Or find menu 2 ,the parameter shows 100,up or down to adjust.

7. (OBD mode) HUD cannot be automatically power off and menu setting for cars with Start Stop function

Vertical short press the wave button 5 seconds to enter into menu setting, vertical short press 7 times to menu 7, the default parameter is 1, up or down the wave button to adjust the default value to 3  ( 3 is for voltage control switch for start-stop car) ,vertical press in 5 seconds to save and exit.

If still can not turns off automatically,vertical press in 5 seconds to enter into menu setting, short press 15 times to menu 15, the default value is 132, up or down to adjust the default value to 135, vertical press in 5 seconds to save and exit.

8. (OBD mode) HUD cannot be automatically power on

Vertical press in 5 seconds to enter into menu setting, short press 15 times to menu 15,the default parameter is 132, up or down change it to 128, vertical press in 5 seconds to save and exit.

GPS mode:Solutions for common problems

1. (GPS mode) HUD screen without any display,and no power

In order to prevent power consumption, default start voltage is 13.2v, when start the engine, HUD will be automatically turns on when it reaches 13.2v, check if the car charger cable is tight, pull down repeatedly insert several times, check if the HUD switch is open . If there are still no response,please try another car,or analyze whether the car cigarette lighter interface is bad, if the diagnosis is not good,please connect the cable line to the storage battery.

2.(GPS mode) HUD can not be automatically power on or repeated shutdown when driving

HUD default start voltage is 13.2v, if car voltage less than this value,HUD can not start, check if the car engine is turned on. If you already start the engine,please vertical press in the wave button 5 seconds to enter into menu setting,short press 7 times to menu 7, up or down the button to adjust the parameter value from 132 to 128.

3.(GPS mode) HUD can not be automatically power off after car shutdown

HUD default start voltage is 13.2v, if car voltage reaches this value,HUD will automatically power on,when car voltage below this value,HUD will automatically power off,please press 7 times to find menu 7,and adjust the default value from 132  to 135.

4.(GPS mode) Inaccurate speed

Under the condition with power,vertical press in the wave button 5 seconds to enter into menu option,menu shows 0,parameter shows 107, up or down the wave button to increase or decrease the value according to the difference with your dashboard until it shows correct.Vertical press in 5 seconds to save and exit.

5.(GPS mode) Over speed alarm

HUD default over speed alarm value is 150,it can be adjusted.

Under the condition with power,vertical press in the wave button 5 seconds to enter into menu option,short press 1 time to menu 1,parameter 150,here 150 means over when driving speed reach 150, hud will give over speed alarm,up or down the wave button to increase or decrease the value.Vertical press in 5 seconds to save after adjustment.

6.(GPS mode) See not clearly when HUD under the sunlight and with double reflection.

Check whether the HUD host protective film is torn,and please attached the reflection film in the gift box corresponding on the windscreen.

7.(GPS mode) Wrong operation lead to crashes or inaccurate data

Do a reset setting.Under the condition of power,vertical press in 5 seconds to enter into the menu option,short press several times to the menu 8,pull down the wave button to parameter 1,vertical press in 5 seconds to save and exit.

8.(GPS mode) Inaccurate Time

Make sure your GMT(the default is GMT+8).According to your time zone to adjust HUD.Vertical press 5 seconds to enter into menu setting,short press 6 times to menu 6,parameter shows 8 (means GMT +8)up or down the wave button adjust to the time zone of your own country.(pls refer to the form of hud adjustment code)
