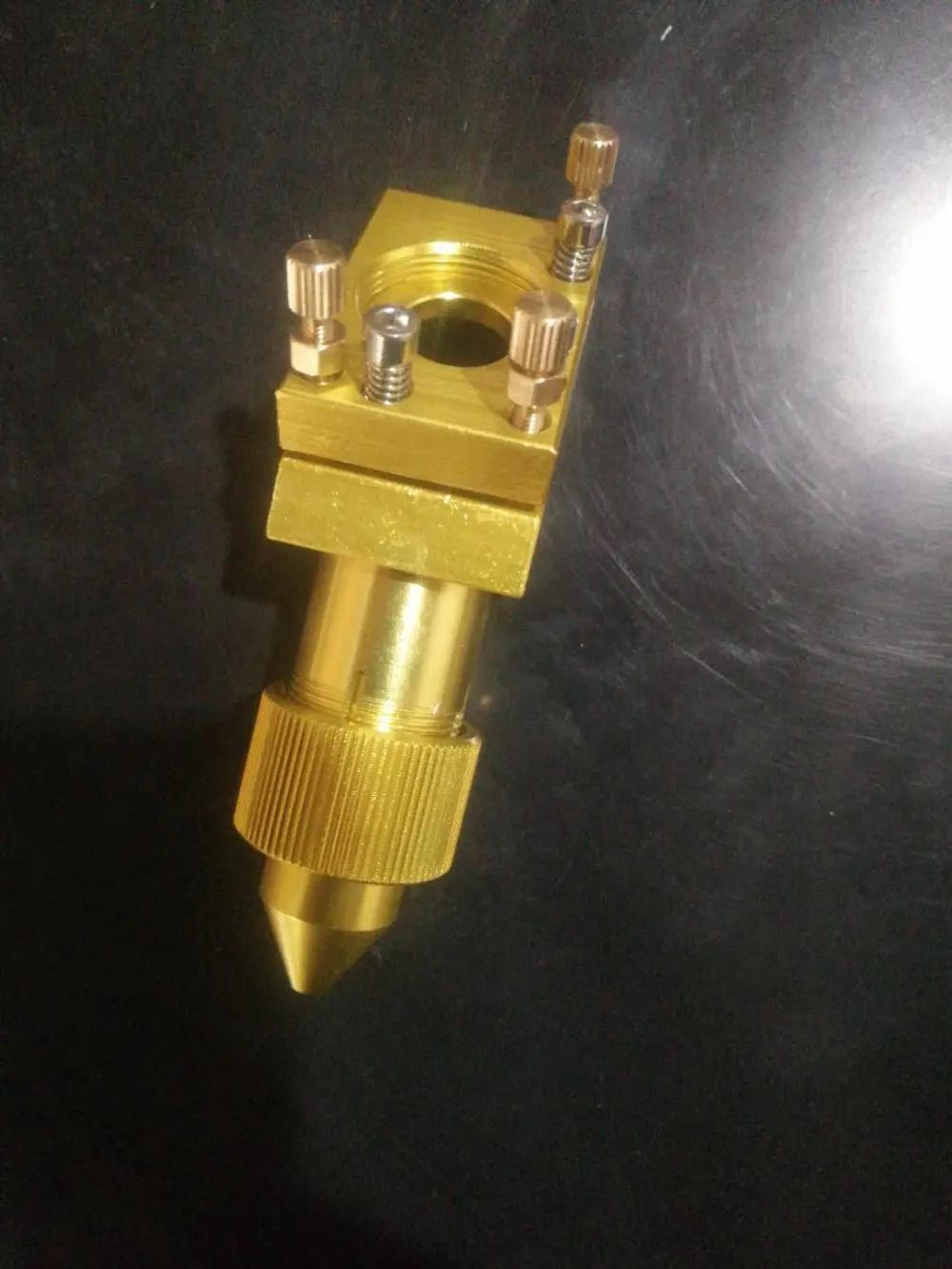

laser head mirror support water protection lens mainboard and panel DHL shipping fee | Инструменты
wifi CO2 laser engraving machine Ruida system cutting for wood Acrylic Stone Rubbe 1600*1000mm 160*100cm | Инструменты
302 889,20 - 477 050,49 руб.
Высокоскоростной 1390 Usb порт 50 Вт Co2 лазерная гравировка и резка машина |
261 620,55 руб.

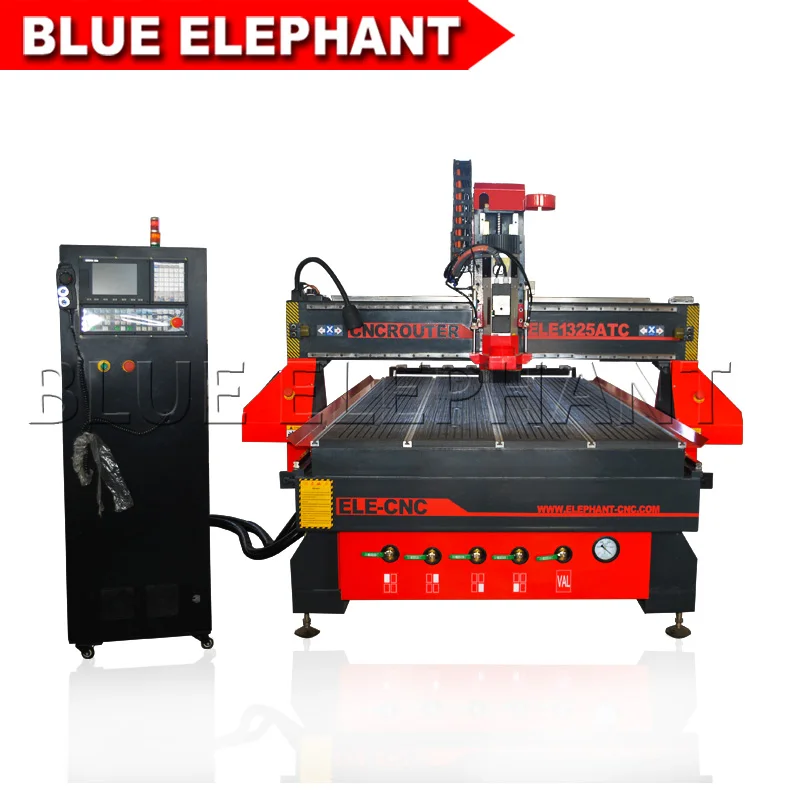

Гравировальный станок с ЧПУ 21 нож для гравировки 1300*2500*200 мм | Инструменты
1 484 157,08 руб.
Blue Elephant Auto Tool Change CNC Machinery/ Air Cooling Spindle ATC1325 Router/3 Axis Milling Machine for Wood Working | Инструменты
1 484 157,08 руб.
Diamond Engraving Cutter Granite Engraver Stone Tools Marble Relief Cnc Bit 4 Edge Shank Carving Tool | Инструменты
1 949,08 - 2 039,51 руб.
4-осевой фрезерный станок с ЧПУ для дерева 4 осями | Инструменты
492 194,95 руб.
Характеристики
Cheap LFM1325 cnc 4 axis 1325 router machine gross weight With CE | Инструменты
История изменения цены
*Текущая стоимость 295 320,76 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Apr-04-2026 | 351431.0 руб. | 369003.31 руб. | 360217 руб. |
| Mar-04-2026 | 348478.62 руб. | 365902.5 руб. | 357190 руб. |
| Feb-04-2026 | 292367.98 руб. | 306985.17 руб. | 299676 руб. |
| Jan-04-2026 | 342571.4 руб. | 359700.63 руб. | 351135.5 руб. |
| Dec-04-2025 | 298273.58 руб. | 313187.7 руб. | 305730 руб. |
| Nov-04-2025 | 336665.83 руб. | 353498.97 руб. | 345081.5 руб. |
| Oct-04-2025 | 333712.7 руб. | 350398.76 руб. | 342055 руб. |
| Sep-04-2025 | 330758.90 руб. | 347296.9 руб. | 339027 руб. |
| Aug-04-2025 | 327805.38 руб. | 344195.32 руб. | 336000 руб. |
Описание товара
Cheap LFM1325 cnc 4 axis 1325 cnc router machine gross weight With CE
Product Description
Features of cnc 4 axis 1325 cnc router machine gross weight
First Part:
1. Machine body: welded by 6-8mm thickness steel square tube, stabilized under high temperature,
ensures minimum distortion, excellent rigidity and powerful strength.
2. Gantry:welded steel sqaure tube of thick wall.
3. Side arm: steel board and thickness up to 20-25mm.
4. Table:3mm thick wall aluminium T-slot working table with strong bending strength and loading capacity
covered with PVC protecting the cutters from damage.
Second Part:
1. Guide Rail: X Y Z axes adopt Taiwan Hiwin square rail. Square guide rail-- its load capacity and the ability
to maintain the accuracy is more 30 times than round rails, ensuring high-quality and high-speed.
2. Ball screw: Z axis adopts TBI 1610 ball screw. High precision.
3. Rack and pinion:X Y axes using helical rack and pinion, cross-sectional area is 25*25mm and material is
steel. High speed and good stability.
Third Part:
1. Spindle: 3KW water cooled per spindle, low noise, vigirous cutting strength, can be used for engraving
and cutting on plane board's surface.
2.Motor:Brand name in China, high-speed stepper water-cooling, variable frequency motor, big torque,
strong cutting, high frequency.
3.Inveter: Fuling inverter made in China. High quality and low back repair rate. Warranty one year.
Pictures of cnc 4 axis 1325 cnc router machine gross weight
Application of cnc 4 axis 1325 cnc router machine gross weight
Wood Processing: processing of various furniture such as door, window, cabinet, screen and so on
Advertisement: engraving and cutting various labels and number plate.
Art crafts: engraving characters of any languages and graphics on gifts and souvenirs.
Applicable meterails :wood, aluminum board, brass board, plastic, density board, MDF board, wave board, PVC, acrylic, crystal, light marble and other nonmetal materials and light metal materials.
The Main Configuration of cnc 4 axis 1325 cnc router machine gross weight
| SPECIFCATION OF 1530 | |
| Model | LFM1325 |
| Effective working area | (X=1300mm)*(Y=2500mm)*(Z=190mm) |
| Max Feeding Height | 190mm |
| Machine Body | thickness welded steel tube, cast iron vertical shafts and steel gantry |
| Working table | T-Slot table |
| Guide rail | High quality square guide rail |
| Driving method | Gears Rack drive for X Y-axis,lead screw drive for z-axis |
| Motor and driver | Stepper motor (450B) and leadshine driver(MA860H) |
| Spindle Motor | 3.0KW water cooling spindle |
| Invert | Fuling invert |
| Spindle speed | 0-24000rpm/min |
| Spindle collect type | ER20 |
| Voltage | 380V, 1 phase, 50-60Hz |
| Traveling speed | 0-25000mm/min |
| Machine Accuracy | <0.05/300mm |
| Control system | Ncstudio control system |
| Compatible software | Type3/Castmate/Coreldraw/AutoCADand other CAM/CAD software |
| Control Cabinet | Independent |
| Other parts included | --Auto-tool zero caliration(tool sensor) ---Oil lubrication system for guide rail |
| Optional parts | 1.4.5kw water cooling spindle,with high strength. 2.Dust collector 3.Rotary attachment:price depended on the diameter |
Machine parts
Samples
Packaging & Shipping
Packing:we use strong non-fumigation wooden case with steel tube under the pallet.
so it can avoid any damage to the machines. we also buy the insurrance for the
shipping and mahcine. if it is damaged, we can get compensation from insurrance
company.standard exporting plywood case for cnc router machine.
Shipping: We arrange shipment by sea, by air and by train.
