Характеристики
Xintai 2 points 15.6 inch IR touch screen panel / infrared kit | Компьютеры и офис
История изменения цены
*Текущая стоимость US $76.38 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Apr-05-2026 | 90.99 руб. | 95.20 руб. | 92.5 руб. |
| Mar-05-2026 | 90.41 руб. | 95.5 руб. | 92.5 руб. |
| Feb-05-2026 | 75.65 руб. | 79.17 руб. | 77 руб. |
| Jan-05-2026 | 88.15 руб. | 92.21 руб. | 90 руб. |
| Dec-05-2025 | 77.45 руб. | 81.1 руб. | 79 руб. |
| Nov-05-2025 | 87.28 руб. | 91.25 руб. | 89 руб. |
| Oct-05-2025 | 86.1 руб. | 90.43 руб. | 88 руб. |
| Sep-05-2025 | 85.14 руб. | 89.28 руб. | 87 руб. |
| Aug-05-2025 | 84.35 руб. | 88.87 руб. | 86 руб. |
Описание товара

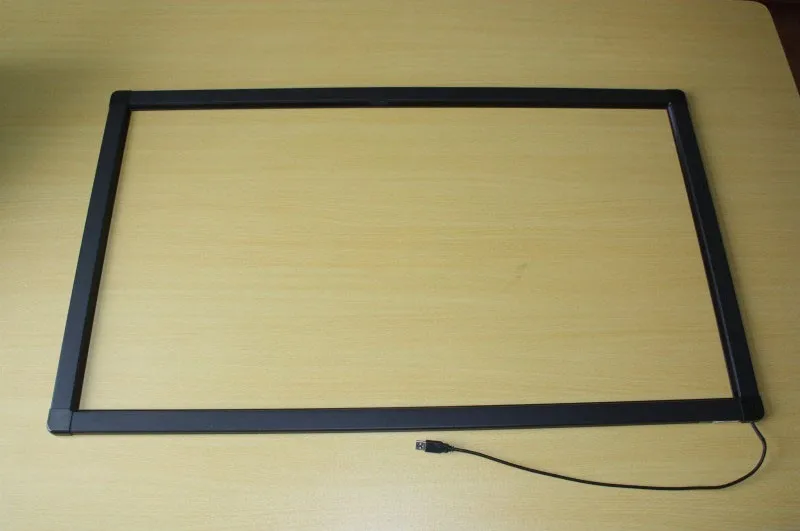

Xintai 2 points 15.6 inch IR touch screen panel / infrared touch panel kit
Infrared Touch Panel Working Principal
IR Touch Screen is a touch frame which is usually installed in front ofthe display screen. The frame is integrated with printed circuit board which contains a line of IR-LEDs and photo transistors hidden behind the bezel of thetouch frame. Each of IR-LEDs and photo transistors is set on the opposite sides to create a grid of invisible infrared light. The bezel shields the parts fromthe operation
Super advantages for 15.6 inch 2 points IR multi touch screen : Dust and sun proofing,anti-vandal; Stable and no drift; No light spots; High durability and quick response to touch of any opaque object; Wide range of temperature; Transparency and high-resolution; ROHS, CE,FCC compatible
Advantages
- Multi-point write with peace,precise multi-point touching.
- USB interface, Intelligent automatic calibration,drive-free and maintenance-free.
- Longevity of service , maintenance free.
- Aluminum alloy shell with strong stability.
- Tempered glass with high light transmittance and true color rendition.
- Without driver ,supporting plug and play.
- Adapt to internal and external linked environment
- No touching tools,no special touching pen is required, only your finger.
- Fast response(less than 16 ms), no blind area,breakpoints, jump points, pause and other
- undesirable phenomena.
- Compatiblewith multiple systems
Specification
| Size | |
| General Size | 15 inch to 159 inch |
| Fit in with | Panel display device |
| Performance | |
| Touch Mode | Single-point touch, Multi-touch, drag, draw-line, rotate, zoom in/out |
| Resolution(Interpolation) | 4096*4096 |
| Linearity Error | <1.5mm |
| Response Speed | <15ms |
| Mechanical | |
| Input Method | Finger or gloved hand (rubber ,cloth or leather) |
| Minimum Touch Object | 2.5 mm X 2.5 mm |
| Vandal-proof | No break by 1-pound steel ball dropping from 130 cm high |
| Optical | |
| Glass: | Without glass, 4mm glare, AG (anti-glare), or AR (anti-reflective) glass optional |
| Light Transmission | 92% |
| Gloss | Antiglare surface (curved or flat): 95 ± 15 gloss units or 65 ± 15 gloss units |
| Environmental | |
| Temperature | Operating Range: -20°C ~ 70°C; |
| Storage Range: -40°C ~ 85°C | |
| Relative Humidity | Operating Range: 0%~90% RH (no dew falls) |
| Storage Range: 0% to 95% RH (no dew falls) | |
| Ambient Light | Direct sunlight 90°to ±30° to the display surface Touch detection operational |
| Direct sunlight all angles to display surface Free of false touch reports | |
| Electrical | |
| Operation Voltage | Typical +DC 5V, +4.75V to +5.25V |
| Power Supply | Size under 52”(include 52”)USB or PS/2 Interface, power ripple max.200mV rms |
| Size above 52”(52” not included): external AC-DC power adaptor | |
| Interface | Full Duplex USB 2.0 (Full Speed) Plug and play compatible |
| Plug and play compatible | |
| Current | Typical 150MA@+5VDC; 350mA, maximum |
| Power | <1.5W, operating current<300mA |
| Electrostatic Protection | 15 kV air / 8 kV contact discharges (EN61000-4-2,1995 :Level 4) |
| Controller | Integration inside touch panel |
| Agency Approvals | CE, FCC, Rohs |
| Operating System | |
| Operation System :windows 7, windows8, Android, Linux | |
Applications
• POS
• ATM / Airport
• Desktop touch monitor
• Education Display
• Indoor/outdoor kiosk
• Ticket machine
• In-vehicles and transportation
• Medical instrument
• Industrial control systems
After sale service & promise:
1.supply oem&odm order,independent Q.C department ,3 times of quality checking,
2.100% percent of pass before shipping
3.one year of warranty
4.IS09001 ,CE,FCC,RoHs certification
