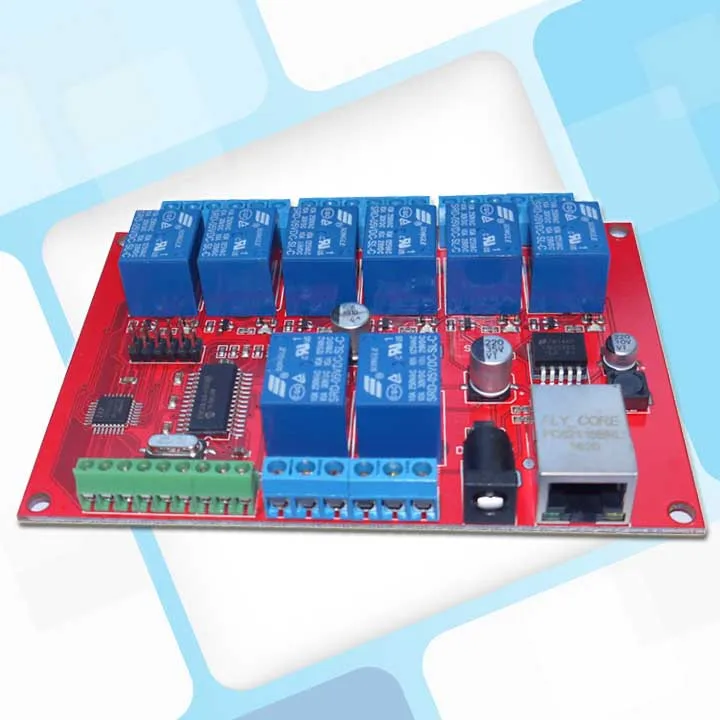

Functional description:

It controls the absorption and release of 8-way relays through the Ethernet network, with 8-way configurable local keys (input terminals), and supports the configuration of module parameters and button working mode through the network. The module supports both TCP and UDP2 modes of operation. The instructions are simple and easy to understand. The instructions can be designated as pointing and 1 – 65535 second delay. The module is equipped with VB, Delphi upper computer program and source code, which can help you realize remote control of computer easily. In TCP mode, the host computer can query the status of all relays. In addition, after each instruction is processed, the module will return the latest status of all relays. There is no state query or other return in UDP mode. The code is very simple and easy to be embedded in various applications. Now we support cloud remote control and Wechat remote control. Please pay attention to Wechat public number & ldquo; cloud remote control & rdquo;.

Modular features:

• Industrial STC Single Chip Microcomputer as Main Control Chip
• Board-mounted 8-way high-quality relay with absorption diode circuit
• With 1 power supply indicator lamp, each relay has state indicator lamp, the lamp is on and the relay is suction.
• 8 local buttons (input terminals), each button can be set into one of three working modes: self-locking, follow-up and click-on.
• Configurable restore relay status before power failure
• Configuring Module Parameters and Button Working Mode through Network
• Through Internet control, cloud remote control is protected by local password, safe and reliable
• Support 9-24V input voltage, with reverse protection
• 1.6mm thick PCB is made of military grade FR-4 board. The size of PCB is 122mm X 86mm, and the installation hole is reserved.

Method of operation:

Module factory settings are as follows:

The network configuration software interface is as follows:

The command code is a text string and does not need to follow the carriage return.

In TCP mode, every time the module accepts command bytes, it will return to the latest relay status. The return value is a text string of 8 characters, each character may be 0 or 1, representing the relay release or suction state. For example, the return value of 11000000 indicates CH 1 and CH2 suction, while the other channels are in the release state.

The way to write a click command is to add an & ldquo; & times; & rdquo; character after the suction command, such as: 11 & times; & 12 & times;.

Delay parameters can be set to change the state of the controlled channel after 1-65535 seconds. Delayed opening or closing of release delay can be achieved by combining with specific applications. Delay parameters are written after the command code continues to enter & ldquo;:& rdquo; and the number of delay seconds, such as:

Interface Description:

1-8: Connect 8 local keys
GND: Key Public

Relay Terminals: Users can use 220V AC equipment or less than 30V DC equipment, the current of the equipment can not exceed the relay standard load. Each relay has a constant open contact, a constant closed contact and a common contact. When the relay is sucked in, the common contact and the constant open contact are turned on; when the relay is released, the common contact and the constant closed contact are turned on.

Relevant information:

Module structure diagram:

Shell Installation Drawings:

Network Real-time Control Software Interface:

• Software setup is simple and supports cloud remote control
• It can run six client programs on different computers to control the same module at the same time.

Mobile terminal control software interface (only support Android), Basic 4 Android language development provides all source code:

Introduction of PC program:

• Supporting TCP and UDP2 Connection
• Contains a complete instruction list
• Delay parameters can be set
• Display data sent and received by the network
• With VB, Delphi source code

'
