UTECH China Factory China Hsd 9Kw Spindle Cnc Router Machine Price cnc router metal cutting machine

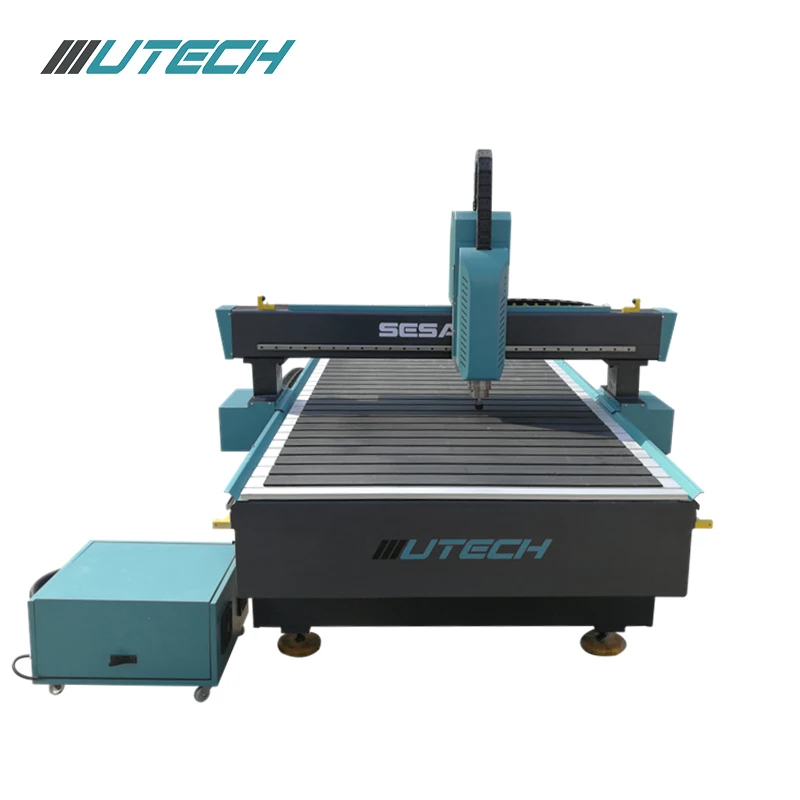

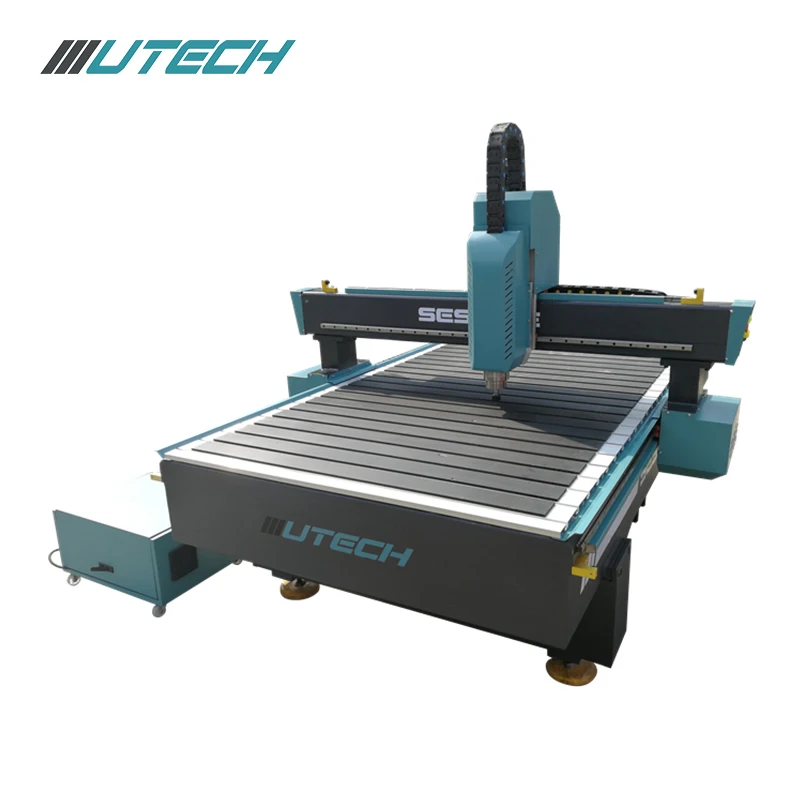

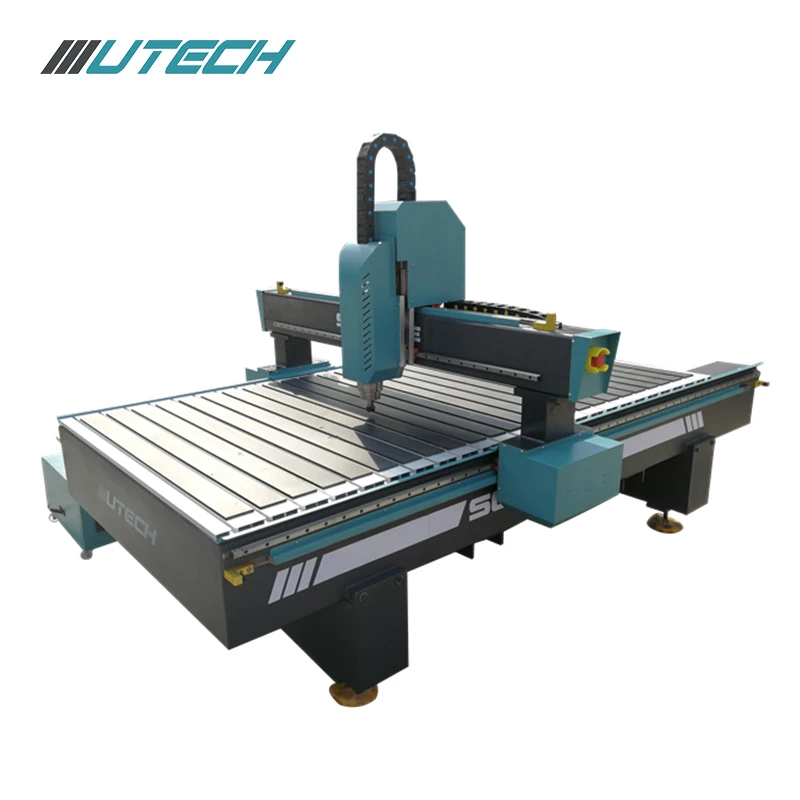

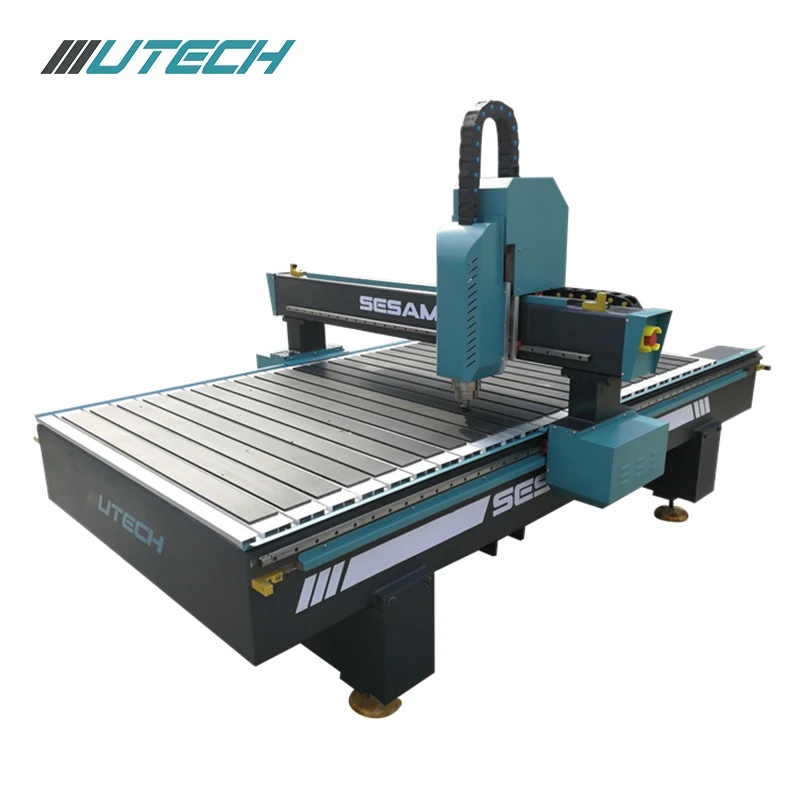

The Sesame CNC is a Cost-effective and style novel CNC Router that opens multiple avenues for your business. Sesame series include Economic CNC Router performance cnc router machine, Sesame-Multifunction visual positioning cutting machine, and Sesame-Processional Vacuum table cnc router machine.

 SESAME Cnc Router's technical parameters:

The Spindle Mounting Plate of Sesame adapts High Precision aviation aluminum alloy parts T6061/6030, Which are all made by professional CNC machining center. After the oxidation surface and low-temperature annealing treatment, the machine head is lighter and more durable. And the high requirement assembly process ensures the precision of the product again.

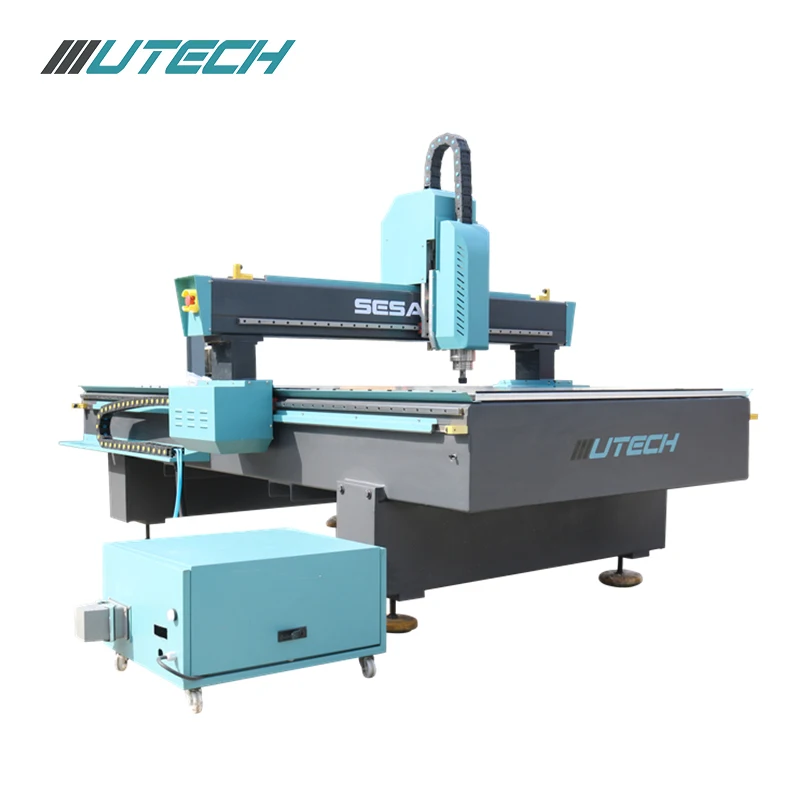

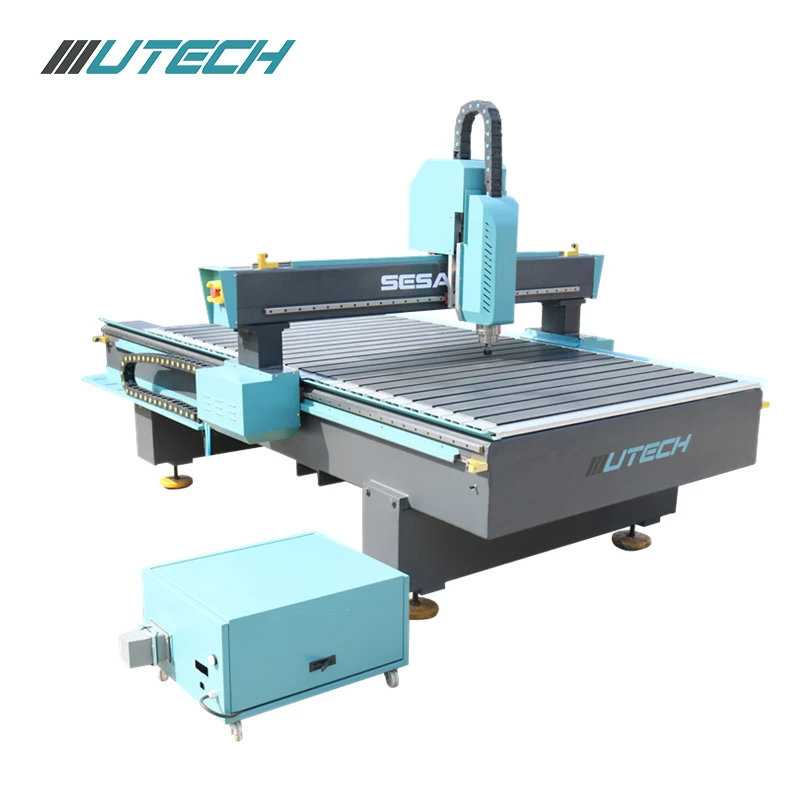

Sesame adapts Portable detached optional design control cabinet.

1)Interfacing reaches the purpose of plug and play.

2)Save more space.

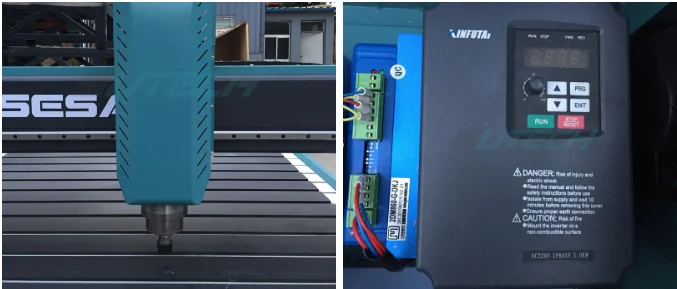

Because the accuracy of cnc router machine greatly depends on the spindle. The High-quality SESAME series CNC Router machine comes with 3.2kw water or 3.5 air cooled high-frequency spindle. This precision spindle requires no maintenance, uses industry standard ER collects. Fully programmable speeds from 6000 to 24000RPM, and comes complete with pneumatically retractable vacuum hood.

3.7kw Xinfutai/Fuling Inverter(VFD).

The whole electrical system is consisting of a CNC machine, variable frequency drive, time relay, and brake assembly.
We adapt 3.7kw VFD, Greatly improve the machining accuracy and production efficiency of CNC machine, play an important role in product quality improvement, production increase, cost decrease, automation level increase, and maintenance reduced.

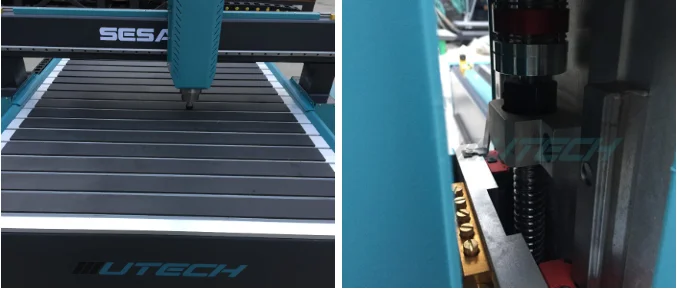

T-slot table with PVC.

A T-Slot Clamping Table is the most simple table structure that fixes a working object through a clamping kit. Without the requirement of 380V 3-phase electricity to power a vacuum pump, it's the only table solution for our Sign-Making Routers that target the home-based businesses and hobbyists.

Z-axis Transmission Way.

TBI High-Precision Ball-screw Transmission (Taiwan)

X, Y axis Transmission Way.

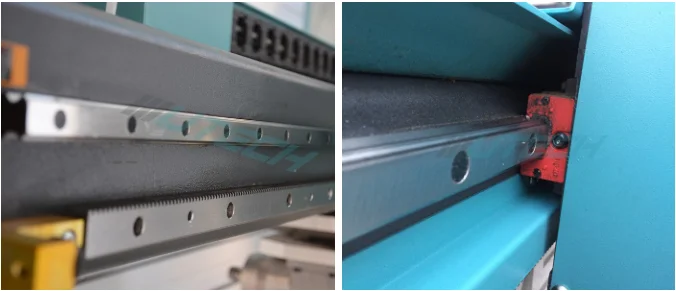

Precision 1.25 module helical rack gear.

Helical teeth gears provide continuous engagement along the tooth length and are often quieter and more efficient than straight tooth gears and also offer higher loading for same rack width. Helical tooth gears resemble spur gears in the plane of rotation but include teeth that are twisted along a helical path in the axial direction.

Transmission guide.

PMI Linear guide+High assembly Flange slider
(1)High positioning accuracy, high repeatability
(2) Low frictional resistance, high precision maintained for the long period
(3) High rigidity with four-way load design
(4) Suitable for high-speed operation
(5) Easy installation with interchangeability

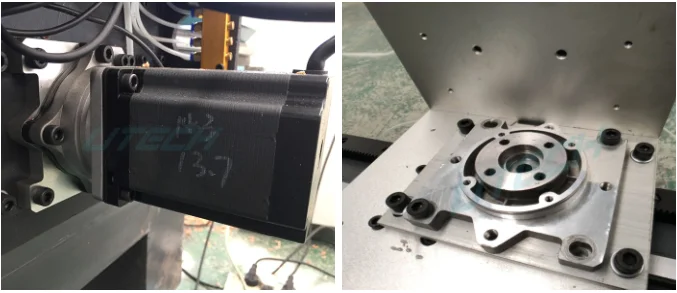

Stepper motor.

The stepper motors are installed on all axes to ensure precise positioning of the gantry and the spindle in accordance with a predetermined program at high speed. Stepper motors are well proven high degree of reliability.
The machine is installed 4 sets of motors and Driver. Y-axis

use double motors drivers way.

Utech Patent 1:4 Reducer Structure.

Patent design 1:4 gear reducer install on the driving motor, makes the motor is more powerful, and having a long time service life

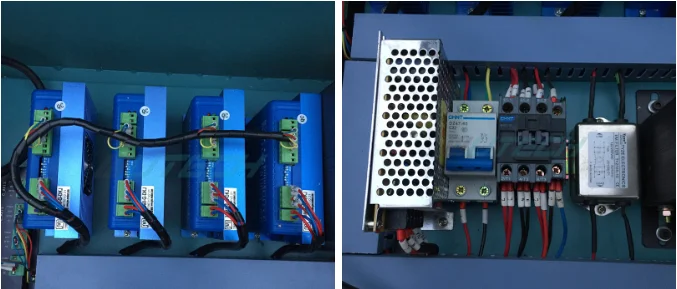

Stepper Driver.

Selecting a chopper driver and configuring it for a specific motor requires a good understanding of both the motor and the controller. Mismatched motors and drivers can result in disappointing performance. Or worse: damage to the motor and/or controller. we deal with the most important part: making sure that your motor and driver are compatible

Famous electrical components.

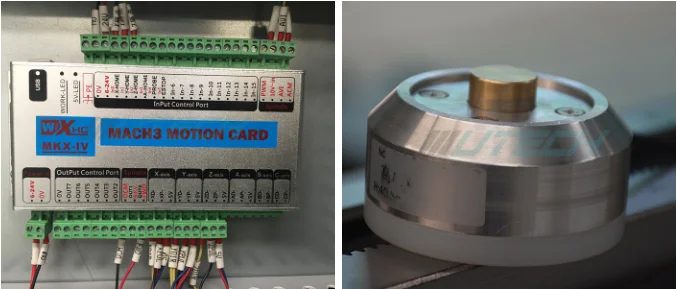

Mach3 control system.

Mach3 turns a typical computer into a CNC machine controller. It is very rich in features and provides a great value to those needing a CNC control package. Mach3 works on most Windows PC's to control the motion of motors (stepper & servo) by processing G-Code. While comprising many advanced features, it is the most intuitive CNC control software available. Mach3 is customizable and has been used for many applications with numerous types of hardware.

Tool sensor.

This device takes the guesswork out of tool changes and ensures that every tool path that you run is accurate. Consistent Z height across tool changes is critical, especially when running multi-tool jobs like cabinet work, raised panel doors and intricate 3D carving projects.
CNC Tool Sensor allows for easy and accurate "Z" zero position for single and multiple tool changes through the program.

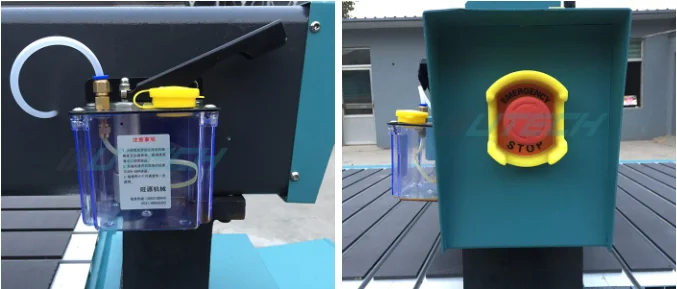

Manual oil lubrication system.

Protecting machinery is an ongoing responsibility. To guarantee high performance over the course of time requires both long-term and spontaneous maintenance. A manual lubricator not only distributes grease or lubrication for a variety of large machinery, but it also allows operators to do so in a timely manner.

Double Insurance Emergency Stop Button.

There is double insurance emergency stop switch. In case of an emergency, the worker can press any emergency stop button and the machine will stop working.

 SESAME Cnc Router's Packaging&Shipping:

The machine will be packed with wrapping film, EPE foam, and wooden case(composite material box/plywood case).

SESAME Cnc Router's machine legs and machine bed can be separated freely, when machine shipping, we'll dismantle the machine legs, they can help you save more shipping fee.

1. Our Wooden Case is after fumigation treatment. Needn`t timber inspection, saving shipping time.
2. All the spare parts of the machine were covered by some soft materials, mainly using Pearl Wool. Avoiding all damages that could happen in the delivery process. Then we`ll cover plastic wrap out it tightly, make sure intact of the covered soft materials, also avoiding Waterproof and rust proof.
3. The outmost is Wooden Case With Fixed Formwork.
4. The bottom of the wooden case has a firm iron jack, convenient for Handling and transport.

 Our Company

Shandong U-MAY CNC Technology CO., LTD. Specializes in the research, development, production of CNC MACHINE. Our brand "WIN" has a considerable reputation in domestic similar products, which has been widely used in wooden furniture, advertising, craft gifts, packaging and printing, logo and etc. Our products have been exported to many countries and regions such as Europe, Russia, Asia, Africa. We are committed to the enterprise management philosophy "Integrity-based, constant innovation, effective communication, quality services" and the goal of "Technical service customer", but also great attention to product design, manufacture, installation, adjustment. We will still try our best to maintain one-stop professional service.

Exhibition Show:

D PES-SIGN EXPO CHINA

Date: February 20th, 2019- February 23th, 2019

Venue: Guangzhou

Our Booth No: 1F Hall 2 B32

SIGN EXPO SHANGHAI

Date: March 5th, 2019- March 8th, 2019

Venue: SHANGHAI

Our Booth No: 1H B1941

( If you wanna know more details about UTECH products, the exhibition, or simply need guidance to the location during BOOTH, just call me! )

After machine shipped, I'll make some documents, like B/L, Packing List, Commerical Invoice, Commerical Contract, etc for you. If you need, we also can provide ISO9001, CE, Certificate of Origin for helping you pick up your machine.

We are the manufacturer of CNC Router Machine. Utech has provided the super durable and latest design of CNC Router Machine with competitive price- Sesame series and Sofia Series.

We hereby sincerely invite you and your company representatives to visit our booth at the Guangzhou D PES and Shanghai SIGN EXPO Information below is for your reference.

 Machine's sample and our service:

• The guarantee period of quality shall be 12 months counting from the date on which the commodity arrives at the port of destination.
• We are responsible for offering the fittings free of charge during the guarantee period, while it is preferred you send the damaged fittings to us by courier with your charge for our testing, after confirming damage, we will send back the alternative fittings to you. After the guarantee of a quality period, the parts required repairing or change, if any, shall be paid.
• When you meet some complicated problem and online-support cannot solve it, we can offer Door-Visiting Service. If our engineer to assemble or/and maintain or/and adjust the machine is/are required, we shall assist to deal with the visa formality and prepaid traveling expenses and accommodation to us during the business trip and the service period before their dispatch. And you can arrange for the translating person for the service engineer during their service period. Or you can send your engineer to China. We will offer long-term technical training to him for free.

Training, Commissioning & Startup of SESAME Cnc Router:

• We will supply with the machine Operation Manual and Training CD in English version for Installing and operation, including the introduction for the composing of equipment, working principle equipment, common knowledge of computer, controlling principle of electronic devices, daily maintenance measures of equipment. Personal demonstration for installation, adjusting, and operation of equipment, and the computer. Common malfunction eliminating measures, etc.

• We will supply Instruction for simple troubleshooting of the machine when dispatching, which can help you deal with the common problems happened unluckily. Also, one set of “Instruction Book”, “Operation Manual” and “Training Video Disk” for machine/software will be sent to you along with the machine, which could be easily understood and friendly handled by you and your customers.

If you're interested in this kind of machine, welcome to contact me. Pls tell me:

1. Which kind of material you wanna process and cutting/engraving thickness?

2. How about your material's dimensions?
