Note:The freight and dimension is different,we may give you wholeprice.
please contact us before purchasing.Skype(ryan1990427). facebook :(www.facebook.com/quartzlamp)1.advantages and features:
2.Carbon round tube ir emitter
| Carbon twin tube emitters | Carbon single tube emitter |
Power | 60w / cm | 30w / cm |
Max heater length | 5000 mm | 1500 mm |
Cross-Section | 11x23mm / 15x33mm | 10mm /12mm |
Filament Temperature | 1200 ℃ | 1200 ℃ |
Wavelength | 2-9.5 um | 4.9-9.5 um |
Max Power density | 110 kw/㎡ | 85 kw/㎡ |
Response time | 1-2 seconds | 1-2 seconds |
Service life | 5000 H | 5000 hours |
Tungsten fast medium wave IR lamp
| Tungsten twin tube emitters | Tungsten single tube emitter |
Power | 80w / cm | 20w / cm |
Max heater length | 6400 mm | 2000 mm |
Cross-Section | 11x23mm / 15x33mm | 10mm /12mm |
Filament Temperature | 1400-1800℃ | 800-900℃ |
Wavelength | >1.4um | 2.4-2.7 um |
Max Power density | 150 kw/㎡ | 60 kw/㎡ |
Response time | 1-2 seconds | 1 MIn |
Service life | 5000 hours | 5000-8000 hours |
3.Application Area:
IR heaters are used in industrial manufacturing processes including curing of coatings,shrink tunnels, heating of plastic prior to forming, plastic welding, processing glass,and cooking and browning food. They are used when high temperatures are required, fast responses or temperature gradients are needed or products need to be heated in certain areas in a targeted way. Their application is difficult for objects with undercuts.
They are also used to provide warmth to suckling animals as well as to captive animals in zoos or veterinary clinics, especially for lizards and other reptiles, and tropical animals such as birds.
4.Comparation between 4 types of heater :
Contrast Item | Infrared heat emitter from yuancheng | Milk white heat emitter | Stainless heat emitter | |
High infrared emitter | Medium wave heat emitter | |||
Heating element | Tungsten alloy wire/ Carbon fiber | Ni-Cr alloy wire | Iron-nickel wire | Iron-nickel wire |
Structure and sealing | Transparent quartz glass filled with Inert gas by vacuum way | Encapsulated directly in Transparent quartz glass | Encapsulated directly in Milk white quartz glass | Encapsulated directly in Stainless pipe or Iron pipe |
Thermal efficiency | Highest | Higher | High | Low |
Temperature control | Best | Better | Good | Bad |
Wavelength range | Short,Medium,Long | Medium,Long | Medium,Long | Medium,Long |
Average life | Longer | Longer | Long | Short |
Radiation attenuation | Less | Little | Much | Much |
Thermal inertia | Smallest | Smaller | Small | Big |
Temperature rise speed | Faster | Fast | Fast | Slow |
Temperature tolerance | 1000 Degrees C | 800 Degrees C | Under 500 Degrees C |
Under 600 Degrees C
|
Corrosion resistance | Best(Besides hydrofluoric acid) | Better | Good | Worse |
Explosion resistance | Better(Do not burst when contact with cold water) | Better(Do not burst when contact with cold water) | Worse(Burst easily when contact with cold water) | Good(Do not burst when contact with cold water) |
Insulation | Better | Good | Good | Bad |
Targeted heating | Yes | Yes | No | No |
Mechanical strength | Good | Good | Bad | Best |
Unit Price | Higher | High | Cheap | High |
Overall economic efficiency | Best | Better | Good |
|
Customize according to your requirement !!!

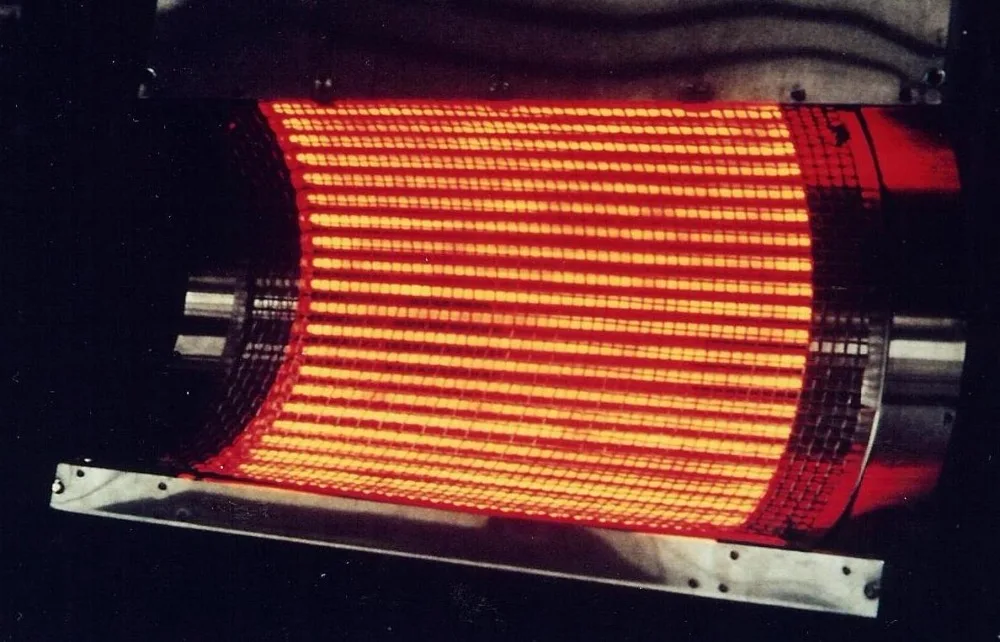

Application of infrared heater
IR Lamps Display
Gold reflector IR lamps
Packing of IR Lamps
