All of our items are Brand New

Model

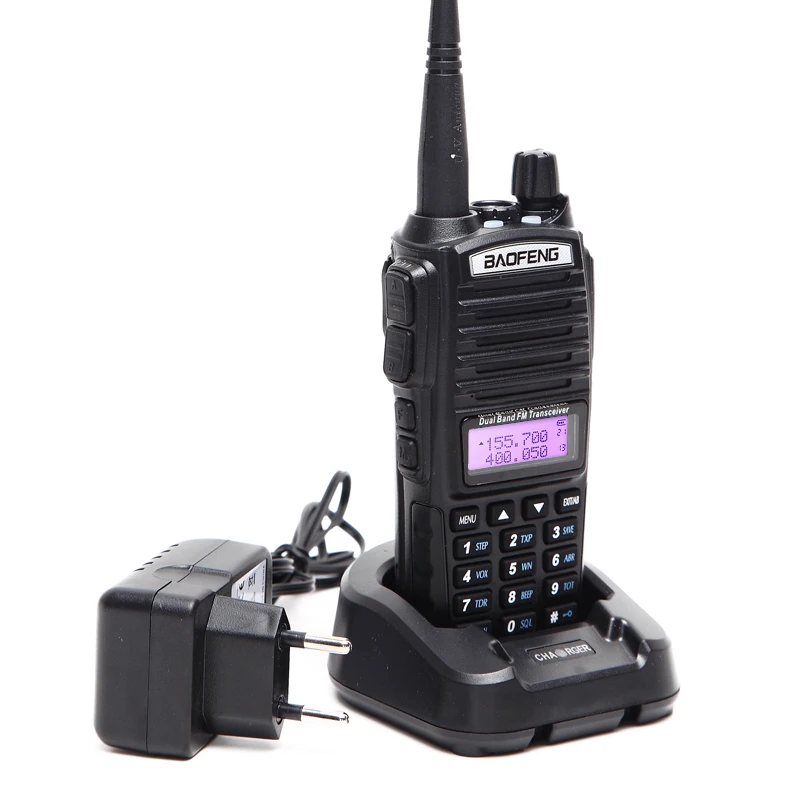

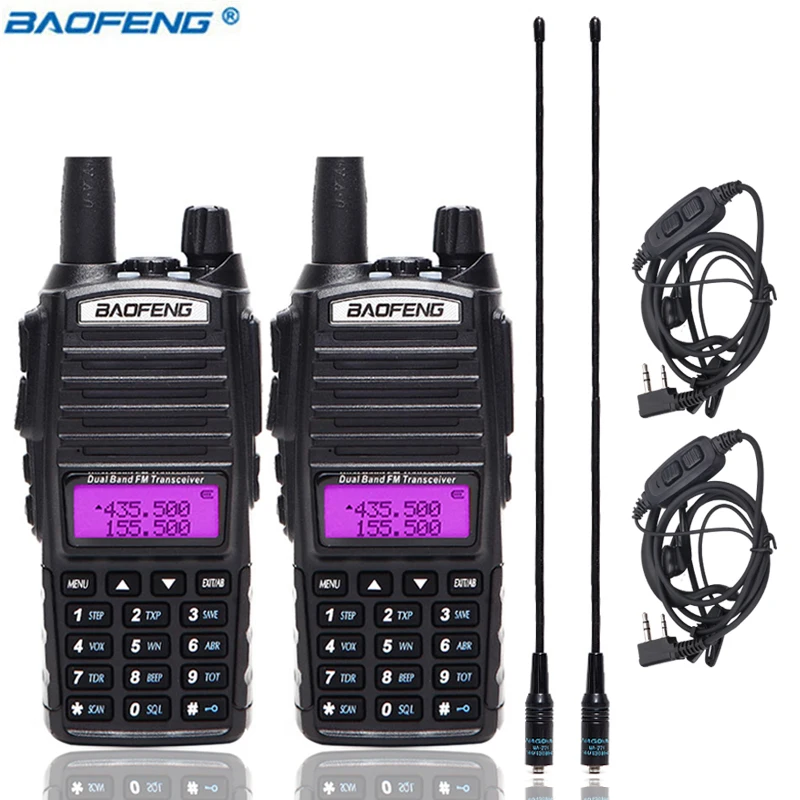

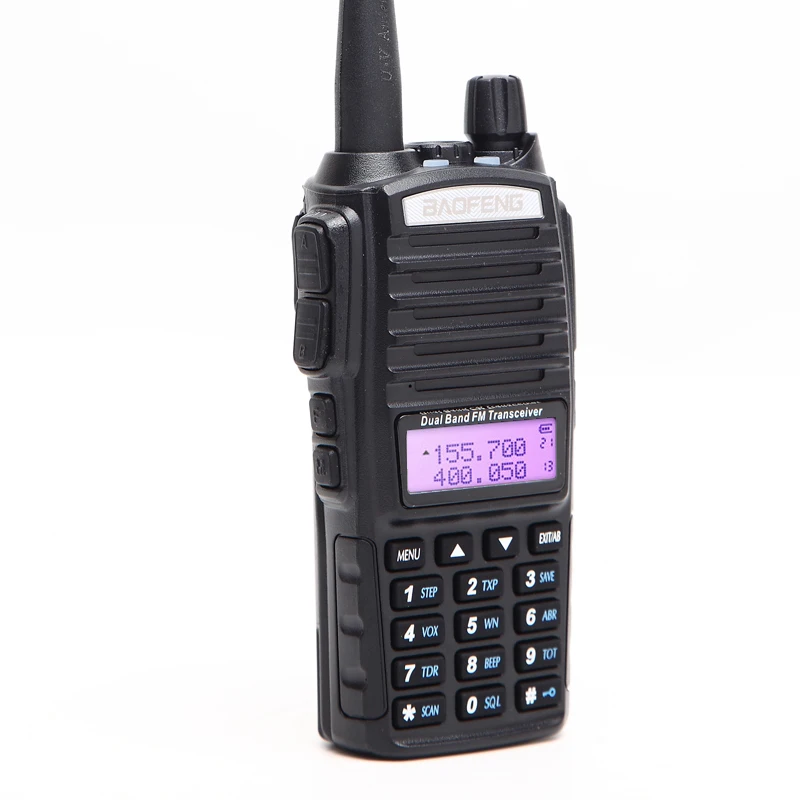

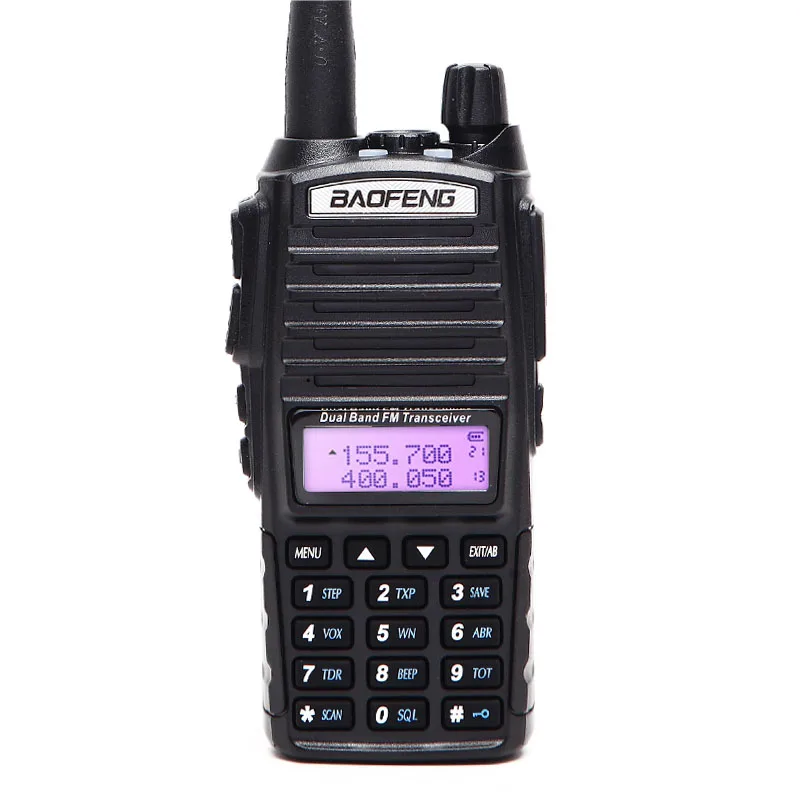

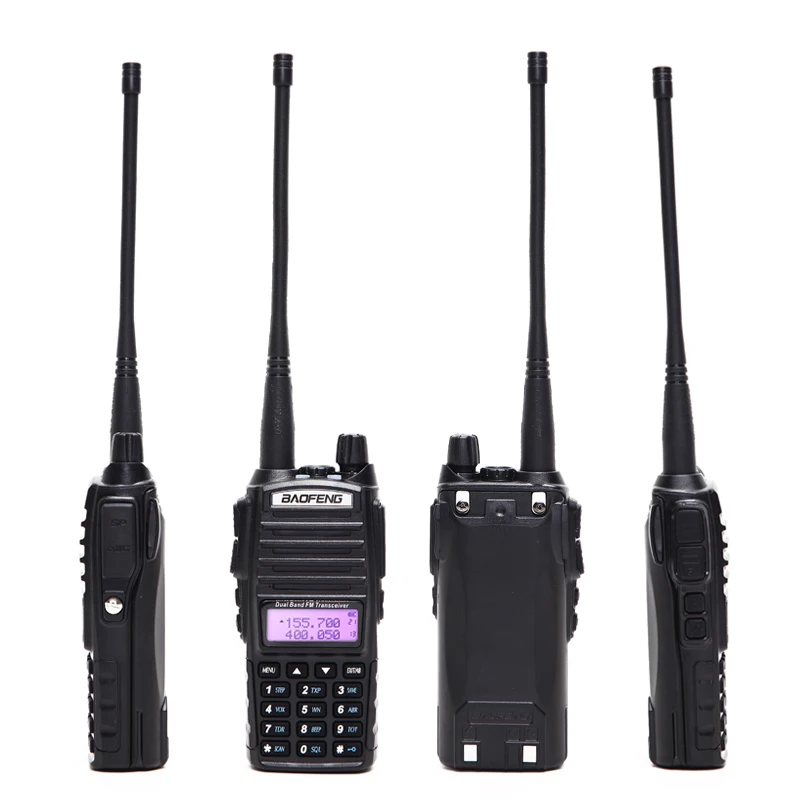

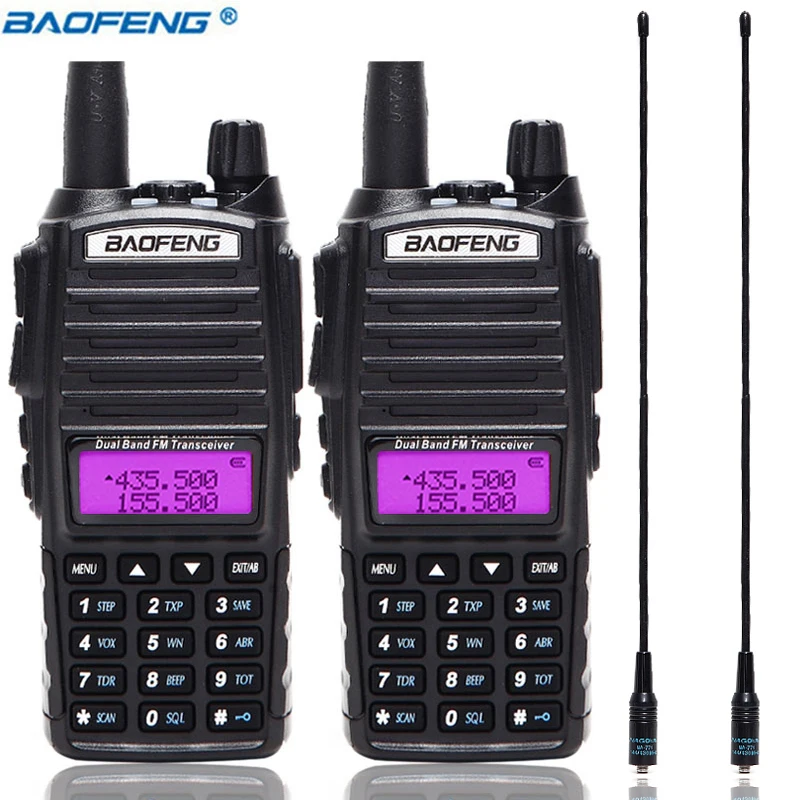

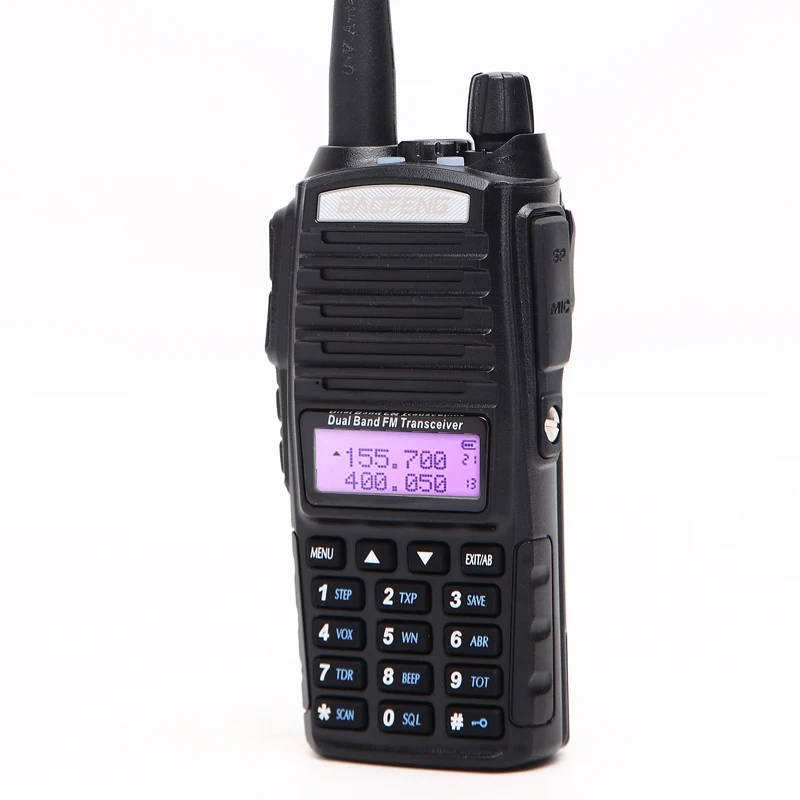

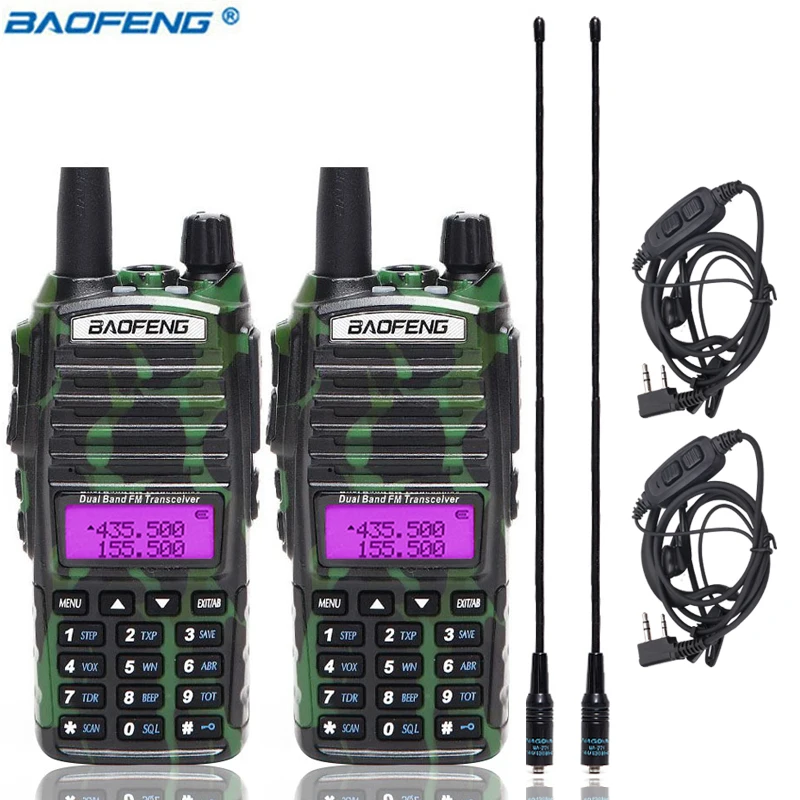

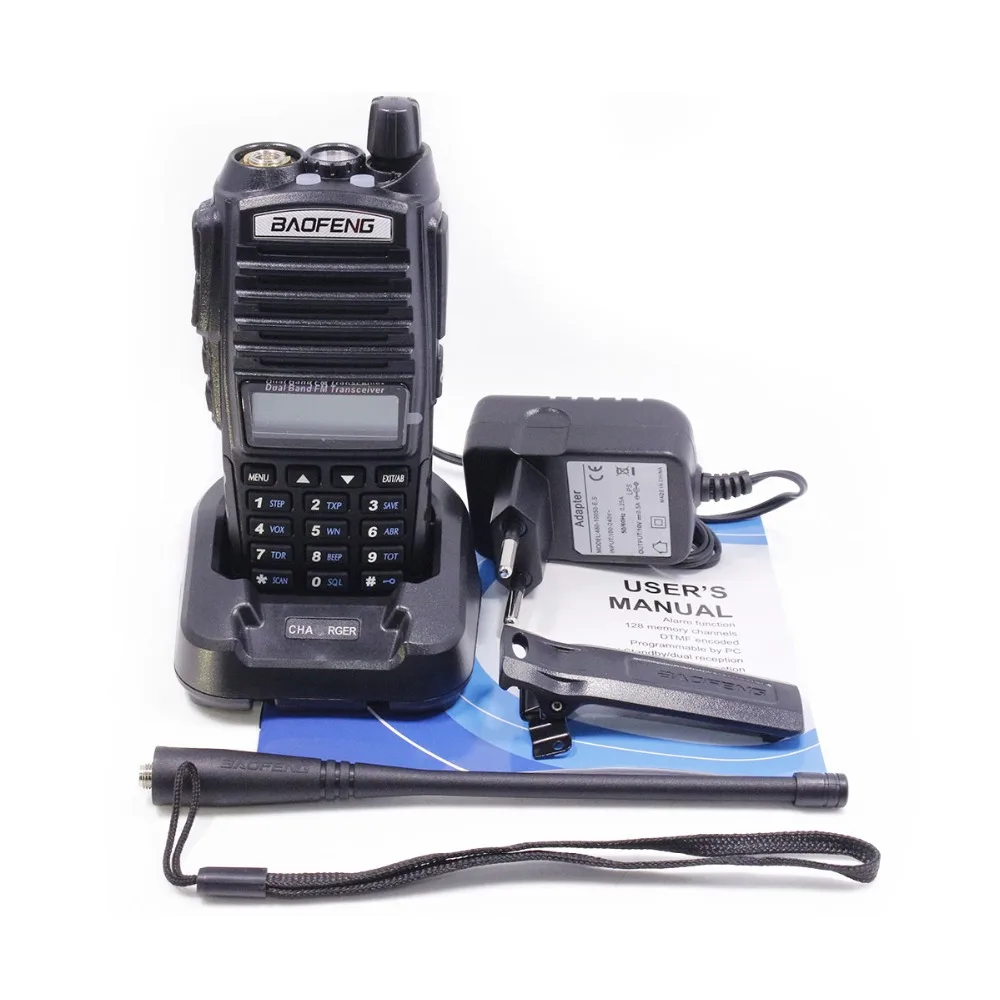

BF-UV82

Dual band /dual display / dual standby

A/B band independent operation(UV UU VV)

128 groups channels storage

Shortcut menu operation mode

Memory channels scan

Time/ Carrier / Search Operation

Emergency Alarm

Indicator and flashlight Flashing Together

Time-out Timer (TOT)

15-600/Stepping 15

Squelch Level(SQL)

0-9 Grade

PTT & ANIID

ON OFF/0-9;A-F

Voice companding

50 CTCSS/104 DCS

High/Low TX power selectable

Busy channel lock-out(BCLO)

DTMF ST function

DT+ANI/ANI-ST/DT-ST/OFF

Dual PTT

Yes

Wide/Narrow Band(25kHz/12.5kHz)

Yes

VOX function

Yes

OFF/1-10

1750HZ Tone

Yes

Busy lockout function

Yes

Scanning function

Yes

Monitor function

Yes

Time-out Timer (TOT) function

Yes

LCD display

Yes

Dual display

Yes

Dual Standby

Yes

Battery voltage display function

Yes

Channel name display and editing functions

Yes

Signal strength indicator

Yes

Keypad lock function

Yes

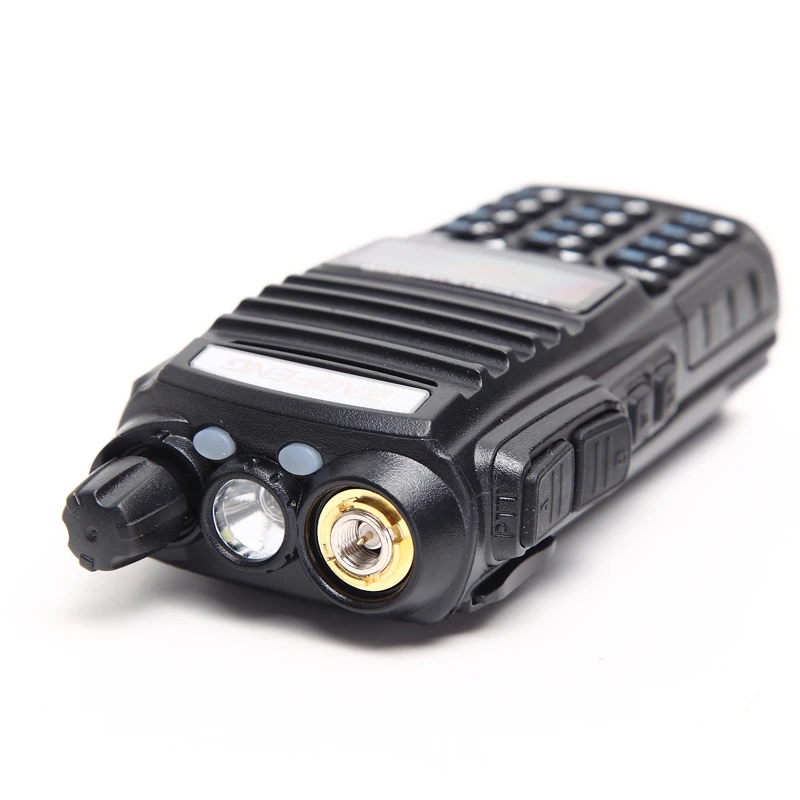

Built-in Led torch

Yes

FM radio

No

Emergency alarm function

Yes

Low battery alarm

Yes

Power saving function

Yes

High/Low TX power selectable

Yes

5W/1W

ROGER SET

Yes

FULL/MGS

Chinese and English voice prompt

Yes

Wire clone function

Yes

PC software programmable

Yes

General Specifications

Frequency stability

±2.5ppm

Frequency Step

2.5/5/6.25/10/12.5/20/25KHz

Antenna Impedance

50ohm

Working temperature

-20~+50°C

Rated Voltage

7.4V DC±10%

Output power

<= 5W

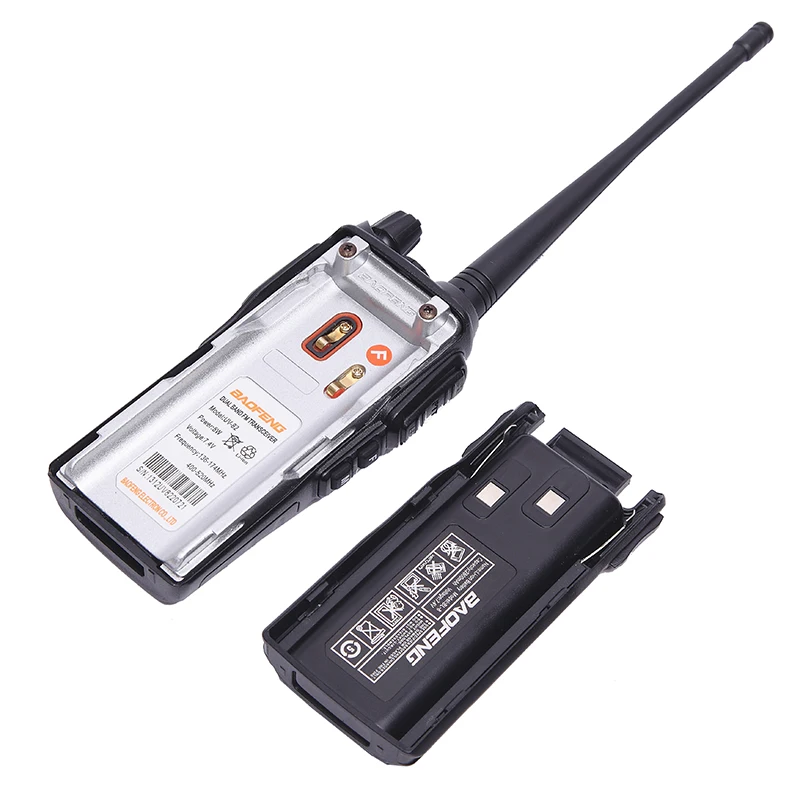

Battery type

Li-ion battery

Battery capacity

1800mAh

Headphone jack type

2 Pin Kenwood Plug

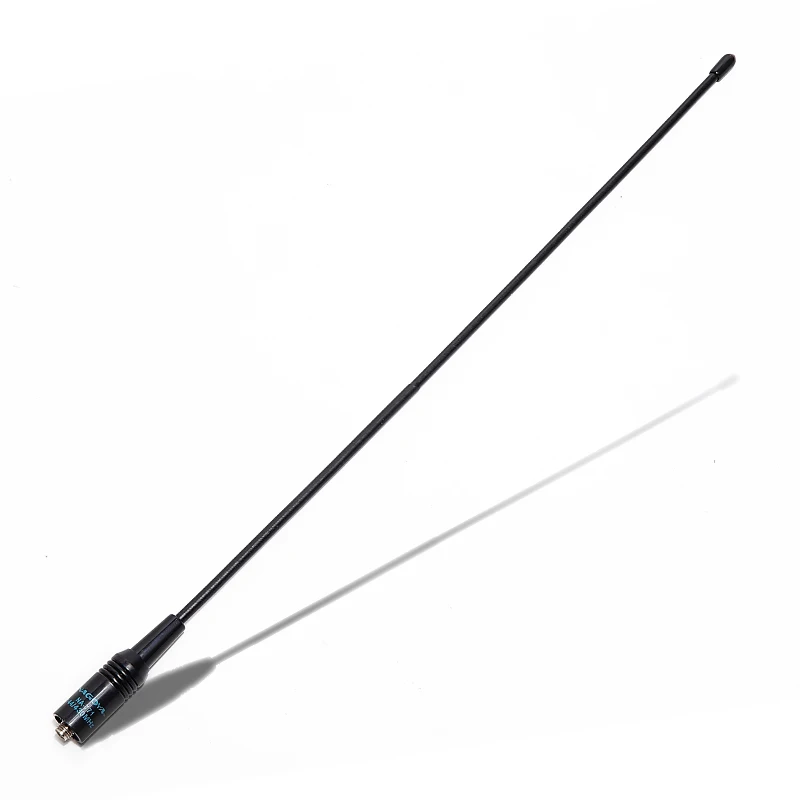

Antenna Type

SMA-F(Female)

Mode Of Operation

Simplex Or Semi-duplex

Weight

588g

Dimension(LXWXH)

42x61x131mm(Not Antenna)

Transmitter

Type Of Modulation

16køF3E / 11køF3E

Max frequency deviation

< 5kHz(Wide)/< 2.5kHz(Narrow)

Emissioncurrent

<= 1.5A(5W)

CTCSS / DCS

0.7±0.1kHz(Wide)/0.4±0.1kHz(Narrow)

Reception

Sensitivity

-122dBm(12dB SINAD)

Audio Power

1W

Intermediation Distortion

<10%

Inter modulation

>=65Db/>=60dB

Spurious response

65dB

Adjacent channel selectivity( wide/narrow)

<-65dB(Wide) <-60dB(Narrow)

Receiving Current

<=380mA
