10pcs 400W 15A DC-DC Power Converter Boost Module Step-up Constant Supply 8.5V-50V to 10V-60V LED | Электронные компоненты и
История изменения цены
*Текущая стоимость 2 597,86 / lot уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-02-2026 | 3298.11 руб. | 3364.35 руб. | 3331 руб. |
| Feb-02-2026 | 2675.14 руб. | 2729.25 руб. | 2702 руб. |
| Jan-02-2026 | 3246.96 руб. | 3311.55 руб. | 3278.5 руб. |
| Dec-02-2025 | 3220.20 руб. | 3284.93 руб. | 3252 руб. |
| Nov-02-2025 | 2571.50 руб. | 2622.54 руб. | 2596.5 руб. |
| Oct-02-2025 | 3168.31 руб. | 3231.73 руб. | 3199.5 руб. |
| Sep-02-2025 | 3142.34 руб. | 3205.9 руб. | 3173.5 руб. |
| Aug-02-2025 | 3116.69 руб. | 3178.7 руб. | 3147 руб. |
Описание товара

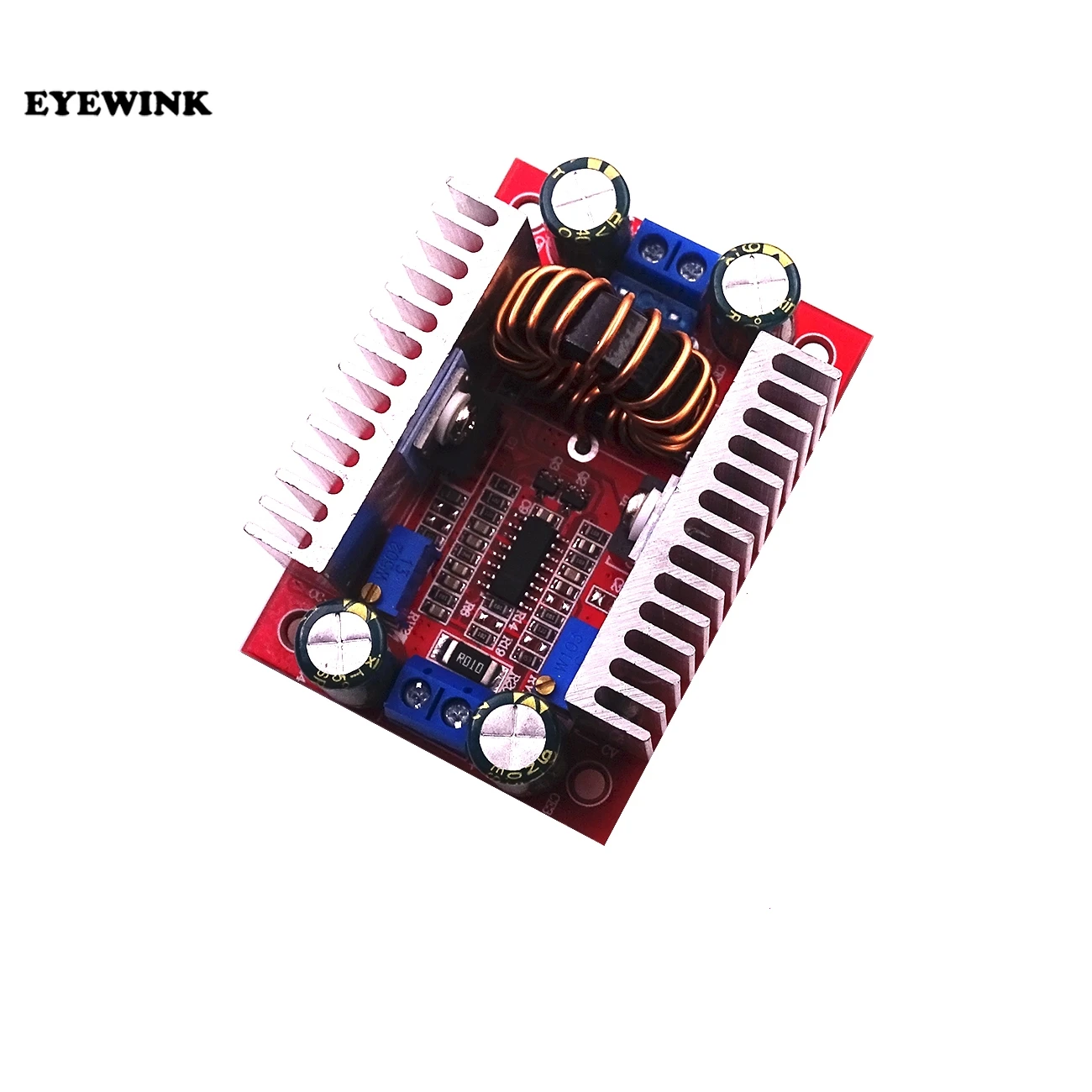

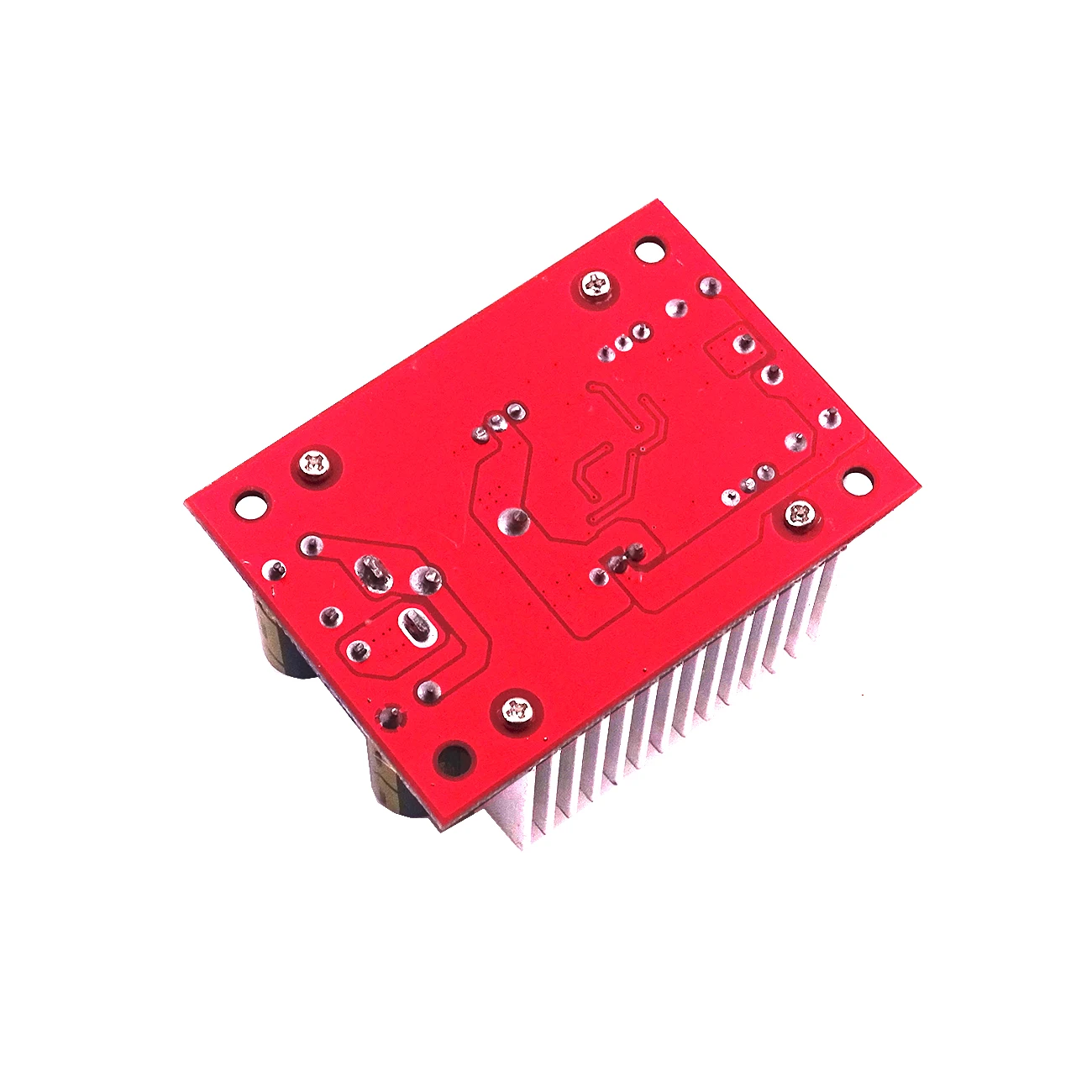

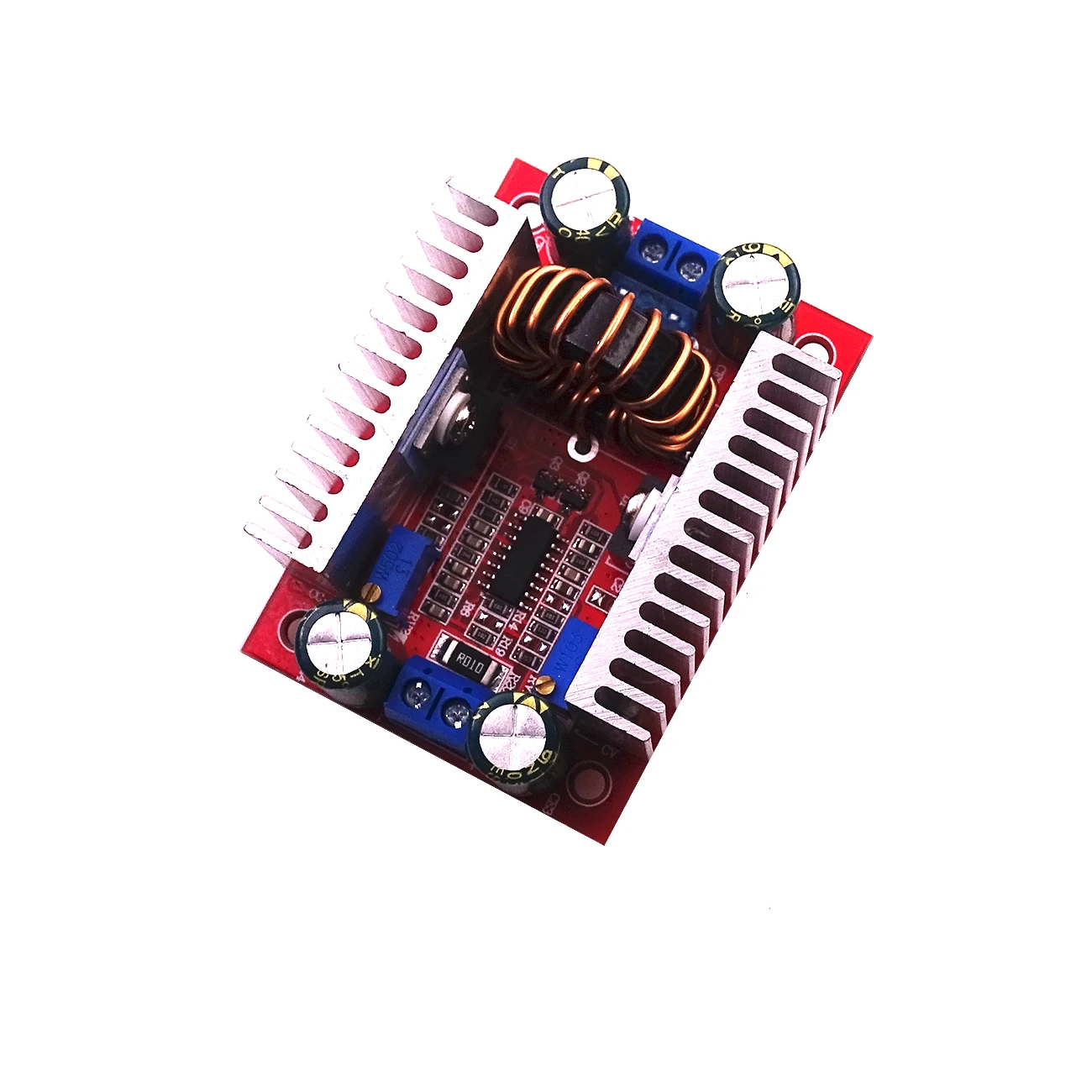

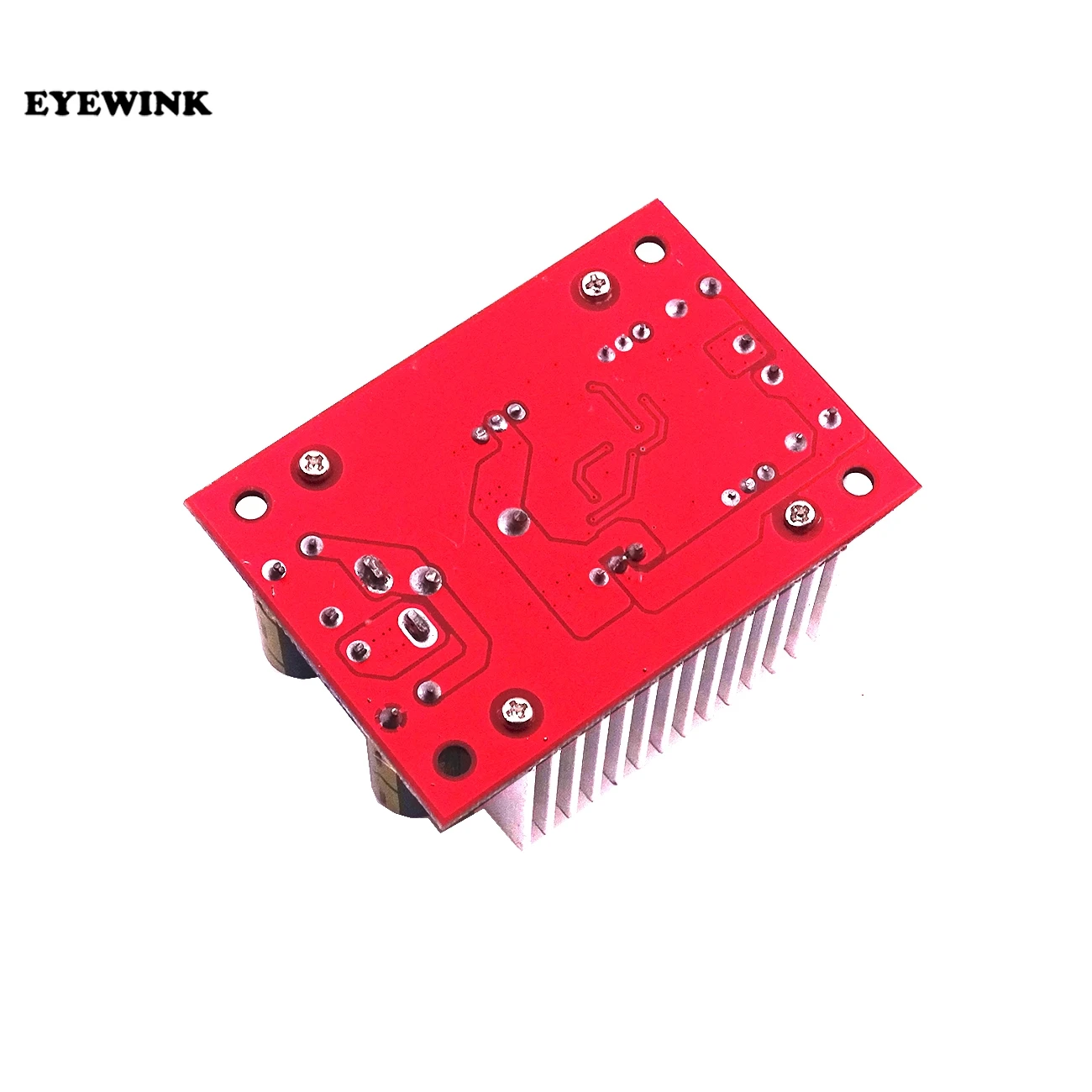

Module name: 400W boost constant current module
Module property: non isolated boost module (BOOST)
Input voltage: DC8.5V-50V
Input current: 15A (MAX) exceeds 8A or module temperature exceeds 65 degrees, please strengthen heat dissipation.
Static working current: about 10mA (measured at 12V rise 20V, the higher the output voltage, the higher the quiescent current will be).
Output voltage: 10-60V continuous adjustable (suitable for applications where the input voltage is lower than the output voltage, no step-down).
Output current: 12A MAX over 7A or module temperature over 65 degrees, please strengthen the heat dissipation (with input and output voltage difference, the greater the voltage difference, the smaller the output current)
Constant current range: 0.2-12A
Output maximum power: = input voltage *10A, such as: input 12V*5A=60W, input 24V*5A=120W,
Input 36V*5A=180W, enter 48V*5A=240W,
Working frequency: 150KHz
Conversion efficiency: up to 96% (efficiency is related to input, output voltage, current and differential pressure).
Overcurrent protection: (input over 15A, automatically reduce output voltage, with a certain range of error).
Input reverse connection protection: No, if necessary, please input diode in input.
Installation: 4 2.5mm screw holes.
Wiring mode: wiring terminal.
Module size: long 67mm width 48mm high 28mm
Module net weight: about 65 grams.
Output voltage / current regulation method:
1. Adjust the output voltage potentiometer (counter-clockwise increase voltage clockwise reduce voltage), according to your load requirements, set the output voltage to the voltage value you need. For example, 10 series LED voltage regulator 37V. (reverse clock voltage is raised, clockwise voltage is reduced).
2. Clockwise adjust the output current potentiometer about 30 turns, set the output current to the minimum, connect the LED, adjust the current potentiometer to the current you need. For battery charging, after the battery has been charged, it is connected to the output and regulates the current. (For charging, it is necessary to use the battery that has been charged, because the more the battery is left, the smaller the charging current.) (clockwise current is reduced, reverse clock current increases).
Please do not adjust the current by short-circuit. The circuit structure of the boost module can not be switched short circuited.
Scope of application:
1, DIY a regulated power supply, input 12V can be, output can be 12-50V adjustable.
2, power supply for your electronic device, and you can set the output value according to your system voltage.
3, as a vehicle power supply, for your laptop, PDA or all kinds of digital products powered.
4, DIY a high-power mobile power notebook: with a large capacity of 12V lithium battery pack, let your notebook go where you can light up.
5, solar panels stabilize.
6, charge batteries, lithium batteries and so on.
7, drive high power LED lamp.
