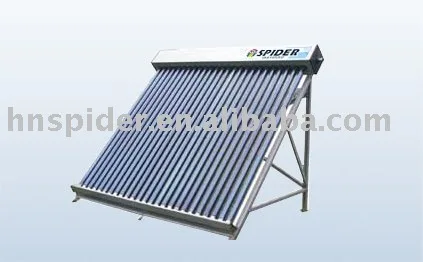

Water heater collector

solar thermal collector

Solar Energy collector

CE,CCC,ISO9001

3-year warranty

Products

heat collector

Solar energy collector

solar heating collector

Feature:

1)      Reliable and efficient twin-glass solar tubes;

2)      Copper heat pipes for rapid heat transfer

3)      Easy plug-in installation

4)      Free maintance

5)      Suitable for main pressure water(up to 1.0bar)

6)      Corrosion resistant silver brazed copper header

7)      Aluminum frame

8)      Powder coated,black,brown or silver aluminum casing

9)      Stable solar conversion during the day

10)   The perfect solar collector for domestic solar water heater system

11)   Ideal for commercial solar water heating applications

   Working principle:

1)      The operation of the solar collector is very simple.

2)      Solar absorption:solar radiation is absorbed by the solar tubesand converted into heat

3)      Solar heat transfer:heat pipes conduct the heat from within the solar tube up to the header pipe

4)      Solar energy storage:water is circulated through the header,via intermittent pump cycling .Each time the water circulates through the header,the temperature is raised by 50-10 degree Celsius.Throughout the day,the water in the tank is gradually heated.

Technical information:

Manifold casing Material:Aluminum

Frame material: Aluminum

Header pipe material:Copper

Heat pipe material:copper

Insulation:Rock wool

Rubber Seals and Rings UV Stabilized High Temperature Silicon Rubber

Test Pressure:10Bar

Collector Mounting Flat Roof /Inclined Roof

Mounting Angle:15-50 degree Celsius

Inlet:3/4
