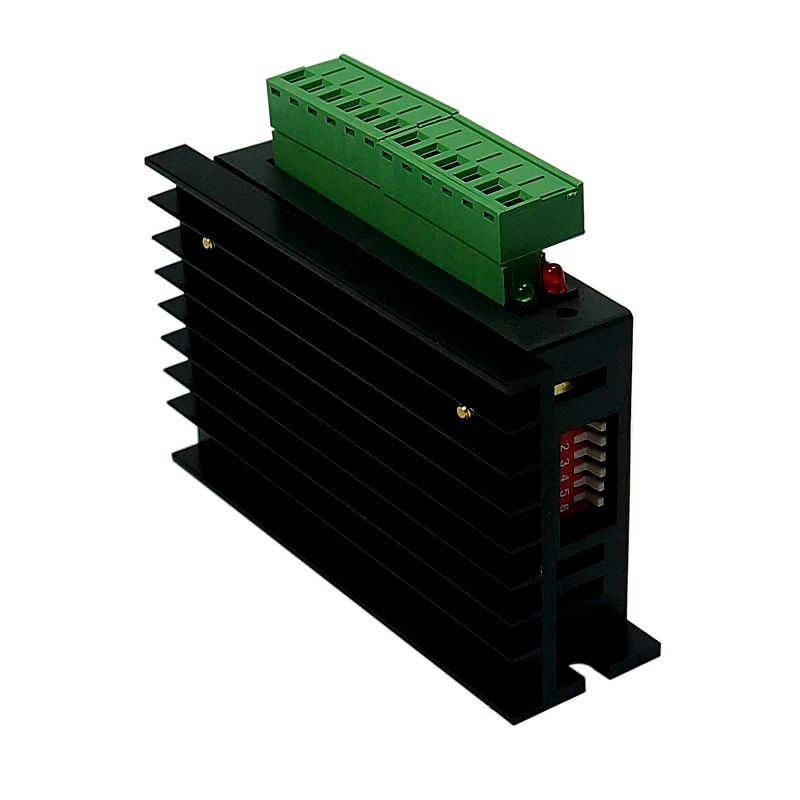

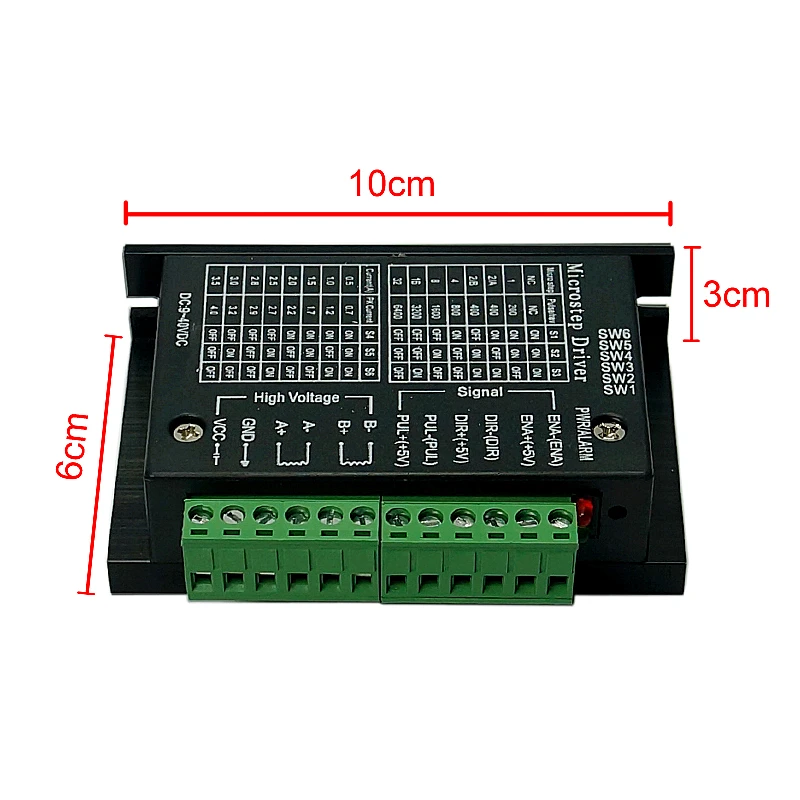

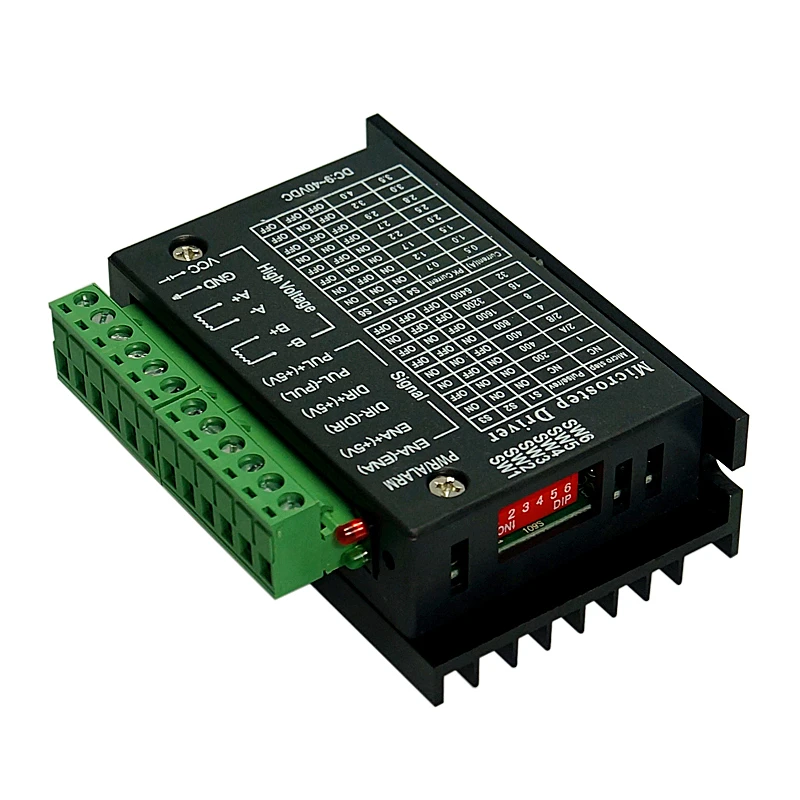

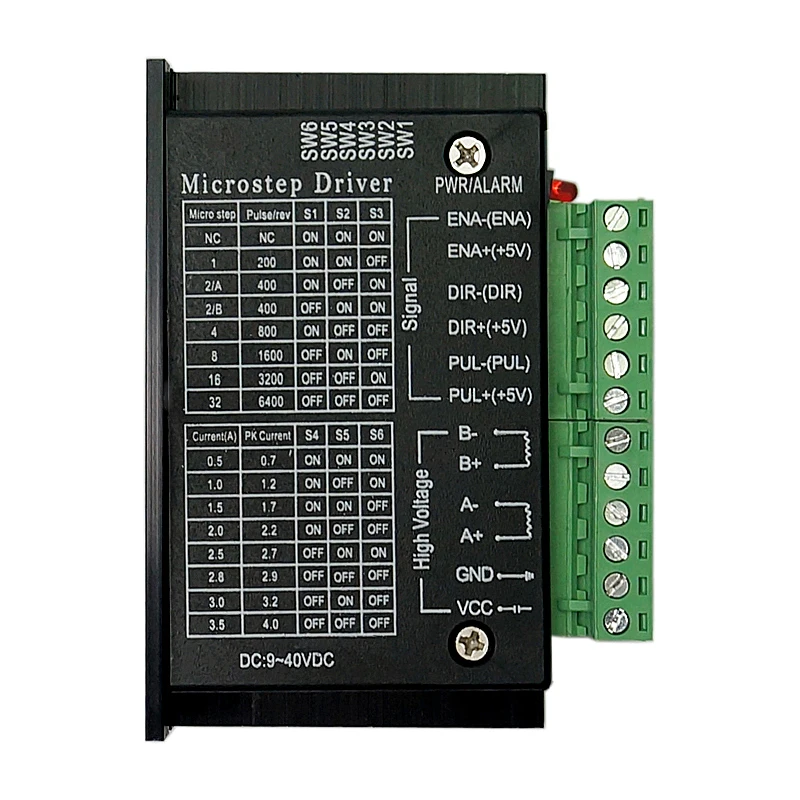

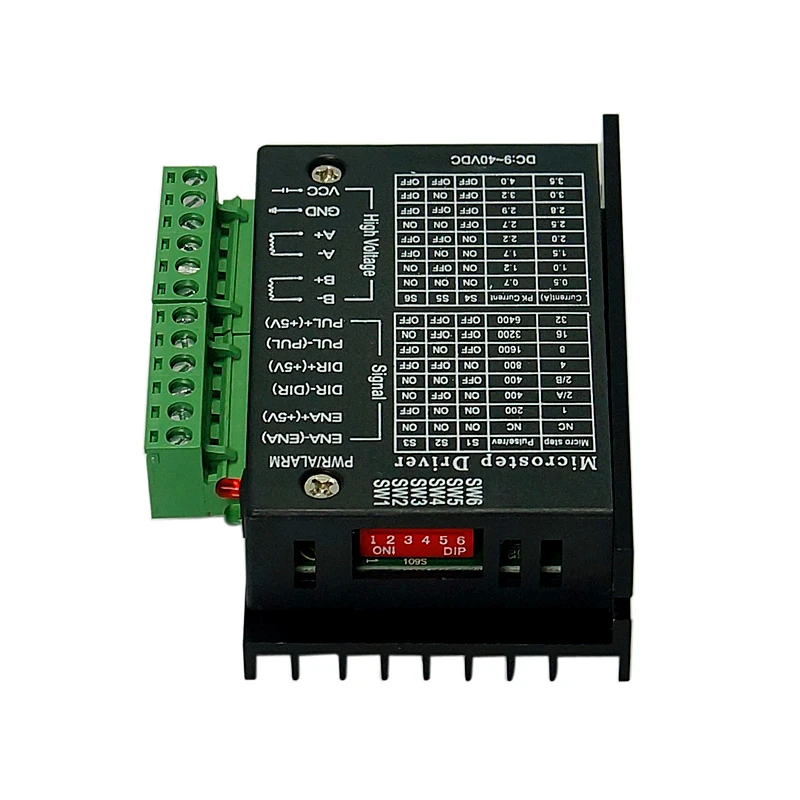

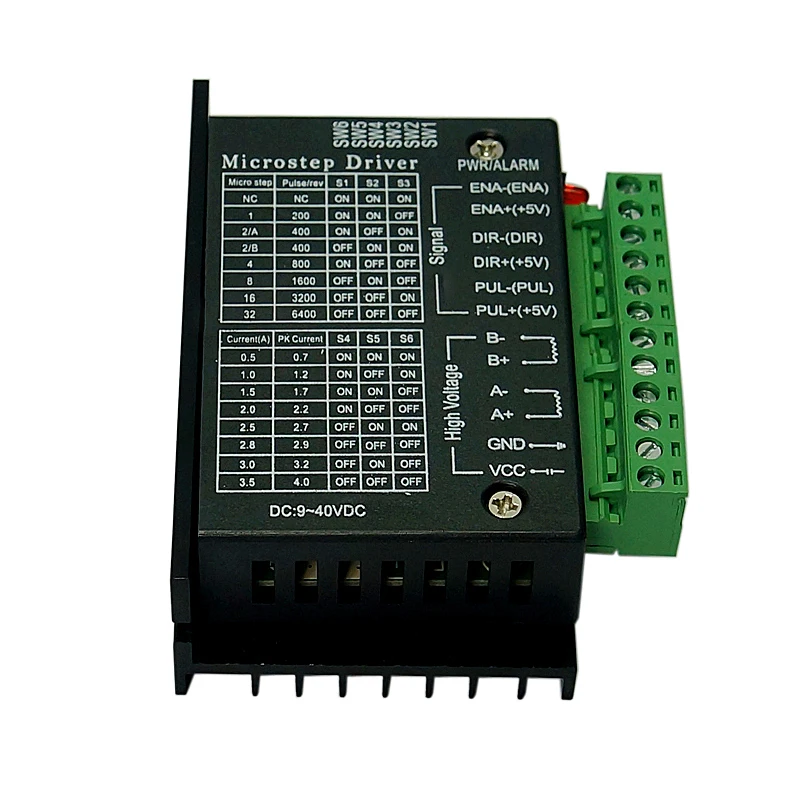

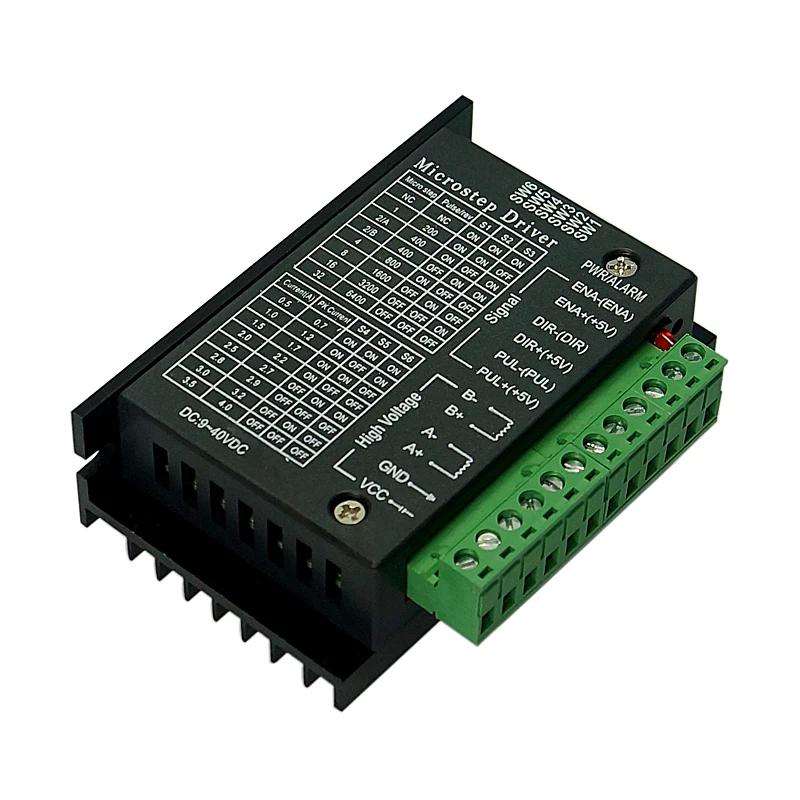

4.0A 42VDC 42/57/86 TB6600 stepper motor driver 32 segments upgraded version | Инструменты

42/57/86 TB6600 stepper motor driver 32 segments upgraded version 4.0A 42VDC

Specifications:

This drive is an upgraded version of the TB6600, the breakdown of heightening to 32 segments, for high segmentation purposes. Applicable stepper motor: 42,57,86 type of 2-phase 4-phase (4-wire 6 wire line 8)

Features:

1, 9V-42V DC power supply;

2, H-bridge bipolar constant-phase flow-driven;

3, the maximum output current of 4.0A eight optional;

4, up to 32 segments of six kinds of sub-modes available;

5, the input signal is high-speed optical isolation;

6, standard common anode single pulse interface;

7, offline hold function;

8, semi-enclosed chassis can accommodate more demanding environment;

9, provide energy semiautomatic current lock function;

10, built-in thermal protection and overcurrent protection.
