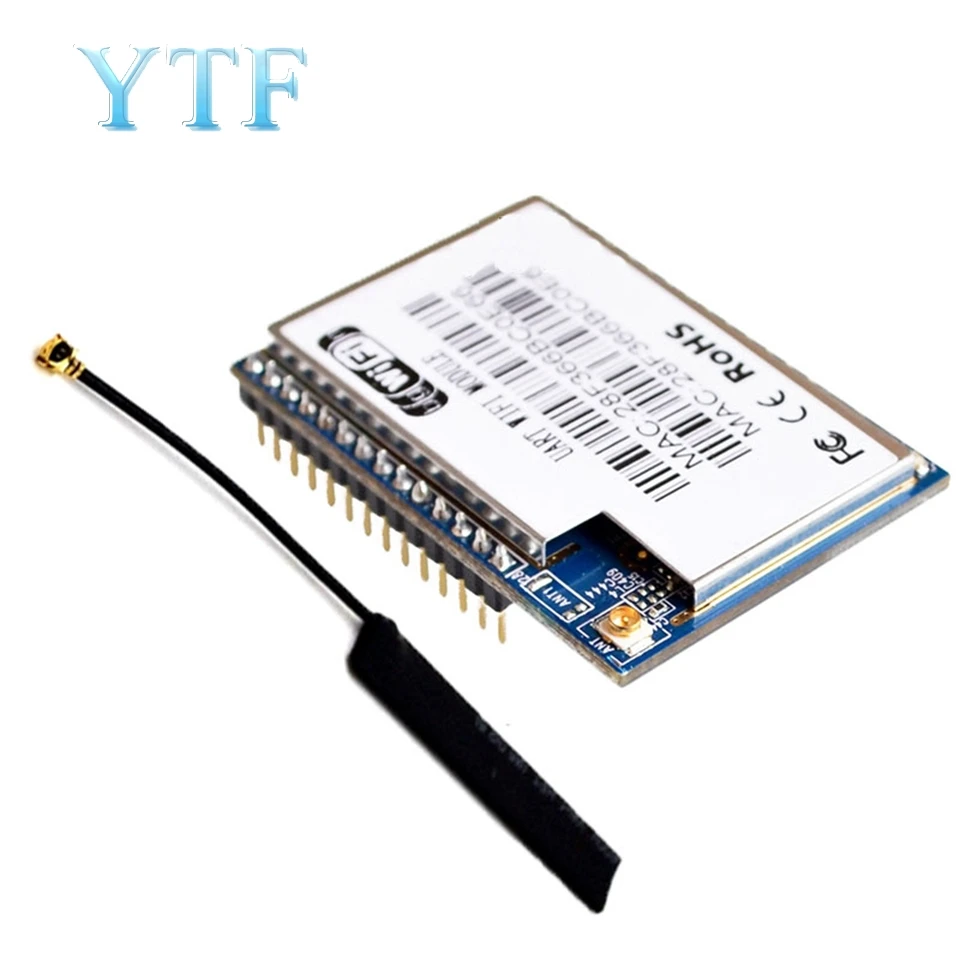

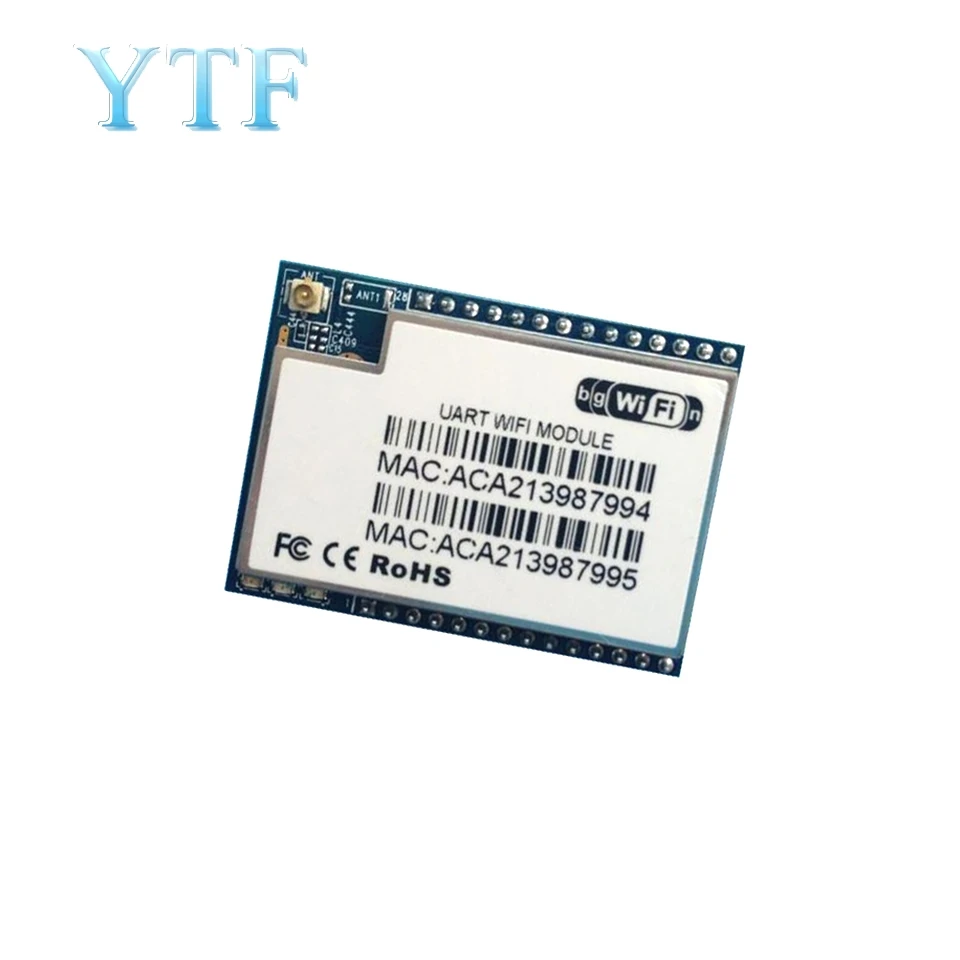

Product Overview

1, serial to WIFI module, serial to Ethernet module, Ethernet to WIFI multi-function WIFI module, serial server module, so that your serial device easy networking, transparent two-way data transmission, to ensure maximum ease of use and compatibility

2. Module integrated 10 / 100M adaptive Ethernet interface, serial communication maximum baud rate up to 230.4Kbps

3.3. Using the world's top network chip supplier Lei Ling ralink program, raw materials are used TDK / / Murata and other big manufacturers, to lay a stable and reliable basis

4. Reliable system core for security and long-running system applications

5. Small size: 40 * 29 (one-third smaller than the credit card)

6. Operating temperature: Industrial grade: -25 ~ 75 ° C.

7. Built-in 360M MIPS CPU, 16M RAM and 4M FLASH and wireless baseband and RF front end and a variety of peripheral bus

8. Supports IEEE 802.11 b / g / n via CE and FCC, supports transparent protocol data transfer mode

9. support the vast majority of WIFI encryption and algorithms, WEP / WAP-PSK / WAP2-PSK / WAPI, encryption type WEP64 / WEP128 / TKIP / AES

10. Provide AT + instruction set configuration, provide a friendly Web configuration page, through the web configuration

11. Optional built-in onboard or external antenna

12. Support wireless work in AP mode and node (station) mode, the real hardware AP, support iphone mobile phone android system and all other WIFI connection, support AP and station at the same time online function

13. Optional TCP Server / TCP Client / UDP working mode, support network protocol: TCP / UDP / ARP / ICMP / HTTP / DNS / DHCP

14. Support DHCP automatically obtain IP, support the work in the AP mode for the allocation of IP from the device

15, the serial port is adjustable, the maximum support 230400

Technical specifications

Features: a full set of wireless router features:

• Support AP (wireless access point), Client (wireless client), Repeater (wireless relay), Bridge (wireless bridge), Router (wireless router) five working modes
• AP mode - default mode of operation. The device is a wireless access point in this mode, support plug and play, no configuration.
• Router mode - the device is equivalent to a wireless router, wired interface as WAN, wireless LAN. Multiple wireless clients can share a broadband line to the Internet.
• Repeater mode - the use of equipment, wireless relay function to achieve the wireless signal relay and amplification, and the formation of a new wireless coverage area, and ultimately to extend the scope of the coverage of the wireless network.
• Bridge mode - the use of equipment bridging function, first RM04 and front-end wireless network to establish a wireless connection, and then send their own wireless signal to form a new wireless coverage, can effectively solve the signal weak and signal blind spots and other wireless coverage problems.
• Client mode - the AP that works in this mode is a wireless client for the primary AP, which is equivalent to a wireless network card.


HLK-RM04 size as shown below:

1.1.1.1 pin interface

This product provides the pins shown above, as defined below:

Table 2-2 Module Pin Interface
