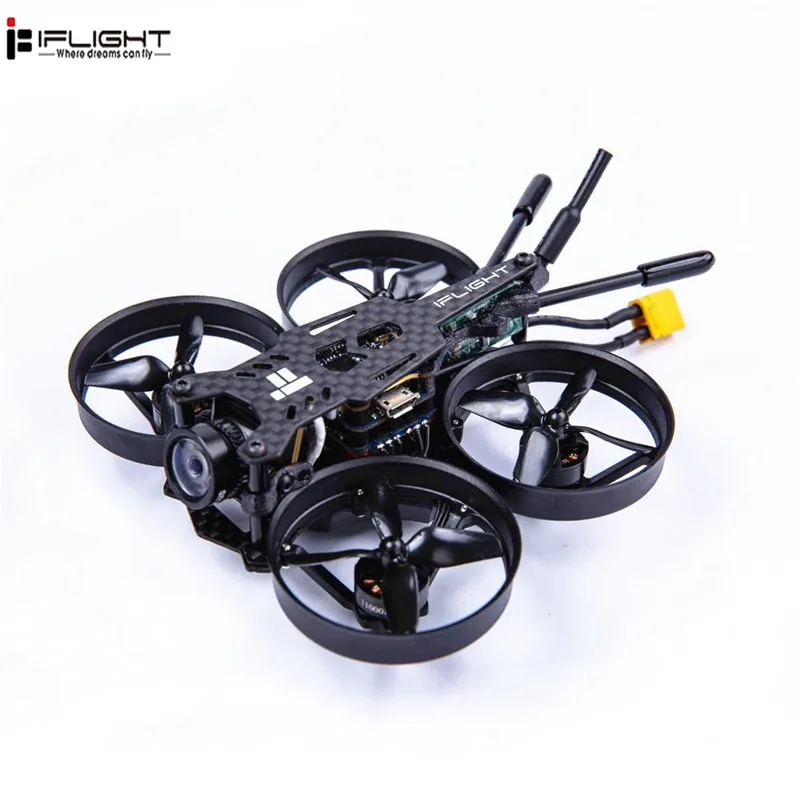

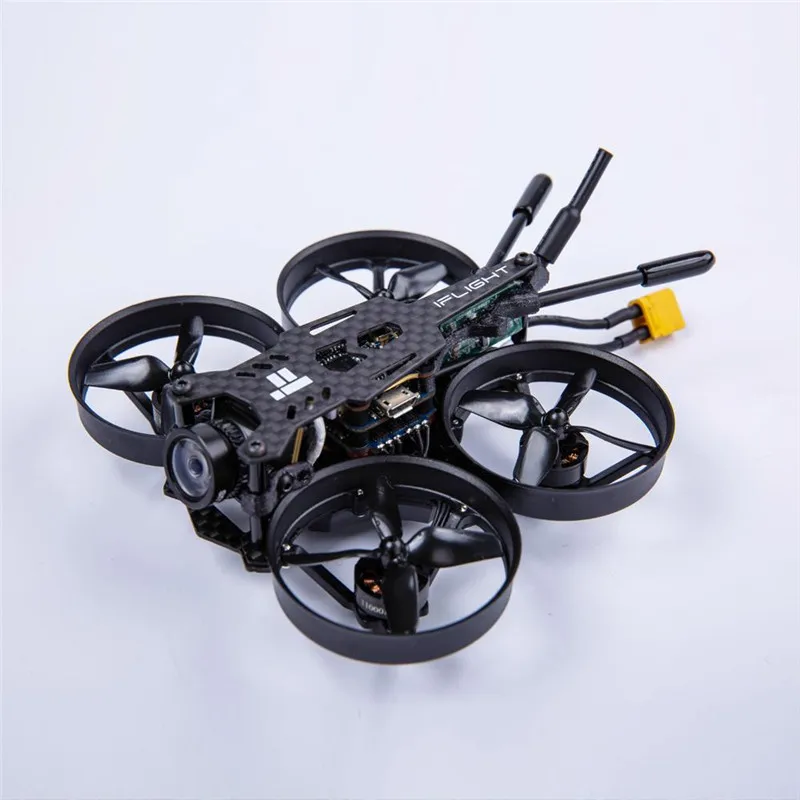

iFlight CineBee 75HD Black Version 2-3S Whoop RC FPV Racing Drone W/ SucceX mirco F4 12A 200mW Turtle V2 HD

Notes: this RC drone comes with 2-3S, but if you want to use 4S, you have to change the compatible motor.

Description:
iFlight CineBee 75HD is the latest BNF creation of mini mum weight at a spectacular performance, traditional but versatile and upgradeable design, carrying a 1080p (up to 60fps) micro cam stack and recording JELLOFREE footage flying through smallest gaps and spots. If slow cruising or fast racing, the cam angle goes from 0-55 degrees with motors from 2S-4S.

Our target was pretty clear, create a lightweight, durable but jellofree whoop that can shoot high-quality HD videos. We decided to use a combination of carbon, plastic, and TPU to have a rigid bottom plate that doesn't oscillate, with still crash resistant abilities and integrated prop guards giving the whole frame strength. The stack is soft-mounted, the cam is soft-mounted, the motors run smooth - keep your props in a good condition, and you won't have to worry about jello!

Specification:
Item name: iFlight CineBee 75HD 2S whoop
Total Dimensions: 110x93x30mm
Frame Wheelbase: 75mm
Bottom & Top Plate Thickness: 1mm
Standoff height: 22mm
Build Weight: 64.4g (without battery, receiver)
Connector: XT30
Support For Battery: 2S
Flying Time: over 3mins (battery recommend: 2S 420 mAh)
SucceX Micro 16x16 F4 2-4S Flight Control
SucceX Micro 12A 4in1 2-4S BlheliS ESC
SucceX Micro 200mW switchable VTX
iFlight 1103 2-3S motors (1.5mm shaft)
Caddx.us Turtle v2 HD FPV Cam
Receiver: Without Receiver/ FS-A8S V2/ Frsky XM+/ Frsky R-XSR/ For DSM2 For DSMX Receiver (option)
Gemfan 1635 40mm 3-blade 1.5mm props
iFlight Prop Guards 40mm

Features:
- ultra-light but high performance
- JELLOFREE durable carbon/plastic construction
- no props or prop guards in view
- upgradeable, versatile, futureproof

SucceX Mirco F4 Flight Tower System 16x16mm
SucceX F4 Flight Controller
-STM32F411
-Input voltage 2-4S LIPO
-Gyro: MPU6000
-2x UART ports
-4x motor outputs
-OSD inbuilt
-No Blackbox FLASH
-BEC 5V 2A cont.
-Size: 21mm*21mm
-Mounting holes: 16*16
-Weight: 2.5g
-BF target : MATEKF411

SucceX Mirco 12A Brushless ESC
-Firmware: BlheliS
-Input voltage : 2-4S LIPO
-Continuous current: 12A
-MCU: BB21F16G
-BEC : None
-ESC protocol: pwm, oneshot125, multishot, dshot150, 300, 600, etc.
-Size: 23mm*21mm
-Mounting hole 16*16mm
-Weight: 2.7g

SucceX Mirco VTX
-Power : PIT/25/100/200mW
-Antenna interface : IPEX (UFL)
-Telemetry: IRC Tramp
-Size: 17mm*27mm
-Mounting holes: 16*16mm
-Weight: 1.6g

insert and ejection:
-The HD cam PCB is conveniently placed under the frame, protected by a cover.
-To insert or eject please push in the and gently slide beside the security plastic guard.

Cam- and VTX control implementation:
-Both Cam and VTX can be conveniently setup on your radio and in your OSD.

Package included:
1x iFlight CineBee 75HD Frame Kit black version
1x SucceX Micro 16x16 F4 Flight Control
1x SucceX Micro 12A 4in1 BlheliS ESC
1x SucceX Micro 200mW switchable VTX
4x iFlight 1103 2-3S motors
1x Caddx.us Turtle v2 HD FPV Cam
1x Without Receiver/ FS-A8S V2/ Frsky XM+/ Frsky R-XSR/ For DSM2 For DSMX Receiver (option)
4x Gemfan 1635 40mm 3-blade 1.5mm Props
4x iFlight Prop Guards 40mm white
2x iFlight 10*100mm magic battery straps black
1x set of accessories

Return:

If item DOA(Dead of Arrival),Buyers Can return it in 14 Days,We will Replace it with New item after we receive DOA item.Please Contact us Before you sent the item back
