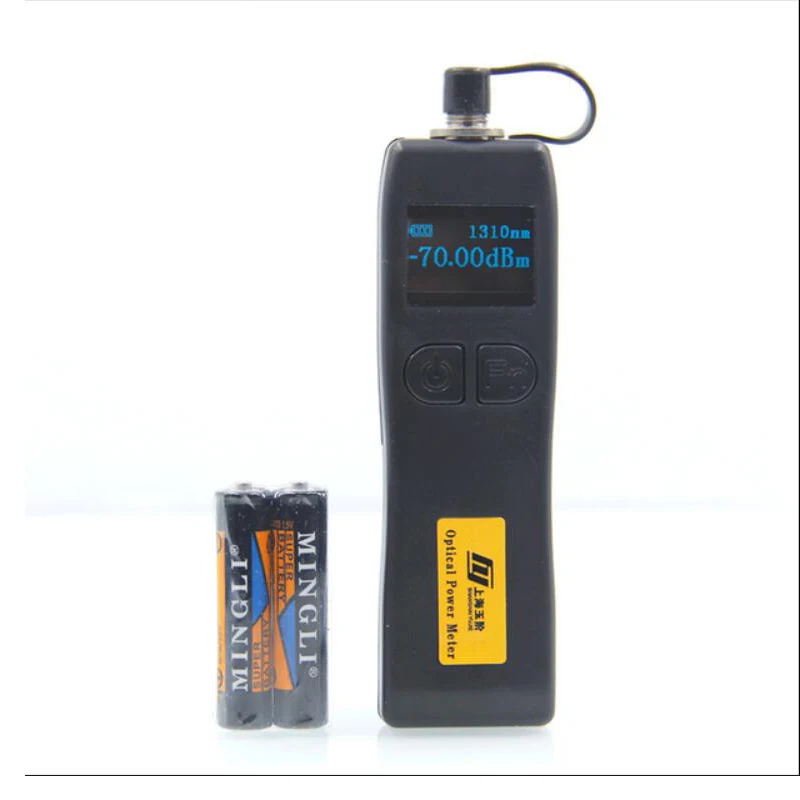

YJ320A Mini Handheld Optical Light Source 1310/1550nm Optic Laser power meter Equipments Fiber tester SC/FC/ST Connector | Мобильные
1 737,82 руб.
Новое поступление
Fiber Optical Laser Source with 1310/1550nm Wavelength SC/PC Connector Optic Light | Мобильные телефоны и аксессуары
4 525,90 руб.
Handheld MINI Fiber Optical Laser Light Source machine Hand-held stable light source Meter with 1310nm/1550nm wavelength | Мобильные
3 596,54 руб.
Волоконно-Оптический красный лазерный источник света 1310/1550nm Komshine KLS-25M-S тестер FTTX
3 966,77 руб.
FTTH инструмент волоконно-оптический лазерный 1310/1550nm красный 15
3 445,43 руб.
Ручной JW3116 оптический источник света 1310/1550nm одиночный режим
8 312,09 руб.
1550nm DFB лазерный фотодиод устройство коаксиальный Пигтейл типа посылка FC/APC разъем
5 178,72 руб.
Ручной фотоаппарат мини-оптоволоконный источник света 1310 нм двойная длина волны
4 609,01 руб.
Характеристики
TM70B PON Fiber Optical Power Meter Wavelength 1310/1490 1550nm Optic Tester Laser power meter | Мобильные телефоны и
История изменения цены
*Текущая стоимость 9 671,37 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-05-2026 | 12282.39 руб. | 12528.29 руб. | 12405 руб. |
| Feb-05-2026 | 9961.64 руб. | 10160.8 руб. | 10060.5 руб. |
| Jan-05-2026 | 12089.89 руб. | 12331.53 руб. | 12210 руб. |
| Dec-05-2025 | 11992.90 руб. | 12232.35 руб. | 12112 руб. |
| Nov-05-2025 | 9574.33 руб. | 9765.62 руб. | 9669.5 руб. |
| Oct-05-2025 | 11799.42 руб. | 12035.45 руб. | 11917 руб. |
| Sep-05-2025 | 11702.7 руб. | 11936.19 руб. | 11819 руб. |
| Aug-05-2025 | 11605.63 руб. | 11837.26 руб. | 11721 руб. |
Описание товара

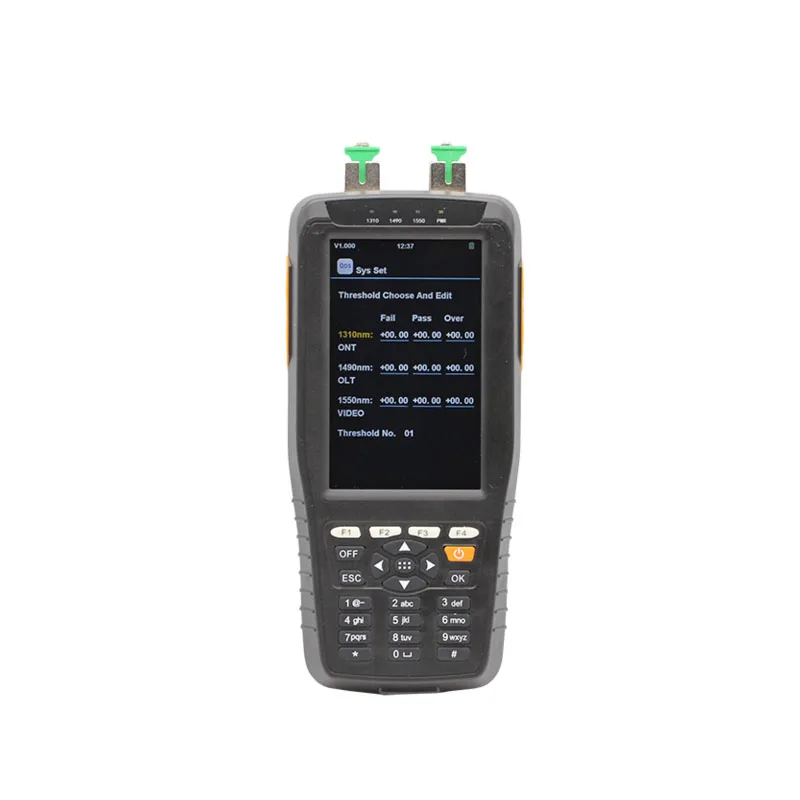

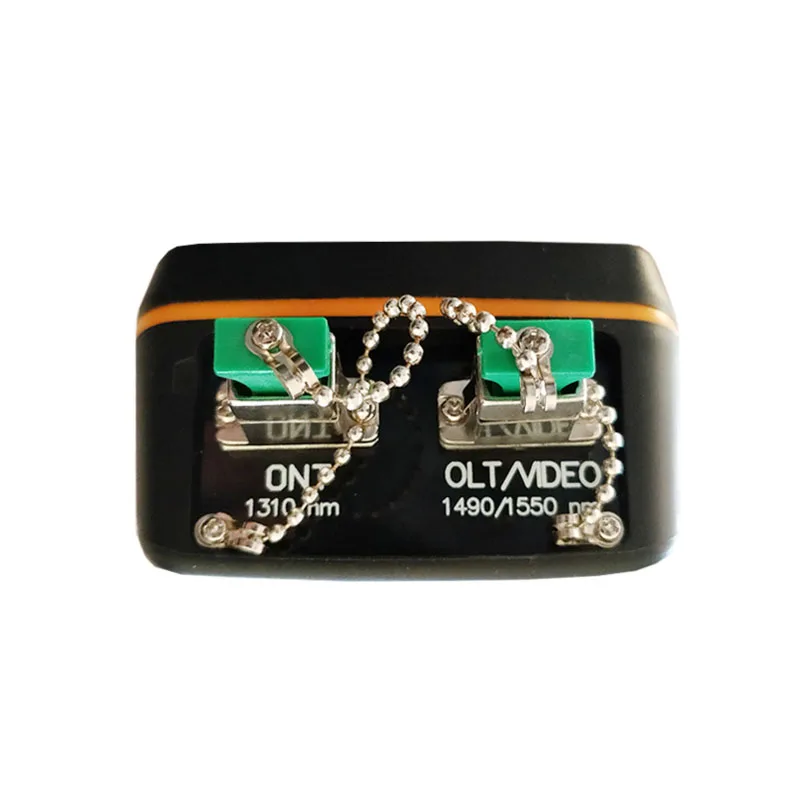

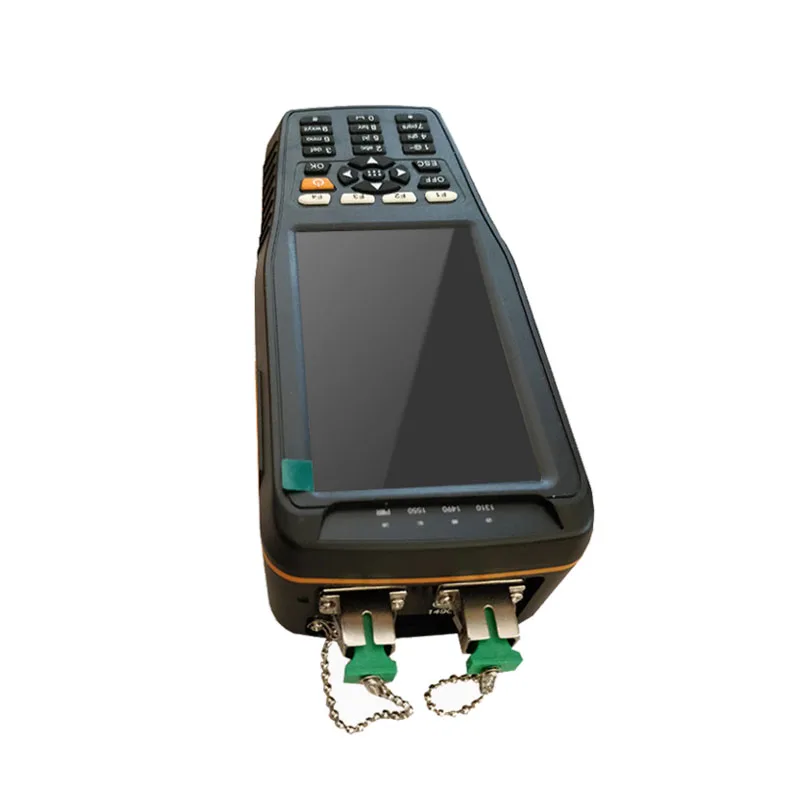

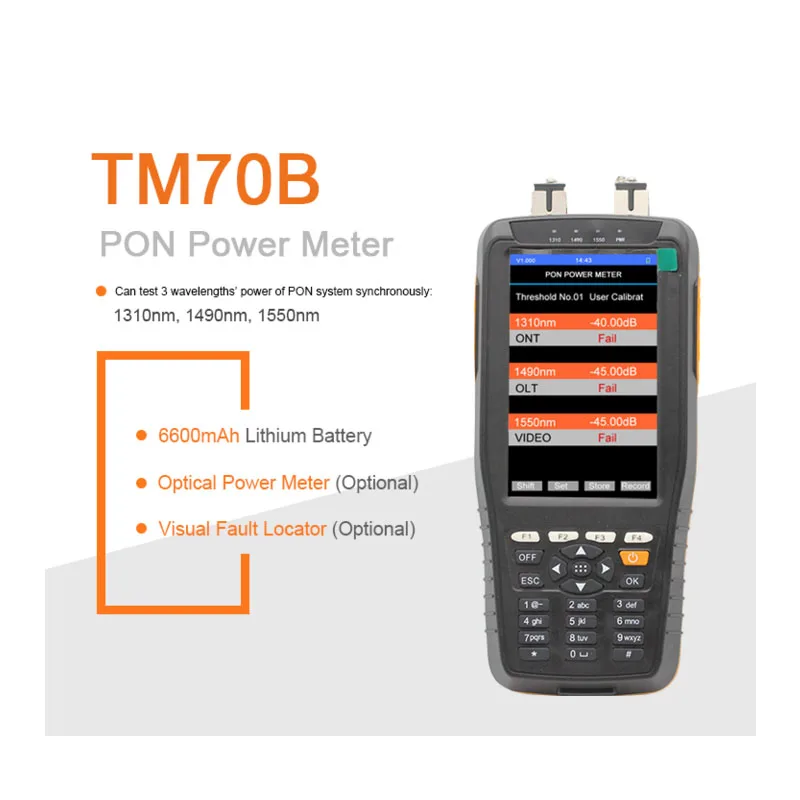

TM70B PON Fiber Optical Power Meter PON Power Meter Wavelength 1310/1490 1550nm TM70B Fiber Optic Tester TM70B Laser power meter
PON Power Meter:
|
Standard wavelengths |
1310 |
1490 |
1550 |
|
(upstream) |
(downstream) |
(downstream) |
|
|
Pass zone(nm) |
1260~1360 |
1470~1505 |
1535~1570 |
|
Range(dBm) |
-50~+10 |
-50~+10 |
-45~+23 |
|
Isolation @1310nm(dB) |
>40 |
>40 |
|
|
Isolation @1490nm(dB) |
>40 |
>40 |
|
|
Isolation @1550nm(dB) |
>40 |
>40 |
|
|
Accuracy |
|||
|
Uncertainty(dB) |
±0.5 |
||
|
Polarization Dependent Loss (dB) |
<±0.25 |
||
|
Linearity(dB) |
±0.1 |
||
|
Through Insertion Loss(dB) |
<1.5 |
||
|
Resolution |
0.01dB |
||
|
Unit |
dBm/xW |
||
LCD: 480*800, True color touch screen
Battery: 3.7V 6600mAH rechargeable Lithium battery
Working temperature: -10~60°C
Storage Temperature: -25~70°C
Dimensions(mm) : 185*80*50
Weight(g): about 370g
Features:
1. Handheld, easy to operate 2. Can test 3 wavelengths’ power of PON system synchronously: 1310nm, 1490nm, 1550nm, 3. Can test the burst mode signal of 1310nm 4. True color screen 5. Friendly operation interface, human message management and operation function 6. Supply 10 groups of threshold values for operator’s choice, analyze and display pass and fail status 7. Relative value choice and edit function 8. Can set the threshold value, upload data, and calibrate wavelength through management software 9. Auto shut off (according to set value) 10. Auto backlight off(according to set value) 11. 6600mAh Lithium battery 12. Power saving design (Low voltage self check and power off) 13. Real-time clock display 14. Optical Power Meter （Optional Function) 15. Visual Fault Locator ( Optional Function )
