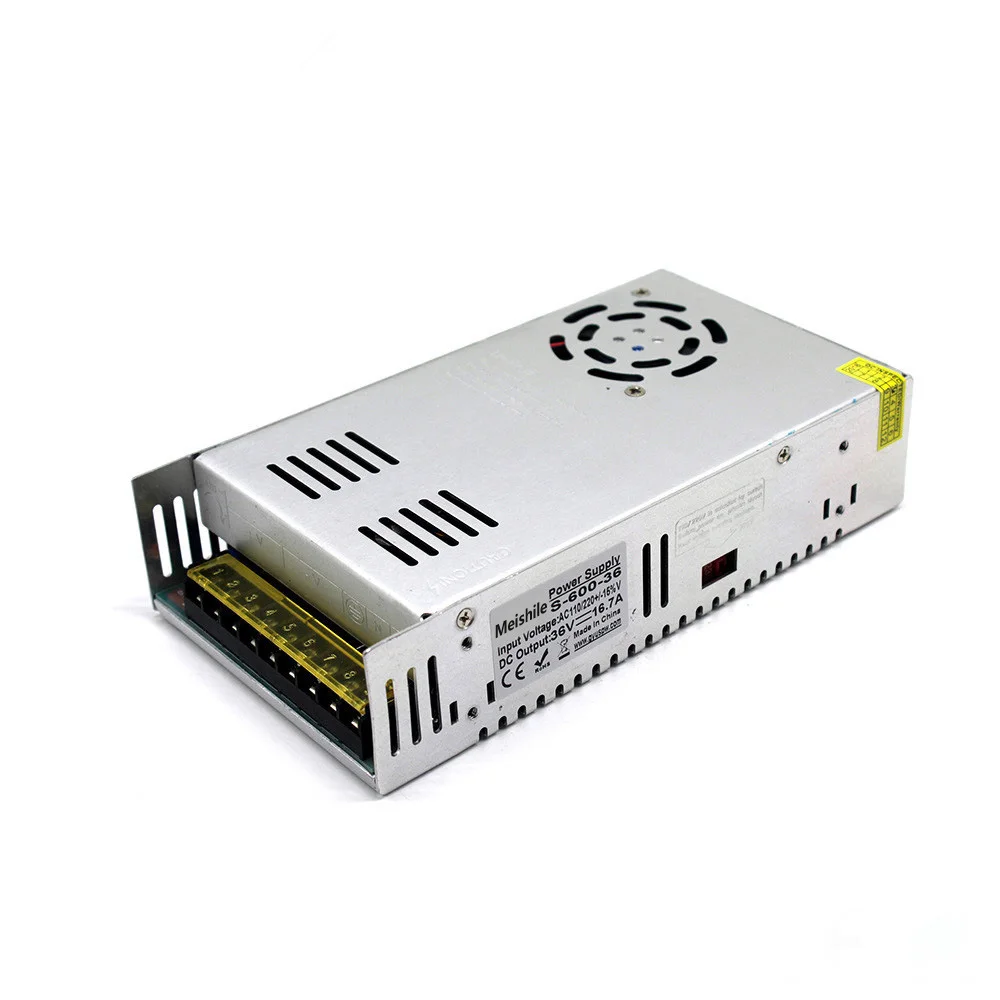

DC 36V 16.7A 600W LED Light Belt Driver Switching Power Supply 110V 220V AC Constant Voltage Transformer Monitoring CCTV CNC |

DC 36V 16.7A 600W LED Light Belt Driver Switching Power Supply 110V 220V AC Constant Voltage Transformer Monitoring CCTV CNC |

• 1.Our products is factory direct sales, the price and quality are guaranteed.
• 2.The products of our store have a large of stock, if your order is urgent, please contact our customer service, we will ship to you with in 24 hours.
• 3.The products of our store are all new, all products are in actual power. Please trust to purchase.
• 4.Our default voltage is 110/220V, if you need different voltage, pls remark the voltage needed and tell us by Email.
• 5.We will try our best to avoid the products damaged during transit. But if this happened please kindly understanding and support us.
• 6.Please contact our customer service if the products have quality problem, we will help to solve your problem. If you need to turn back to our factory to maintain, you need to pay for the transit fare-- return back. And we will pay for the transit fare--after finished maintain.

Cautions:

• Please calculate actual power before using product to make sure its lifespan. It ‘s suggested that total power consumption of the loads to be connected be not more than 80% of the rate power of product

DC Output Range: 36V ,   0～16.7A

Rated Power:  16.7A/600 Watt

Input voltage: 110V/220V  ±15% (95-140V,180-260V)

Range Of Difference:±1%

Efficiency: >80%

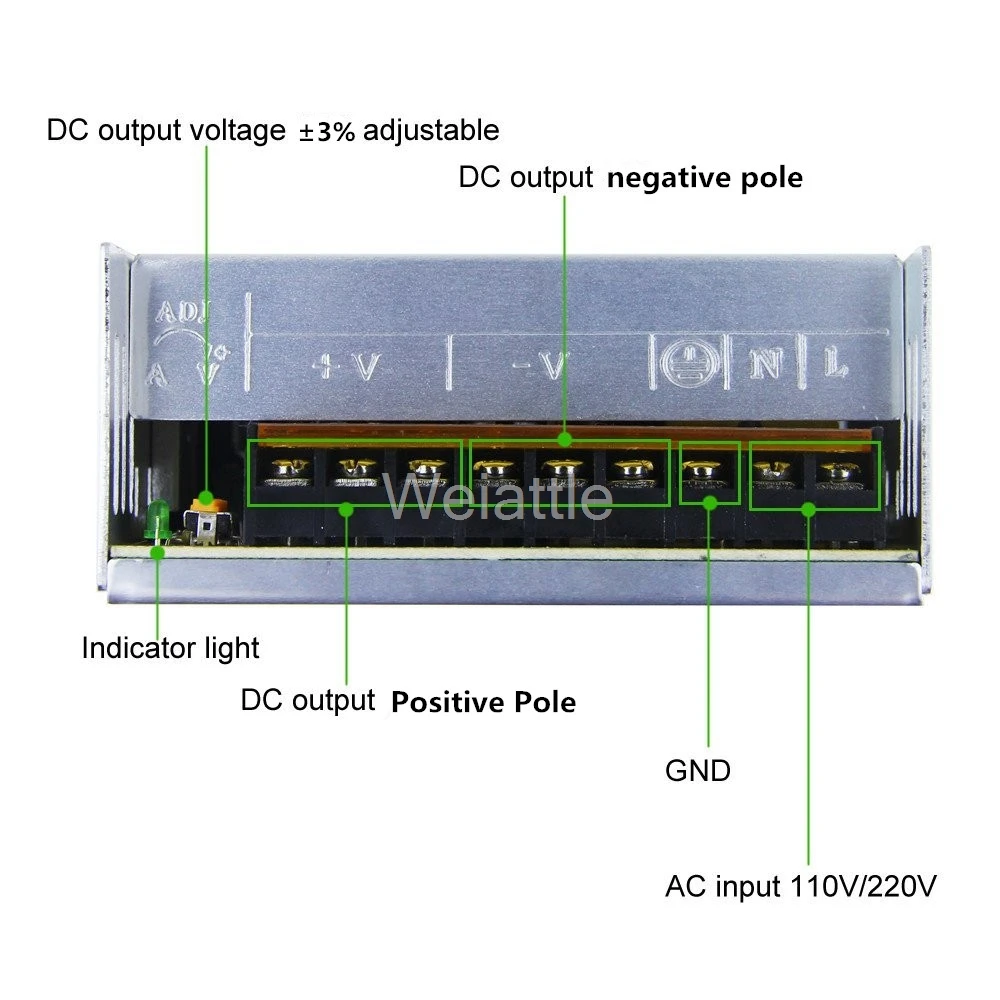

Output adjustable voltage range: ±3%

Frequency: 50-60Hz

Leakage current: <1mA/230V

Temperature coefficient: ±0.03%/°(0～50°)

Start, rise, hold time 200ms, 50ms, 20ms

Seismic resistance: 10～500Hz,2G 10min, /1 cycle, time 60 points, each axis

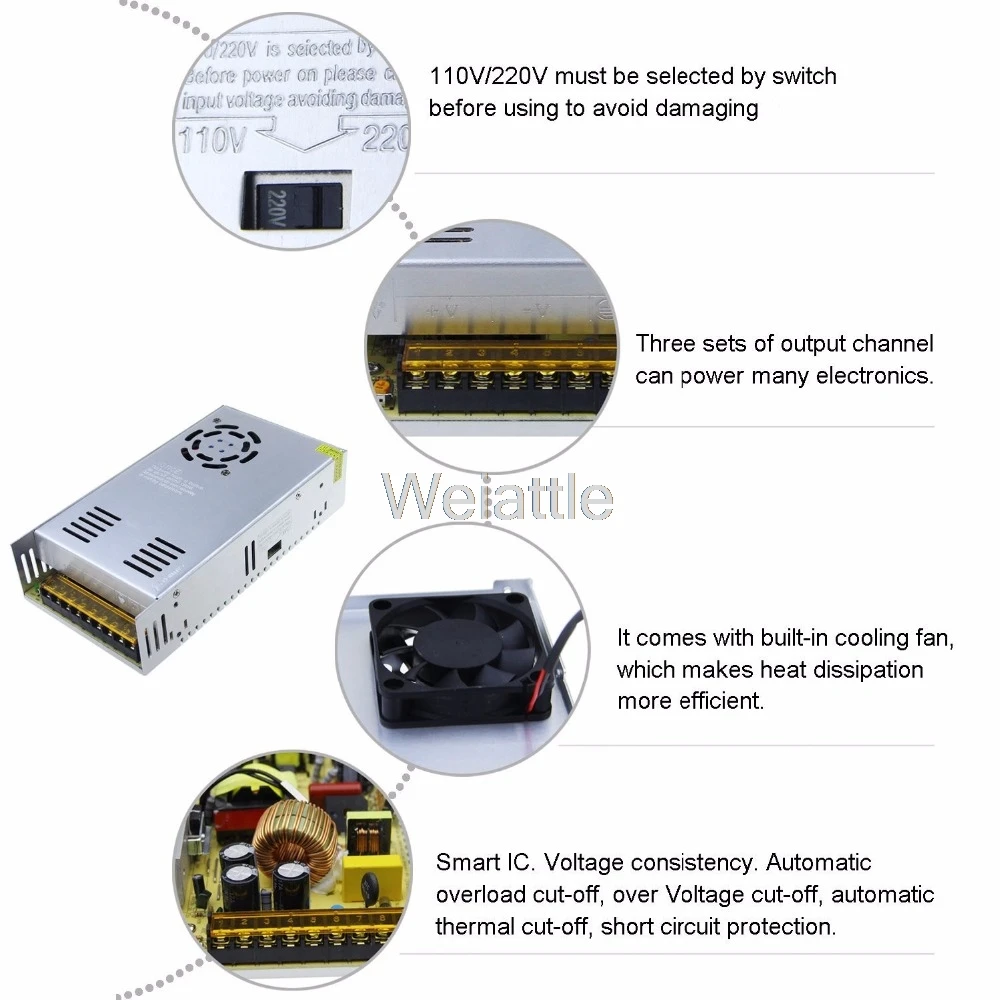

Protection: overload, overvoltage, overcurrent, short circuit protection

Pressure resistance between input and output 1.5KvAC input and shell; 1.5KvAC output and shell; 0.5KvAC

The working temperature and humidity are between -10 and +60, and the temperature ranges from 20% to 90%RH

The storage temperature and humidity are -20 ~ +85, 10% ~ 95%RH

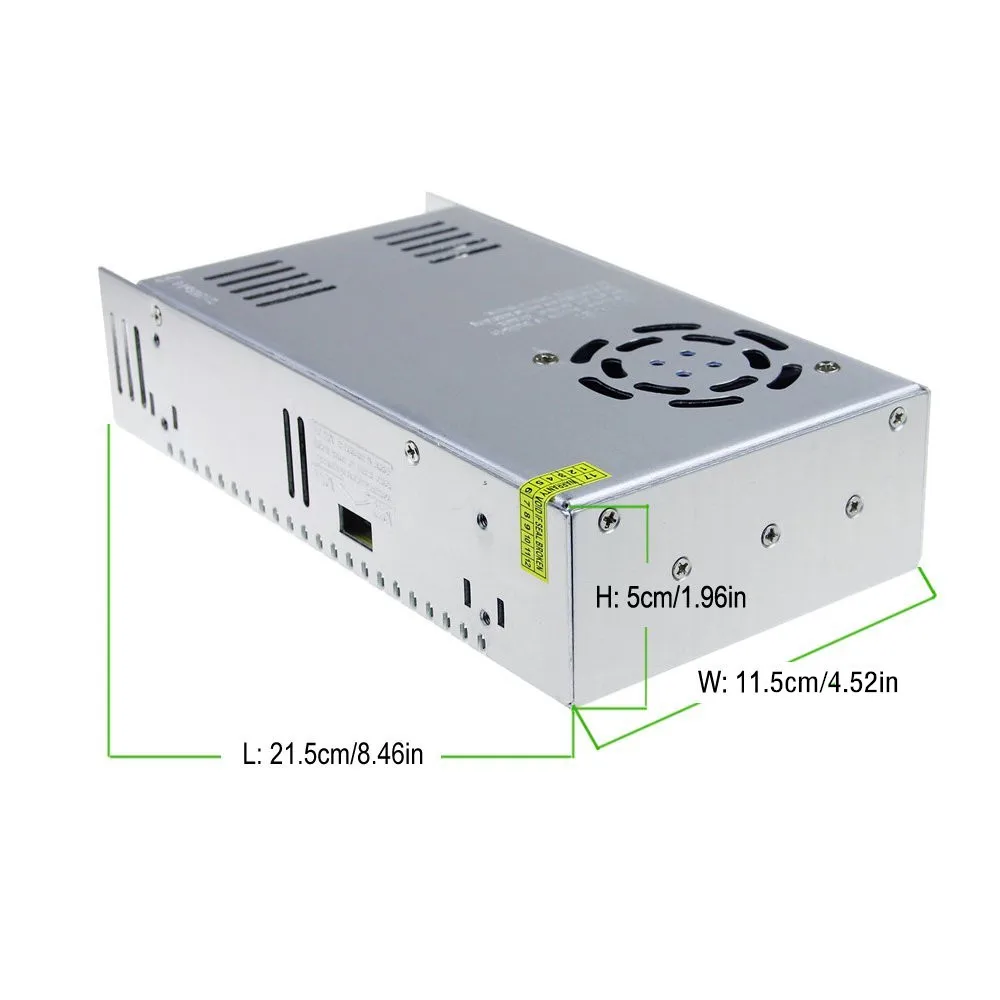

Product Size:  215*115*50mm

Product Weight: 0.9kg

Do not disassemble the power box, dismantle the power without authorization, do not guarantee it.
