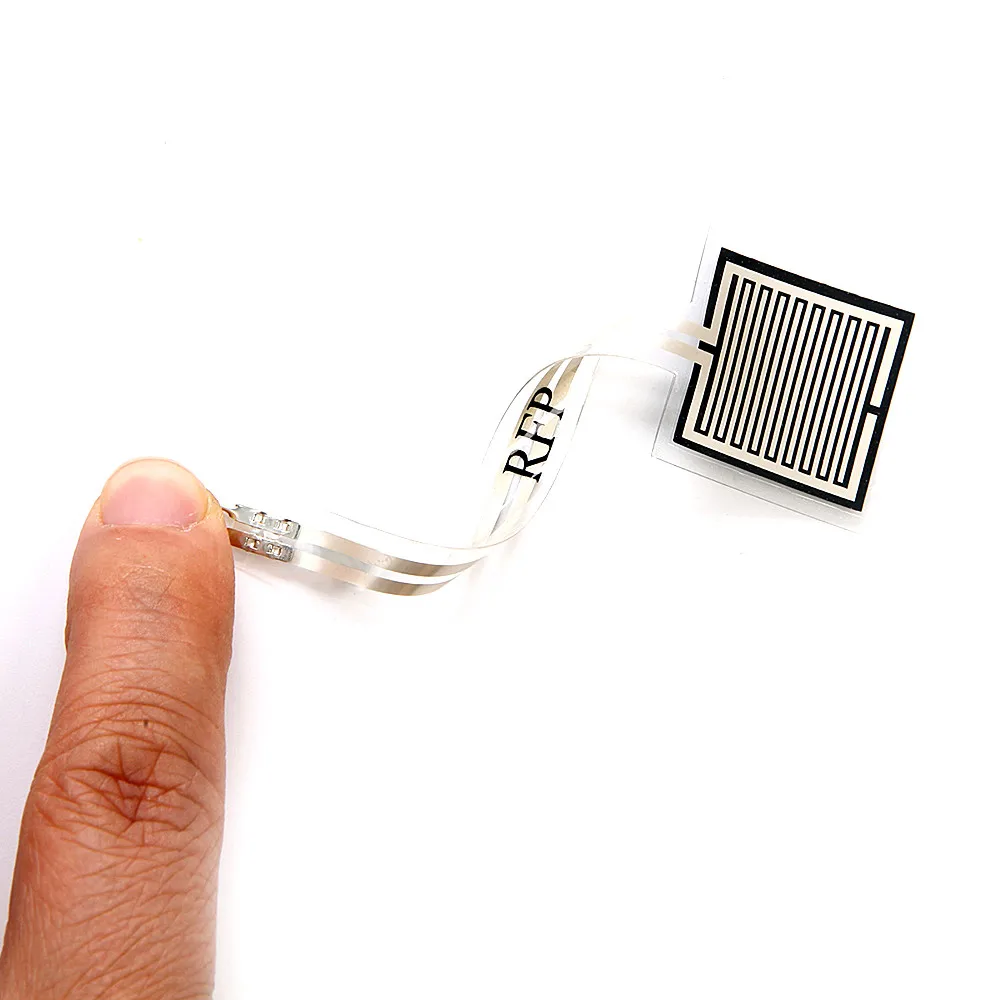

Thin film pressure sensor ultra-thin cushion foot distribution switch can be customized RFP611 500g Range |

Thin film pressure sensor ultra-thin cushion foot distribution switch can be customized RFP611 500g Range |

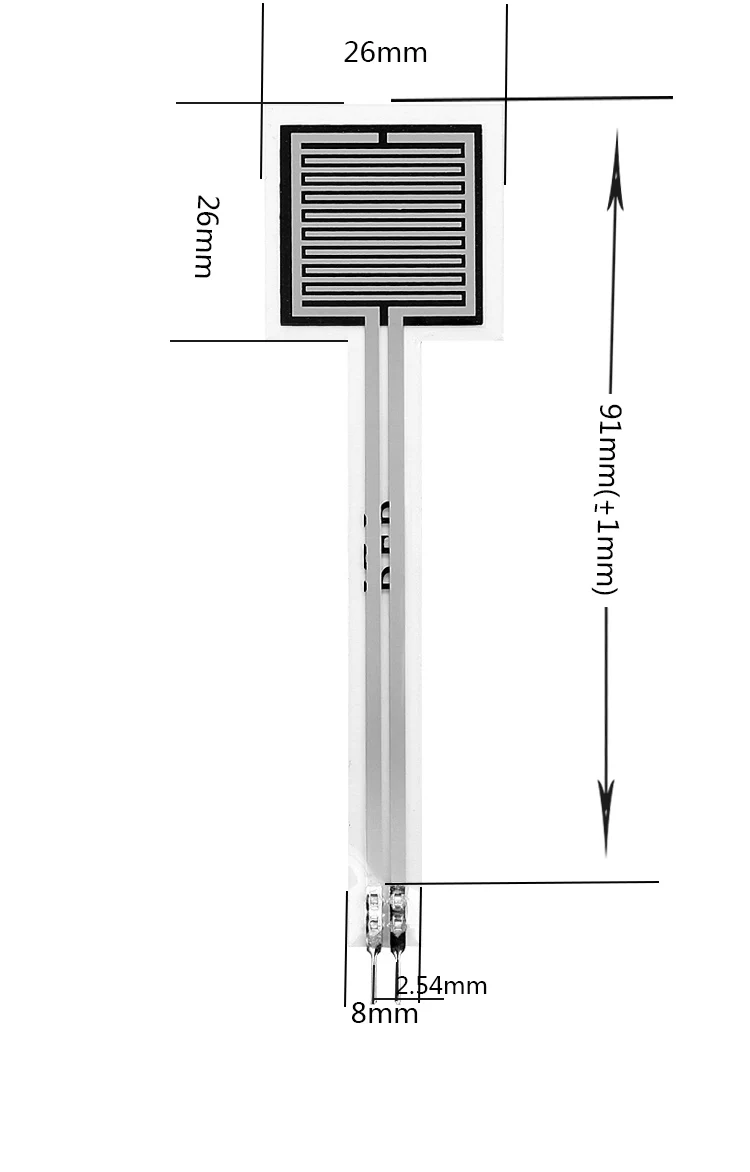

The products are divided into different ranges, please select according to the application scenario, the link is the price of 500g range. For other ranges, please contact customer service.   The ranges are: 100g, 500g, 1kg, 2kg, 5kg, 10kg, 20kg, 50kg. Product introduction: The RFP membrane pressure sensor can measure the pressure of any contact surface statically and dynamically. The membrane pressure sensor converts the pressure applied to the sensing area of ​​the sensor into a resistance signal, and then obtains the change of external pressure according to the calibration curve of the force-resistance. Information, the greater the pressure, the lower the resistance of the sensor output.         The RFP film pressure sensor is only 0.1mm-0.2mm thick and is very flexible, thus creating better conditions for measuring the pressure between various contact surfaces. Compared with traditional measurement methods, this is an economical, efficient, accurate, fast, intuitive and convenient pressure distribution measurement tool.        The standard RFP pressure sensor consists of two very thin polyester films with conductors and semiconductors placed inside the film. When an external force acts on the sensing point, its resistance will change regularly with the external force. When the pressure is zero, the resistance is the largest, and the higher the pressure, the smaller the resistance. Different spatial resolutions can be achieved by placing sensor points of different densities in different places. Different sensor areas and spatial resolutions can meet a variety of different measurement requirements.       Sensor name RFP film pressure sensor   model RFP-611   sensor type Single point   Sensitive area shape Square   Sensitive area size 26*26mm (±1mm)   Total length of sensor 91mm (±1mm)   Sensor lead length The longest is 65mm (±1mm), the shortest is 10mm (±1mm) (short contact needs to contact customer service)   Sensor thickness 0.2mm   Film material Polyester   Range Optional   Terminal type Male terminal (please contact customer service for the female terminal)   Sensor principle Piezoresistive   Service life More than 500,000 times   Response time Us level   Operating temperature -25°C~70°C
